Slip Indicator Light Circuit

Slip Indicator Light Circuit

DESCRIPTION
The SLIP indicator light blinks during TRAC and VSC operation.

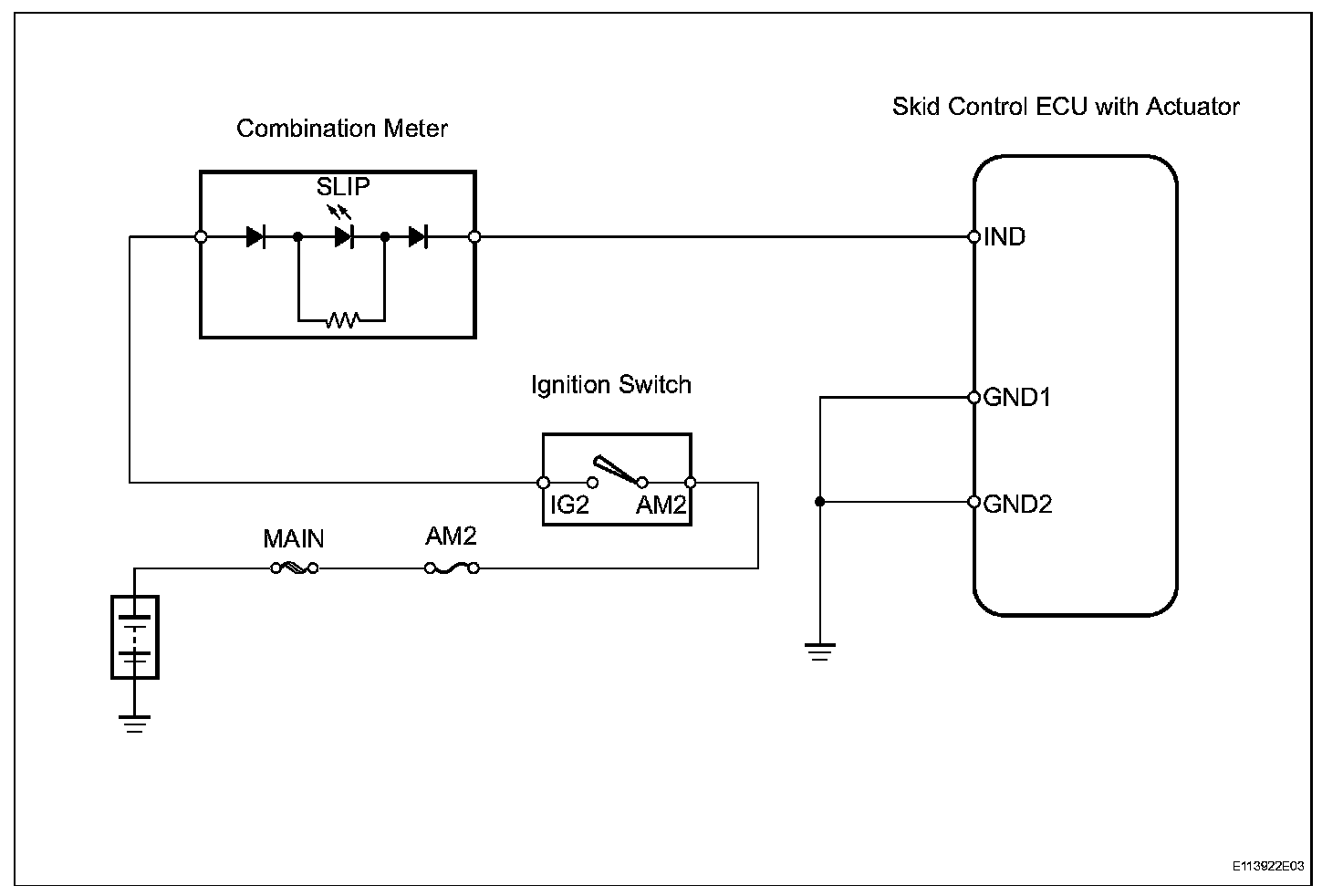

Wiring Diagram:

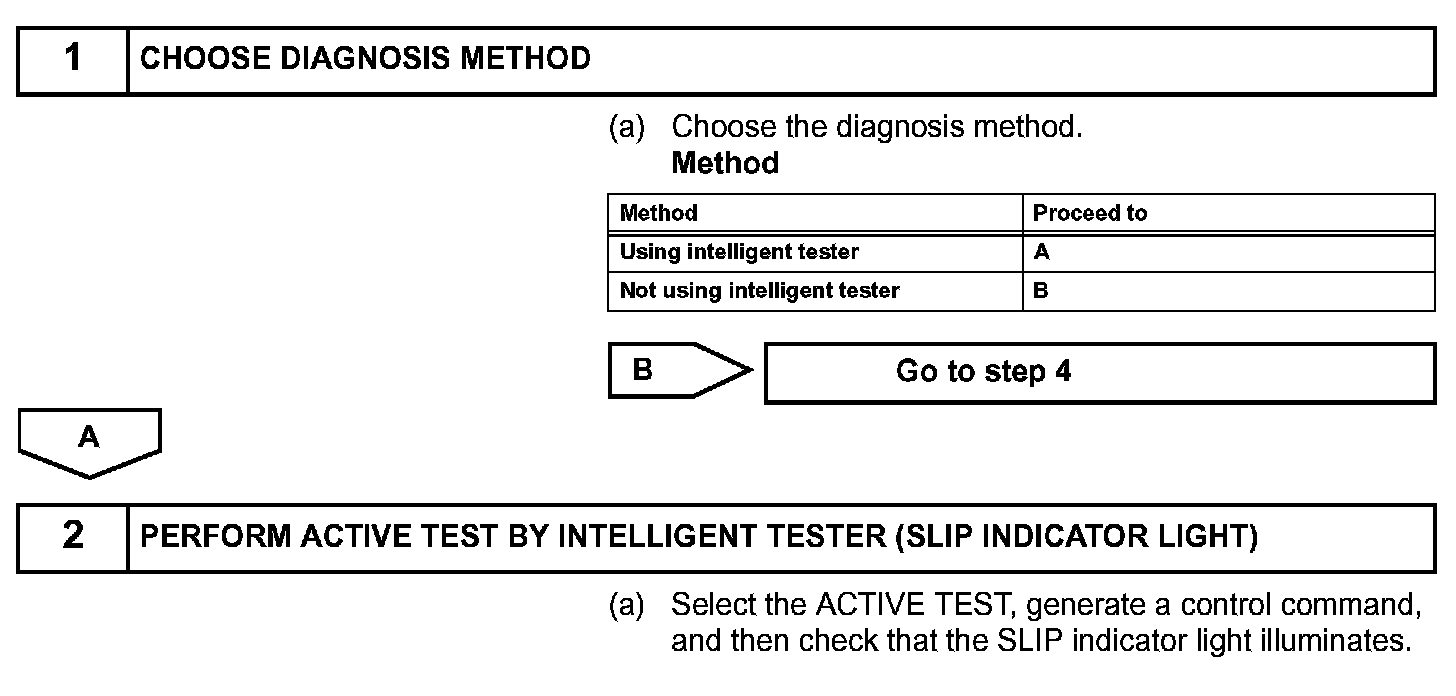

Step 1-2:

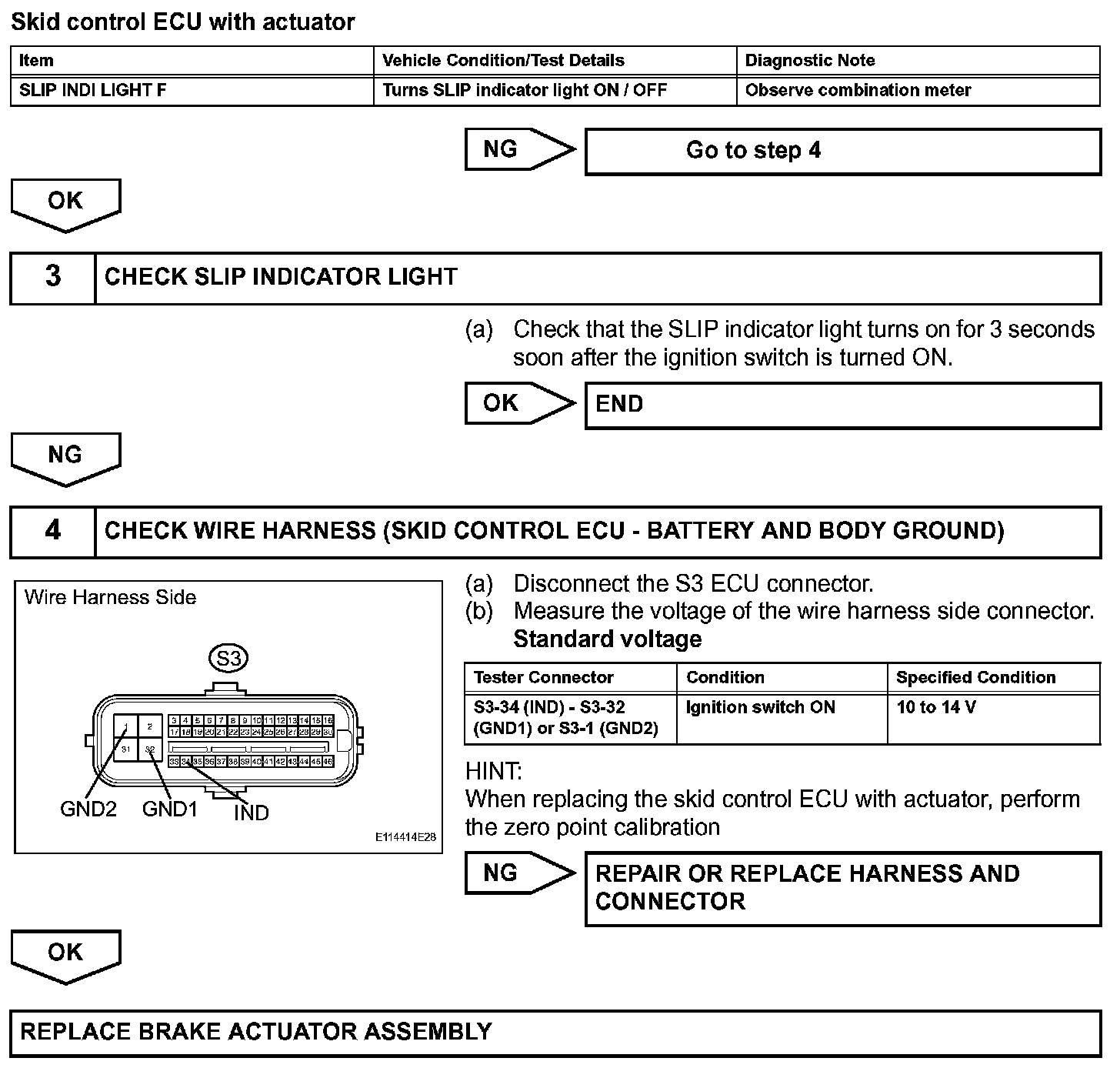

Step 2(Continued)-4:




INSPECTION PROCEDURE
