TS and CG Terminal Circuit
TS and CG Terminal CircuitDESCRIPTION
The sensor check circuit detects abnormalities in the sensor signal while they cannot be detected with the DTC check.
Connecting terminals TS and CG of the DLC 3 starts the check.

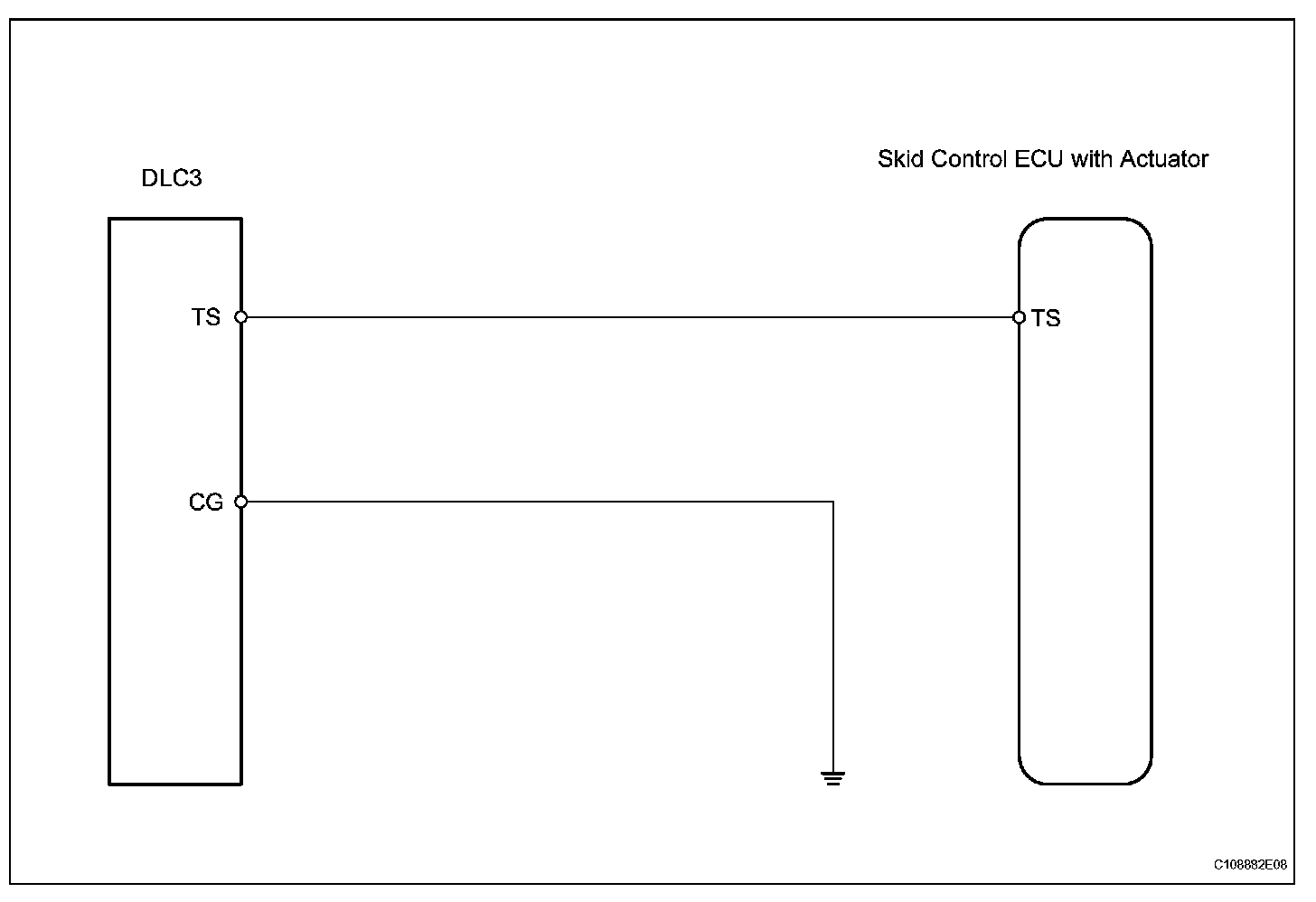

Wiring Diagram:

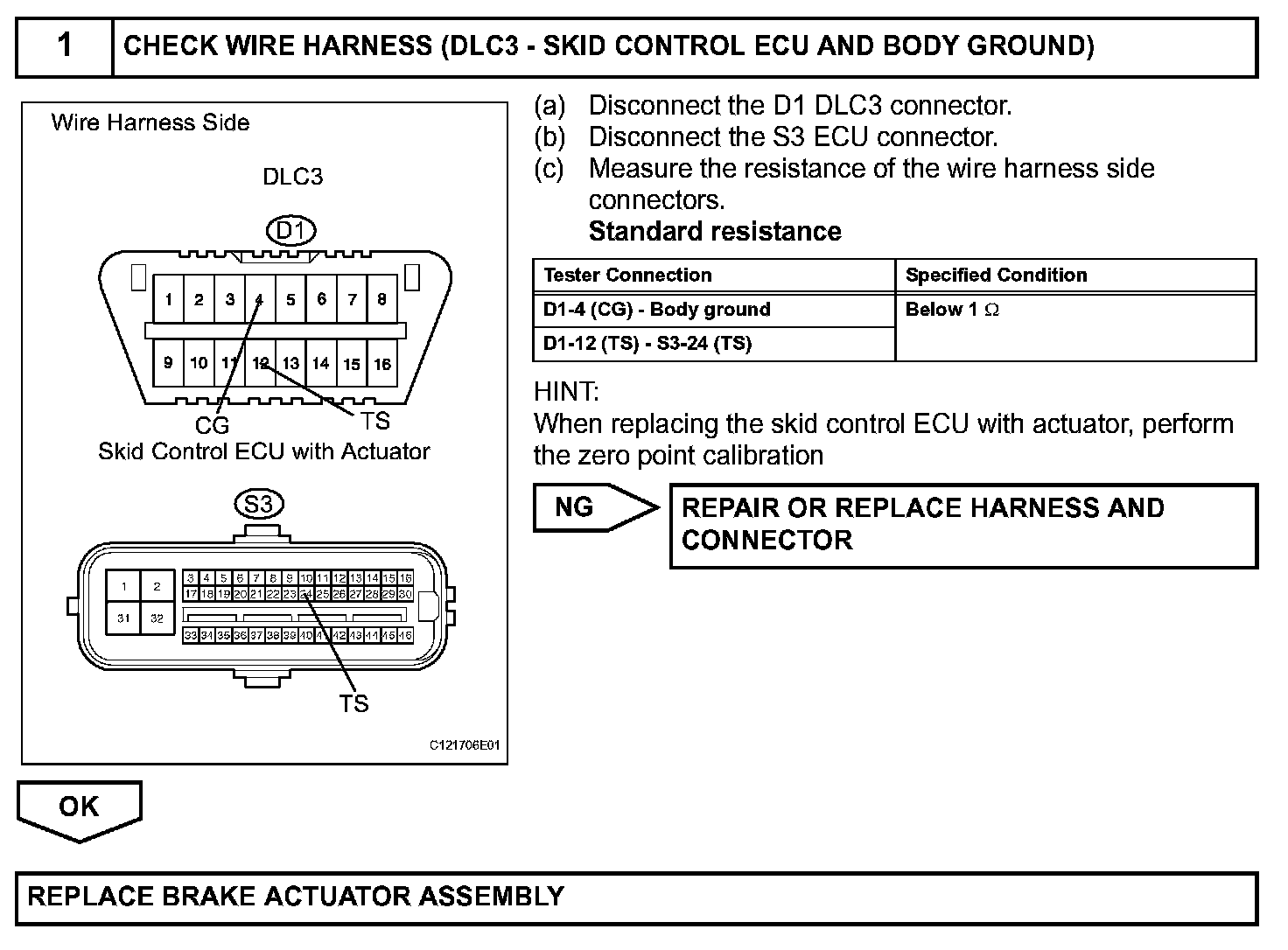

Step 1:
INSPECTION PROCEDURE
