Foamed Material Application Areas

FOAMED MATERIAL APPLICATION AREAS

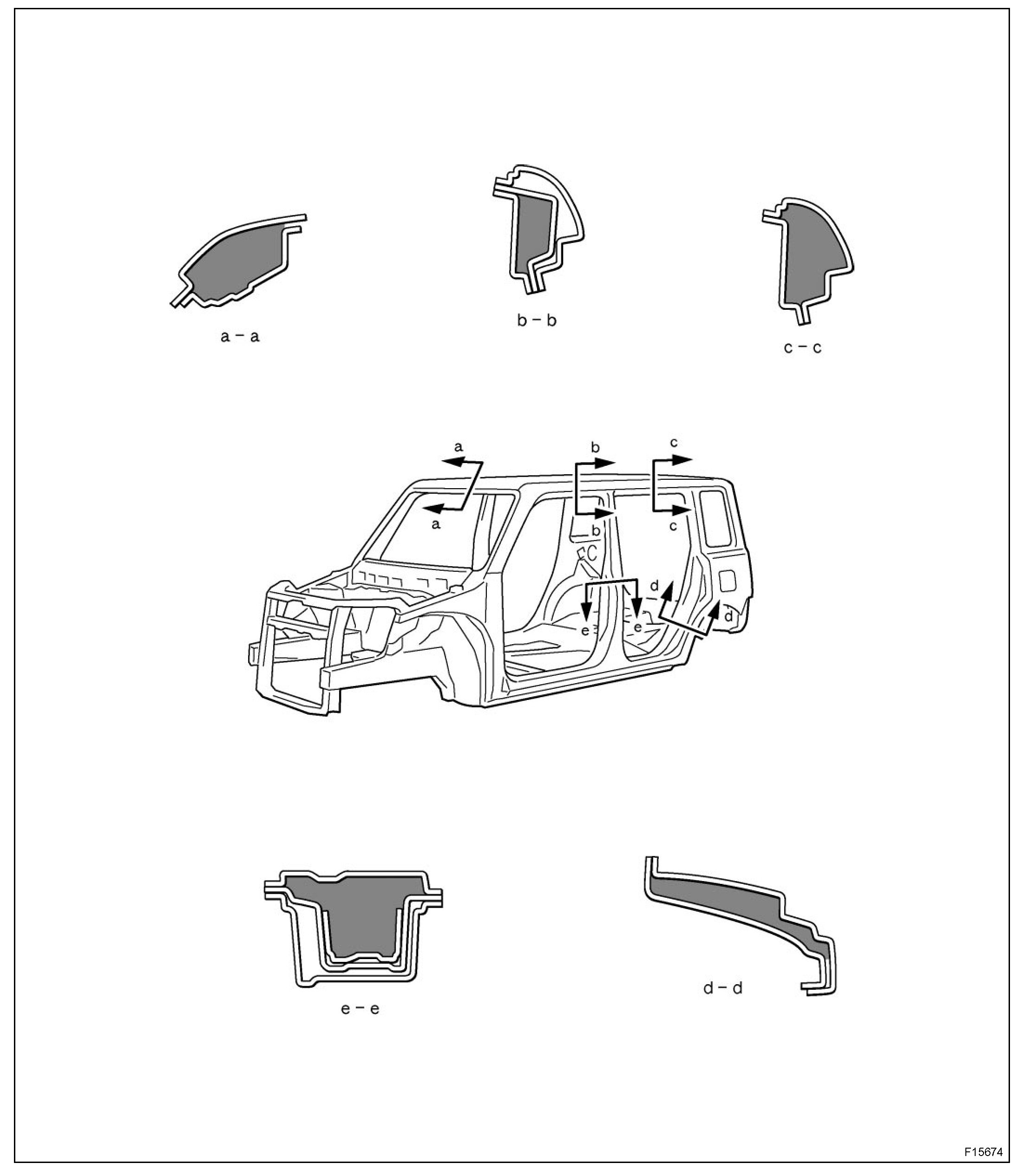

The sections shown in the figure are filled with foamed material to provide noise insulation. After repairing these sections or their peripheries, refill with foamed materials

HINT:
1. Use the service holes located on the reverse side of the body panel to refill with foamed materials.
2. When handling foamed material, follow the directions of the material's manufacturer.
