Removal and Installation
REMOVALHINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

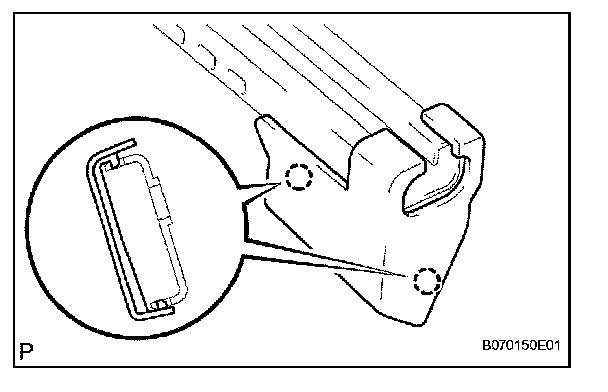

2. REMOVE SEAT TRACK OUTER COVER LH
a. Using a screwdriver, detach the 4 claws and remove the seat track outer cover.
HINT: Tape the screwdriver tip before use.

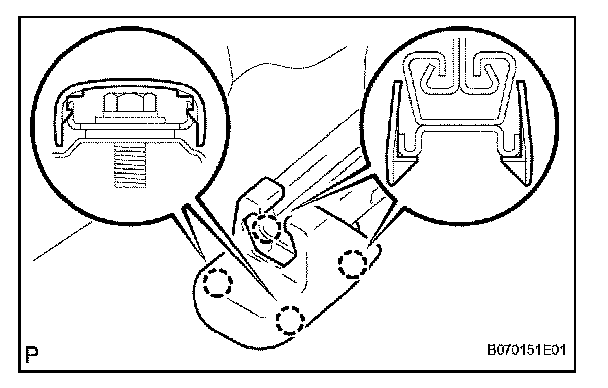

3. REMOVE SEAT TRACK BRACKET COVER INNER LH
a. Using a screwdriver, detach the 2 claws and remove the seat track bracket cover.
HINT: Tape the screwdriver tip before use.

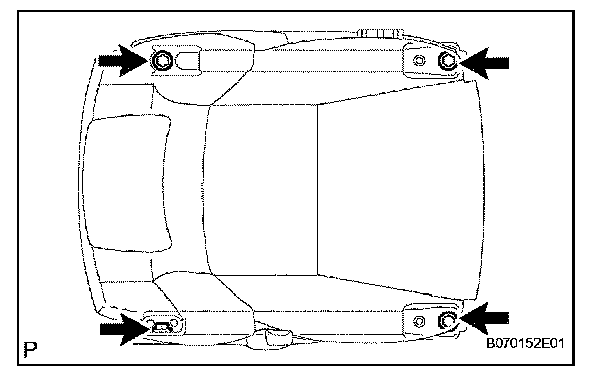

4. REMOVE FRONT SEAT ASSEMBLY
a. Remove the 4 bolts.
b. Disconnect the connectors.
c. Remove the seat.
NOTE: Be careful not to damage the vehicle body.
INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. INSTALL FRONT SEAT ASSEMBLY
a. Place the seat in the cabin.
NOTE: Be careful not to damage the vehicle body.
b. Connect the connectors under the seat.
c. Tighten the 4 bolts.
Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

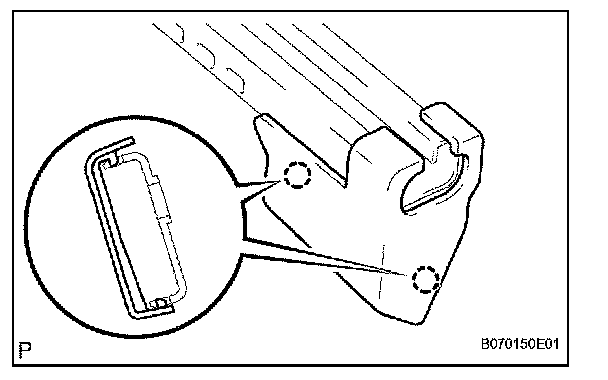

2. INSTALL SEAT TRACK OUTER COVER LH
a. Attach the 4 claws to install the seat track outer cover.

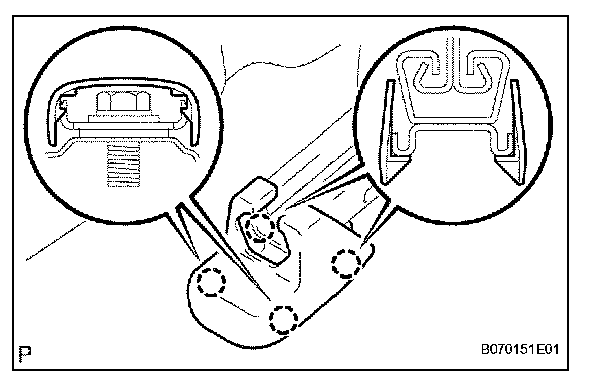

3. INSTALL SEAT TRACK BRACKET COVER INNER LH
a. Attach the 2 claws to install the seat track bracket cover.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
