Paint: Application and ID

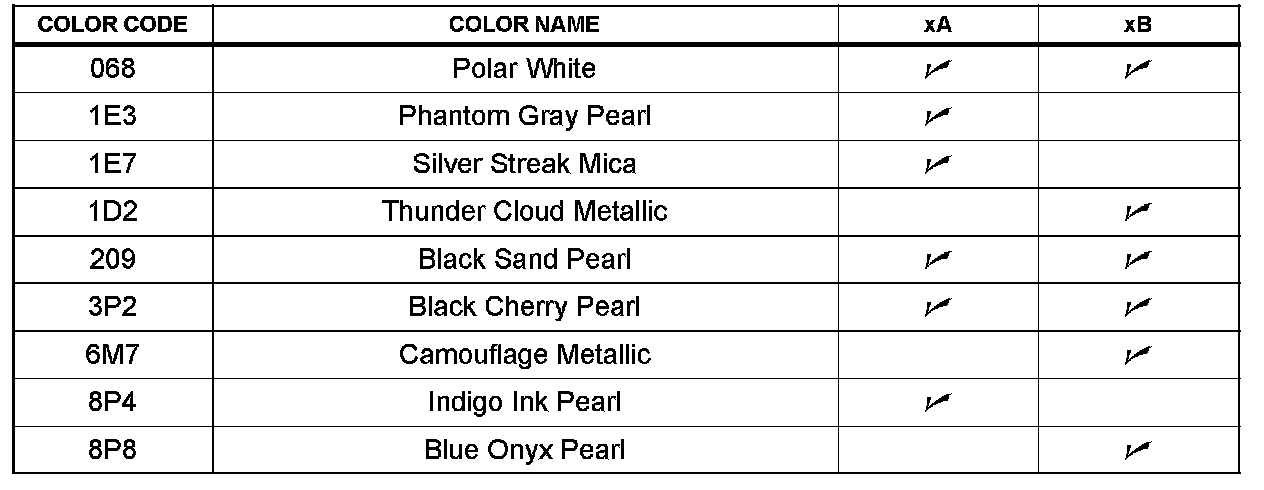

Color Codes (From 2004):
NOTE:

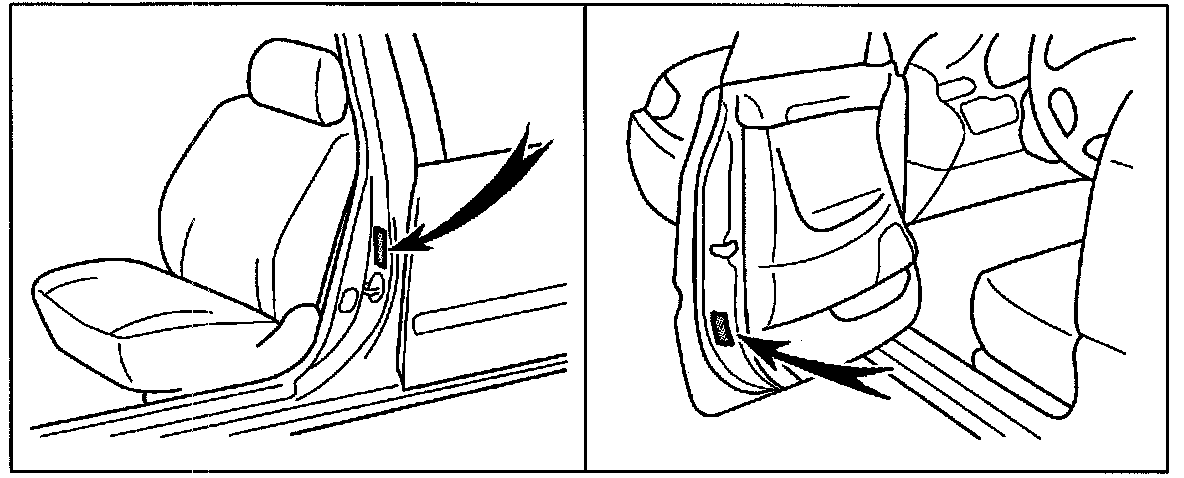

The body color code is on the vehicle Certification Regulation Label, located on the left front door "B" pillar or door rear lower surface.
