All Doors Cannot Be Locked / Unlocked Simultaneously

All Doors cannot be Locked/Unlocked Simultaneously

DESCRIPTION
The door control relay drives the door lock motors with switch signals from the master switch, door control switch, and driver/front passenger side door key cylinder.

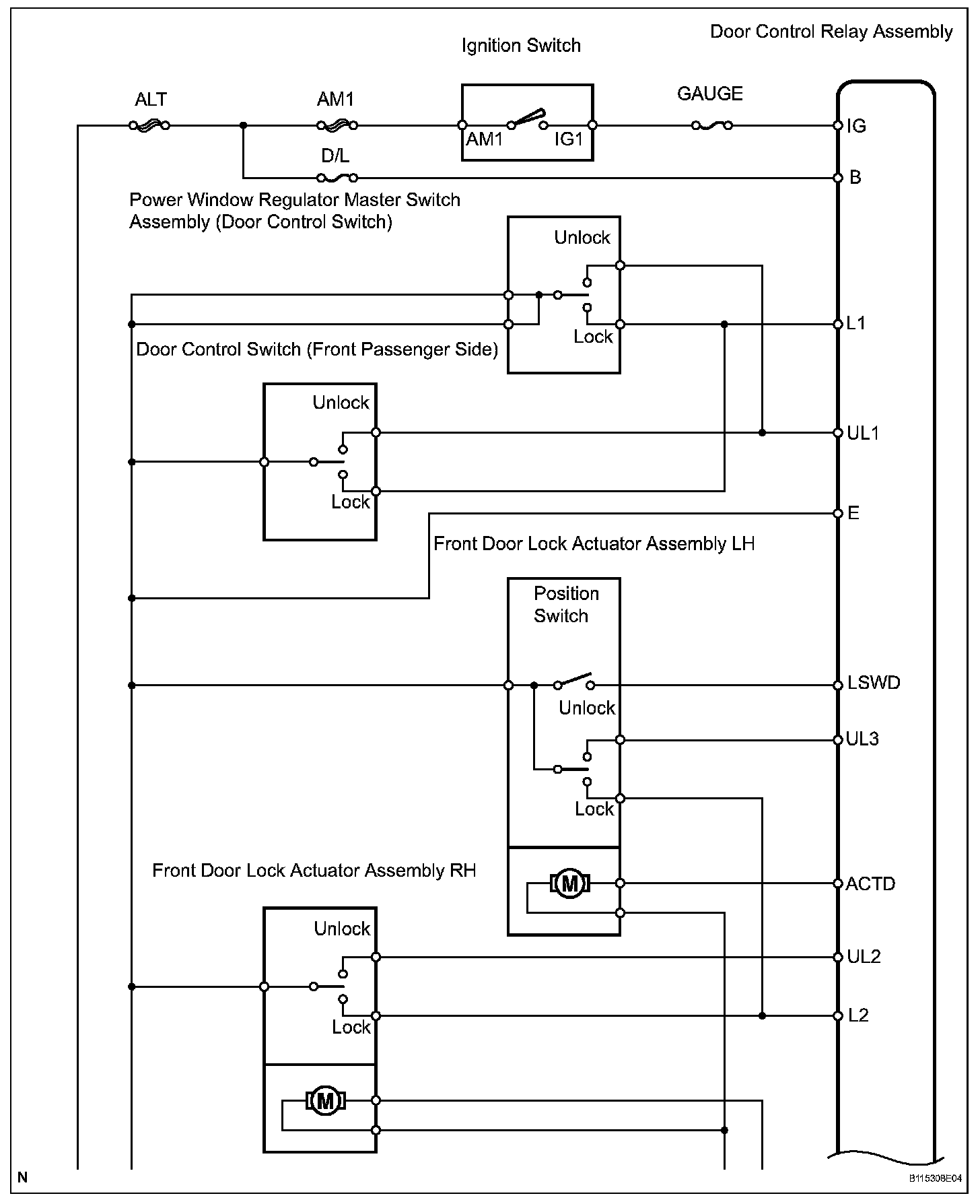

Wiring Diagram (Part 1):

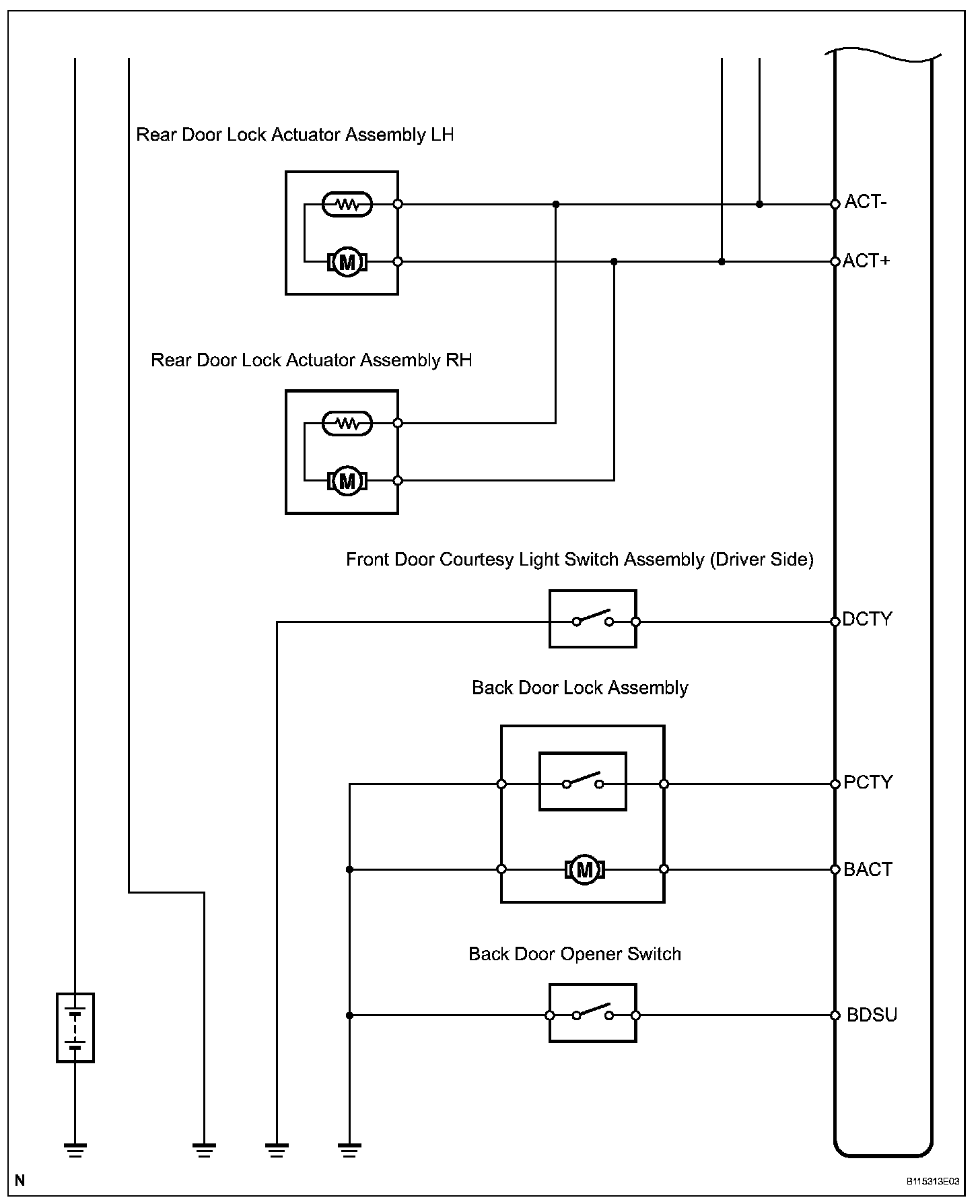

Wiring Diagram (Part 2):

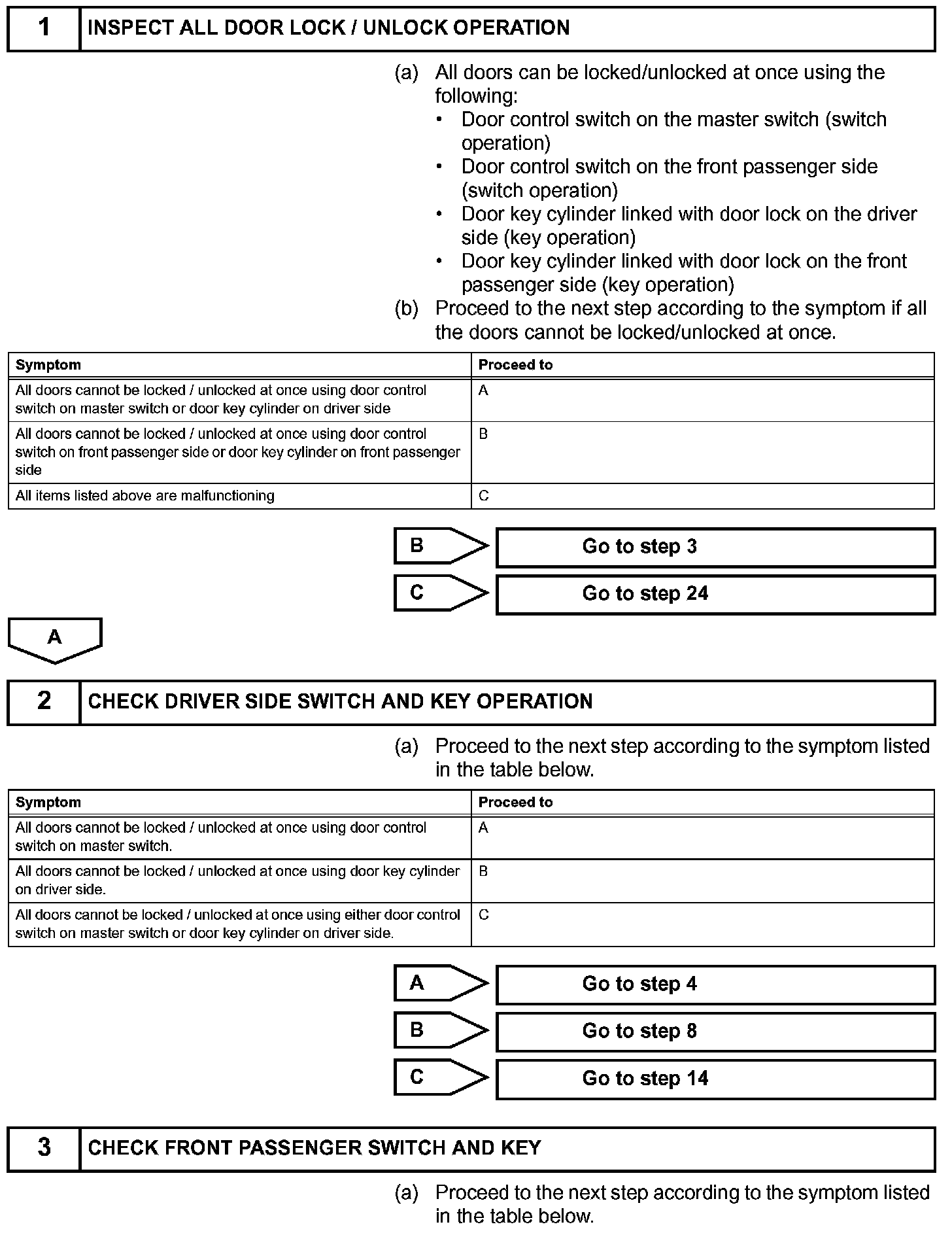

Step 1-3:

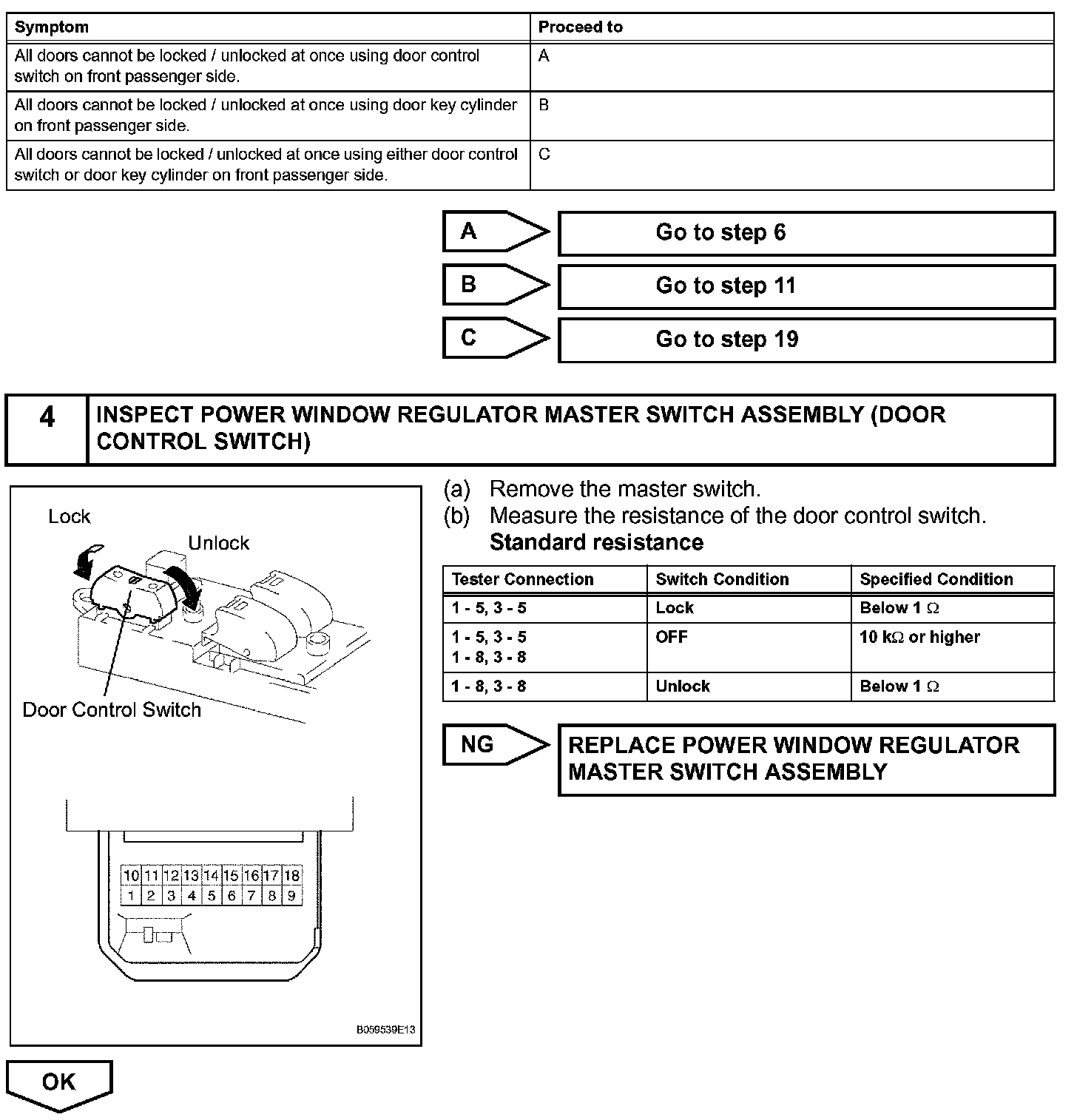

Step 3(continued)-4:

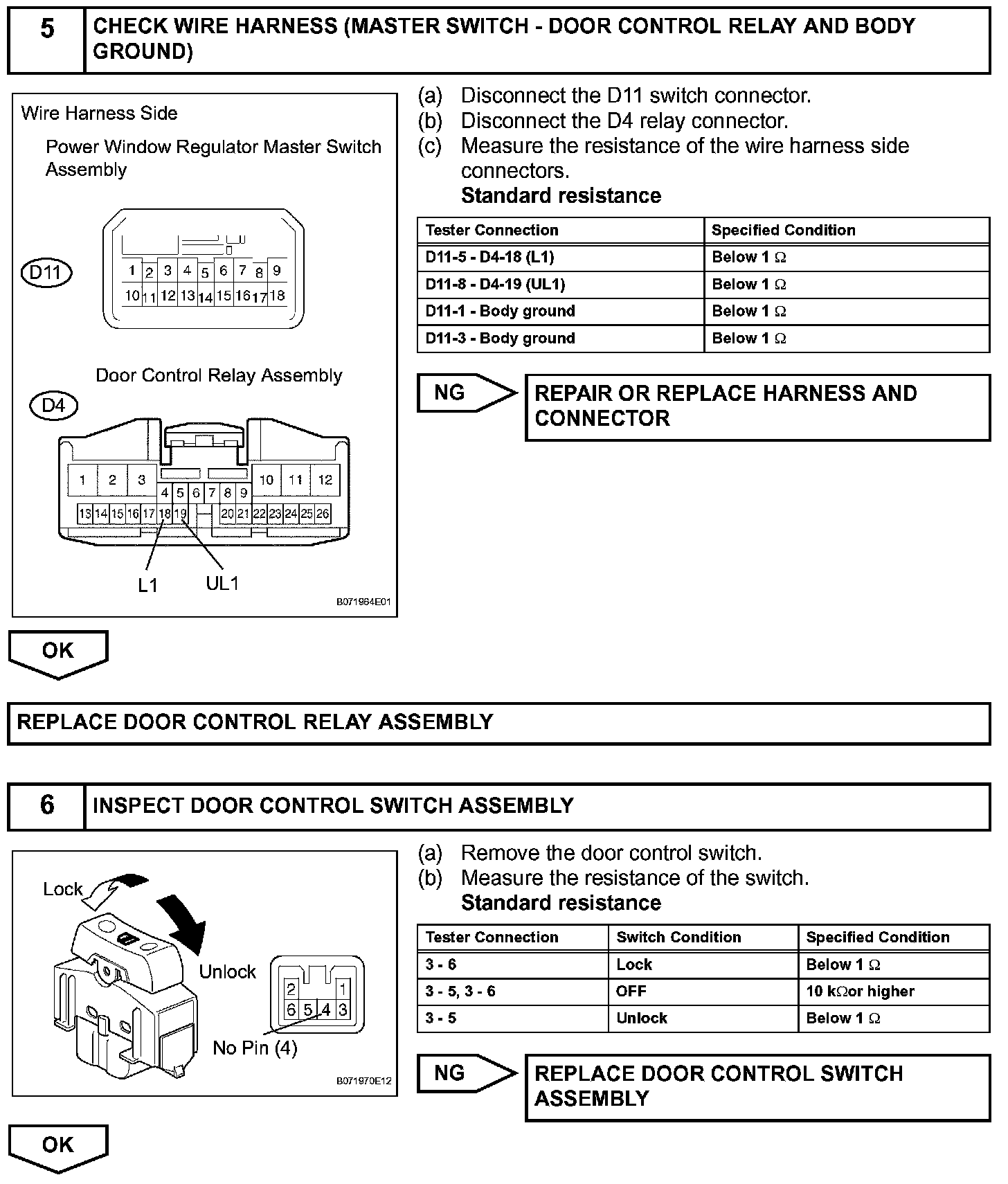

Step 5-6:

Step 7:

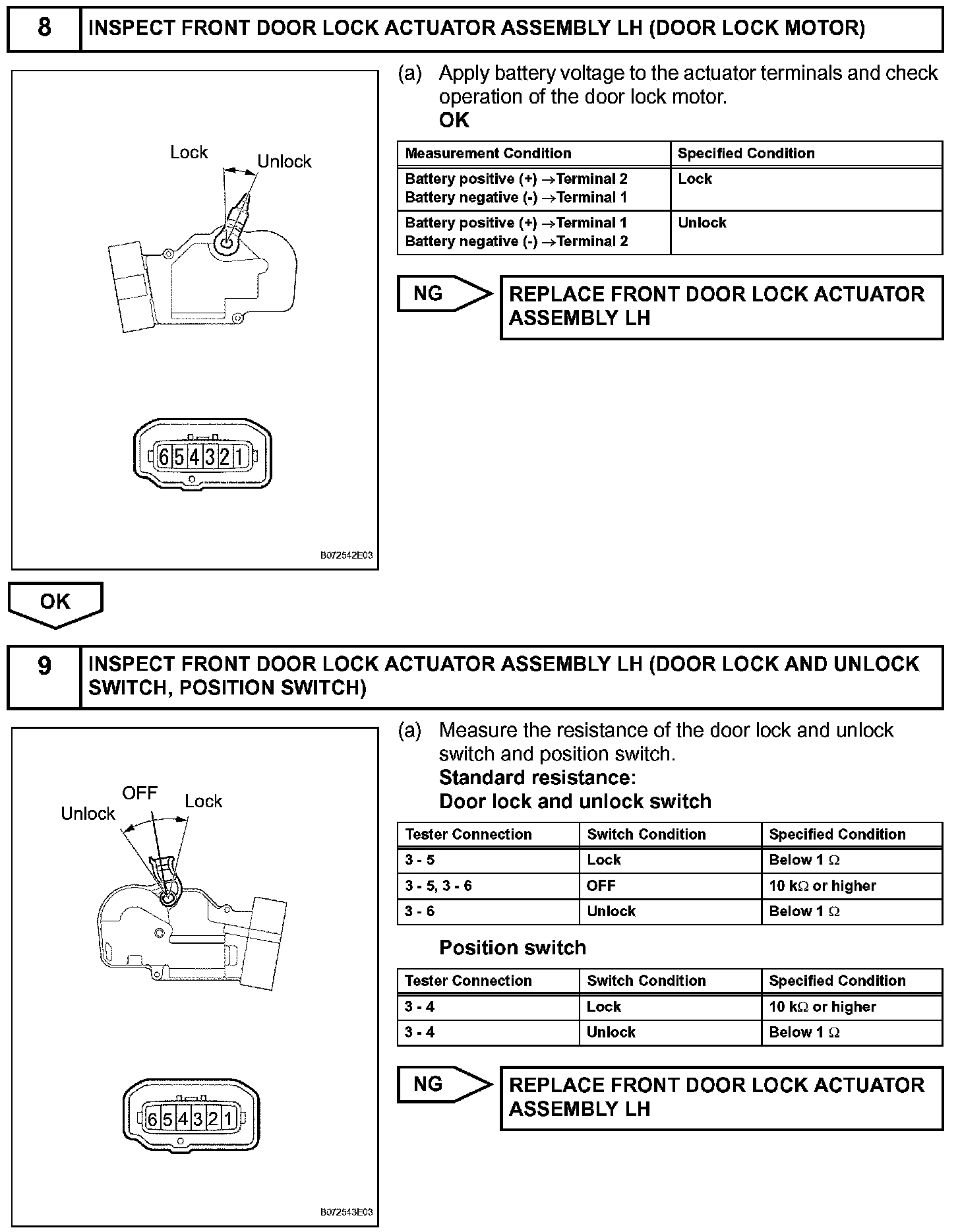

Step 8-9:

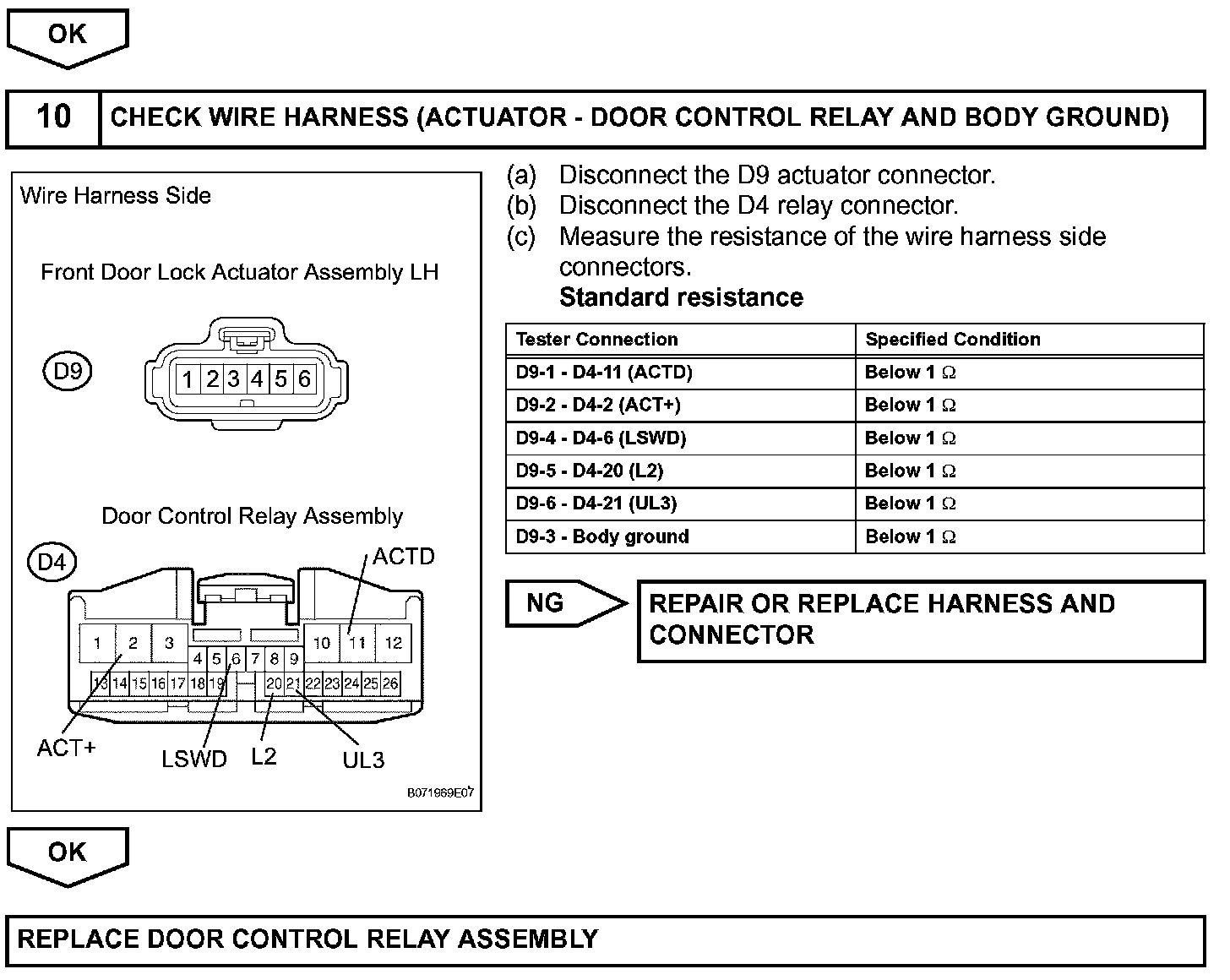

Step 9(continued)-10:

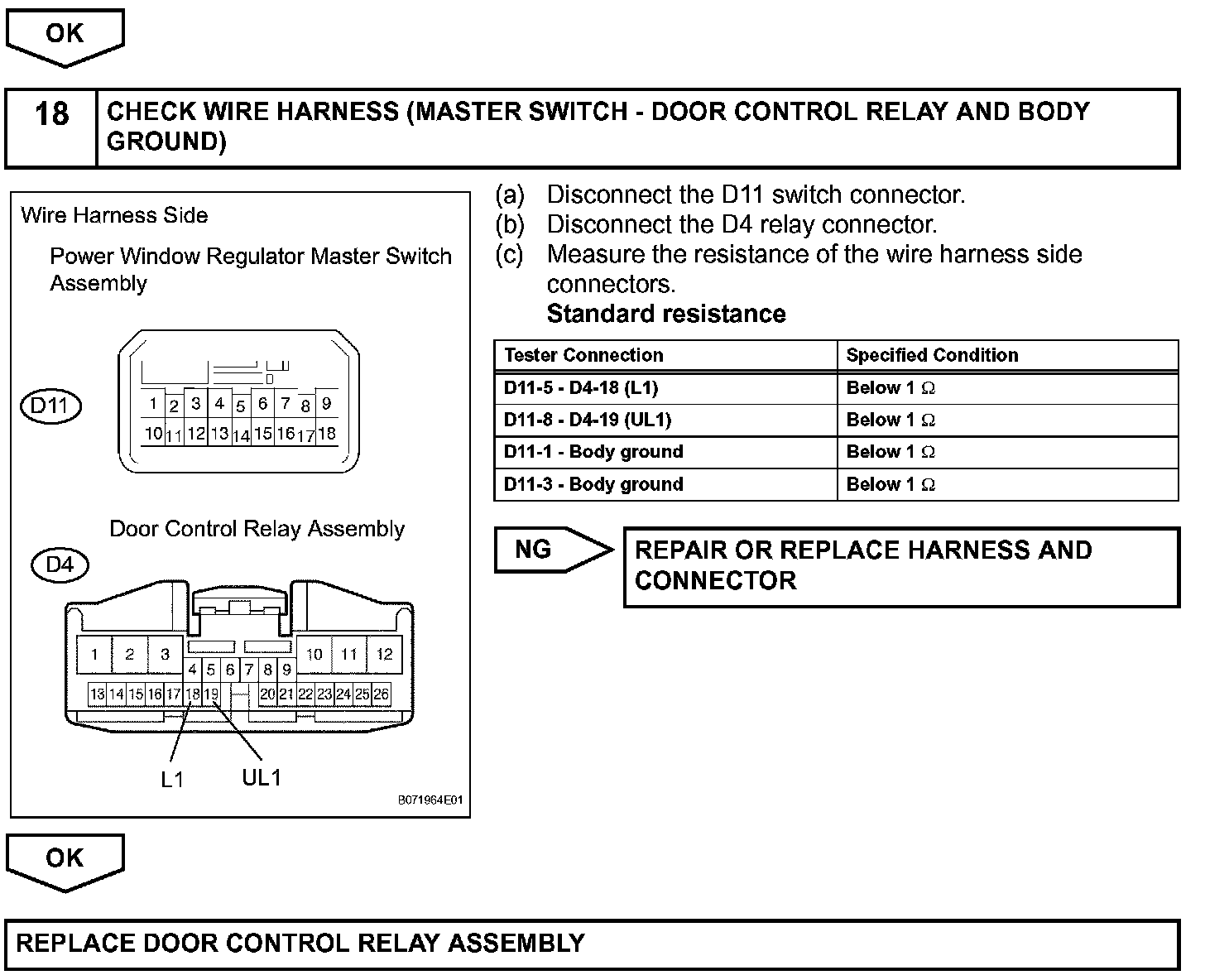

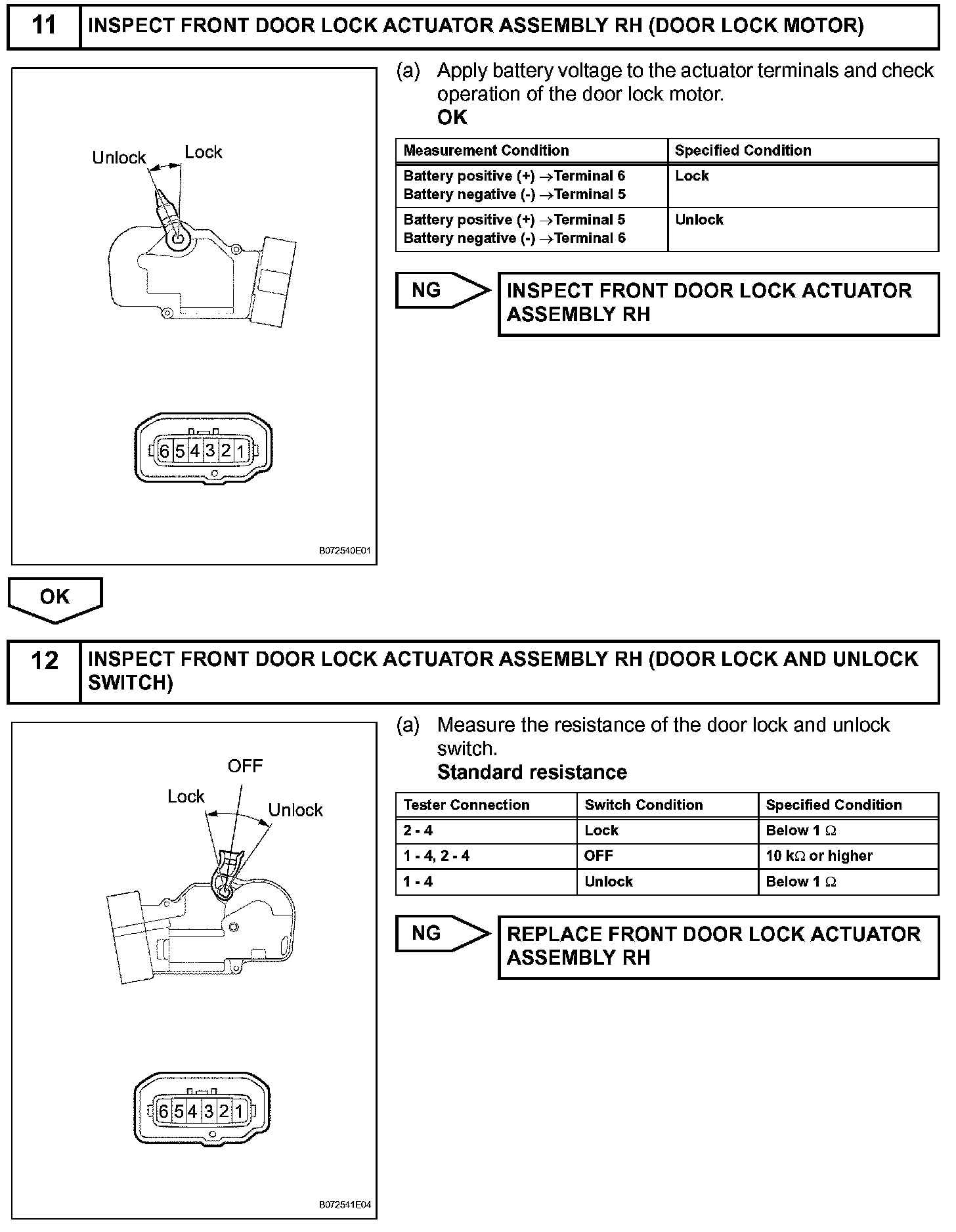

Step 11-12:

Step 12(continued)-13:

Step 14-15:

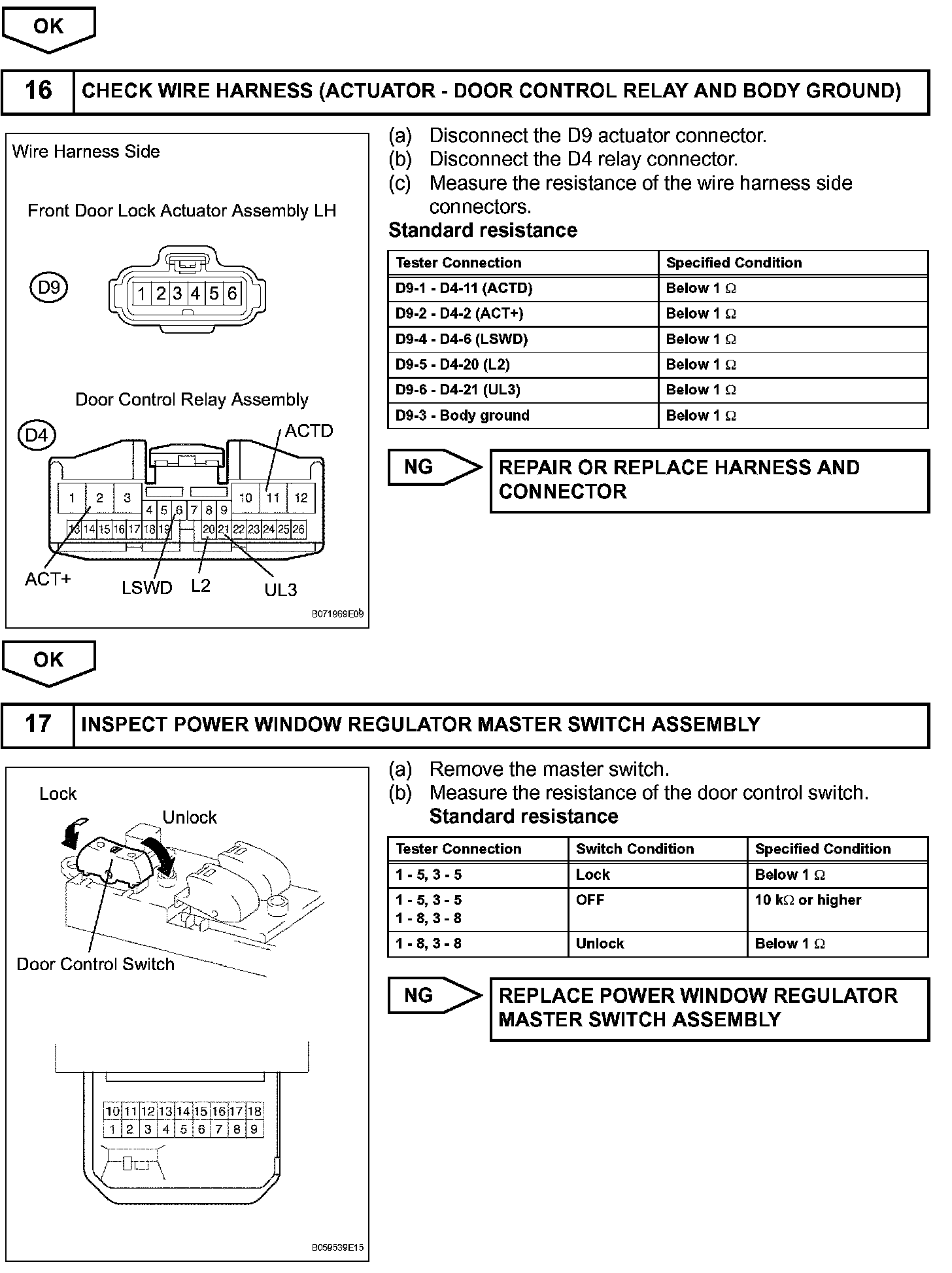

Step 15(continued)-17:

Step 17(continued)-18:

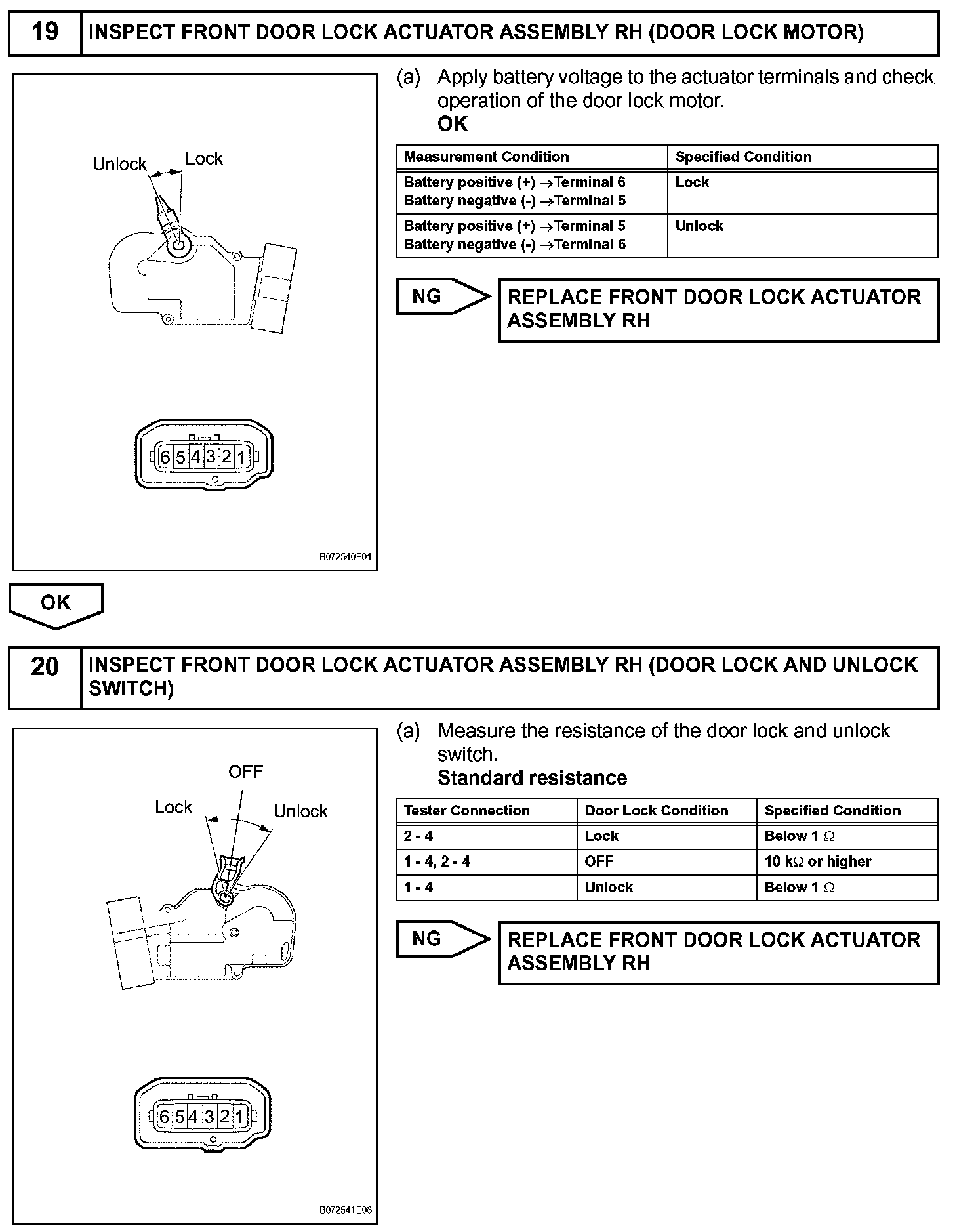

Step 19-20:

Step 20(continued)-22:

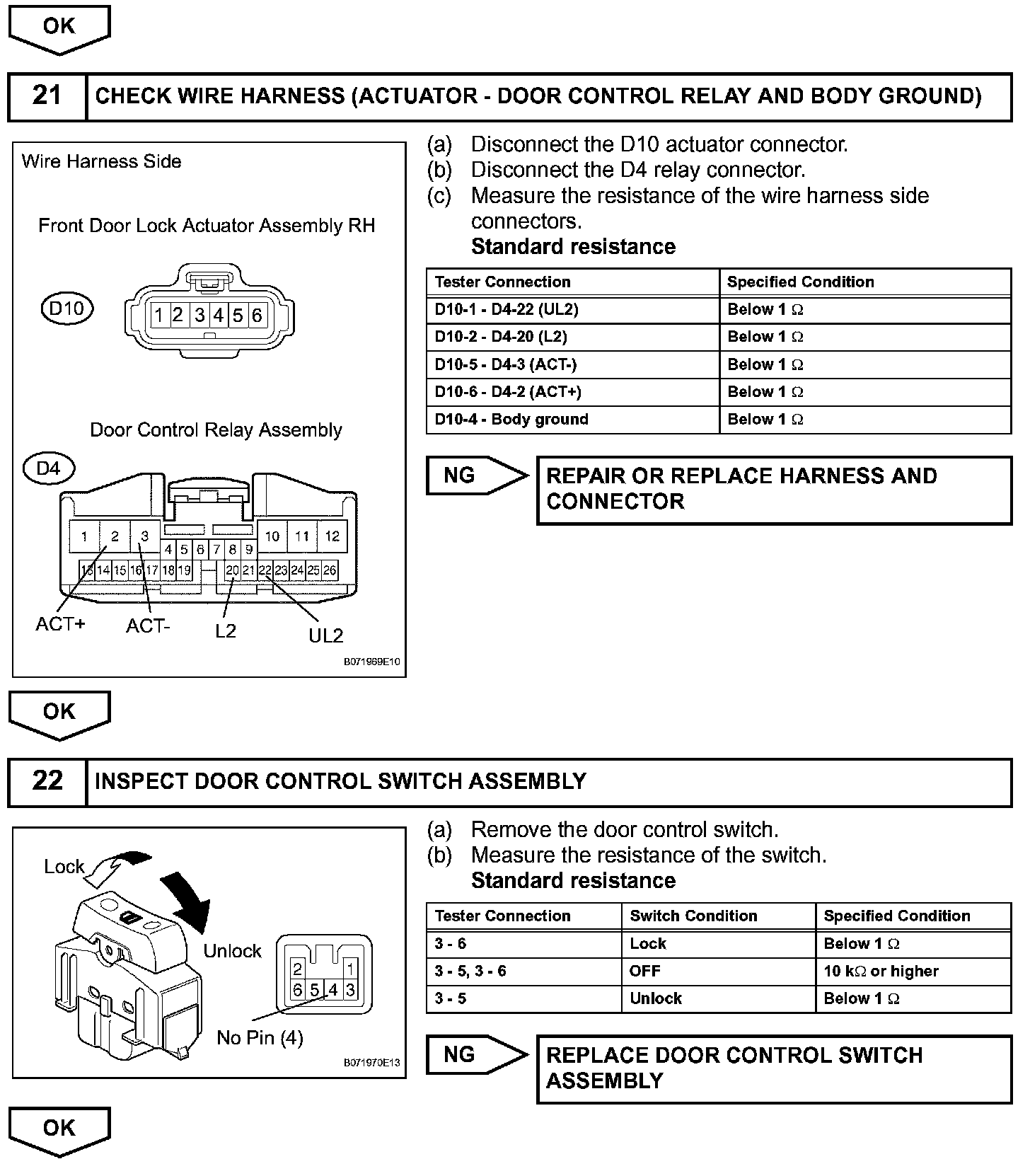

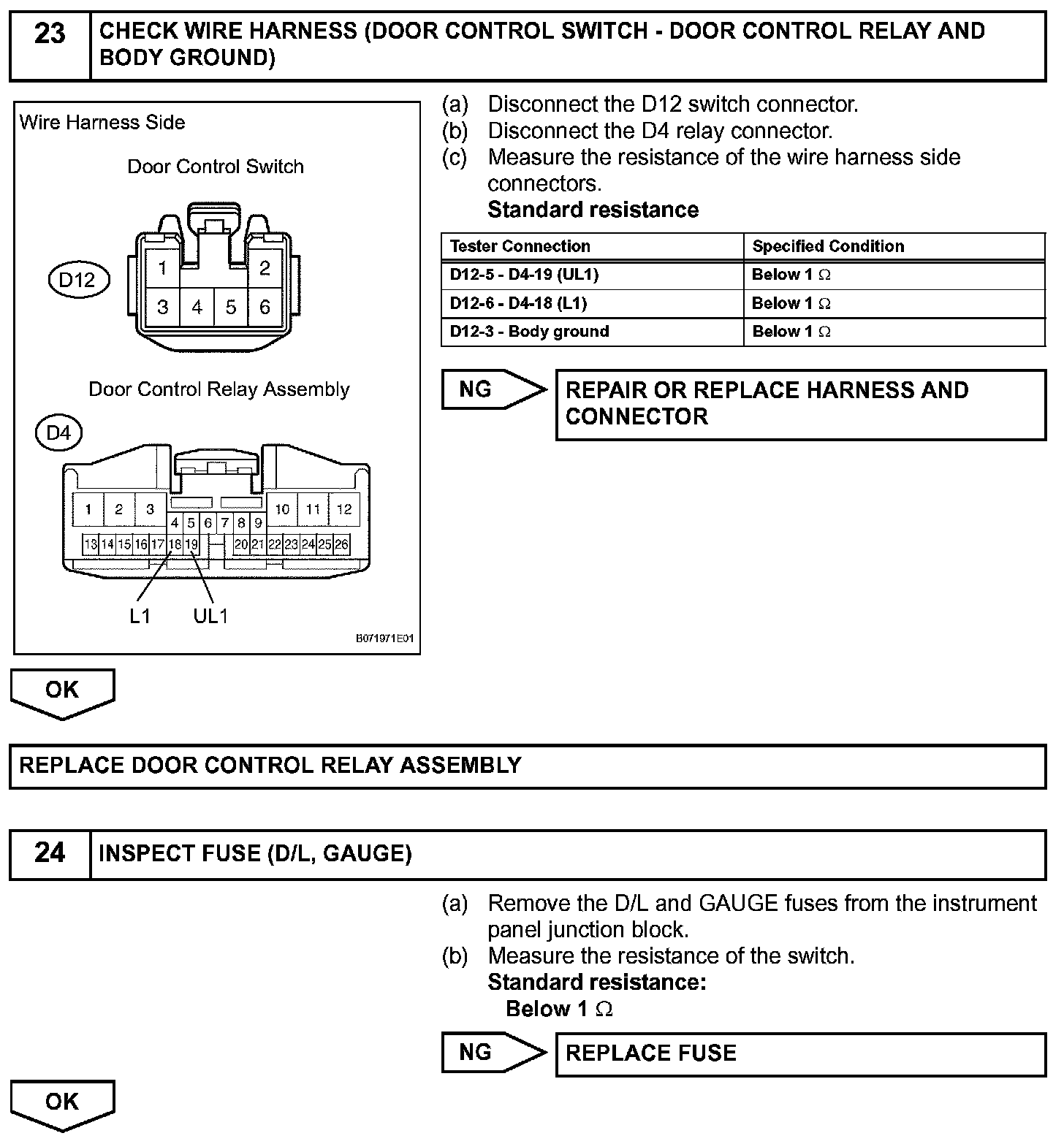

Step 23-24:

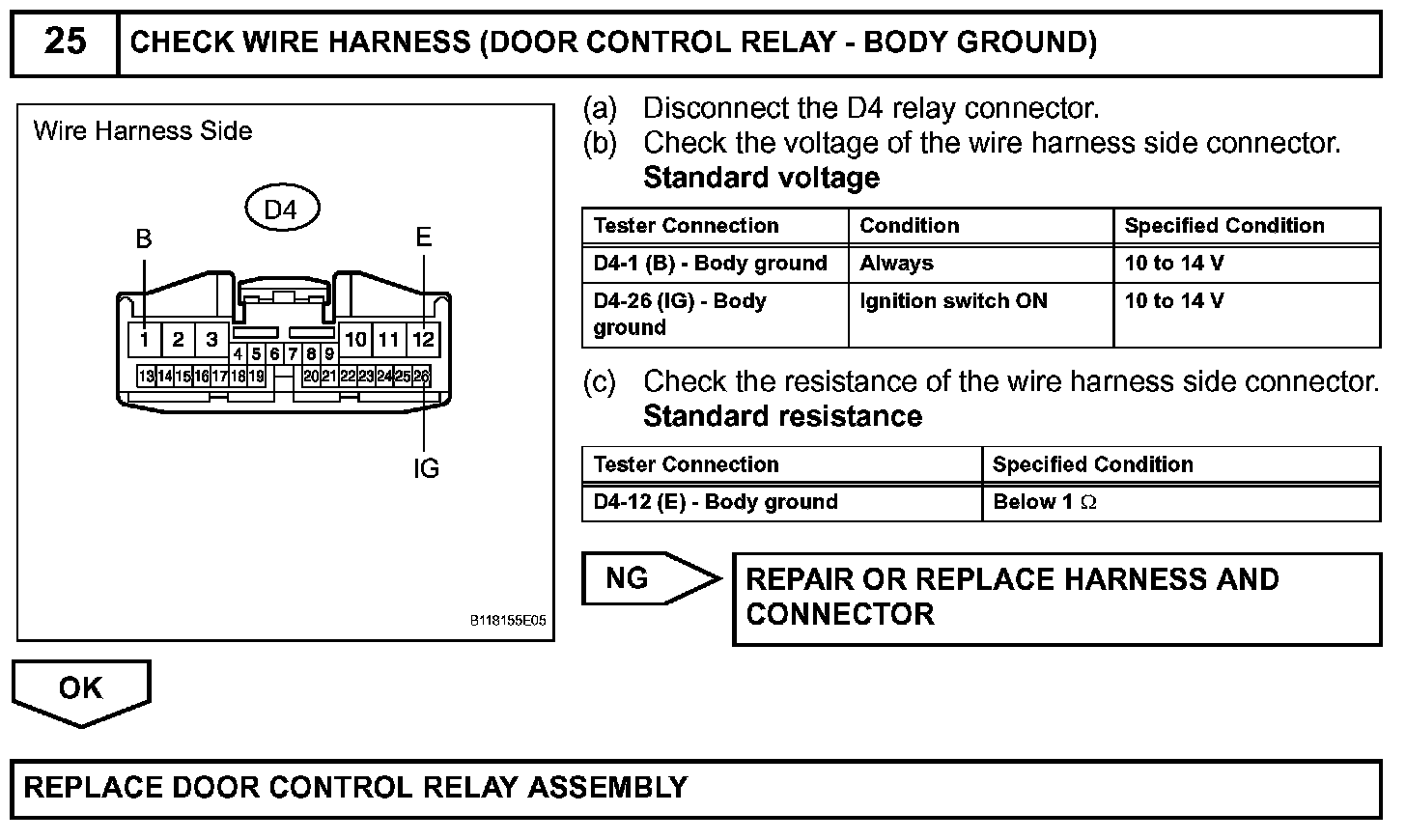

Step 25:

INSPECTION PROCEDURE
