Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminals Of Control Module/Pinouts - Check Door Control Relay Assembly:

1. CHECK DOOR CONTROL RELAY ASSEMBLY

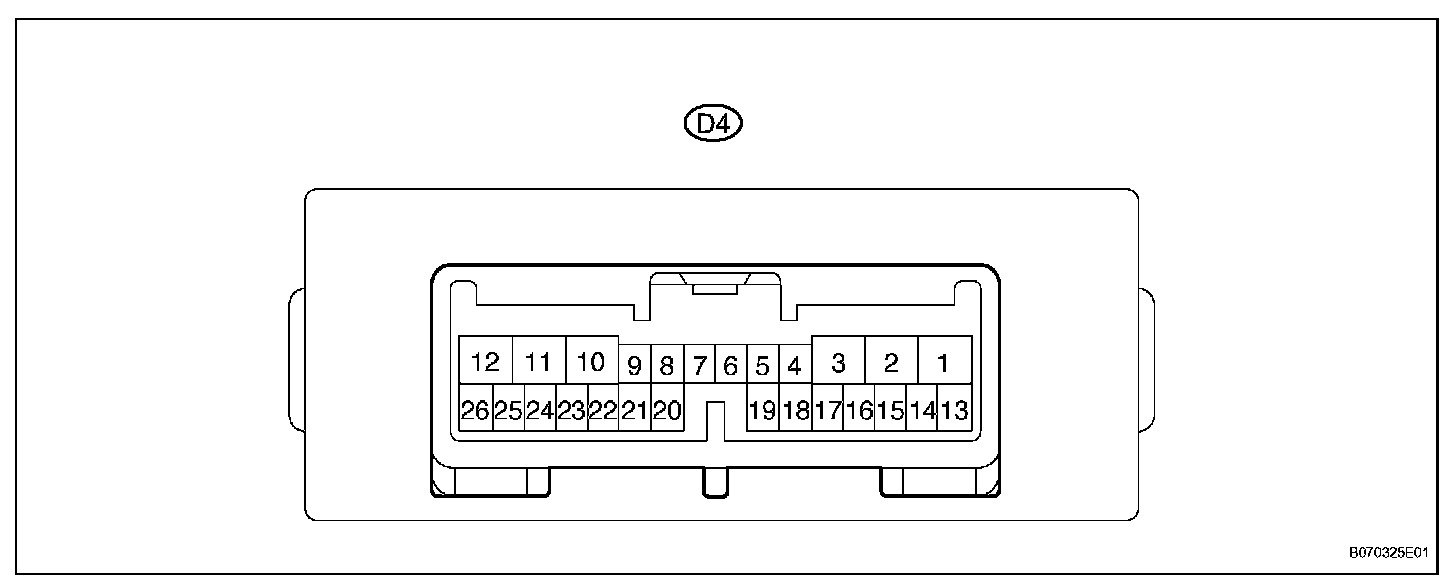

a. Disconnect the D4 relay connector.

Part 1:

Part 2:

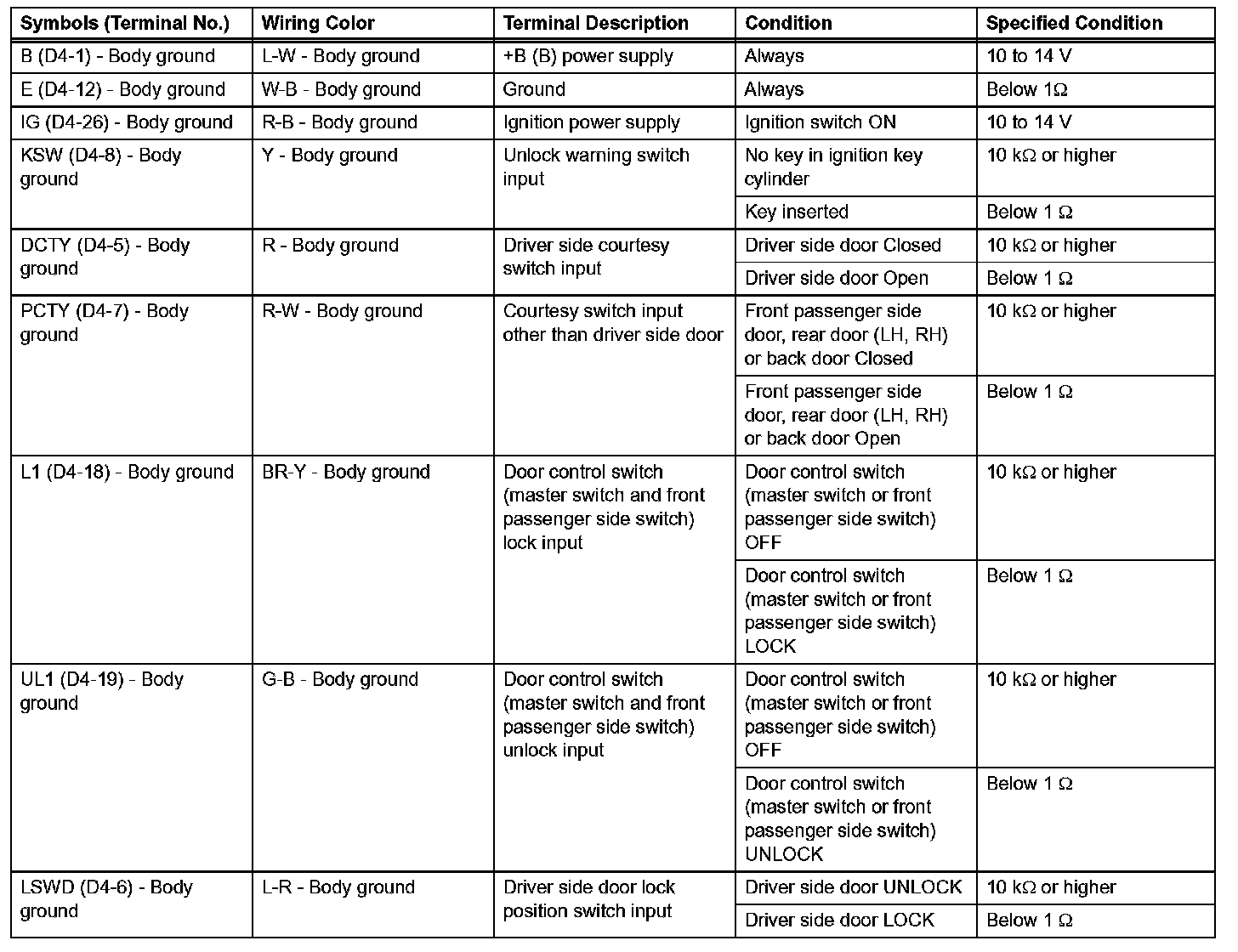

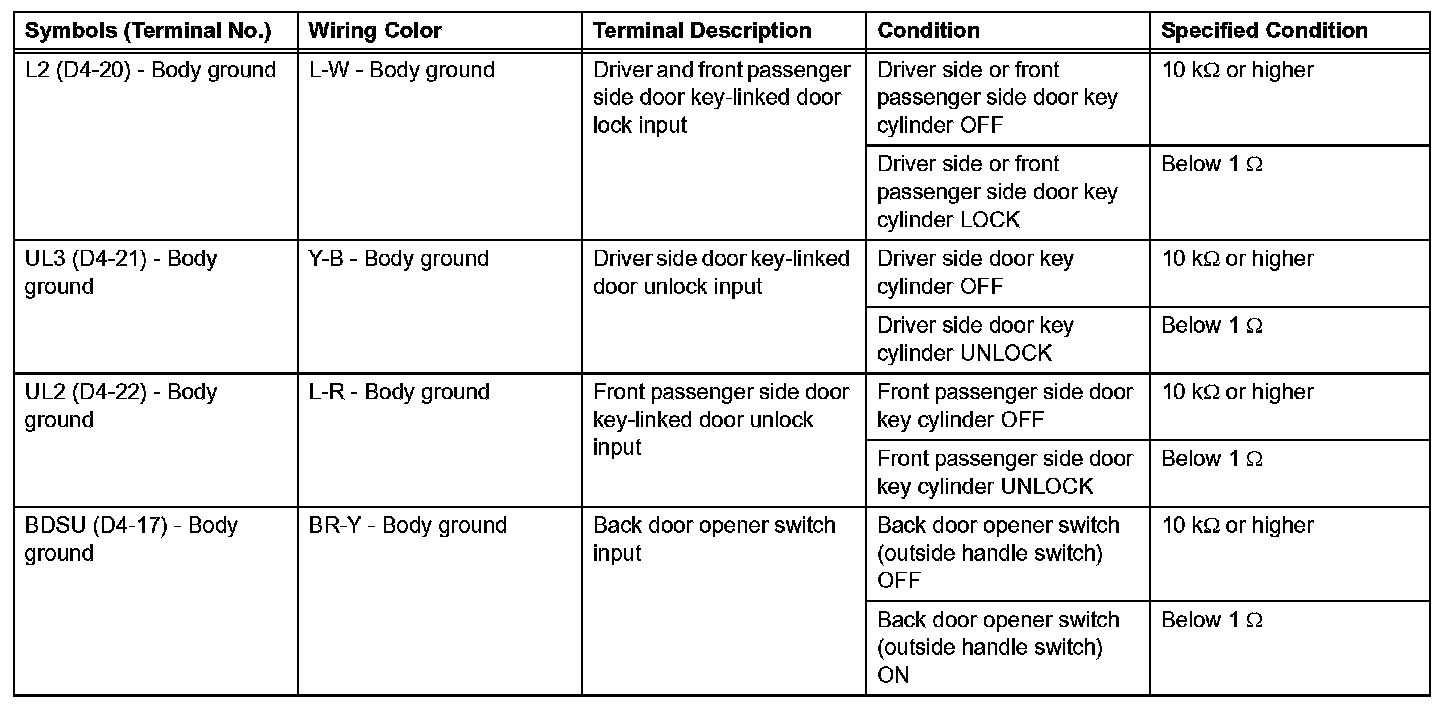

b. Measure the voltage and resistance of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.

c. Reconnect the D4 relay connector.

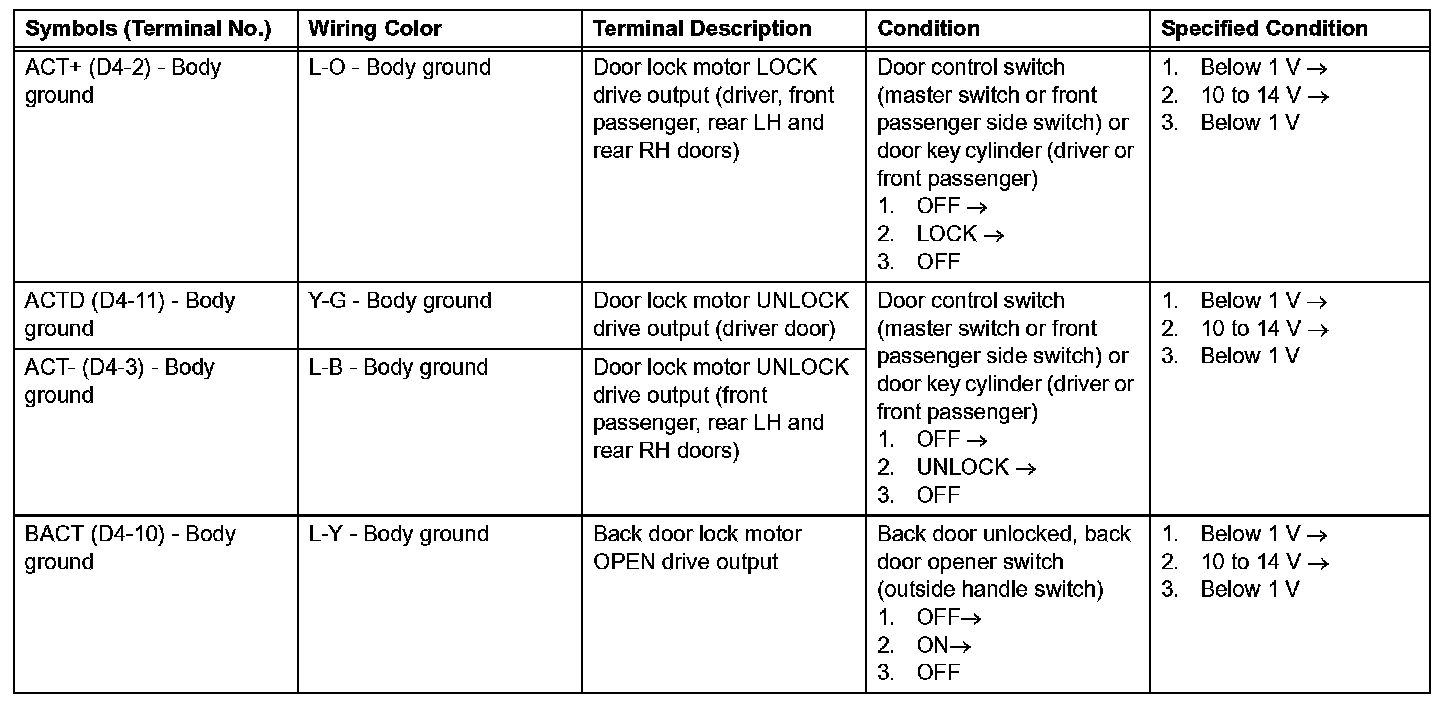

d. Measure the voltage of the connector.
If the result is not as specified, the relay may have a malfunction.
