Door Control Receiver

ON-VEHICLE INSPECTION

1. CHECK DOOR CONTROL RECEIVER







a. Disconnect the receiver connector.

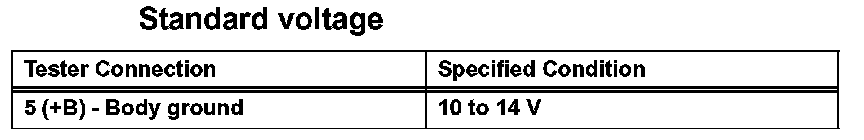

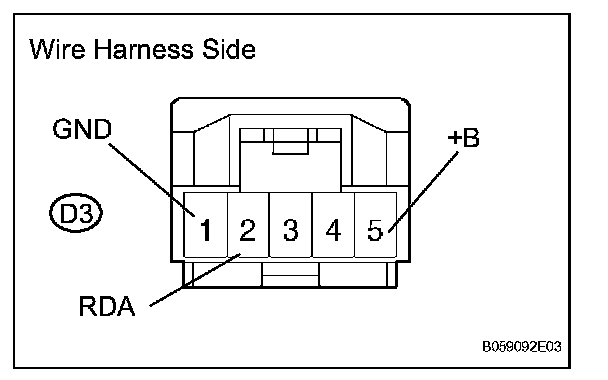

b. Measure the voltage of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.

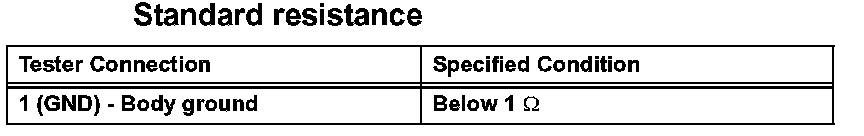

c. Measure the resistance of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.

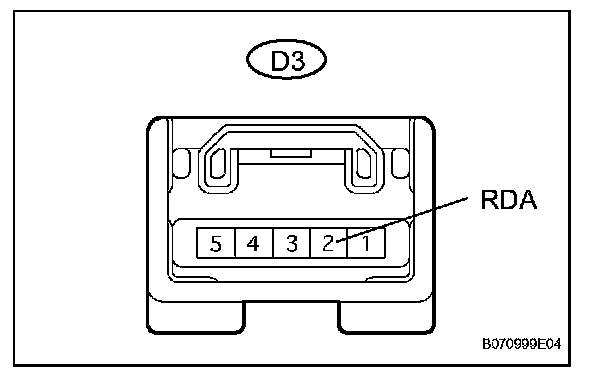

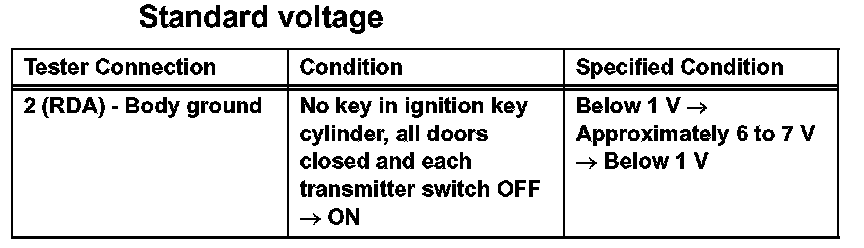

d. Reconnect the connector and measure the voltage of the connector.
If the result is not as specified, the receiver may have a malfunction.
