Removal and Installation

REAR CONSOLE BOX

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

2. REMOVE REAR CONSOLE BOX ASSEMBLY

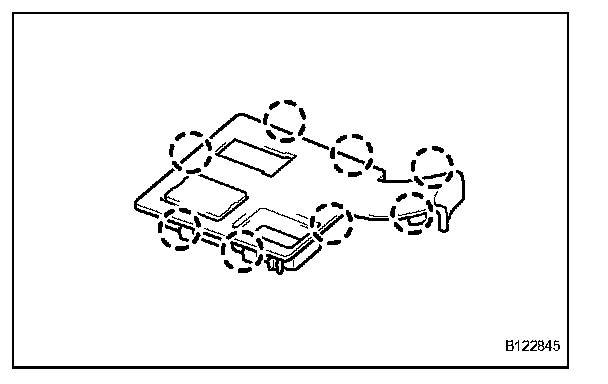

a. Using a screwdriver, detach the 8 claws and remove the rear console box cover.

HINT: Tape the screwdriver tip before use.

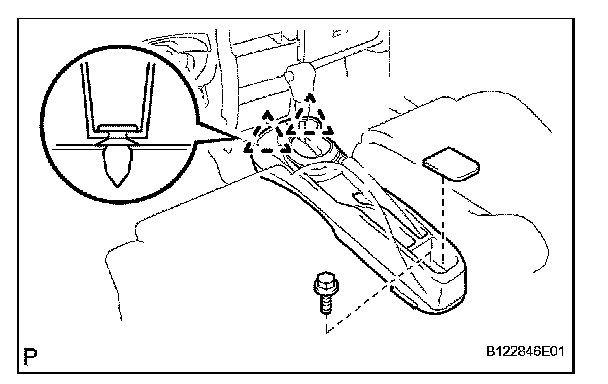

b. Remove the console box carpet.
c. Remove the screw.
d. Disconnect the connector.
e. Using a screwdriver, detach the 2 clips and remove the console box.

HINT: Tape the screwdriver tip before use.

INSTALLATION

1. INSTALL REAR CONSOLE BOX ASSEMBLY

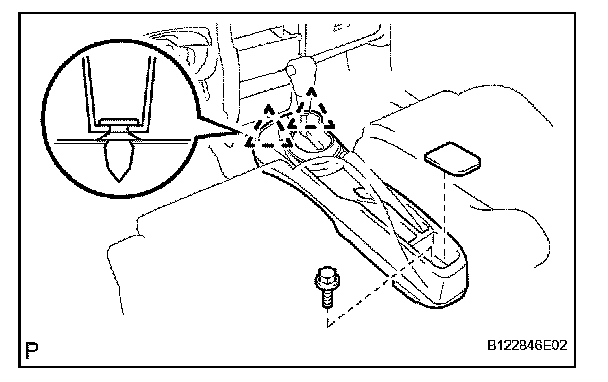

a. Attach the 2 clips to install the console box.
b. Connect the connector.
c. Install the screw.
d. Install the console box carpet.

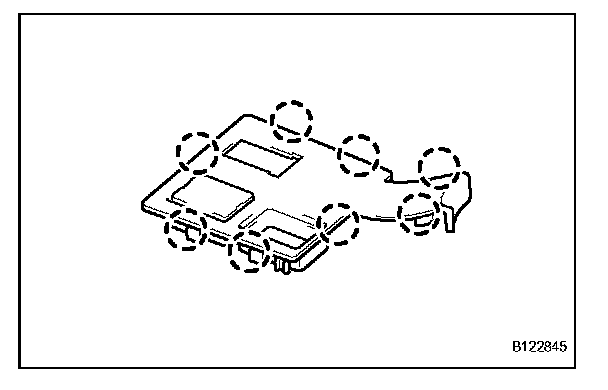

e. Attach the 8 claws to install the rear console box cover.

2. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
