Trunk / Liftgate: Testing and Inspection
ON-VEHICLE INSPECTION1. INSPECT BACK DOOR PANEL SUB-ASSEMBLY

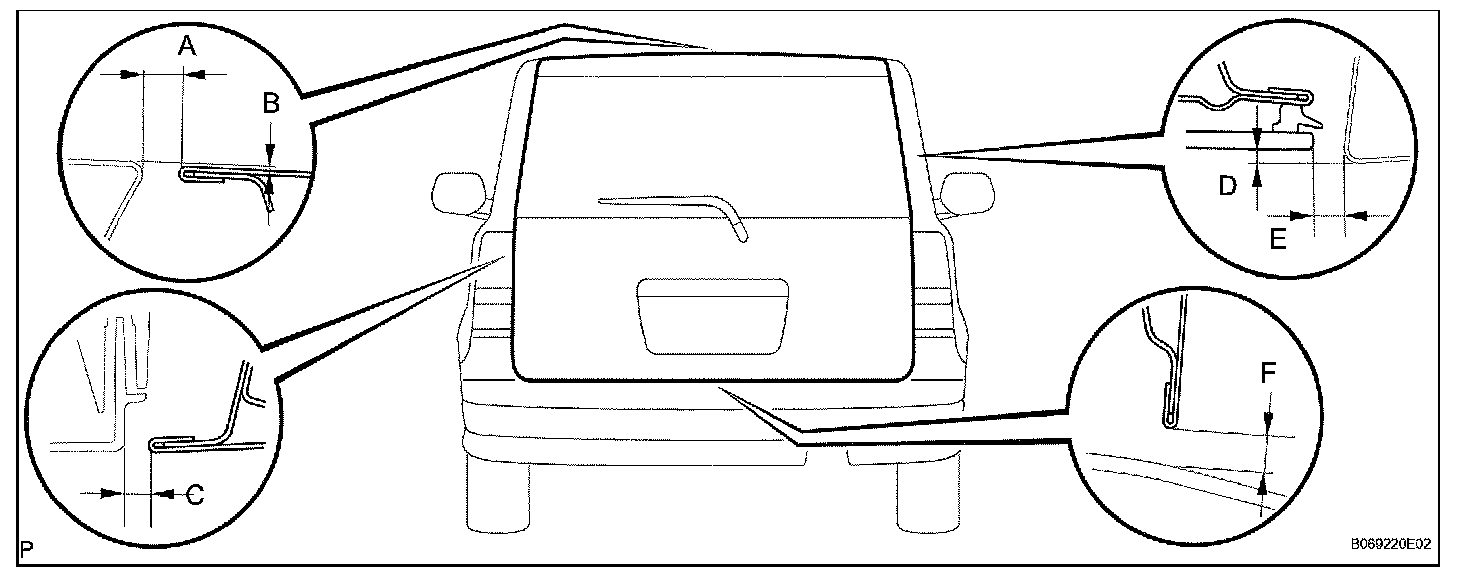

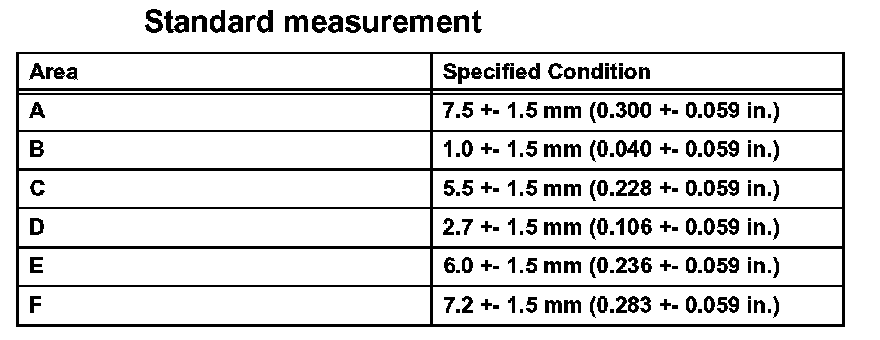

(a) Check that the clearance measurements of areas A to F are within the standard range.
1. INSPECT BACK DOOR PANEL SUB-ASSEMBLY
(a) Check that the clearance measurements of areas A to F are within the standard range.
