Home >> Scion >> 2006 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Specifications

Doors, Hood and Trunk: Specifications

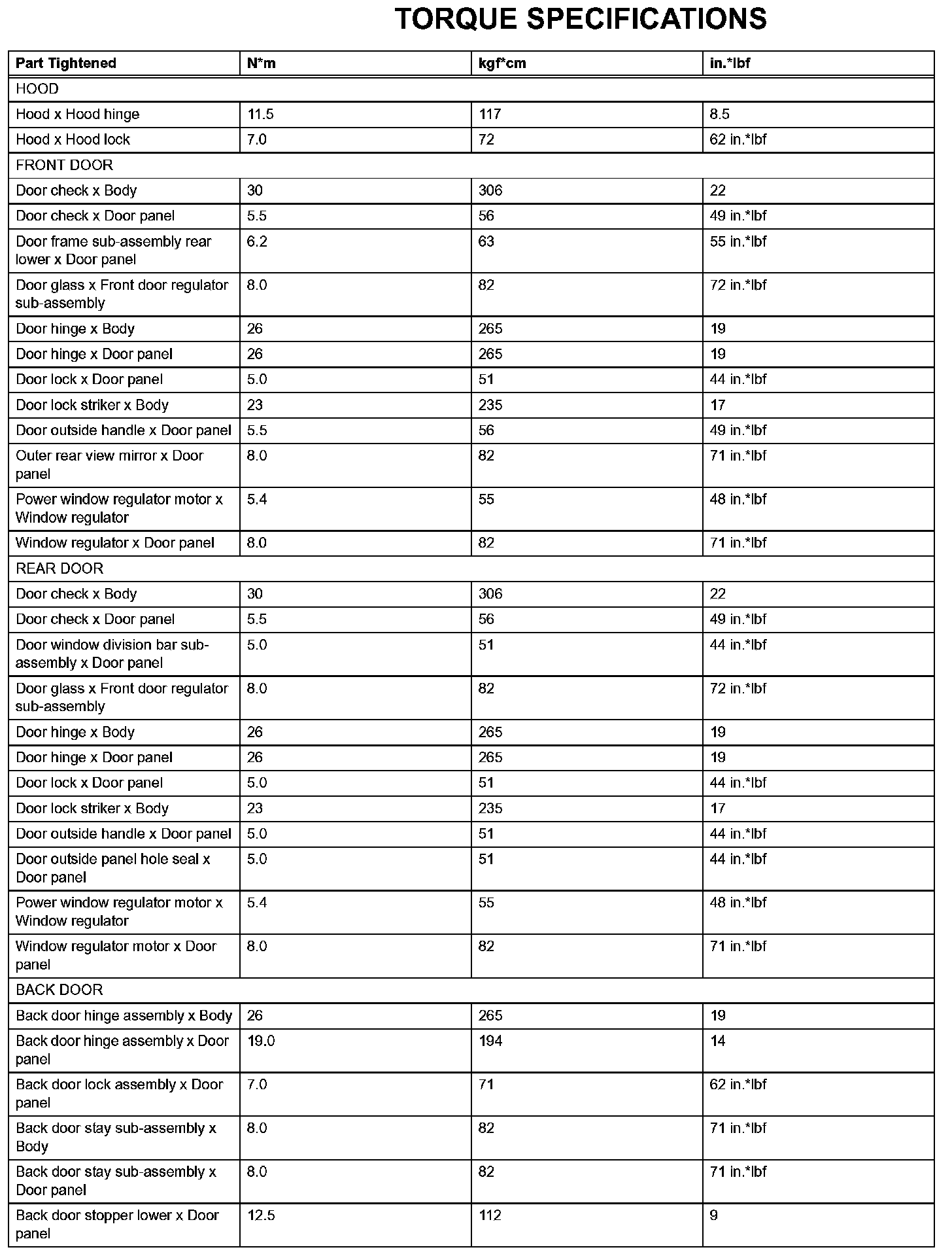

Engine Hood / Door-Torque Specifications (Part 1):

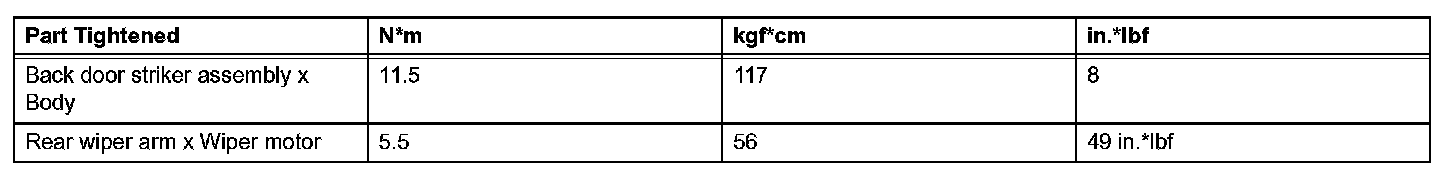

Engine Hood / Door-Torque Specifications (Part 2):
