Hood: Testing and Inspection

HOOD

ON-VEHICLE INSPECTION







1. INSPECT HOOD SUB-ASSEMBLY

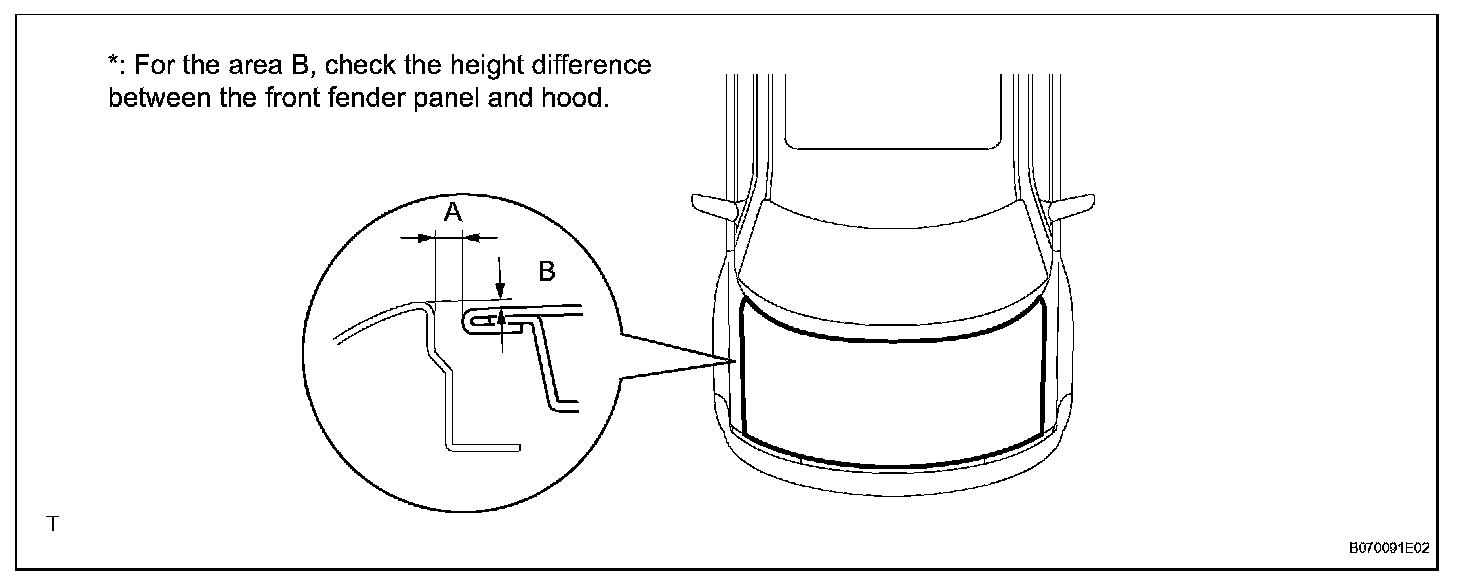

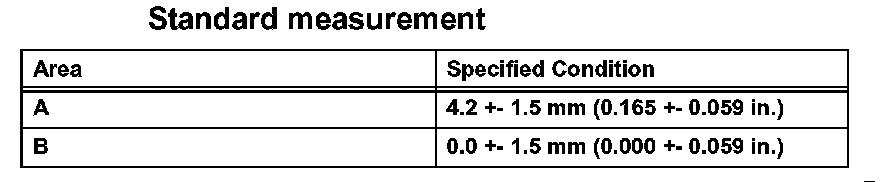

a. Check that the clearance measurements of areas A and B are within the standard range.
