Removal and Replacement
REMOVALFront Bumper:

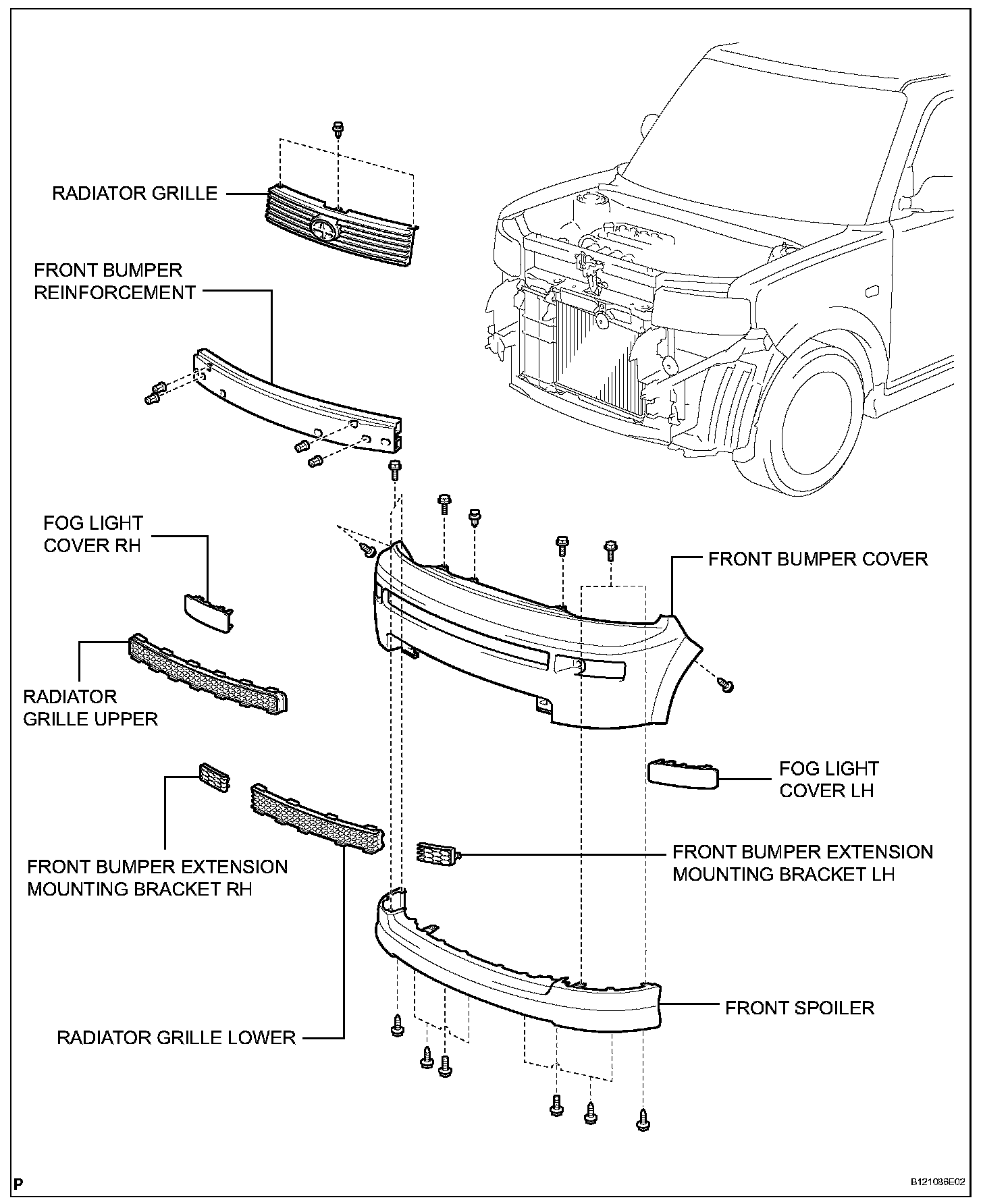

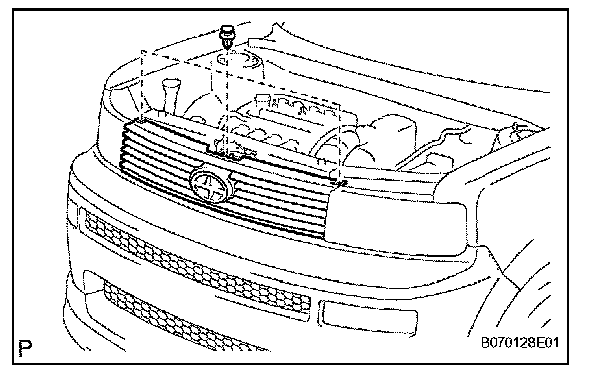

1. REMOVE RADIATOR GRILLE
a. Using a clip remover, remove the 3 clips and radiator grille.
2. REMOVE FRONT FENDER LINER LH
a. Remove the 2 screws.
b. Partially remove the fender liner.
HINT: It is not necessary to fully remove the fender liner. Partially remove it so that the bumper cover can be removed in a later step.
3. REMOVE FRONT FENDER LINER RH
HINT: Use the same procedures for the RH side and LH side.

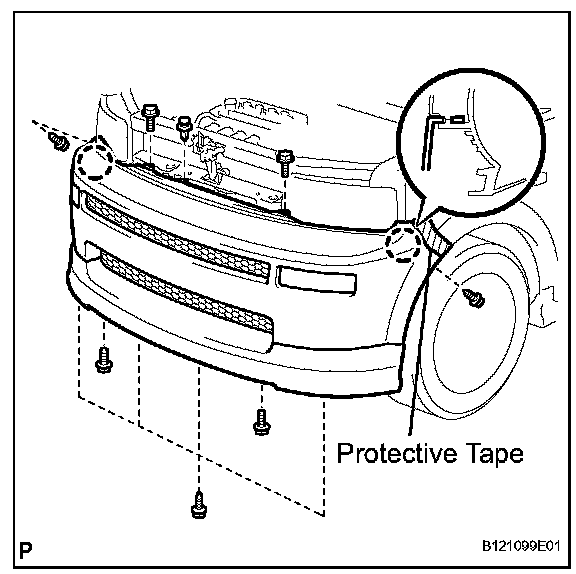

4. REMOVE FRONT BUMPER COVER
a. Put protective tape under the front fender.
b. Remove the clip and 2 bolts from the upper side of the bumper cover.
c. Using a screwdriver, detach the 2 claws and remove the 2 bolts, 6 screws and bumper cover.
HINT: Tape the screwdriver tip before use.
5. REMOVE FRONT BUMPER REINFORCEMENT
a. Remove the 4 nuts and reinforcement.
INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart.
1. INSTALL FRONT BUMPER REINFORCEMENT
a. Install the reinforcement with the 4 nuts.
2. INSTALL FRONT BUMPER COVER
a. Put protective tape under the front fender.
b. Attach the 2 claws to install the bumper cover.
c. Install the 4 bolts, 6 screws and clip.
3. INSTALL FRONT FENDER LINER LH
a. Install the fender liner with the 2 screws.
4. INSTALL FRONT FENDER LINER RH
a. Install the fender liner with the 2 screws.

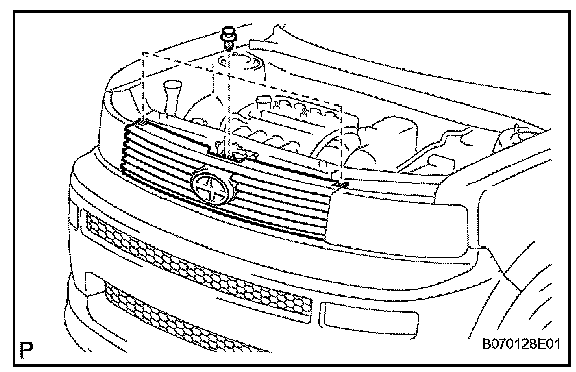

5. INSTALL RADIATOR GRILLE
a. Install the radiator grille with the 3 clips.
