Rear Speaker

INSPECTION







1. INSPECT REAR SPEAKER ASSEMBLY

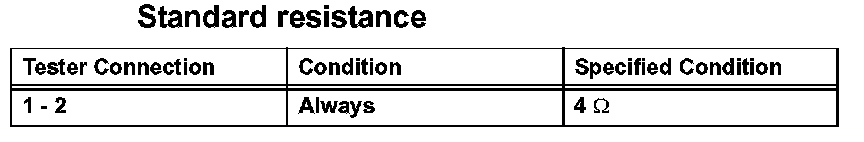

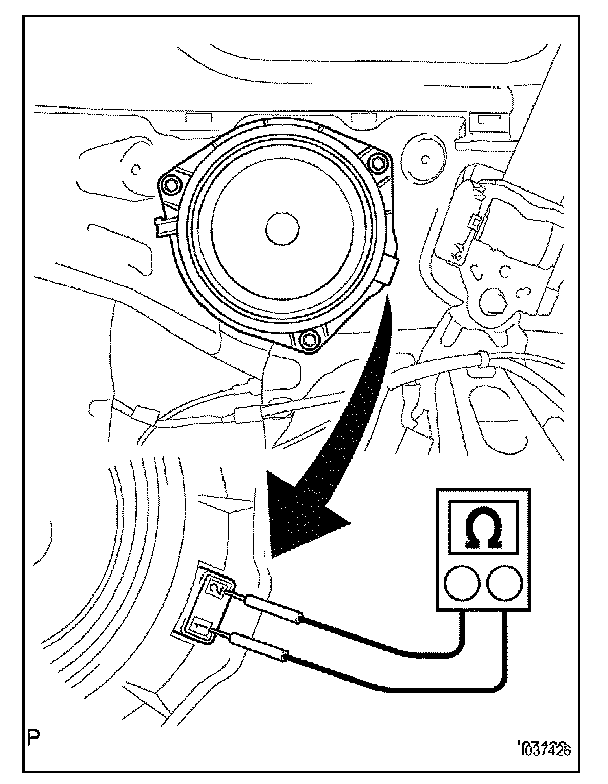

a. Measure the resistance of the speaker.
