Front No. 1 Speaker

INSPECTION

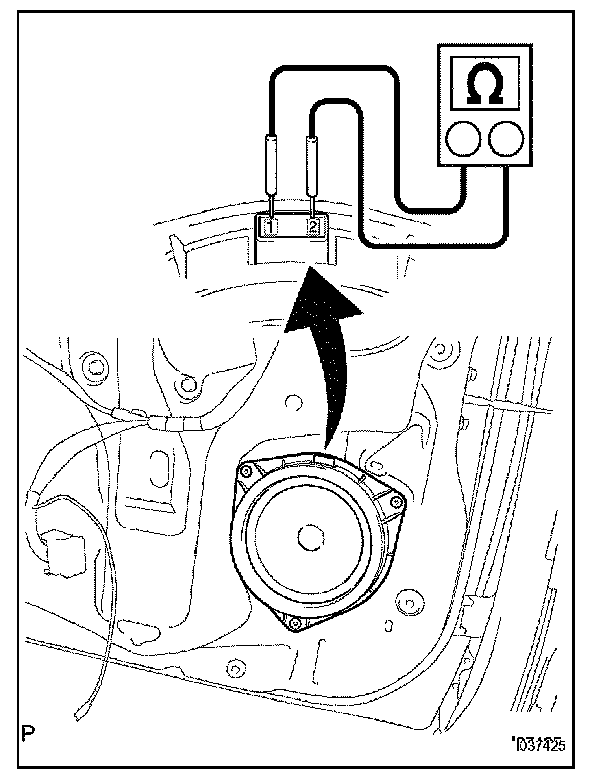

1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

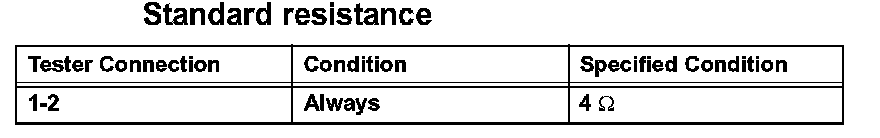

a. Measure the resistance of the speaker.
