Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminals Of Control Module/Pinouts - Check Door Control Relay Assembly:

1. CHECK DOOR CONTROL RELAY ASSEMBLY
a. Disconnect the D4 relay connector.




b. Measure the voltage and resistance of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.

c. Reconnect the D4 relay connector.

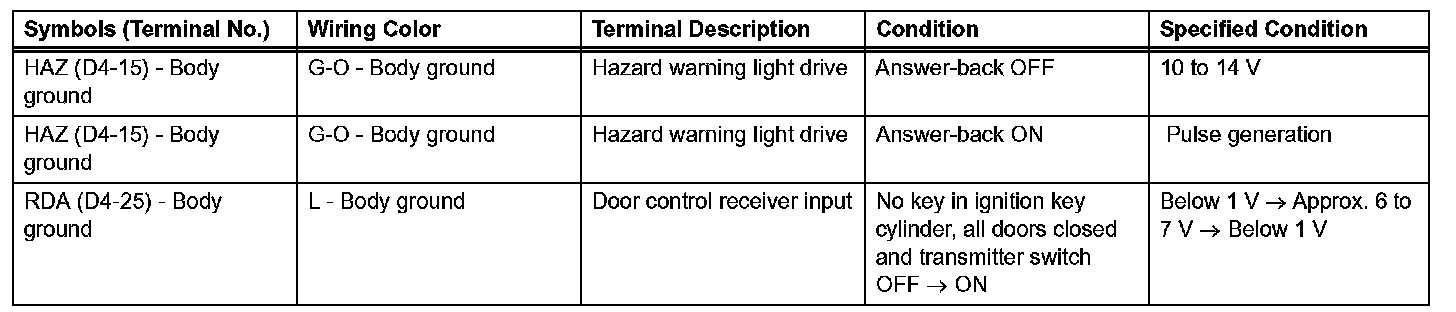

d. Measure the voltage of the connector.
If the result is not as specified, the relay may have a malfunction.
