Electrical Diagrams

System Diagram:

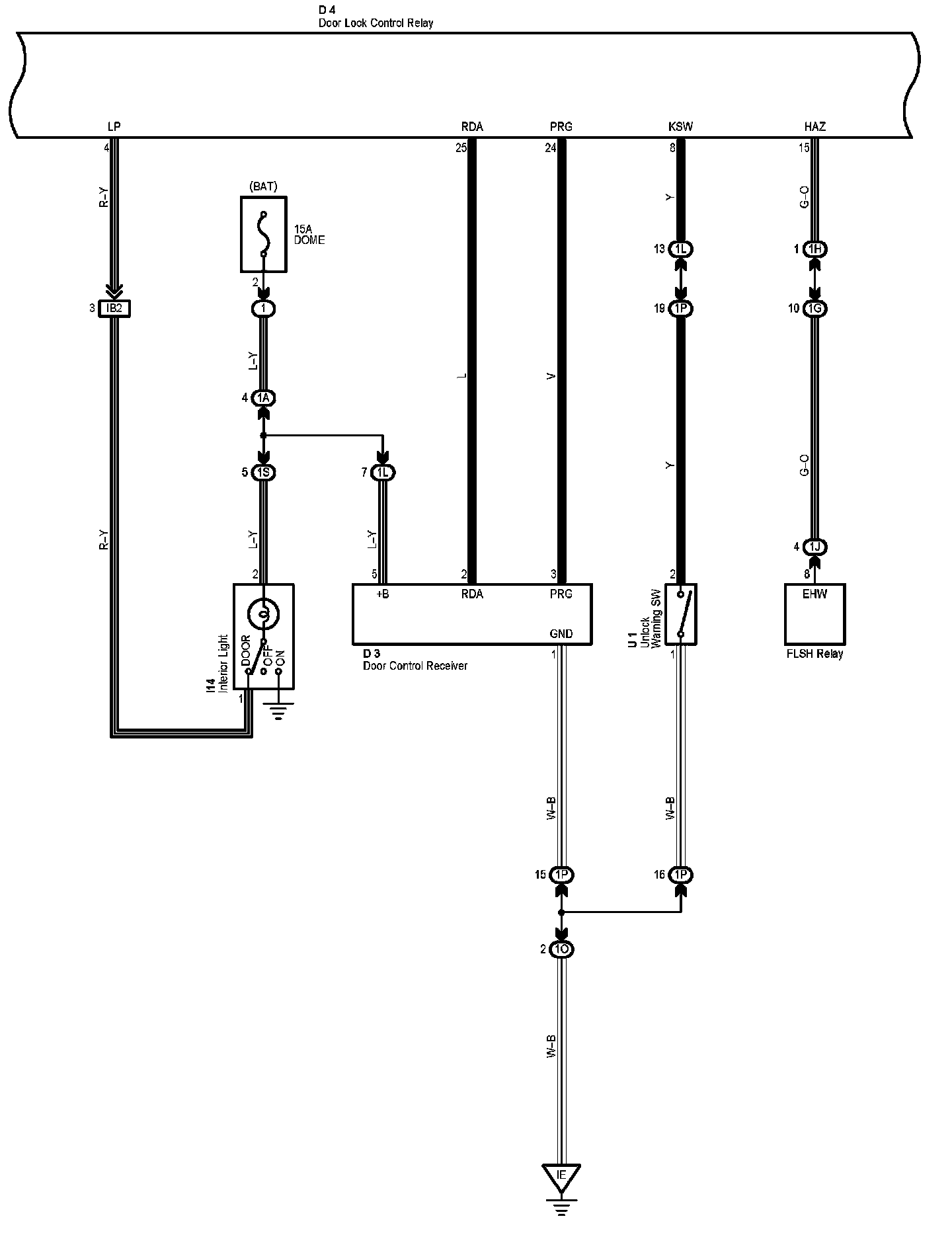

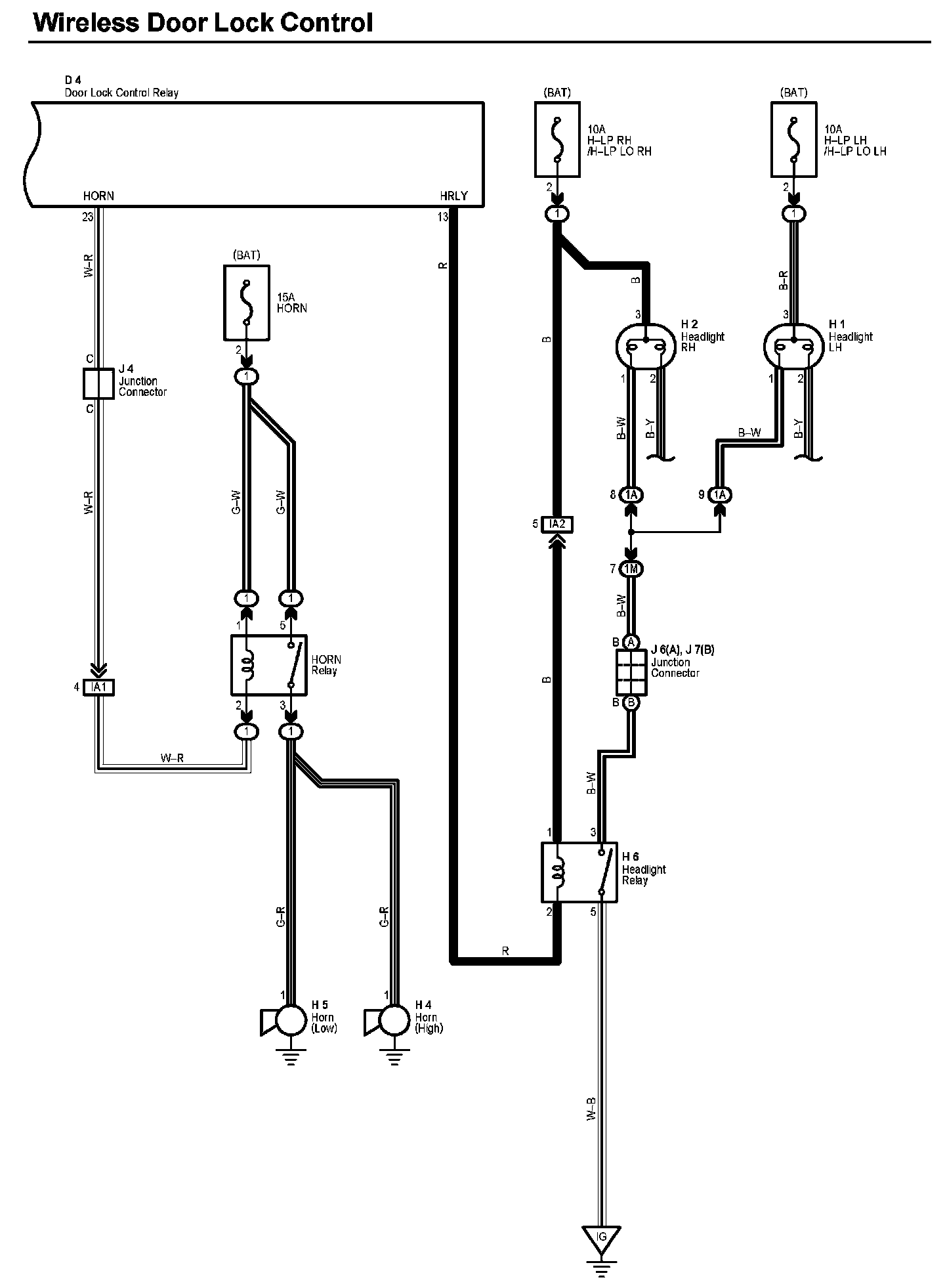

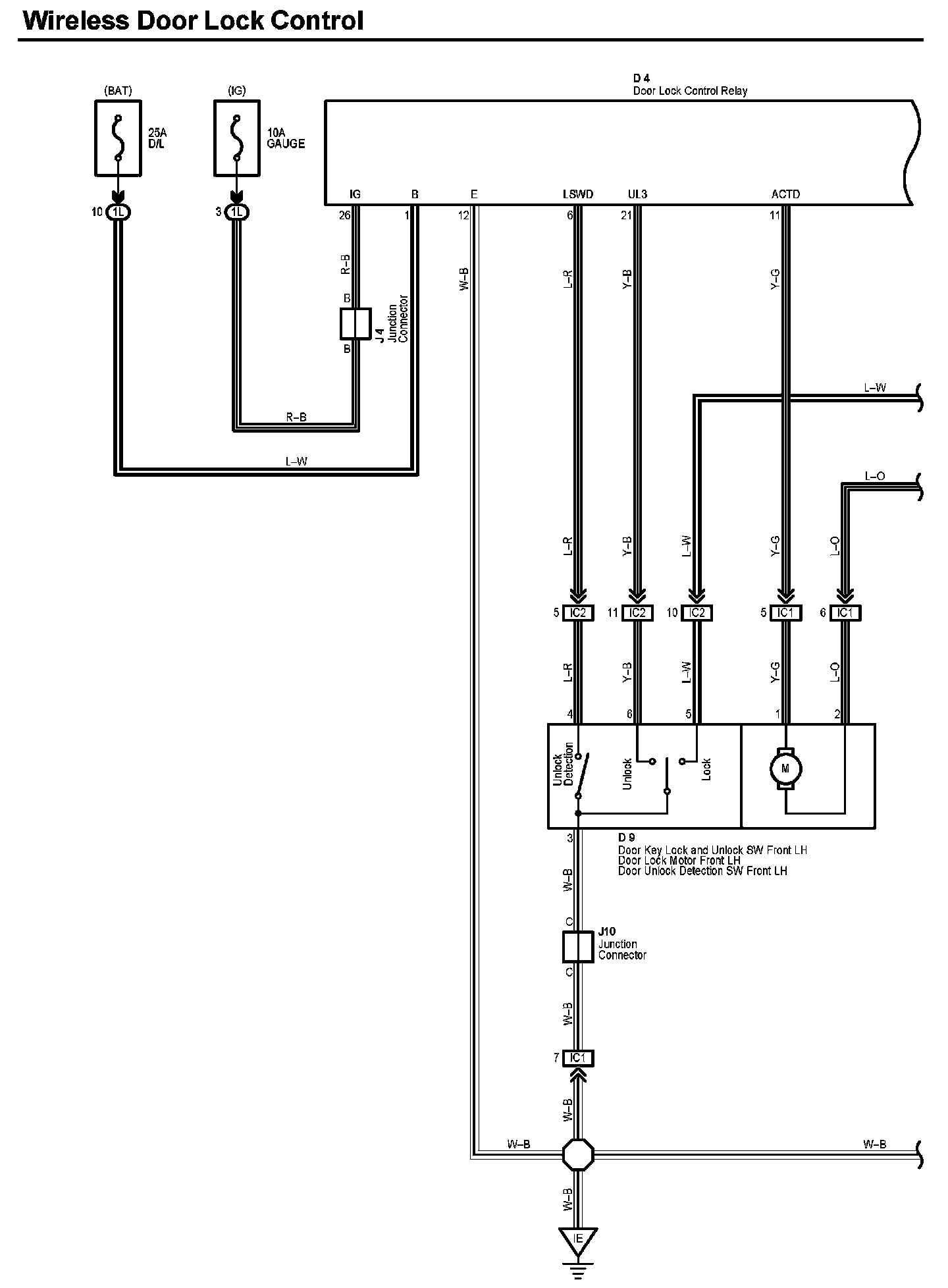

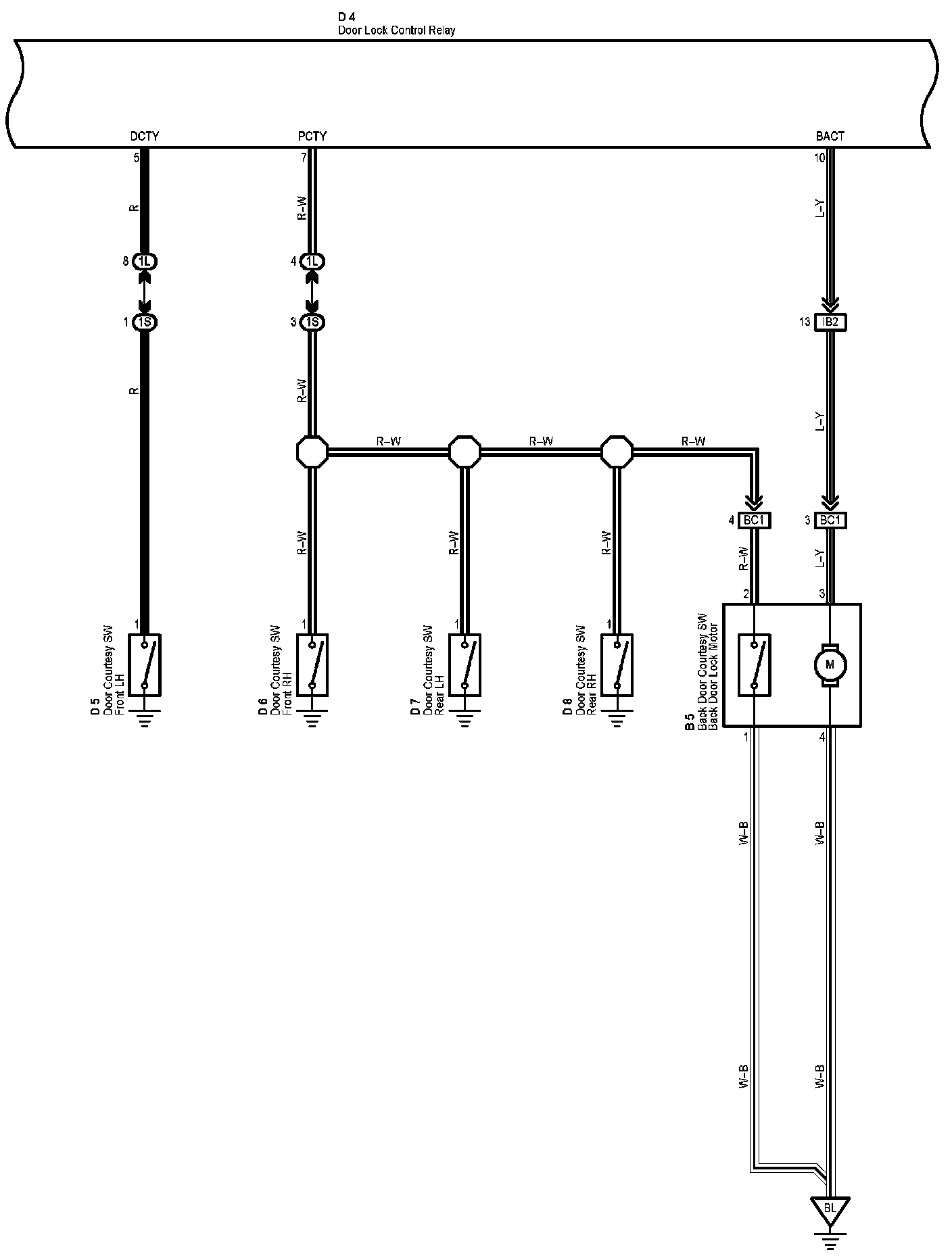

Wireless Door Lock Control (Part 1):




Wireless Door Lock Control (Part 2):




Wireless Door Lock Control (Part 3):




Wireless Door Lock Control (Part 4):




Wireless Door Lock Control (Part 5):

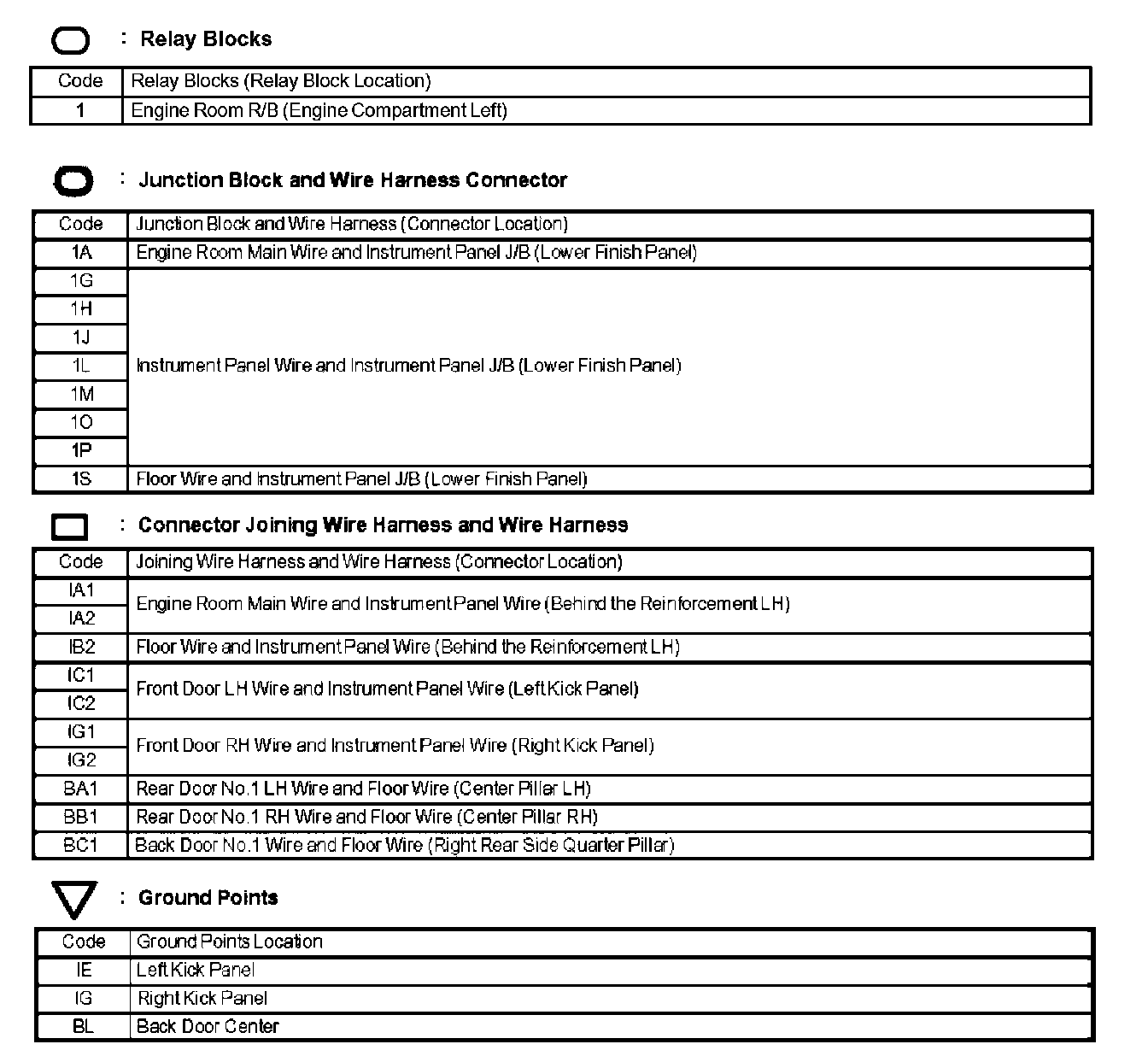

Diagram Legend:






Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
