Antenna: Service and Repair

WINDOW GLASS ANTENNA WIRE

REPAIR

1. REPAIR WINDOW GLASS ANTENNA WIRE




a. Clean the broken wire tips with grease, wax and silicone remover.

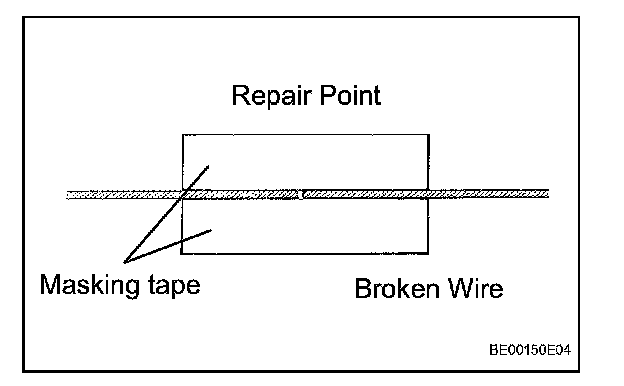

b. Place masking tape along both sides of the wire to be repaired.
c. Thoroughly mix the repair agent (Dupont paste No. 4817).

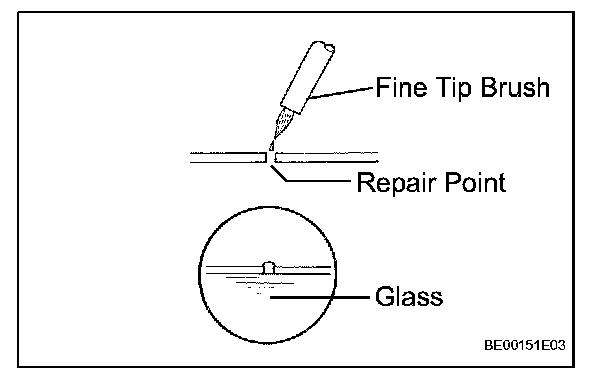

d. Using a fine tip brush, apply a small amount to the wire.
e. After a few minutes, remove the masking tape.
f. Do not repair the defogger wire for at least 24 hours.
