DTC P0711 Transmission Fluid Temperature Sensor "A" Performance

DESCRIPTION
Refer to DTC P0710. P0710

P0711:

MONITOR DESCRIPTION
This DTC indicates that there is a problem with output from the ATF temperature sensor and that the sensor itself is defective. The ATF temperature sensor converts the ATF temperature to an electrical resistance value. Based on the resistance, the ECM determines the ATF temperature and detects open and short circuits of the ATF temperature circuit or faults in the ATF temperature sensor.

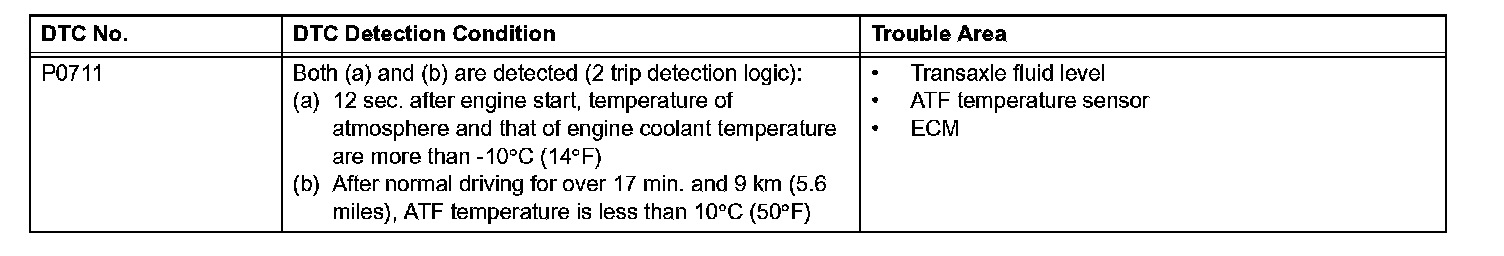

After running the vehicle for a certain period, the ATF temperature should increase. If the ATF temperature is below 10°C (50°F) after running the vehicle for a certain period, the ECM interprets this as a fault, and illuminates the MIL.

MONITOR STRATEGY

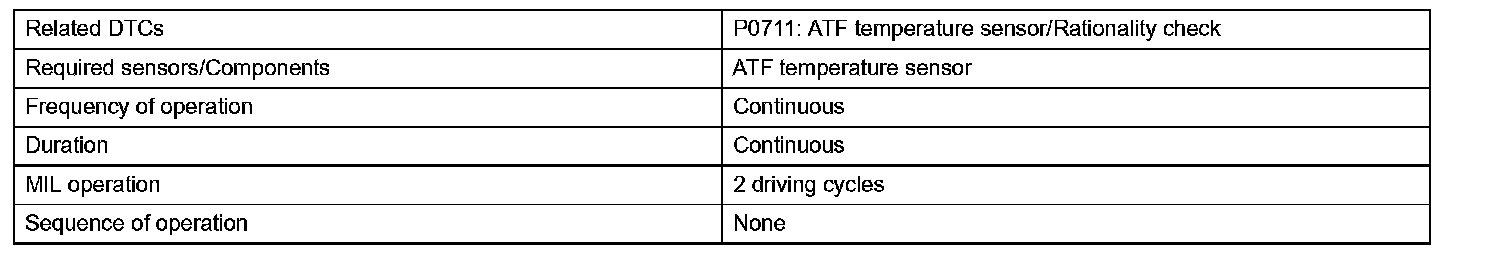

MONITOR STRATEGY:

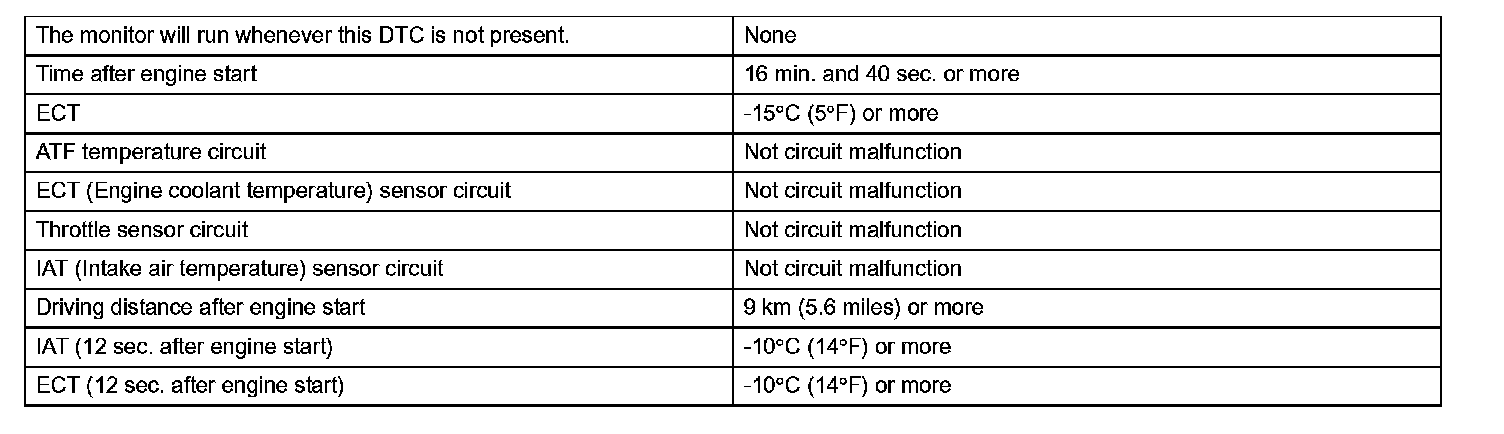

TYPICAL ENABLING CONDITIONS

TYPICAL ENABLING CONDITIONS:

TYPICAL MALFUNCTION THRESHOLDS

TYPICAL MALFUNCTION THRESHOLDS:

COMPONENT OPERATING RANGE

COMPONENT OPERATING RANGE:

WIRING DIAGRAM

Refer to DTC P0710. P0710

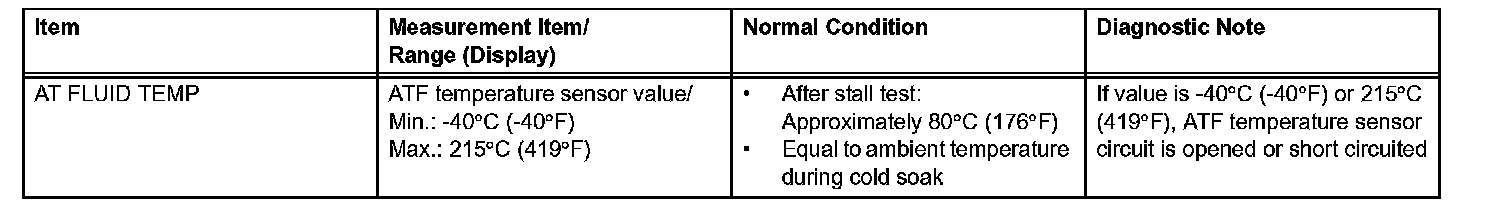

HINT: Using the intelligent tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

NOTICE: In the table, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
4. Turn the ignition switch ON.
5. Turn the intelligent tester ON.
6. Enter these menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST.
7. Follow the instructions on the tester and read the DATA LIST.





HINT:

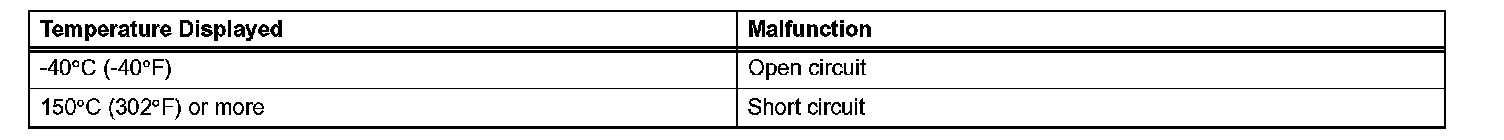

- When DTC P0712 is output and the intelligent tester output is 150°C (302°F) or more, there is a short circuit.
- When DTC P0713 is output and the intelligent tester output is -40°C (-40°F), there is an open circuit. Measure the resistance between terminal THO1 (OT) and the body ground.





HINT: If a circuit related to the ATF temperature sensor becomes open, P0713 is set in approximately 0.5 seconds.

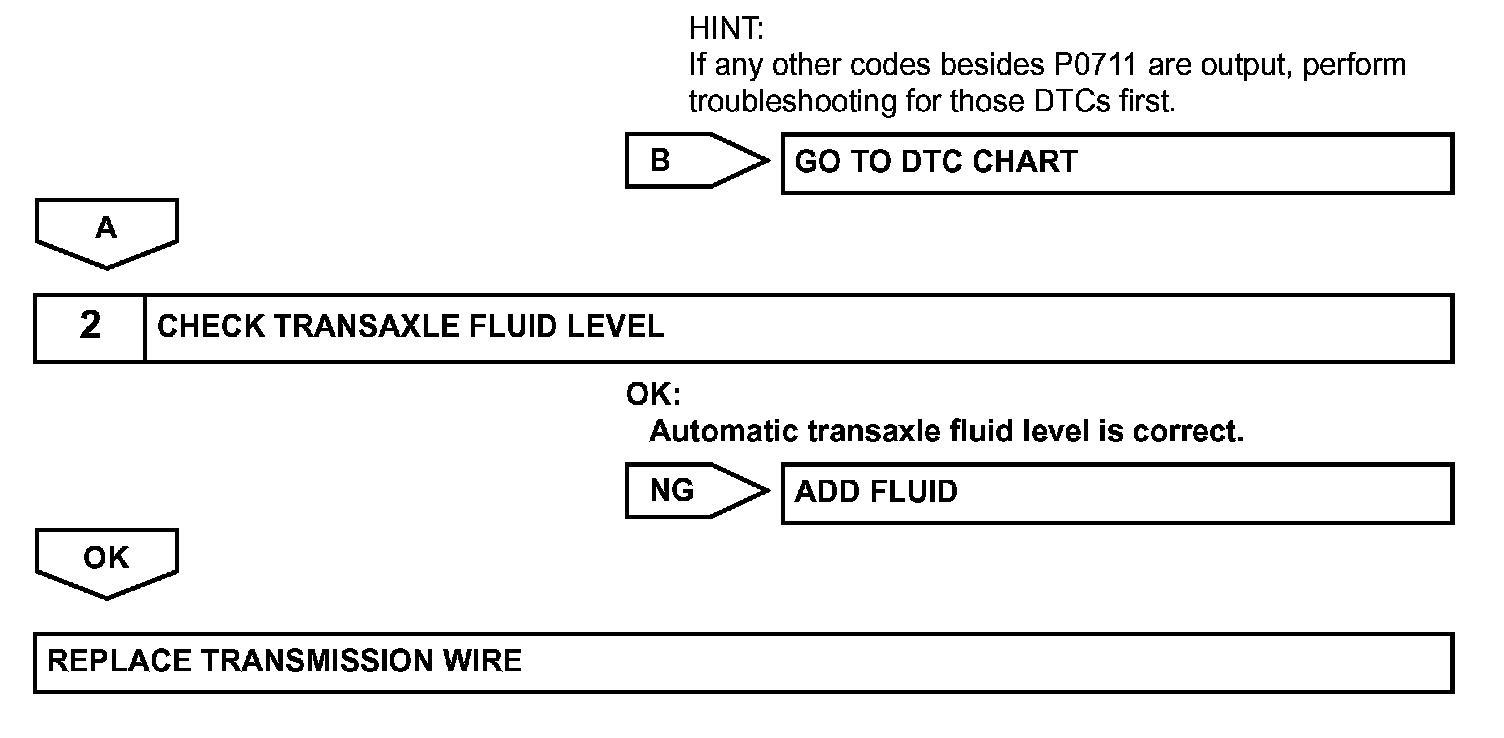

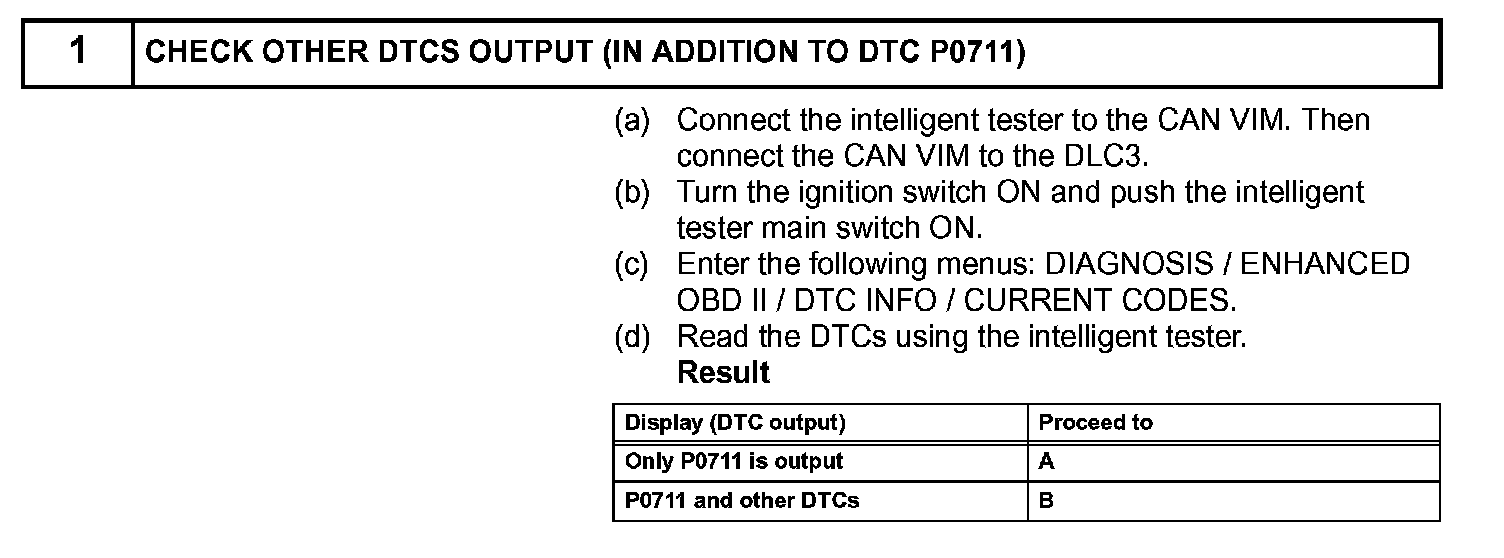

It is not necessary to inspect the circuit when P0711 is set.
