P0550

DTC P0550 Power Steering Pressure Sensor Circuit Malfunction
DTC P0552 Power Steering Pressure Sensor Circuit Low Input
DTC P0553 Power Steering Pressure Sensor Circuit High Input

DESCRIPTION

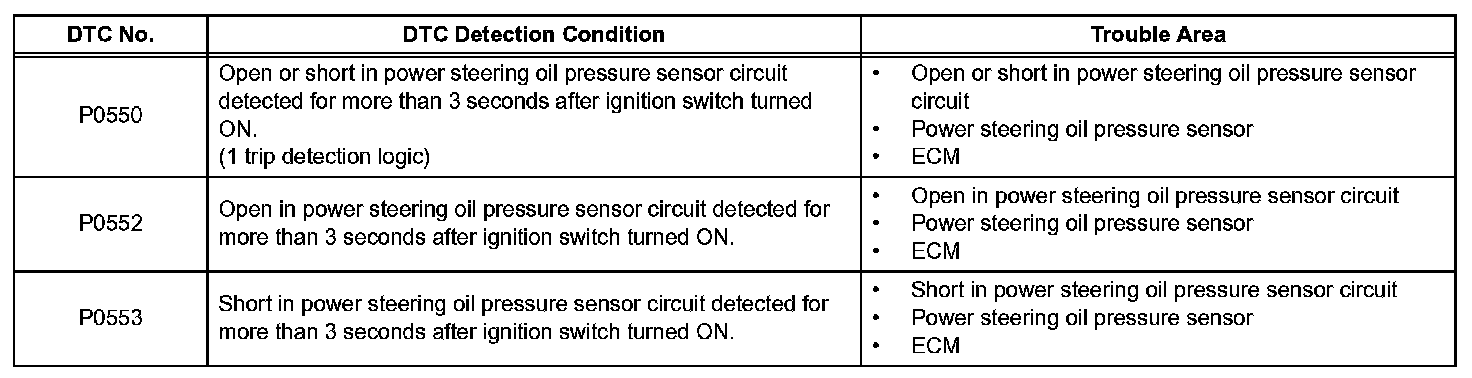

DTC Detection Condition:

The power steering oil pressure sensor is turned ON when a power steering wheel load occurs by turning the steering wheel. The ECM regulates the engine idling RPM according to the voltage output of the sensor.

MONITOR DESCRIPTION

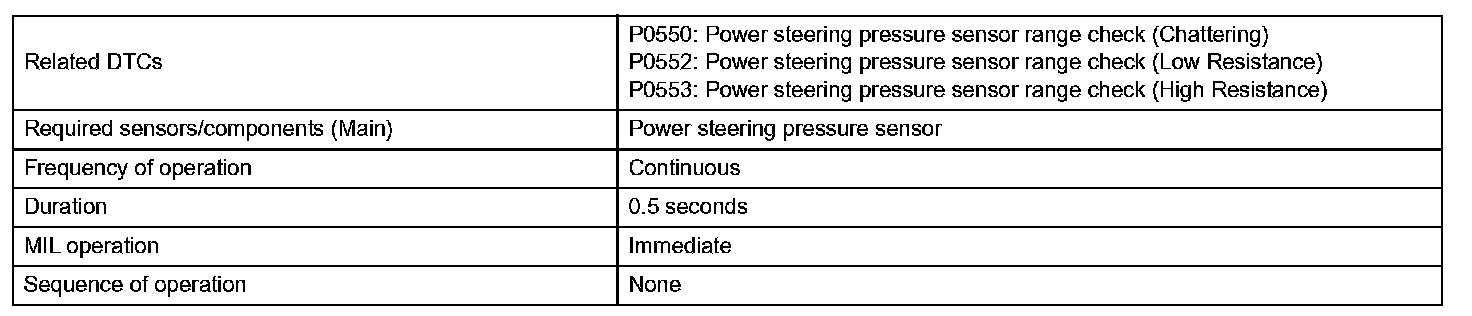

Monitor Strategy:

Typical Enabling Conditions:

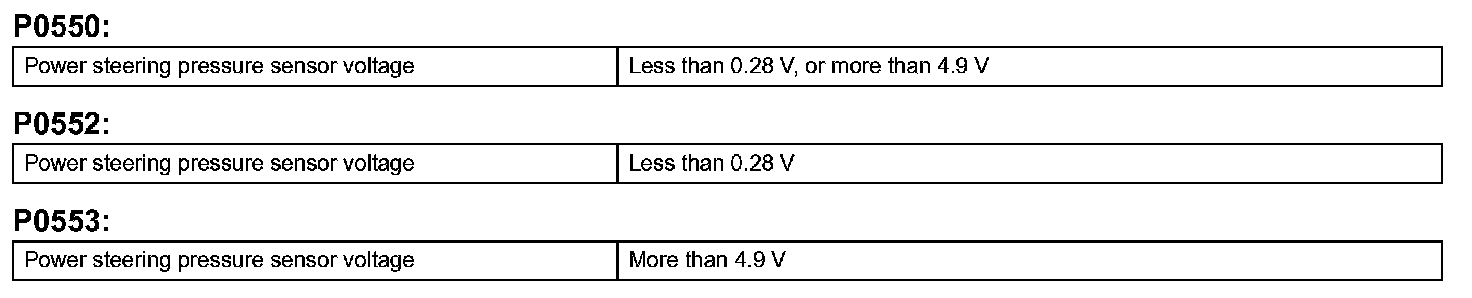

Typical Malfunction Thresholds:

The ECM monitors the sensor voltage and uses this value to regulate the engine idling speed. When the sensor output voltage deviates from the normal operating range, the ECM determines that there is a malfunction in the power steering oil pressure sensor and sets a DTC.

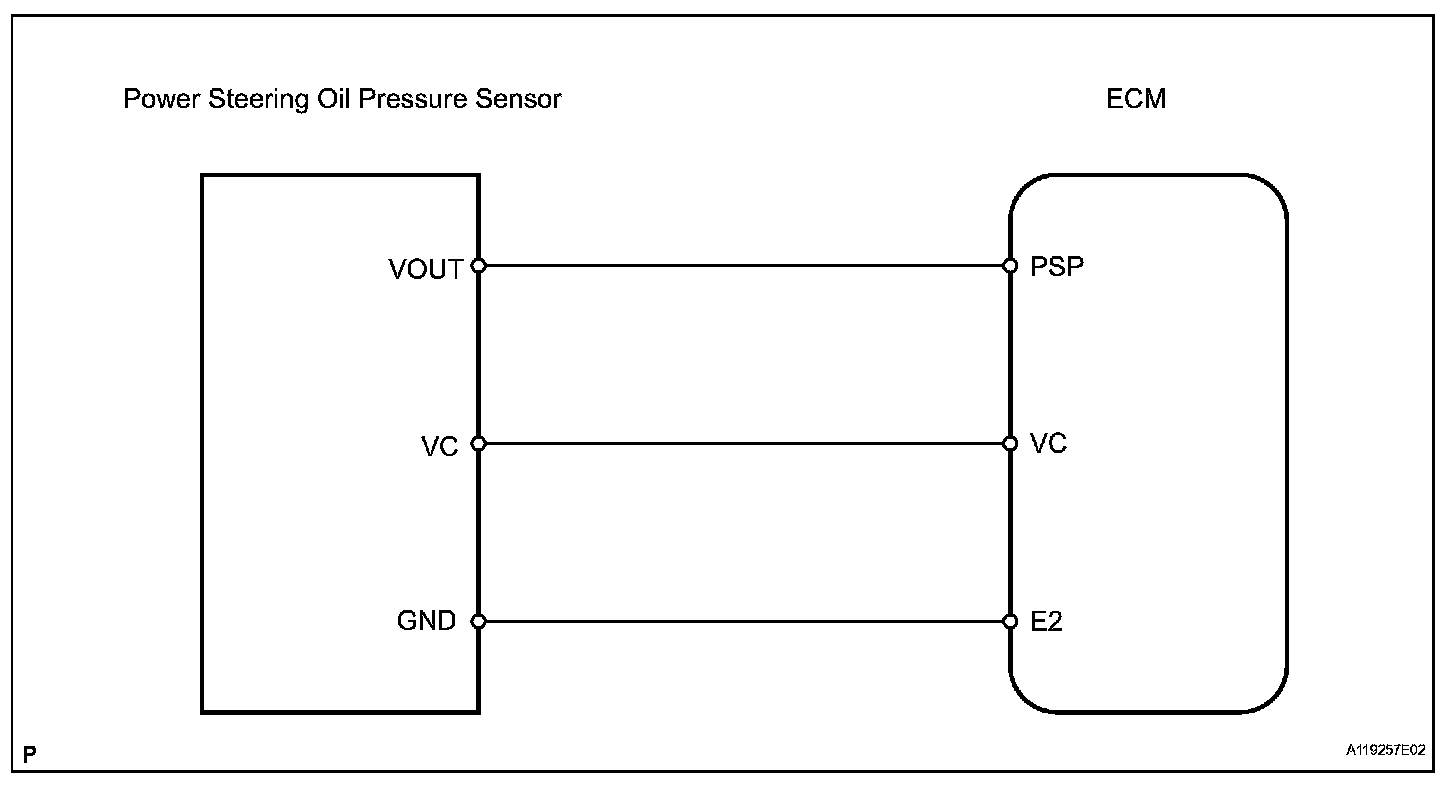

Wiring Diagram:

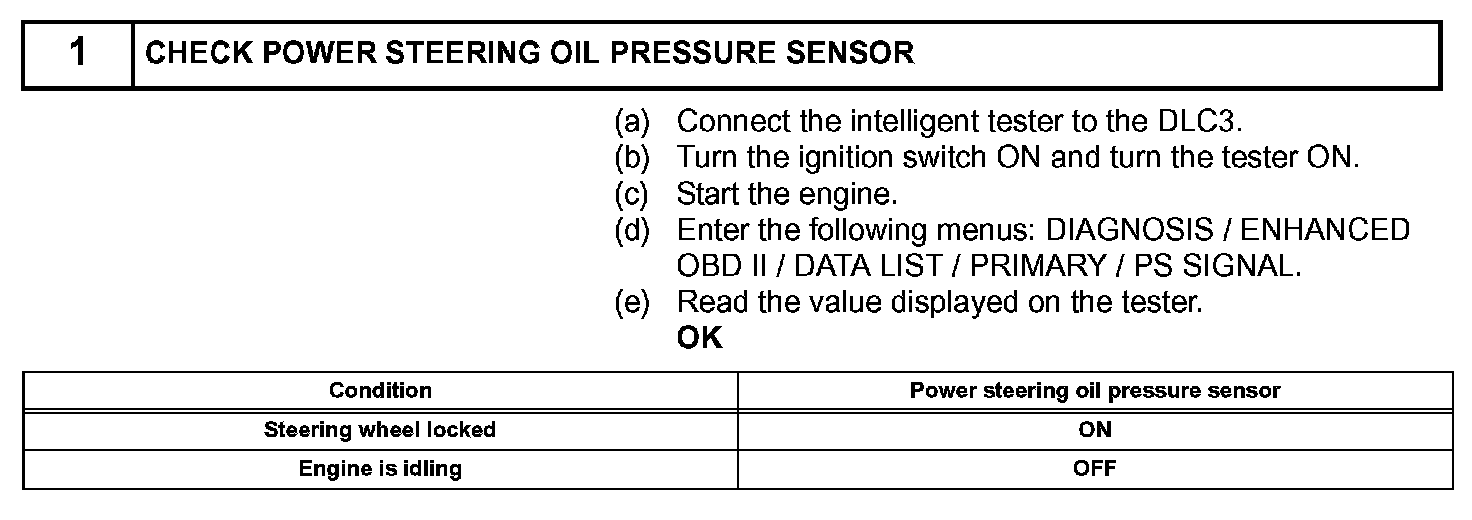

Step 1:

Step 1(Continued)-2:

INSPECTION PROCEDURE

HINT:
- If other DTCs relating to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.
- Read freeze frame data using the intelligent tester. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
