DTC 54

DTC B0106/54 Open in Front Passenger Side Squib Circuit

DESCRIPTION

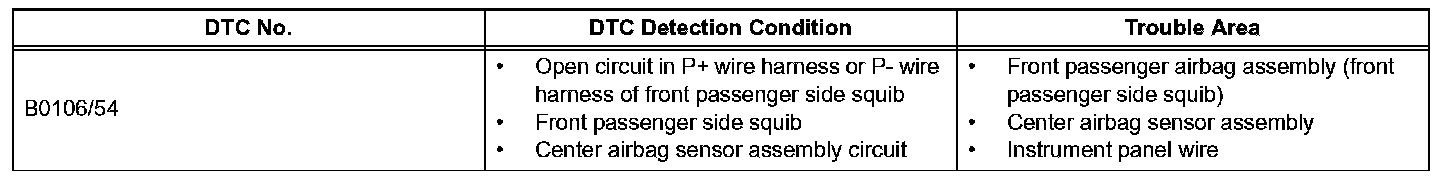

DTC Detection Condition:

The front passenger side squib consists of the center airbag sensor assembly and the front passenger airbag assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0106/54 is recorded when an open circuit is detected in the front passenger side squib circuit.

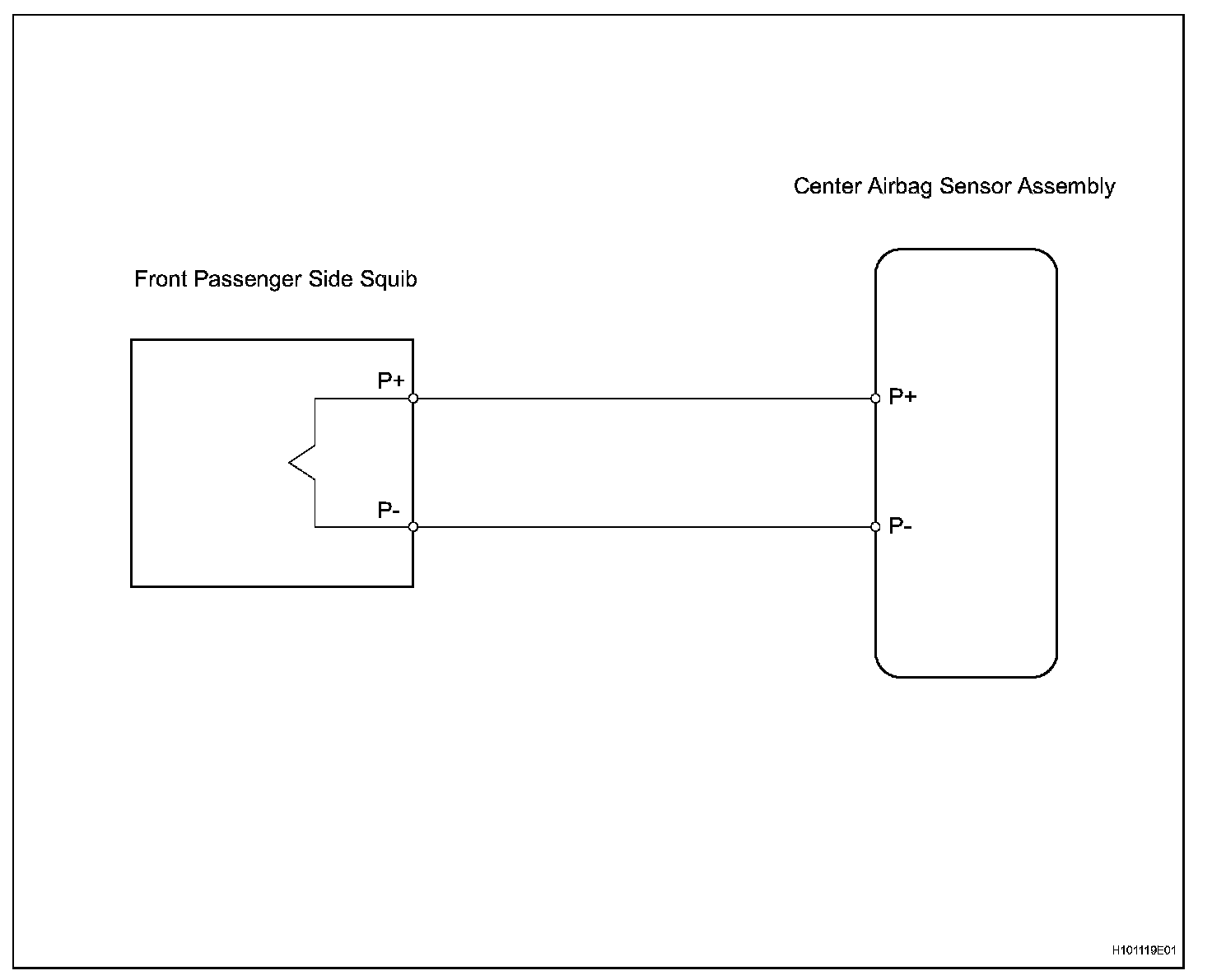

Wiring Diagram:

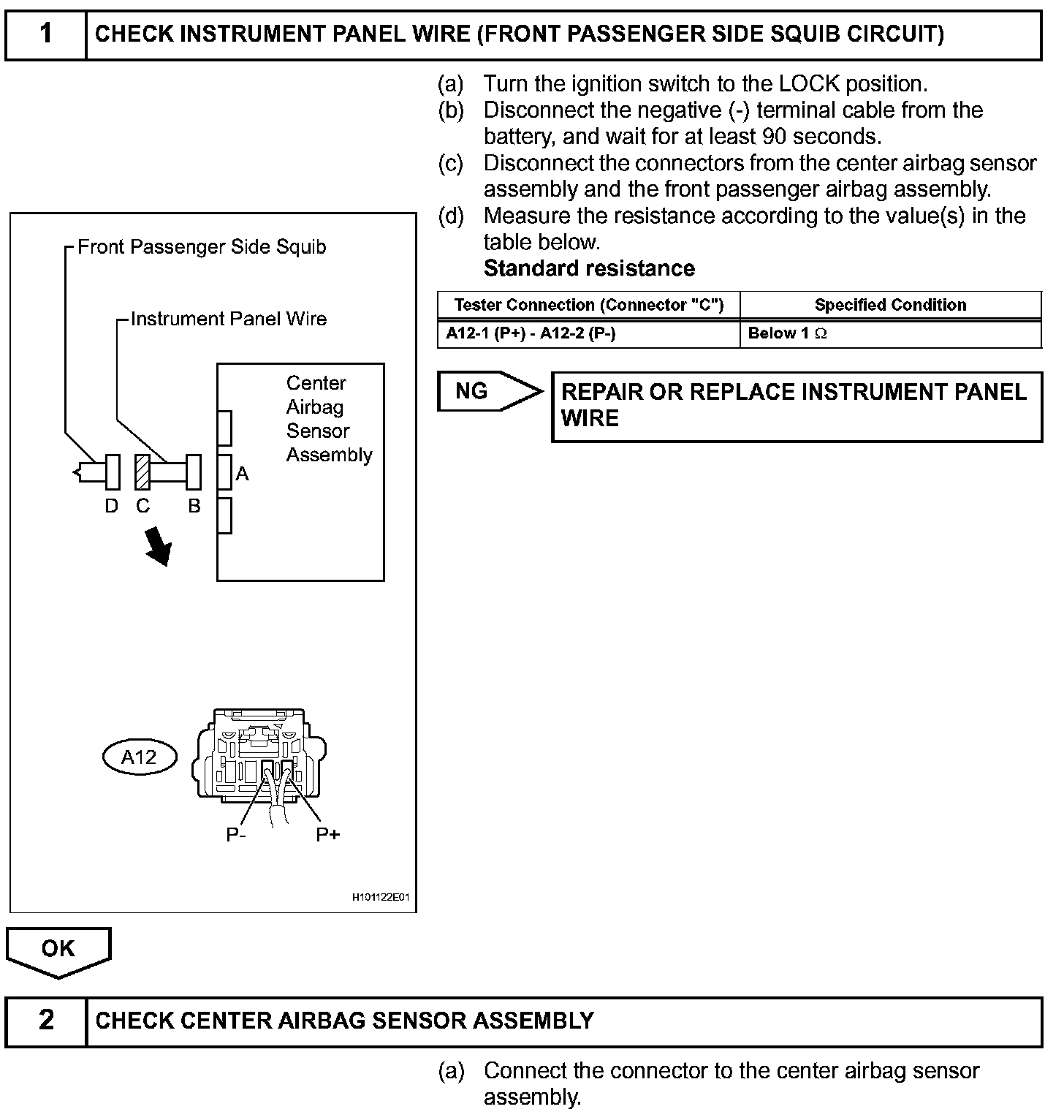

Step 1-2:

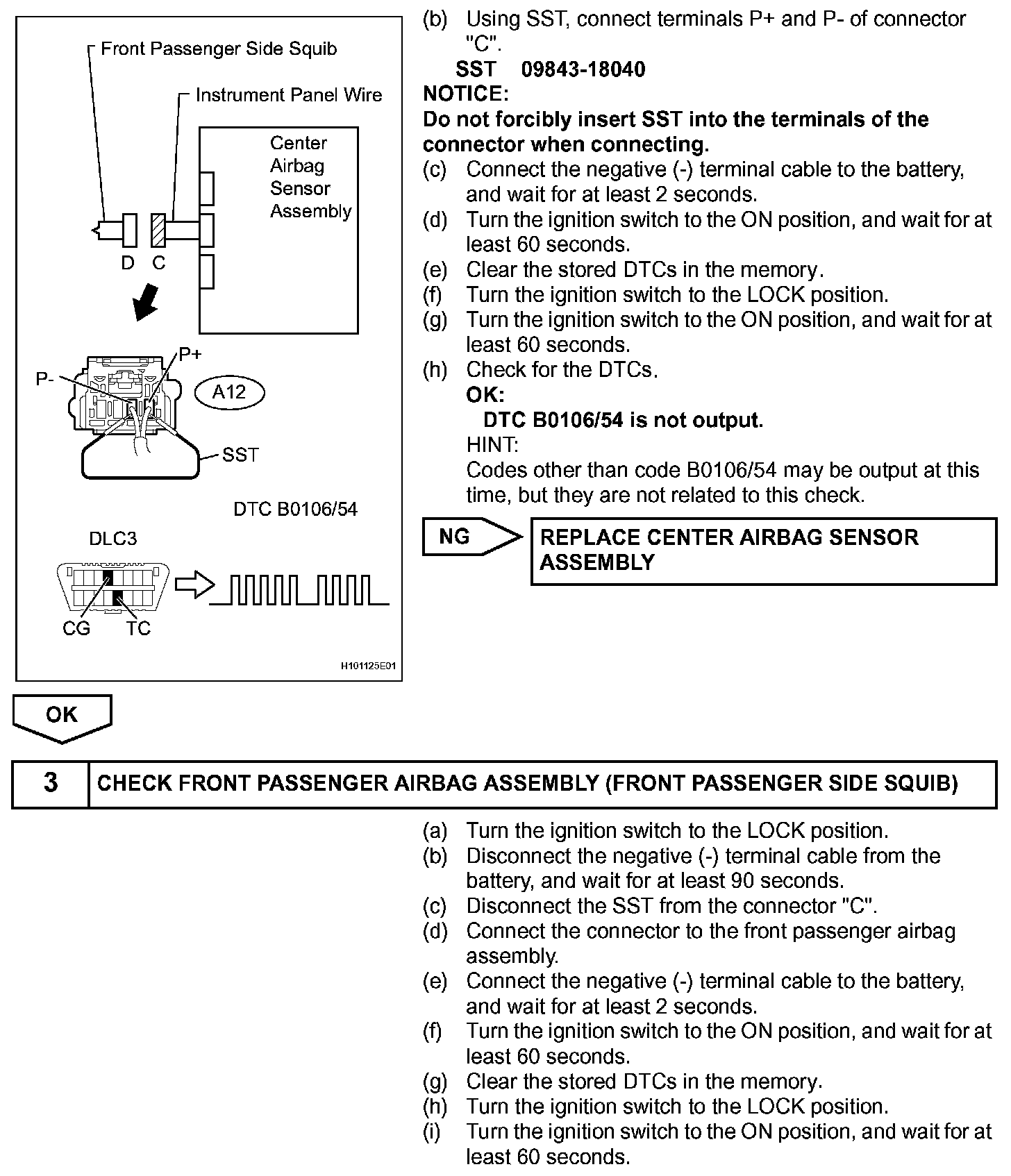

Step 2(continued)-3:

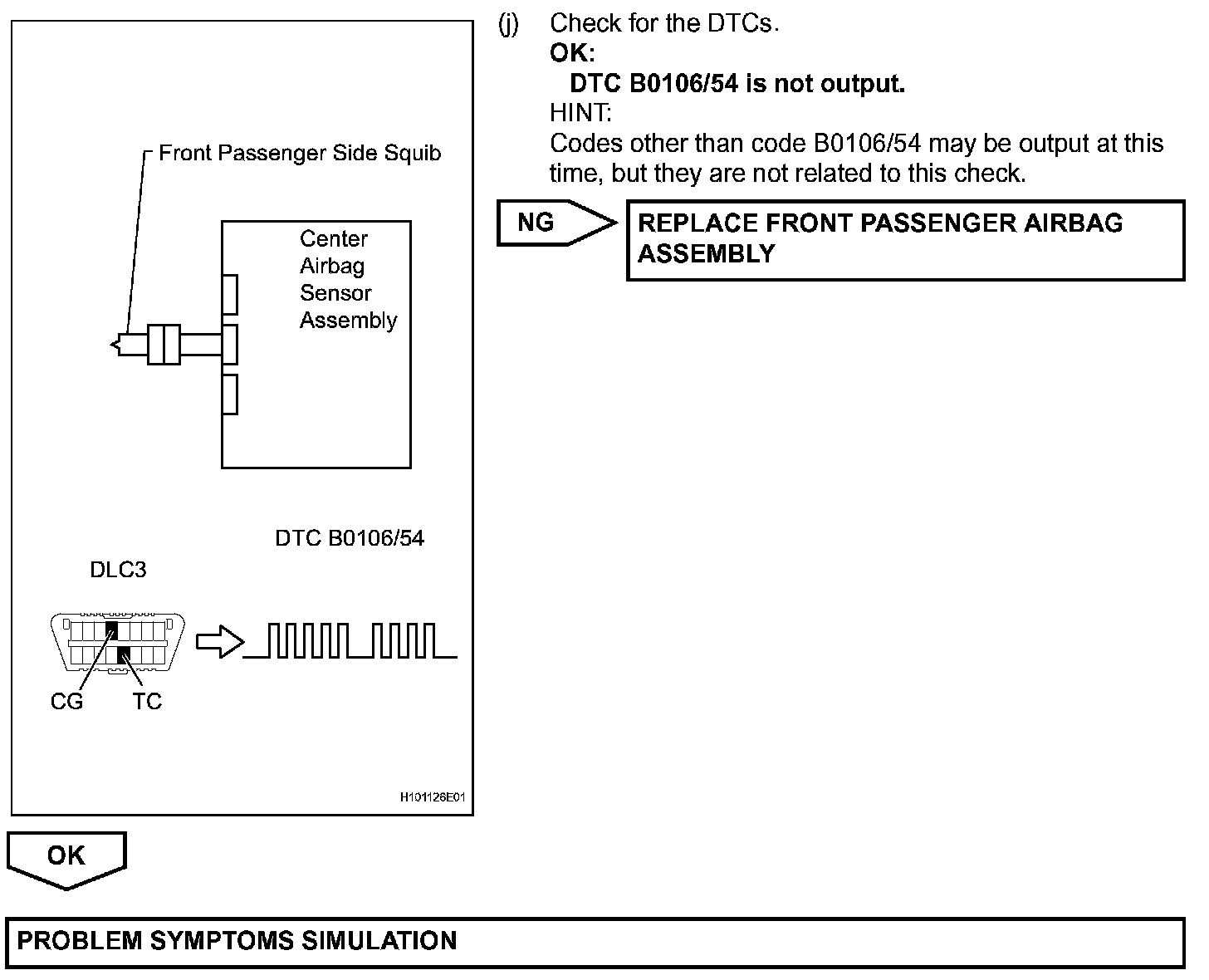

Step 3(continued):

INSPECTION PROCEDURE
