Zero Point Calibration of Deceleration Sensor Undone

DTC C1336/39 Zero Point Calibration of Deceleration Sensor Undone

DESCRIPTION

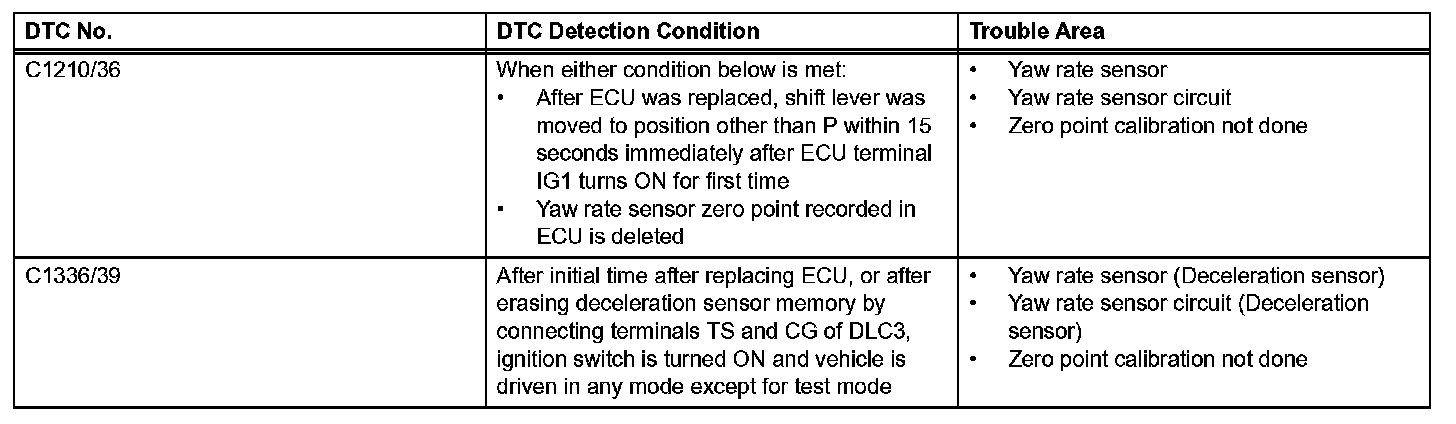

DTC Detection Condition:

The deceleration sensor is built into the yaw rate sensor.

HINT: When U0121/94, U0123/62, U0124/95 or U0126/63 is output along with C1210/36 or C1336/39, inspect and repair the trouble areas indicated by U0123/62, U0124/95 or U0126/63 first.

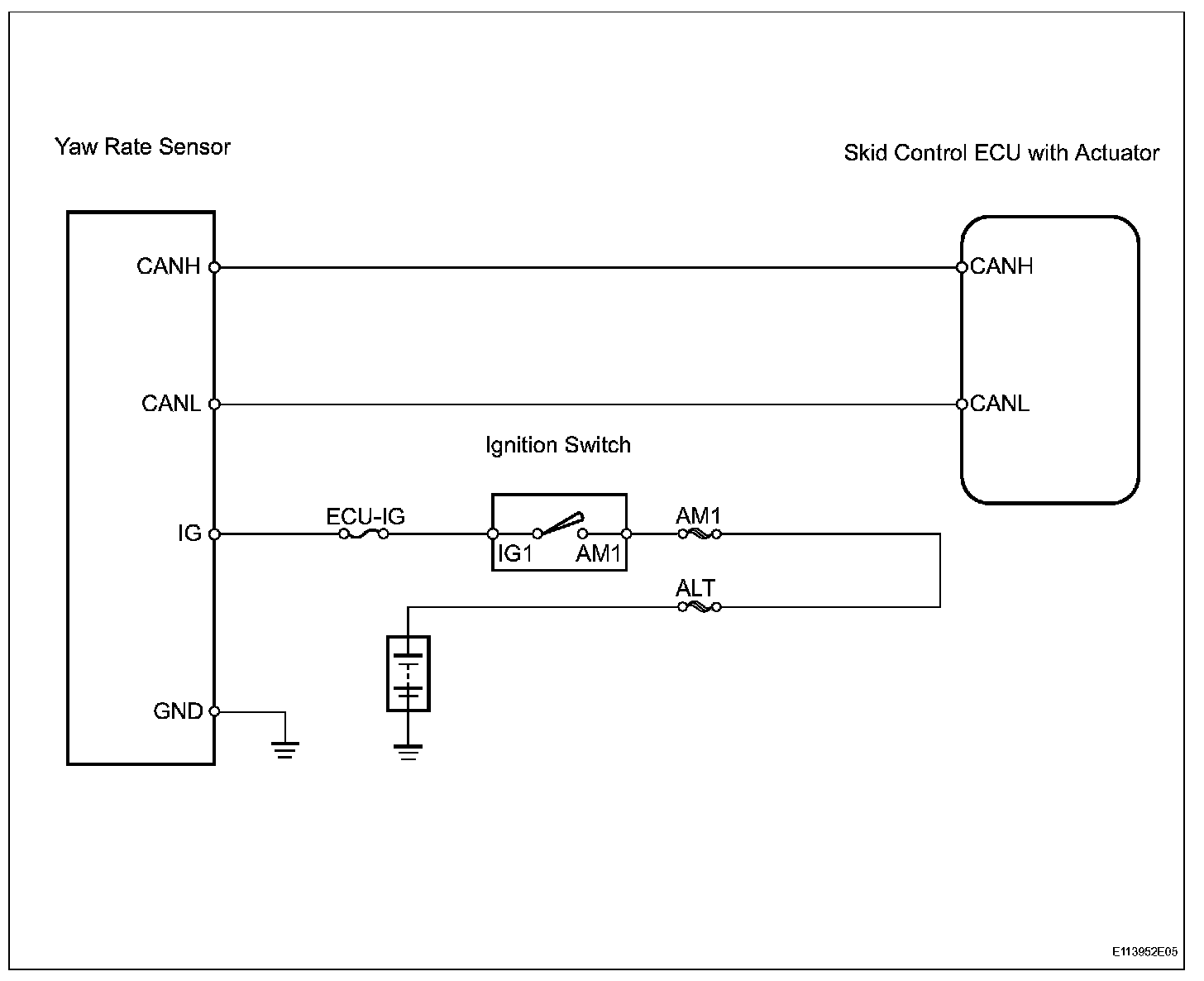

Wiring Diagram:

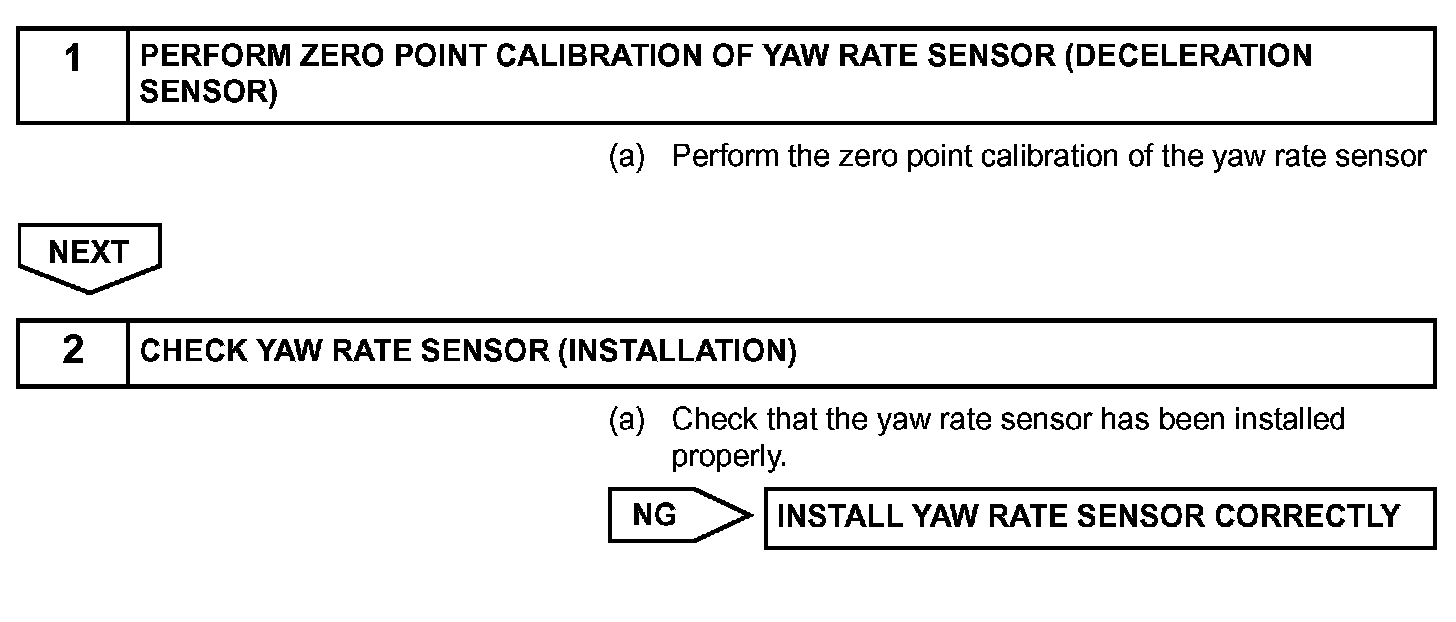

Step 1-2:

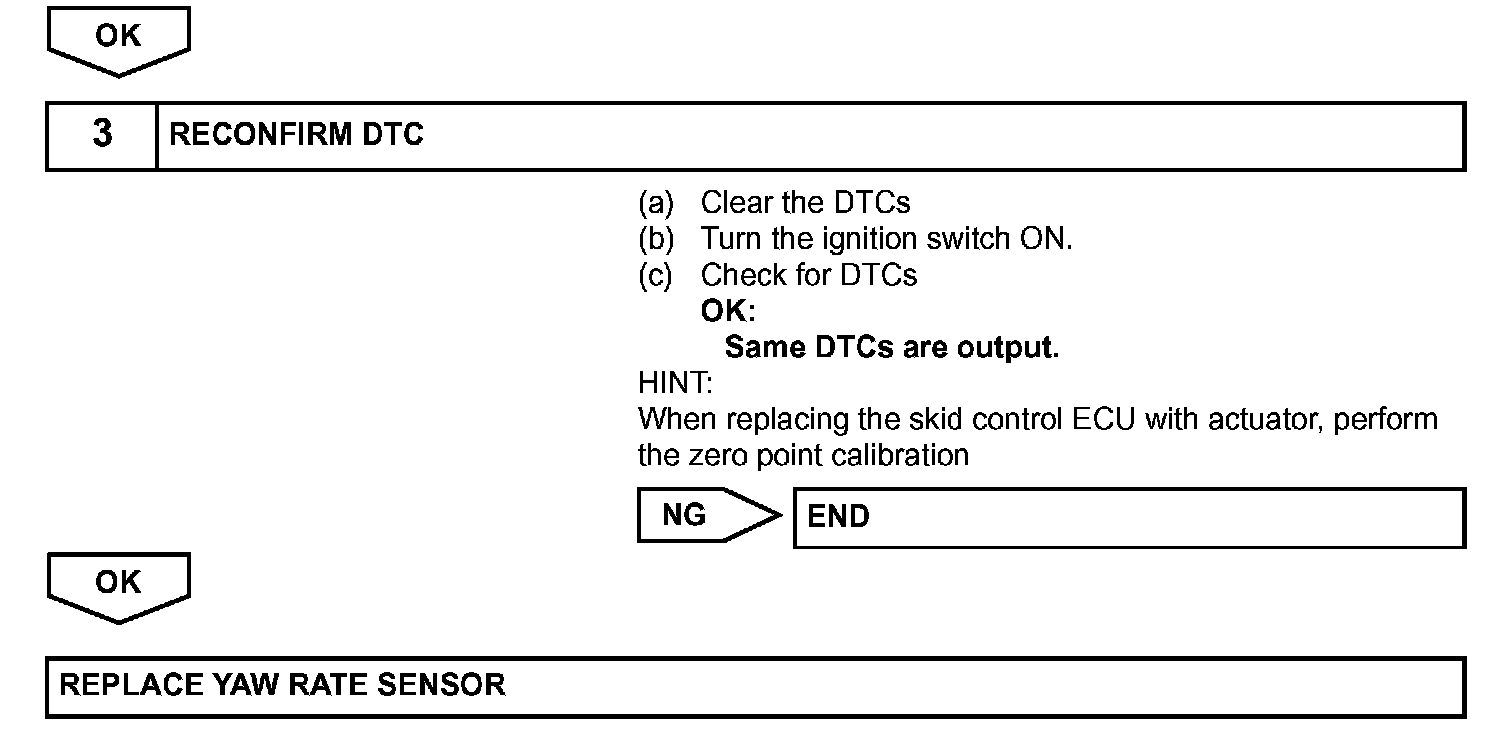

Step 2(Continued)-3:

INSPECTION PROCEDURE
