Automatic Transaxle System

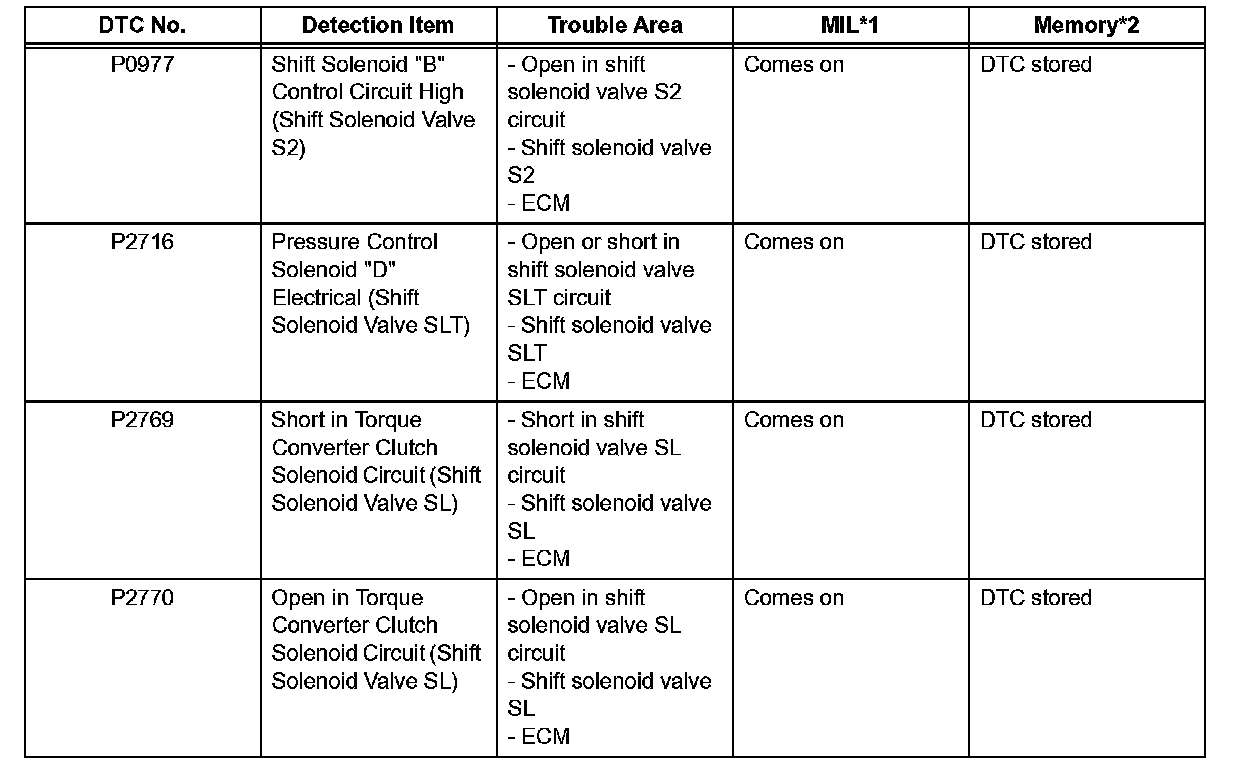

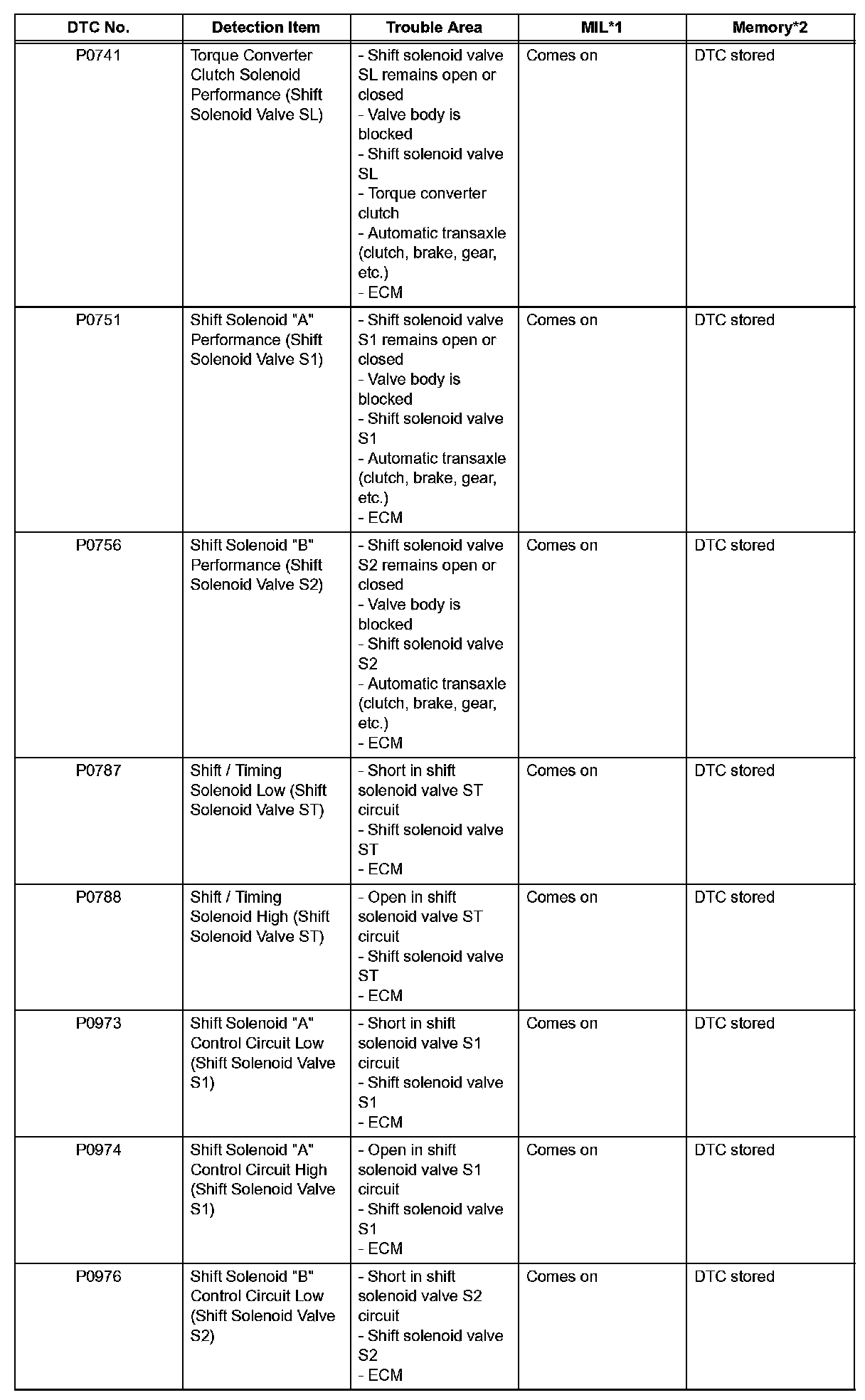

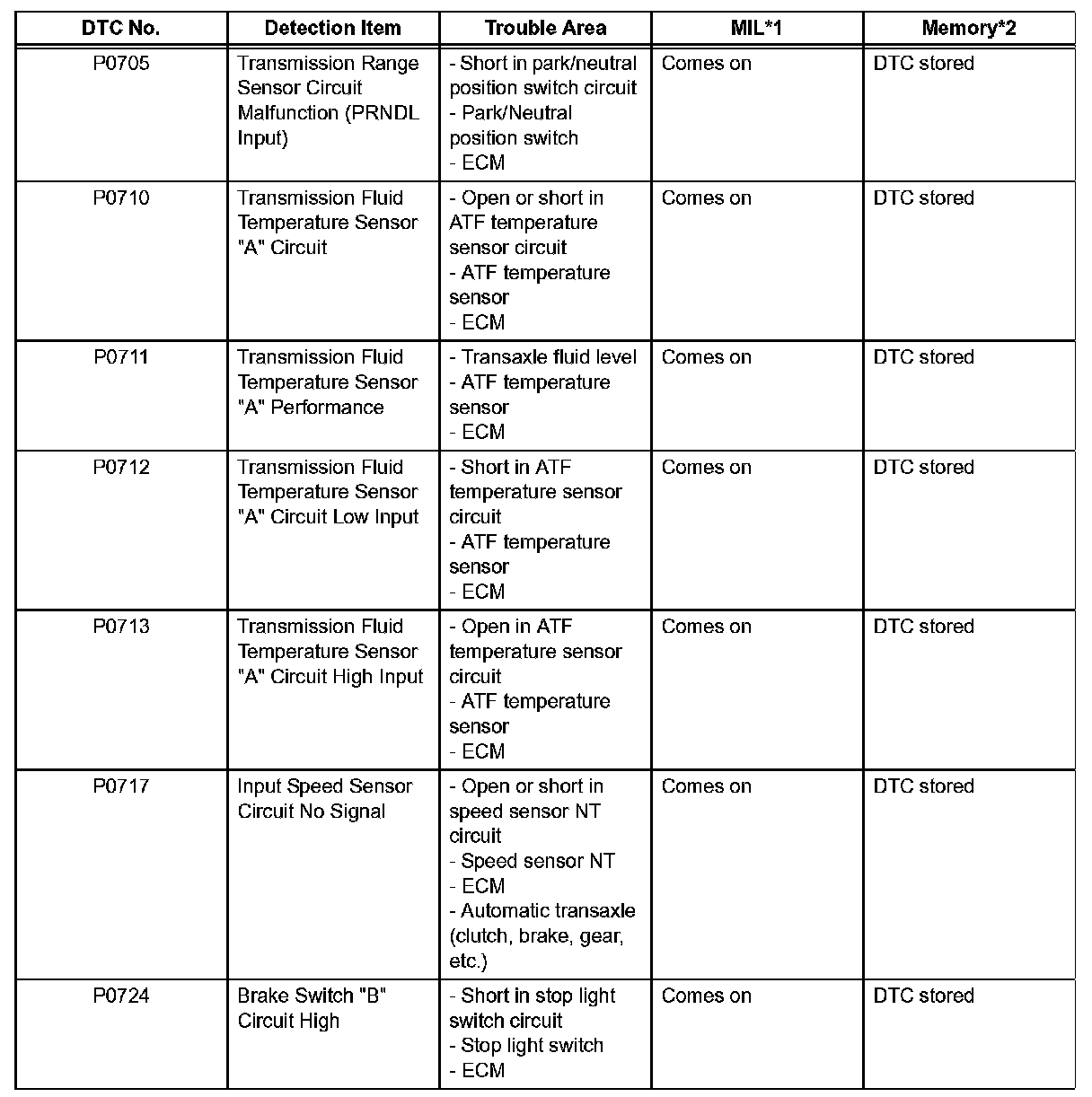

DIAGNOSTIC TROUBLE CODE CHARTIf a DTC is displayed during the DTC check, check the circuit listed in the table and proceed to the test given.
HINT:
^ *1: "Comes on" means that the MIL will illuminate.
^ *2: "DTC stored" means that the ECM memorizes the malfunction code if the DTC detection condition(s) are met.
^ These DTCs may be output when the clutch, brake, gear components, etc. inside the automatic transaxle are damaged.
