C1249

DTC C1249/49 Open in Stop Light Switch Circuit

DESCRIPTION

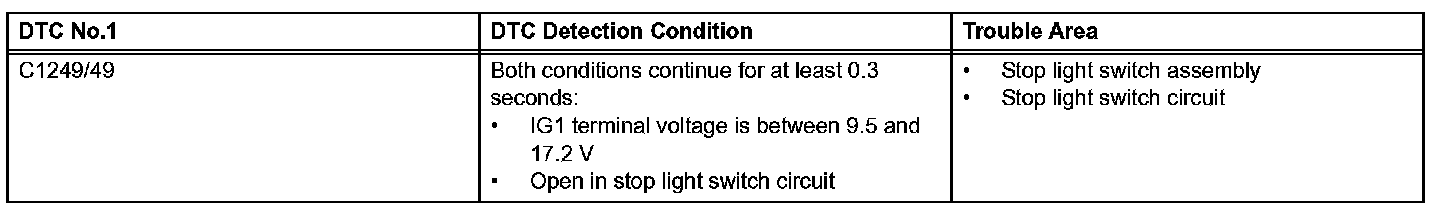

DTC Detection Condition:

This circuit recognizes brake operation by sending a stop light signal to the skid control ECU.

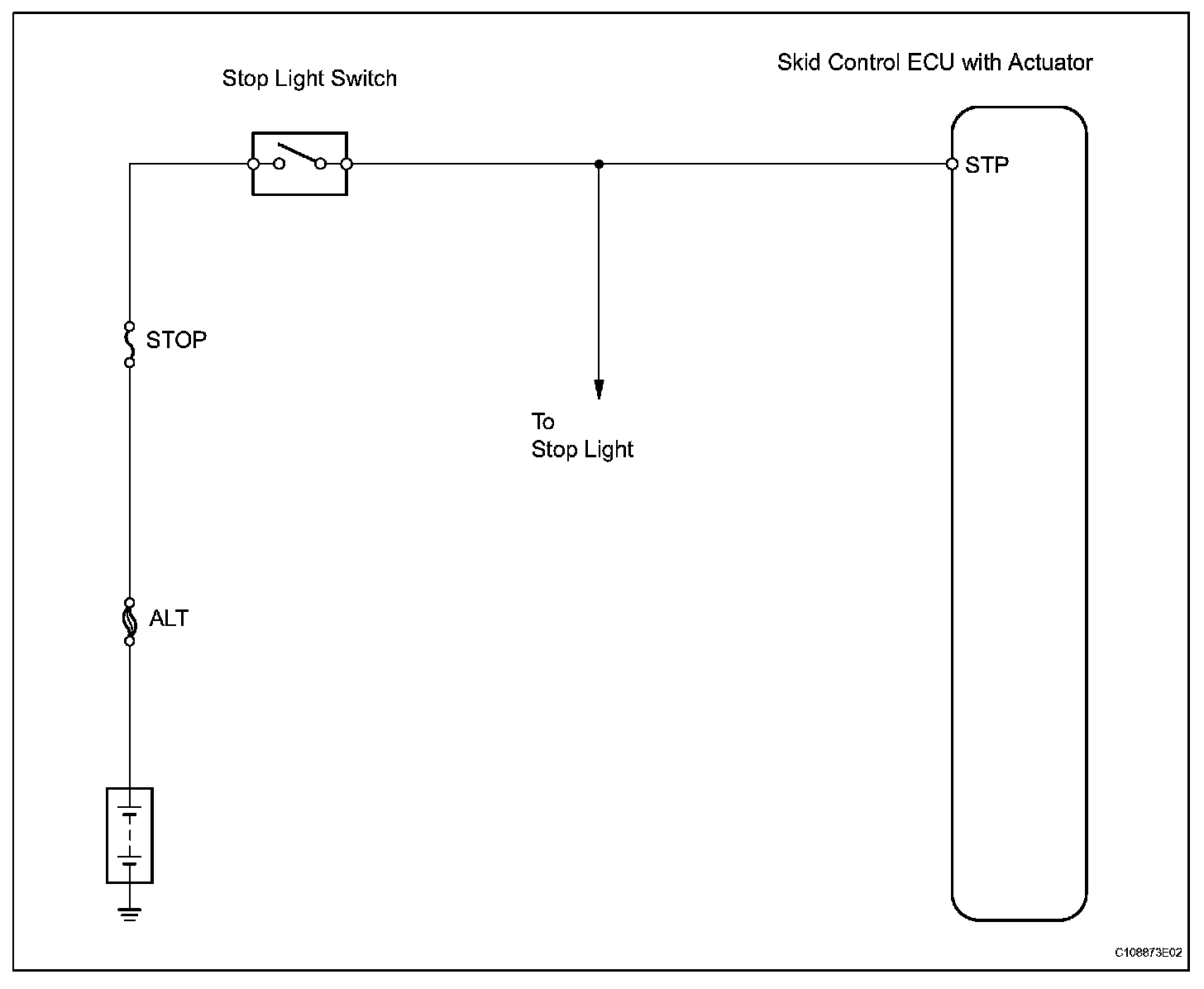

Wiring Diagram:

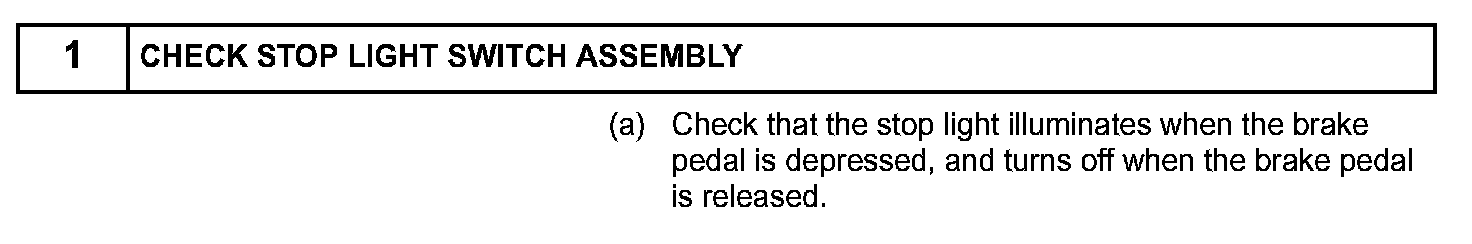

Step 1:

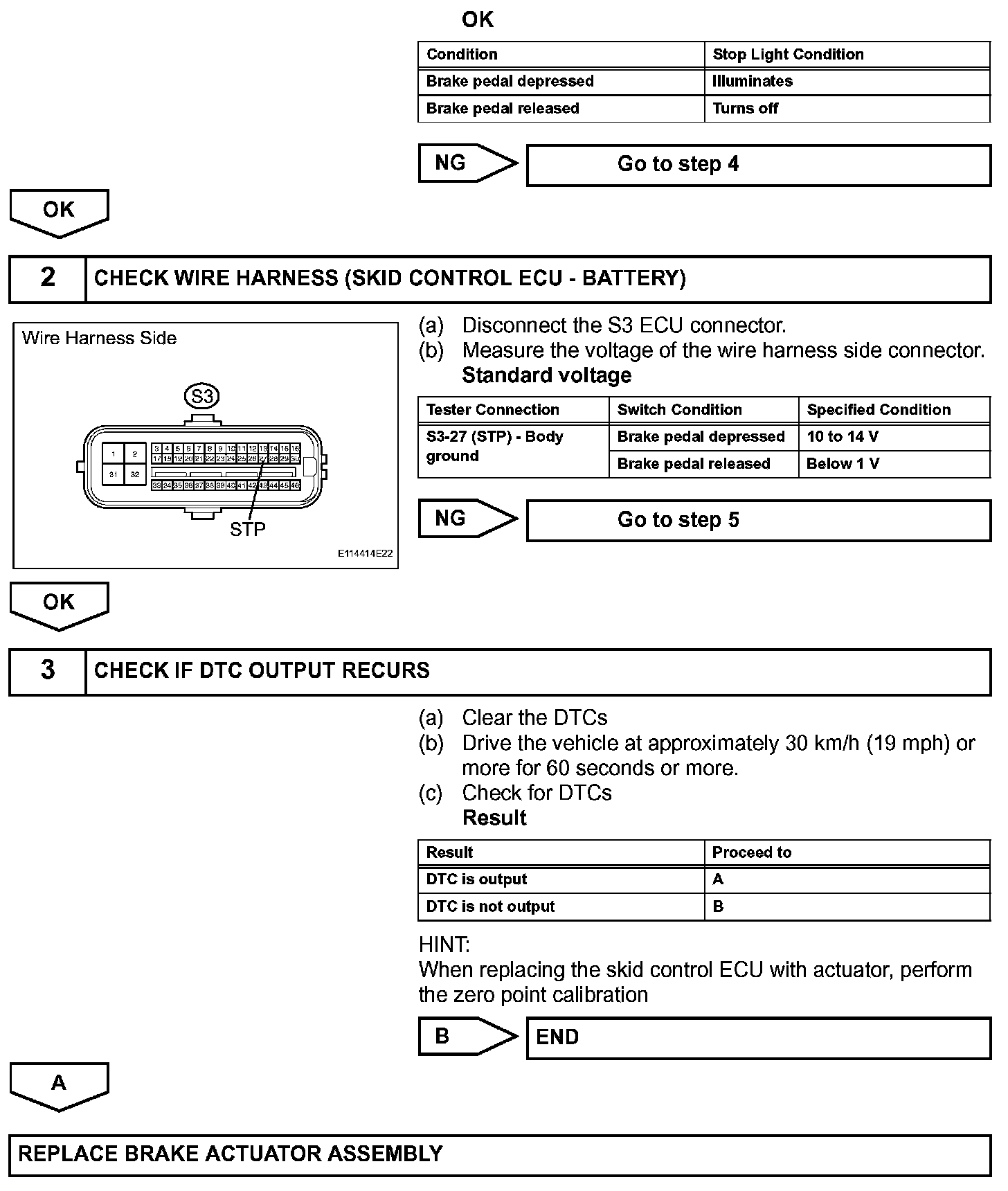

Step 1(Continued)-3:

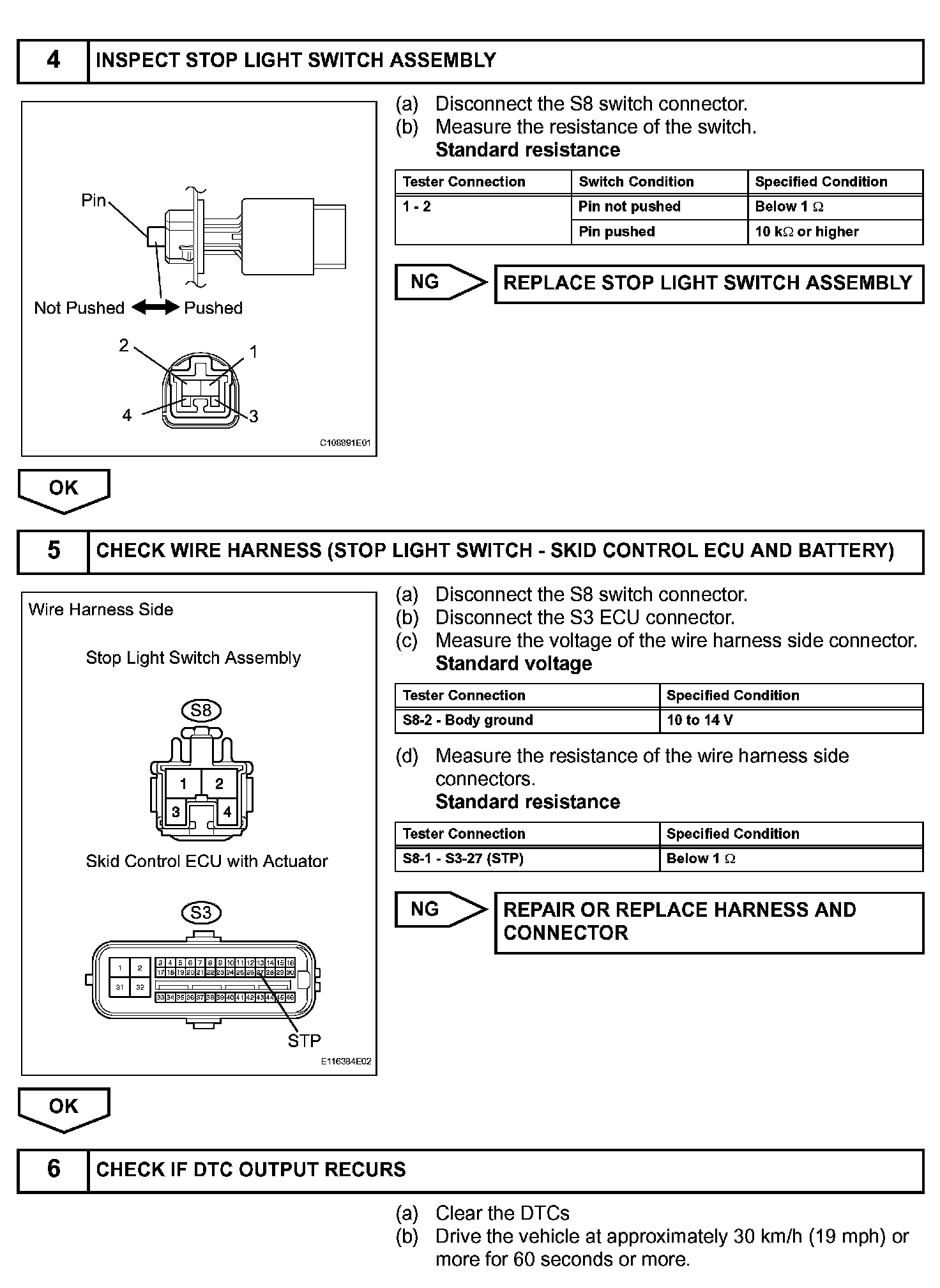

Step 4-6:

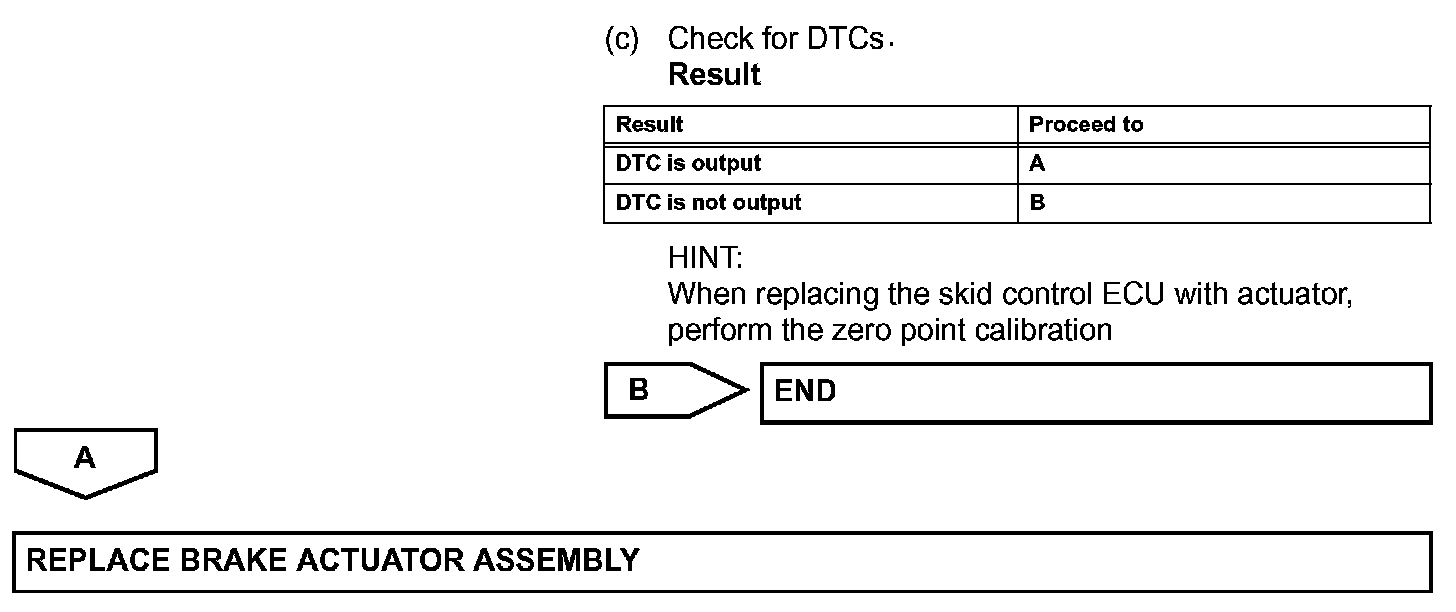

Step 6(Continued):

INSPECTION PROCEDURE
