C1241
C1241
DTC C1241/41 Low Battery Positive Voltage or Abnormally High Battery Positive Voltage
DESCRIPTION
DTC Detection Condition:

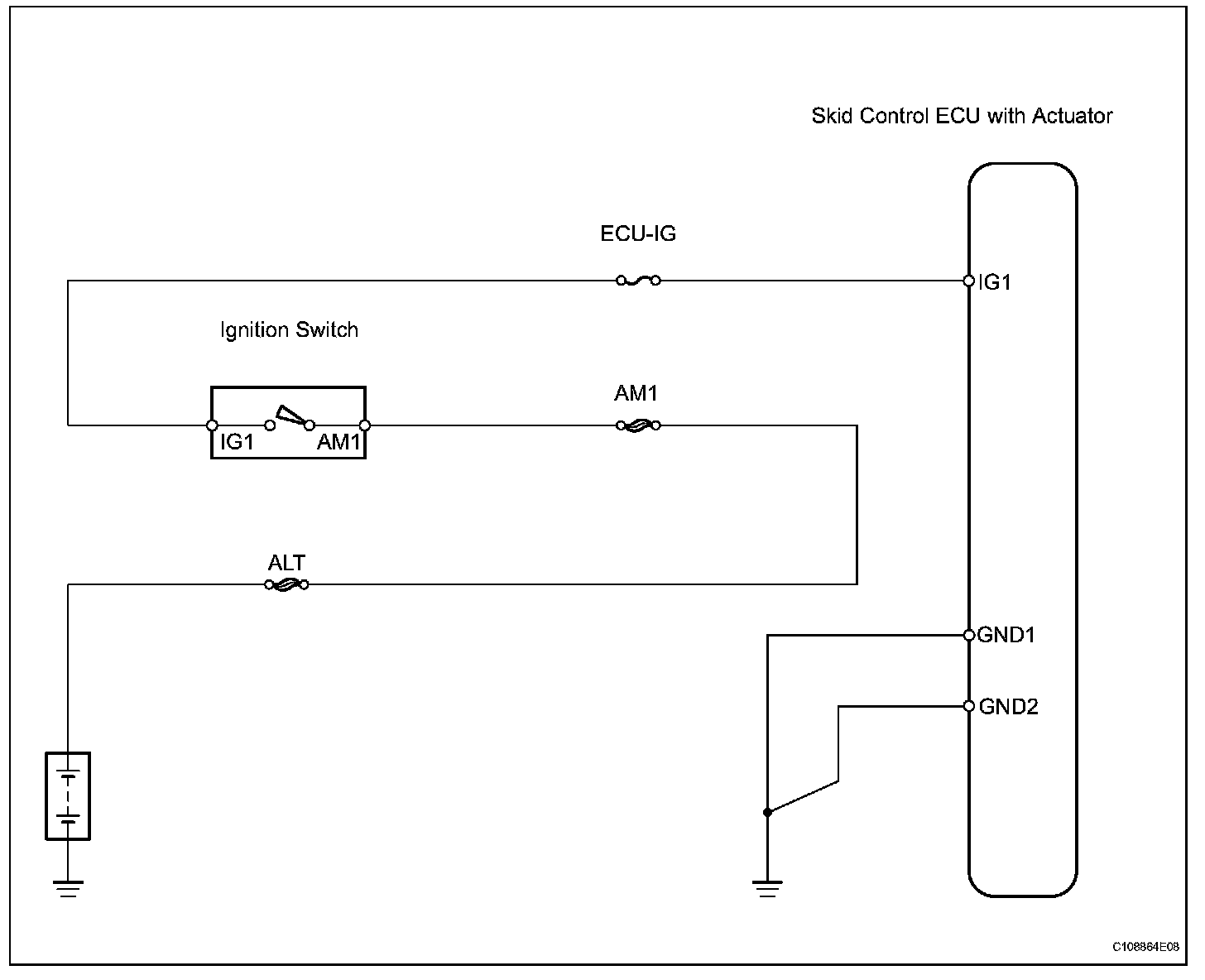

Wiring Diagram:

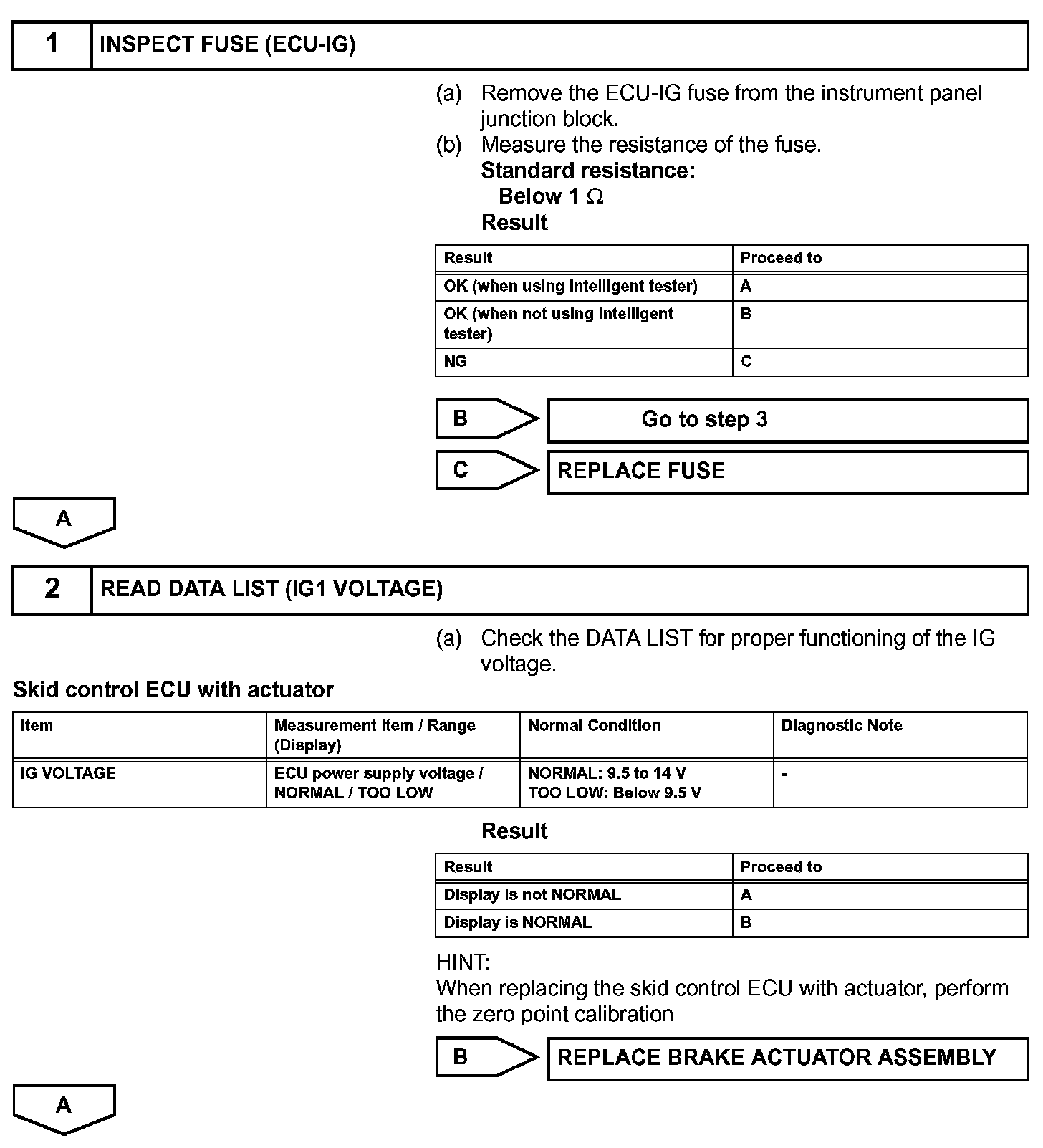

Step 1-2:

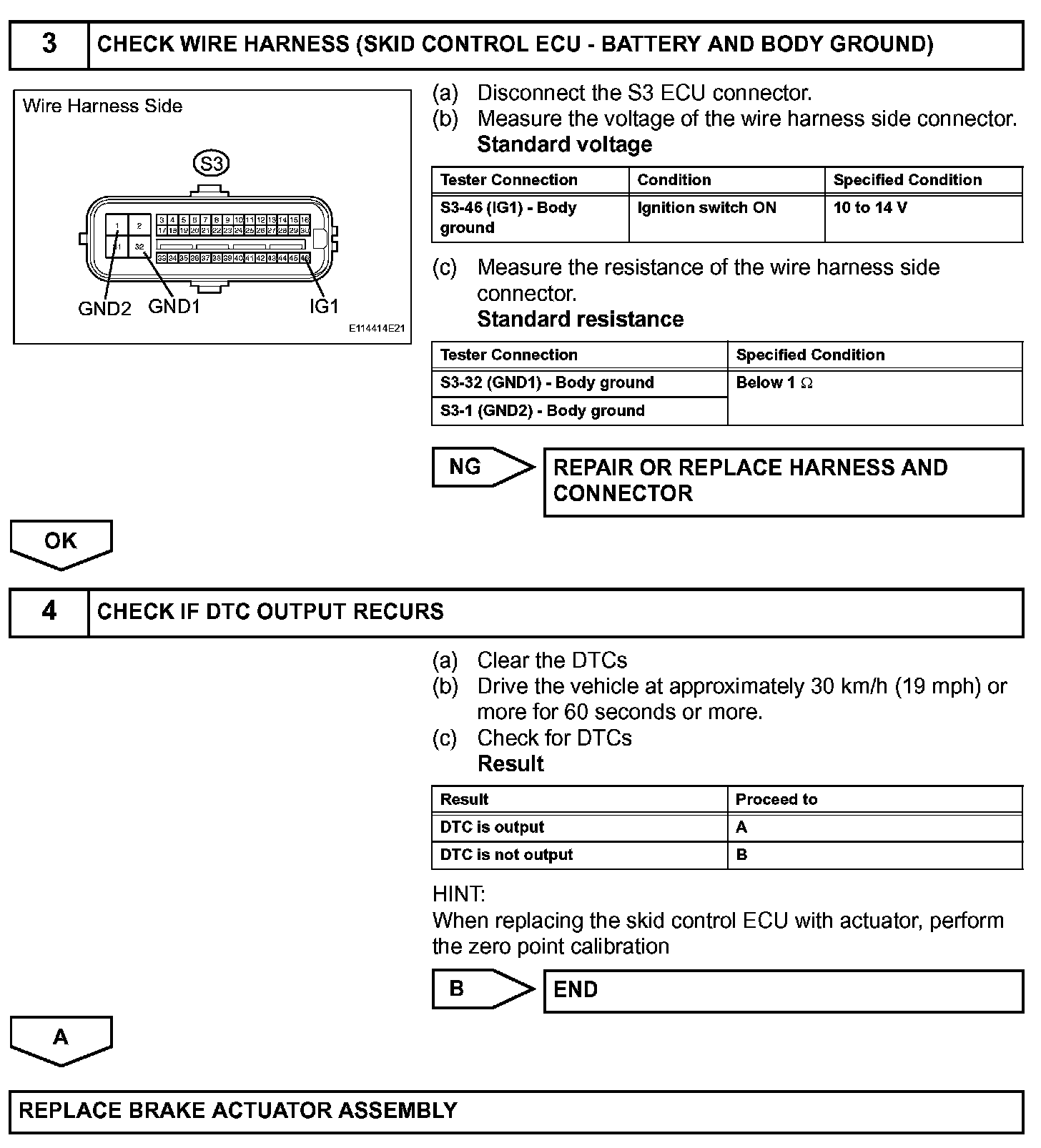

Step 3-4:
INSPECTION PROCEDURE
