C0246

DTC C0246/23 SRR Solenoid Circuit

DESCRIPTION

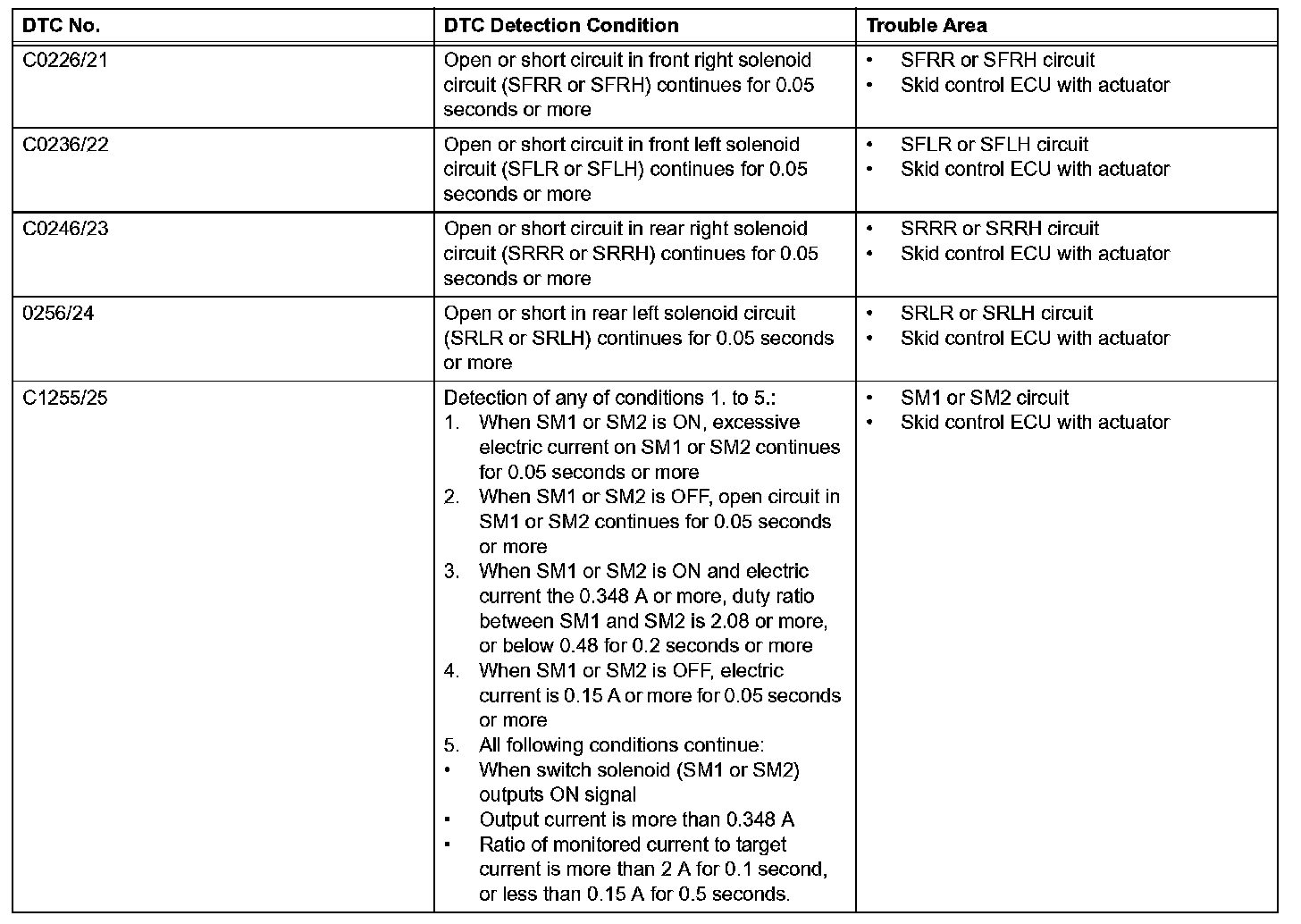

DTC Detection Condition:

ABS solenoids turn on when receiving signals from the ECU. They control braking force by adjusting the pressure applied to the wheel cylinders.

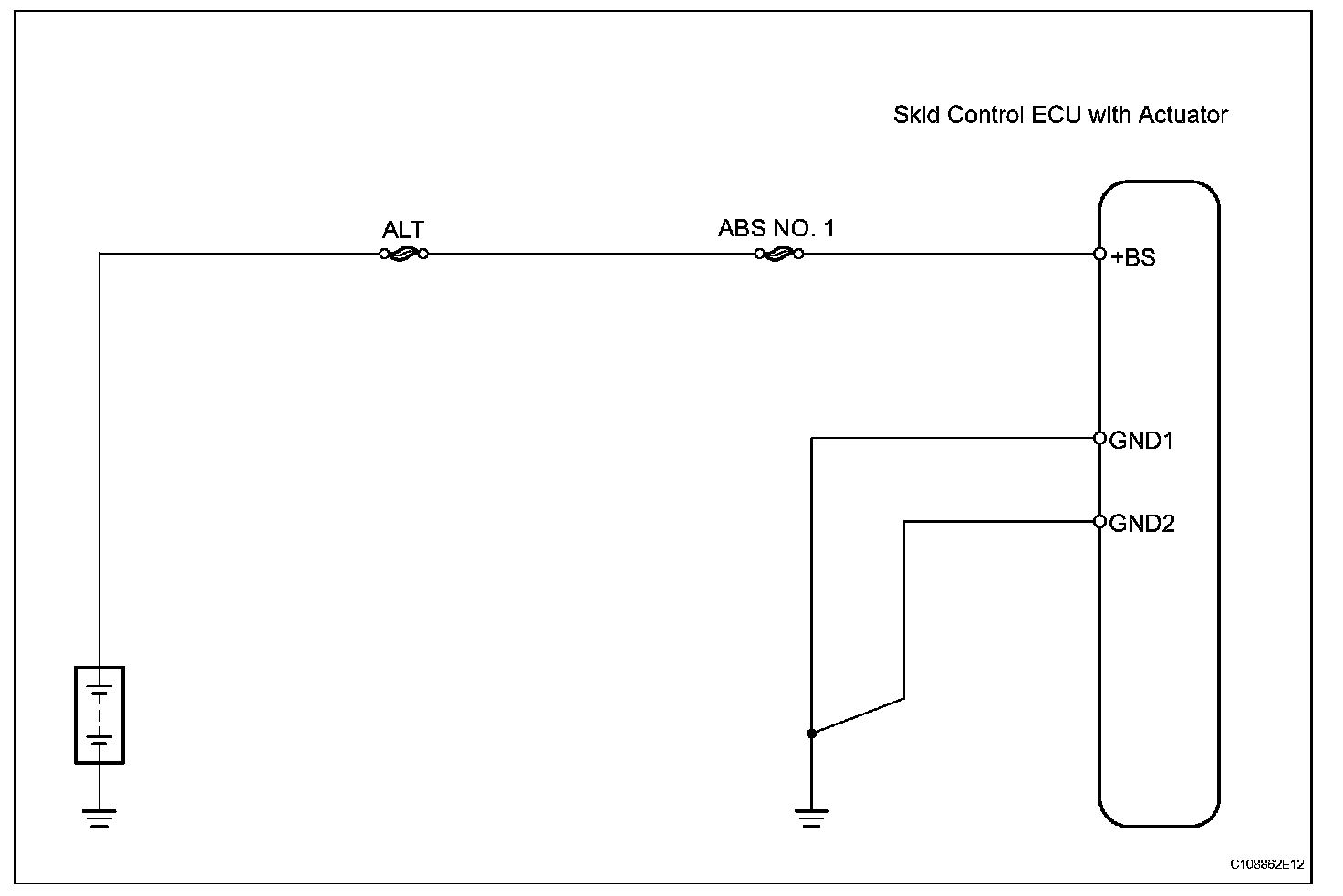

Wiring Diagram:

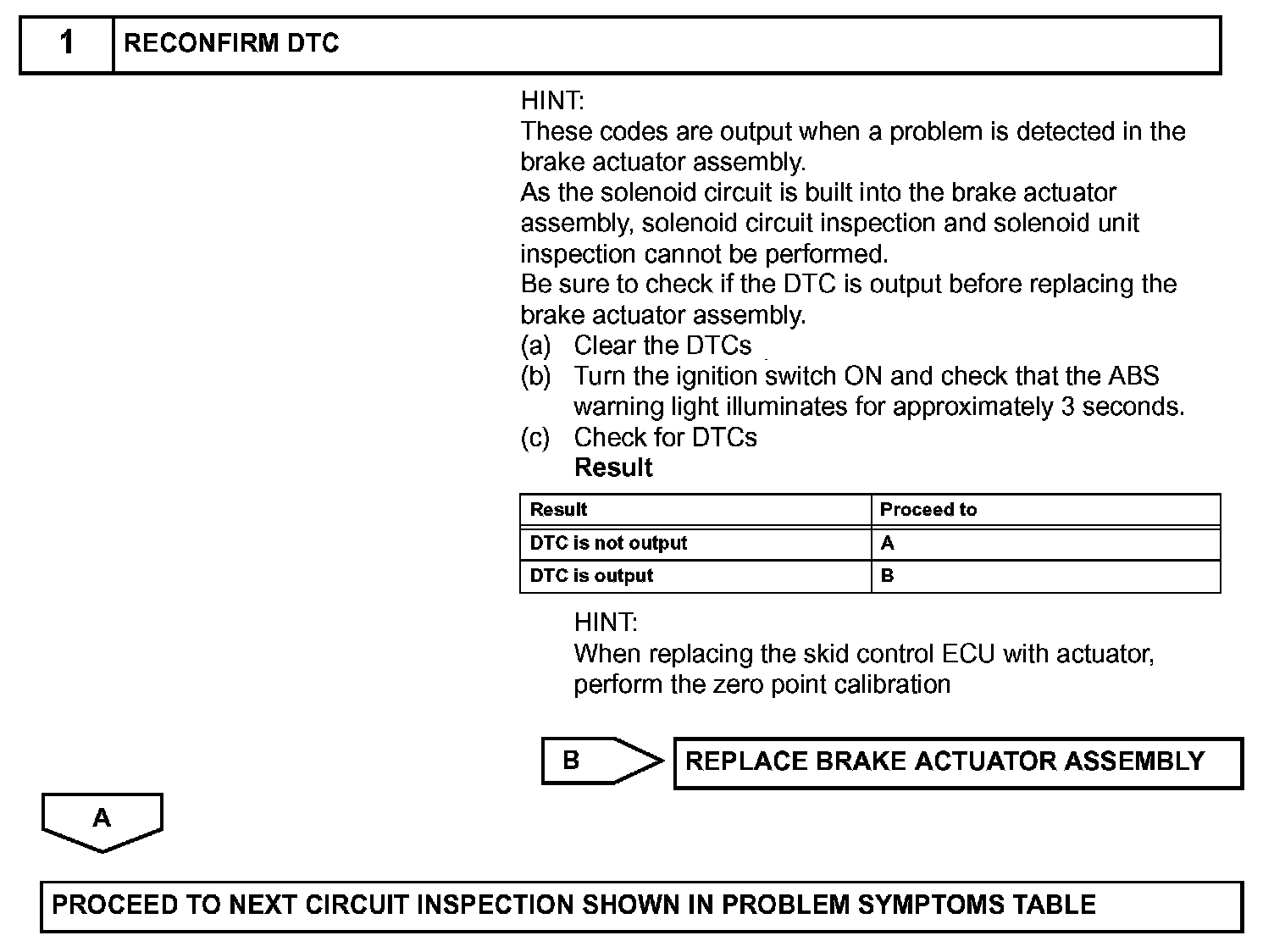

Step 1:

INSPECTION PROCEDURE
