B1801

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1800/51-B1803/51:

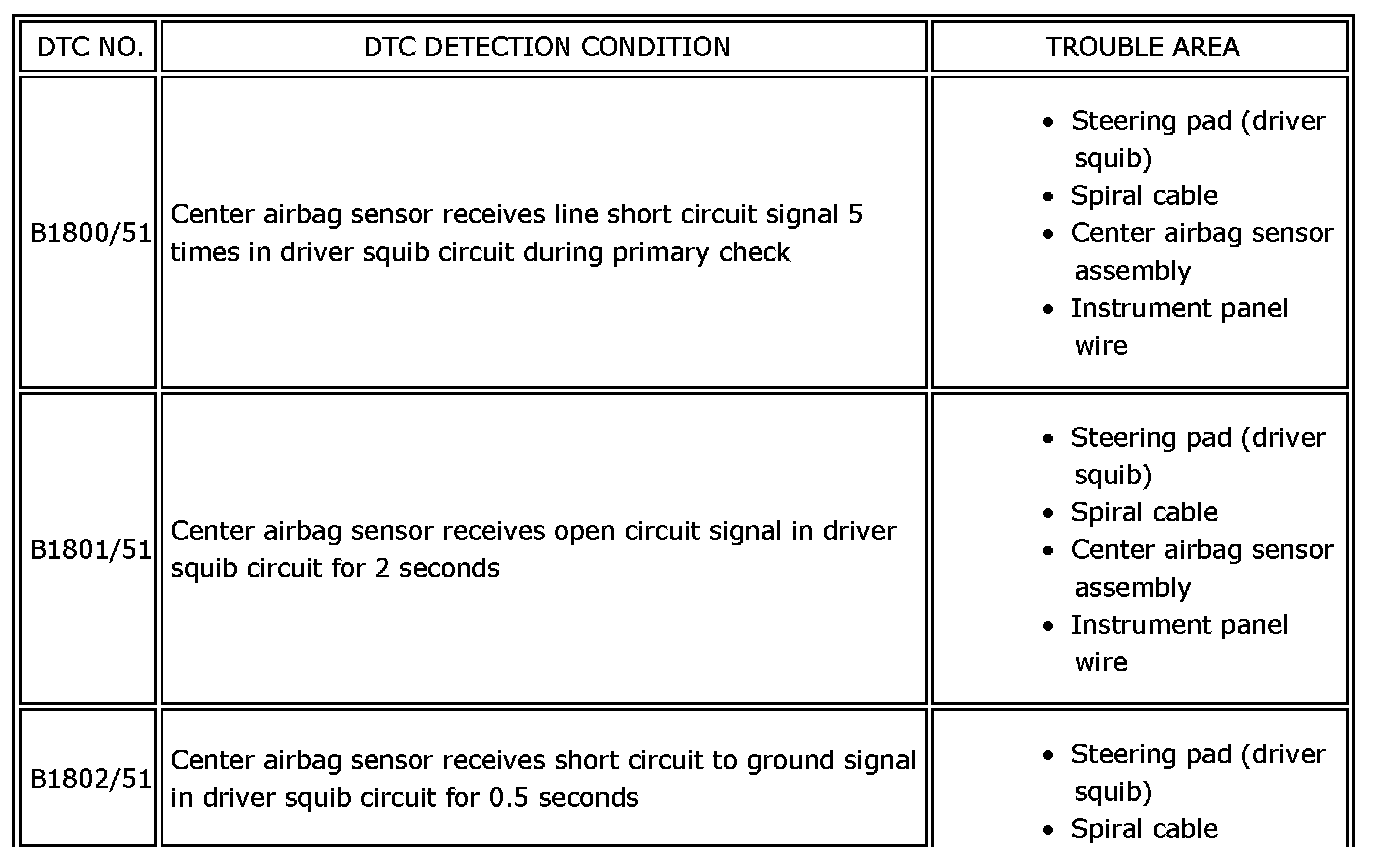

B1800/51 Short in Driver Side Squib Circuit

B1801/51 Open in Driver Side Squib Circuit

B1802/51 Short to GND in Driver Side Squib Circuit

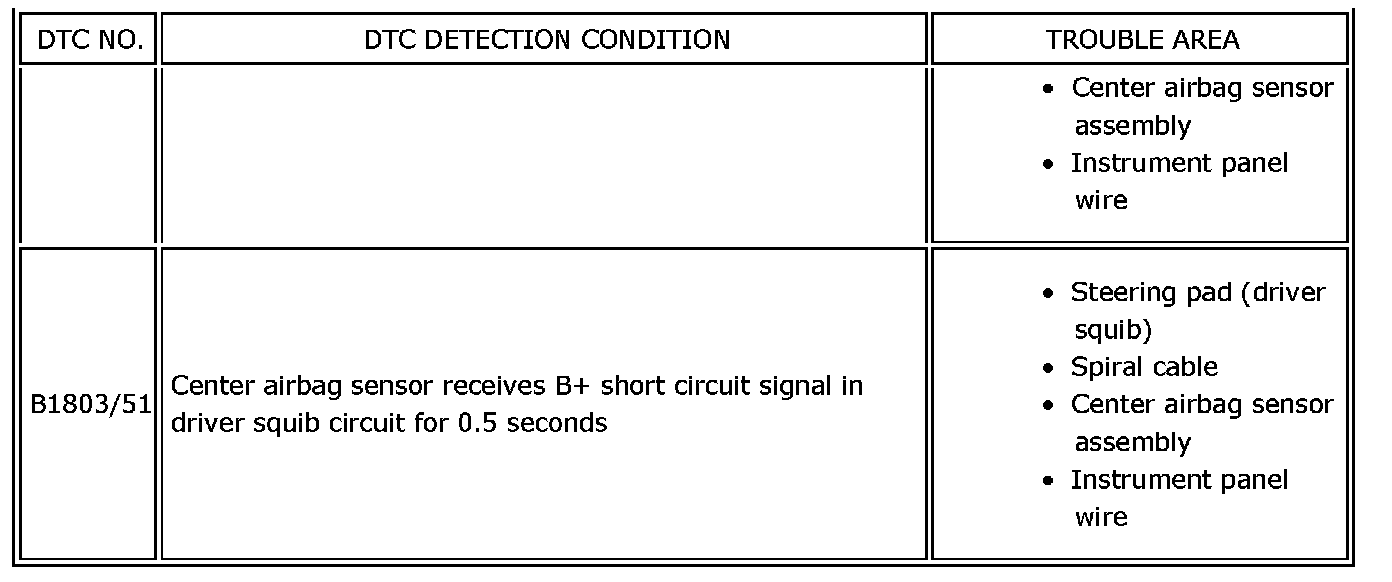

B1803/51 Short to B+ in Driver Side Squib Circuit

SYSTEM DESCRIPTION
The driver squib circuit consists of the center airbag sensor, spiral cable and steering pad. The circuit instructs the SRS to deploy when deployment conditions are met. These DTCs are recorded when a malfunction is detected in the driver squib circuit.

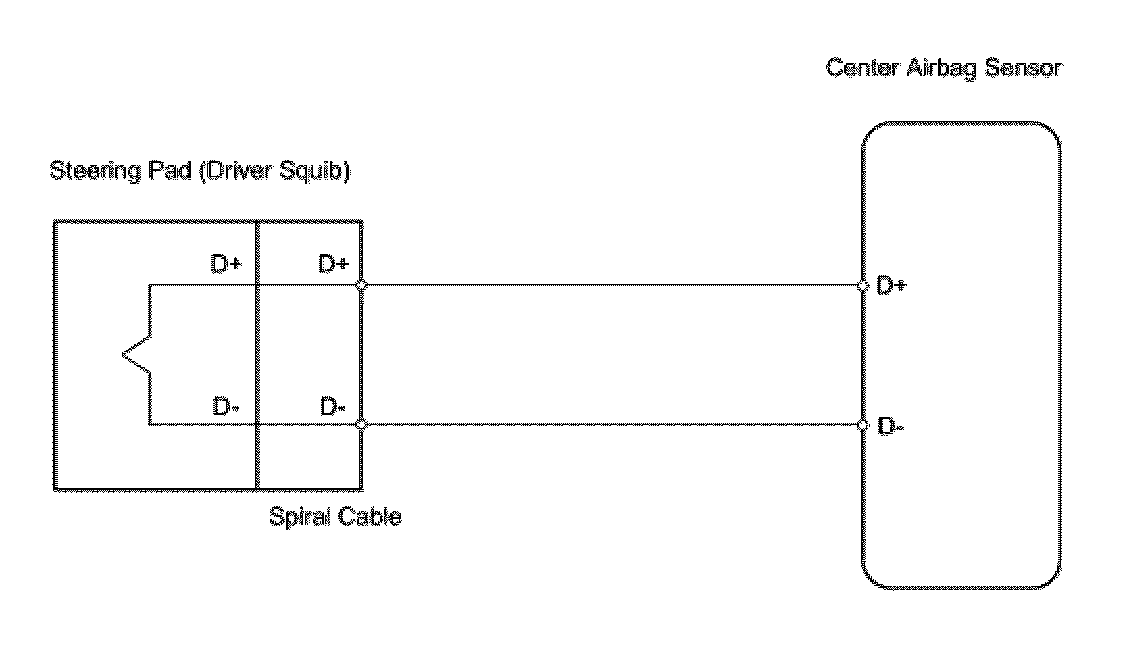

WIRING DIAGRAM

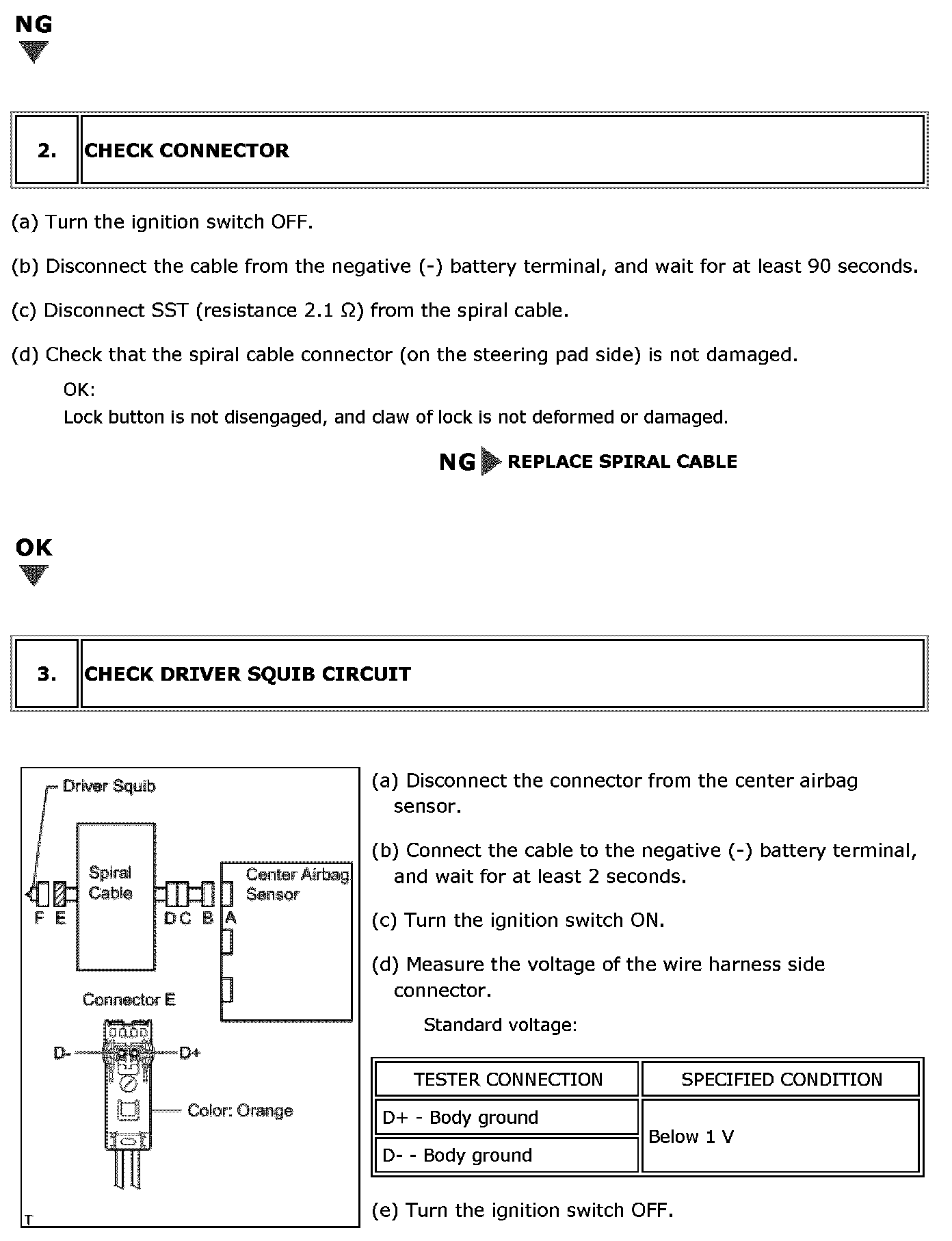

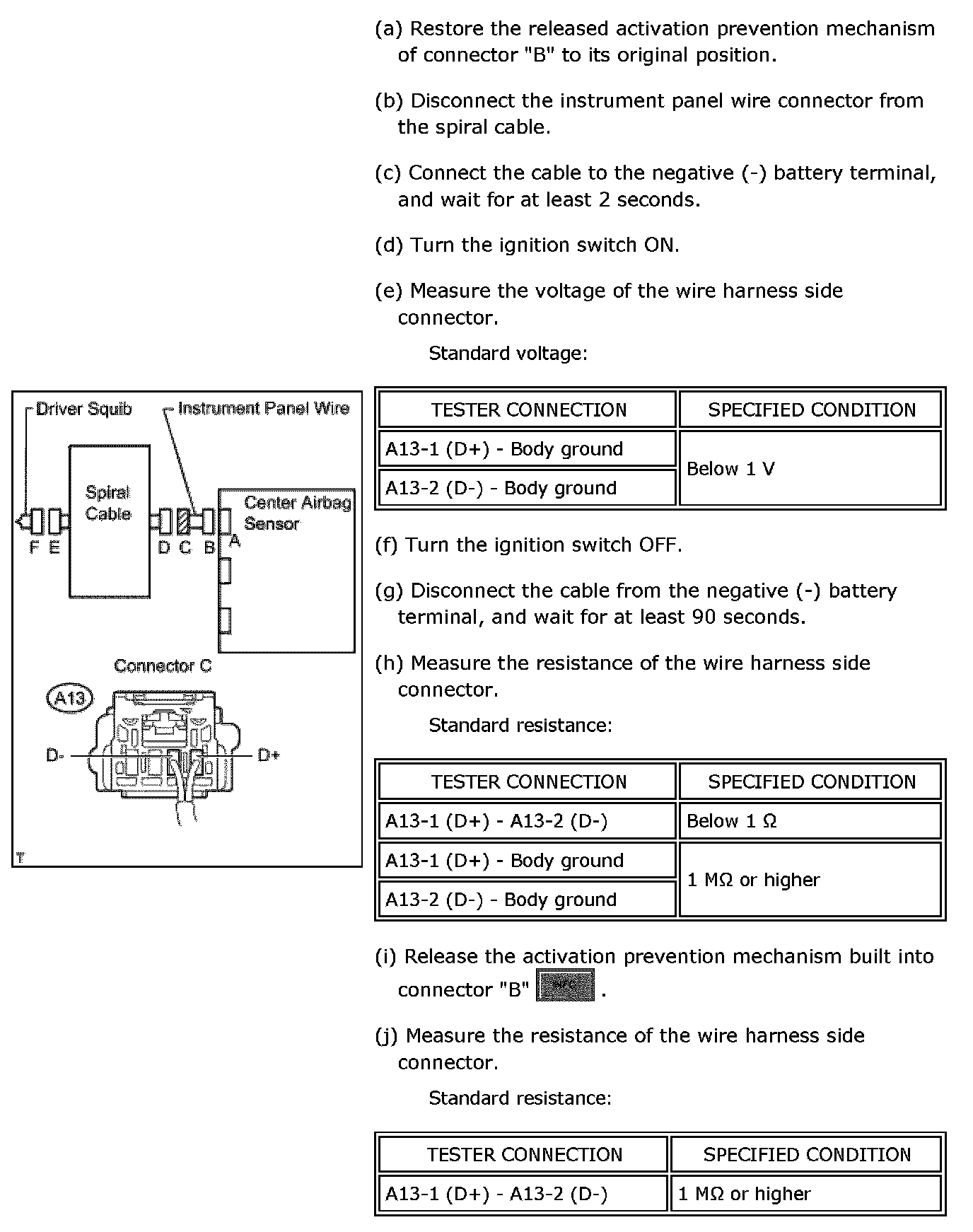

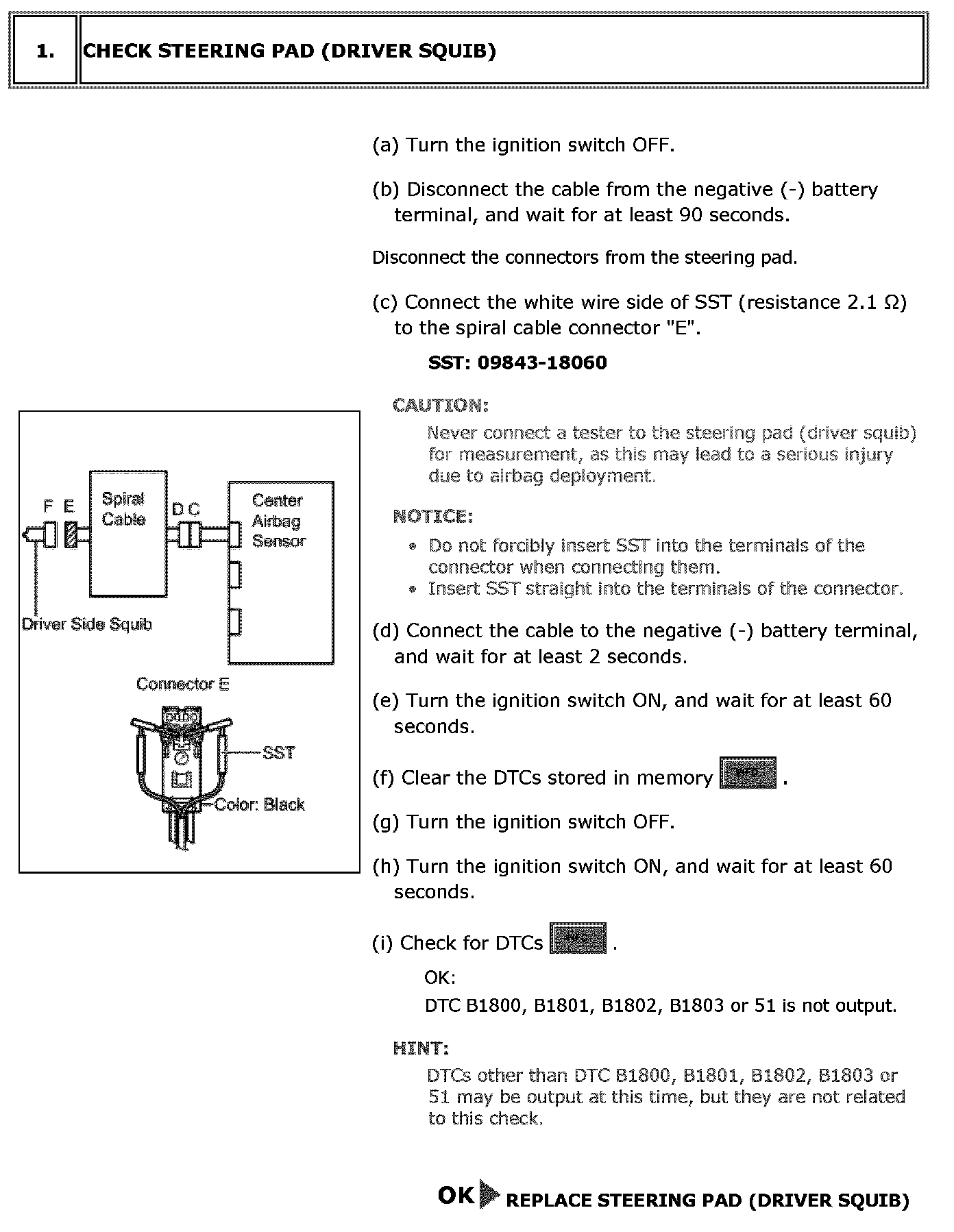

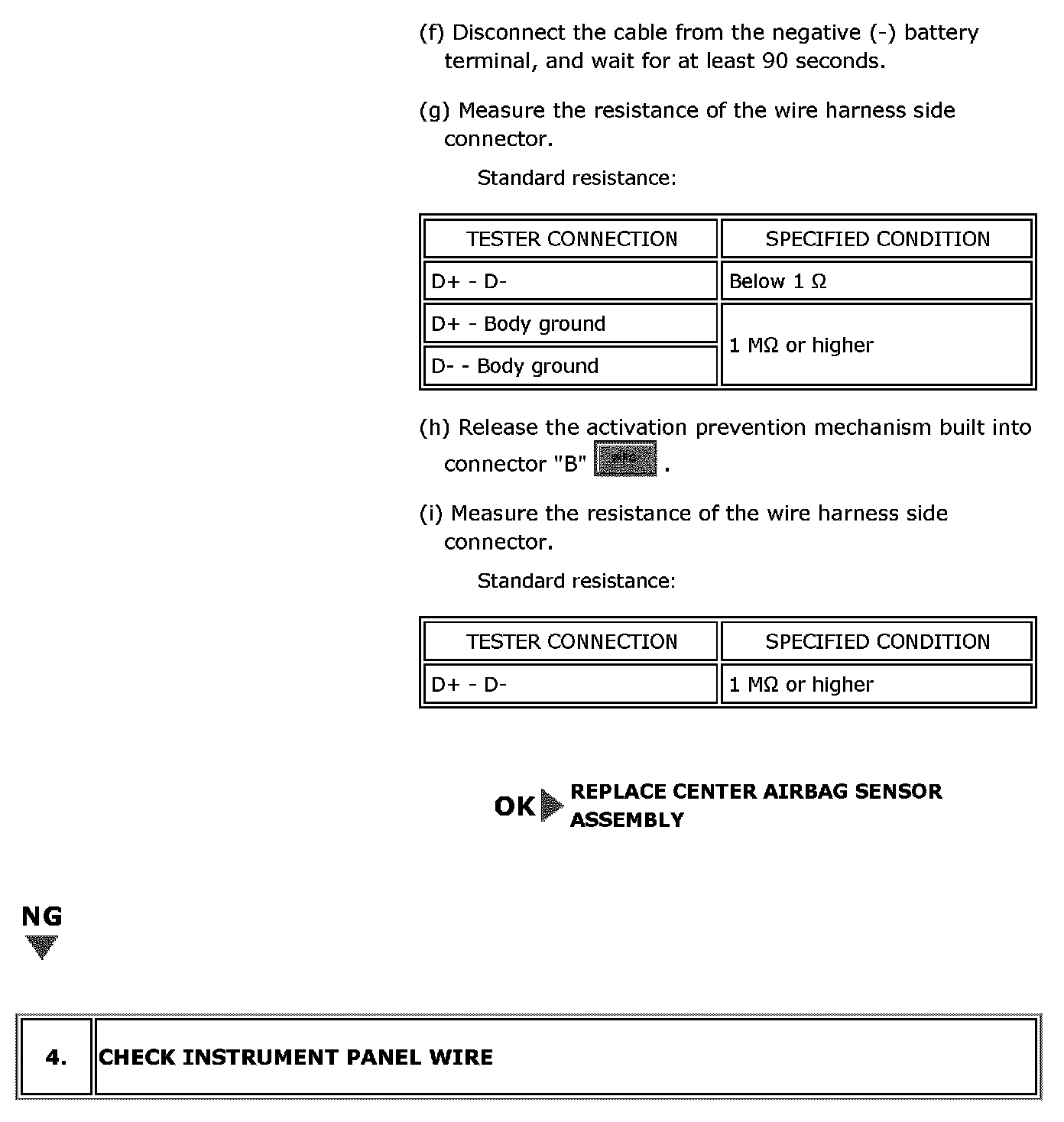

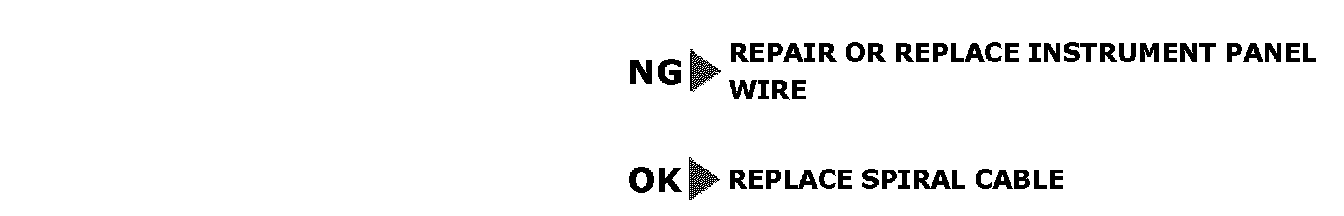

INSPECTION PROCEDURE
