B1796

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1796: Sleep Operation Failure of Occupant Classification ECU

B1796 Sleep Operation Failure of Occupant Classification ECU

DESCRIPTION
During sleep mode, the occupant classification ECU reads the condition of each sensor while the ignition switch is OFF.

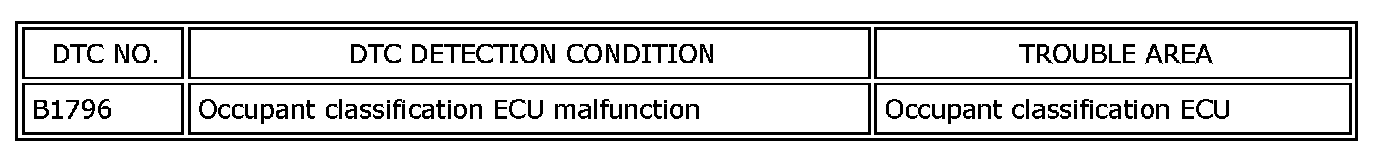

In this mode, if the occupant classification ECU detects an internal malfunction, DTC B1796 is output.

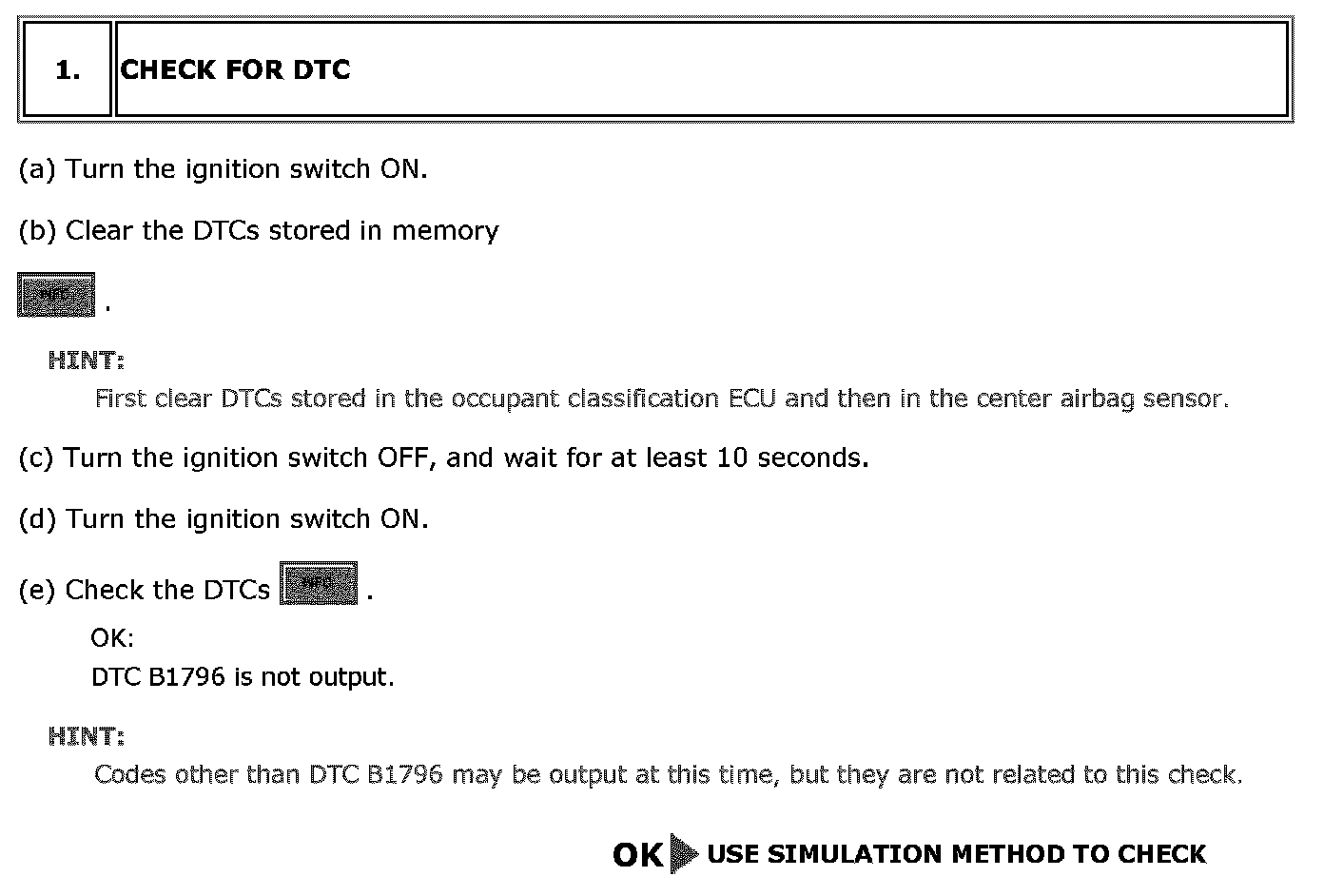

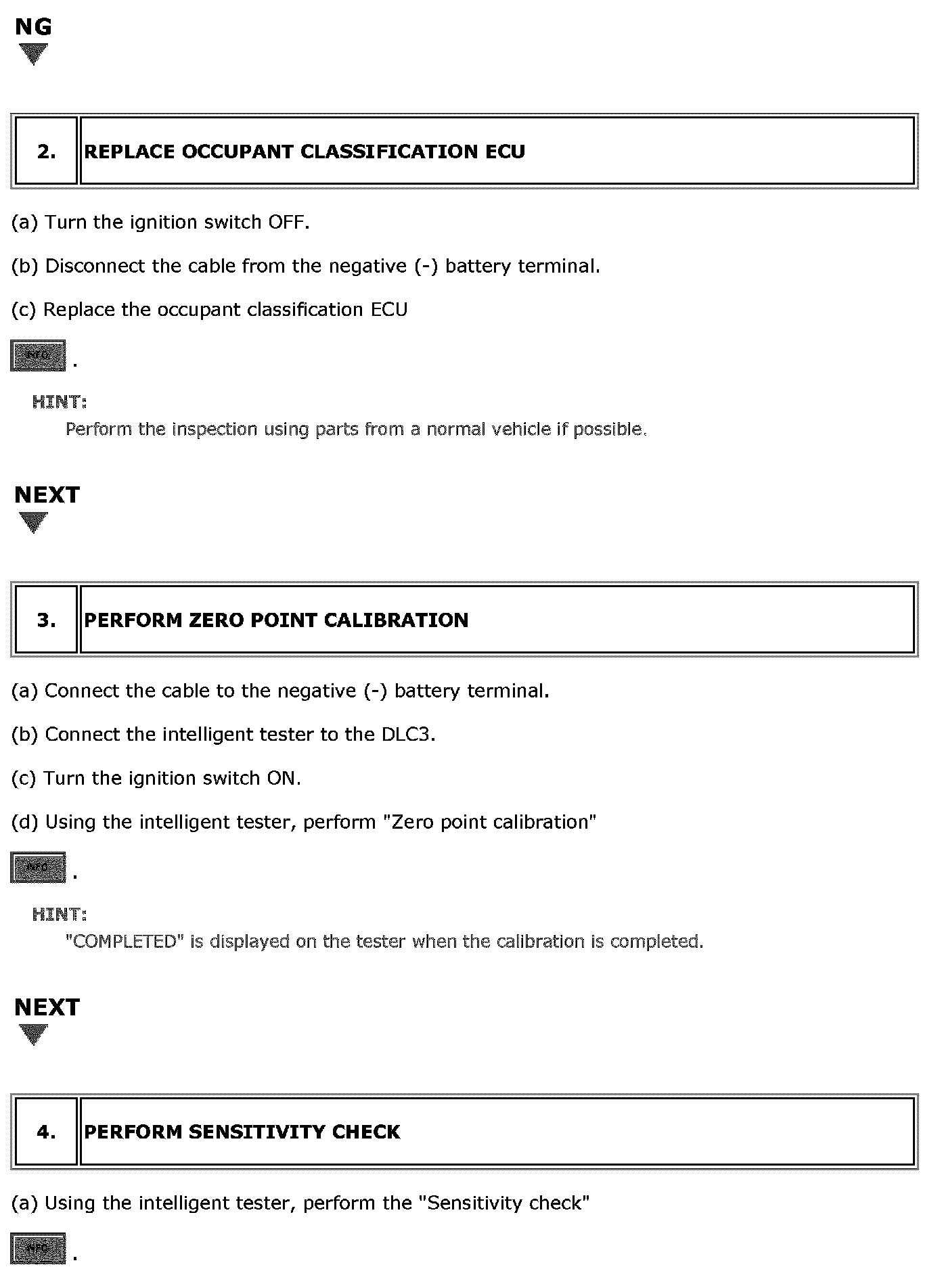

INSPECTION PROCEDURE
