B1795

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1795: Occupant Classification ECU Malfunction

B1795 Occupant Classification ECU Malfunction

DESCRIPTION

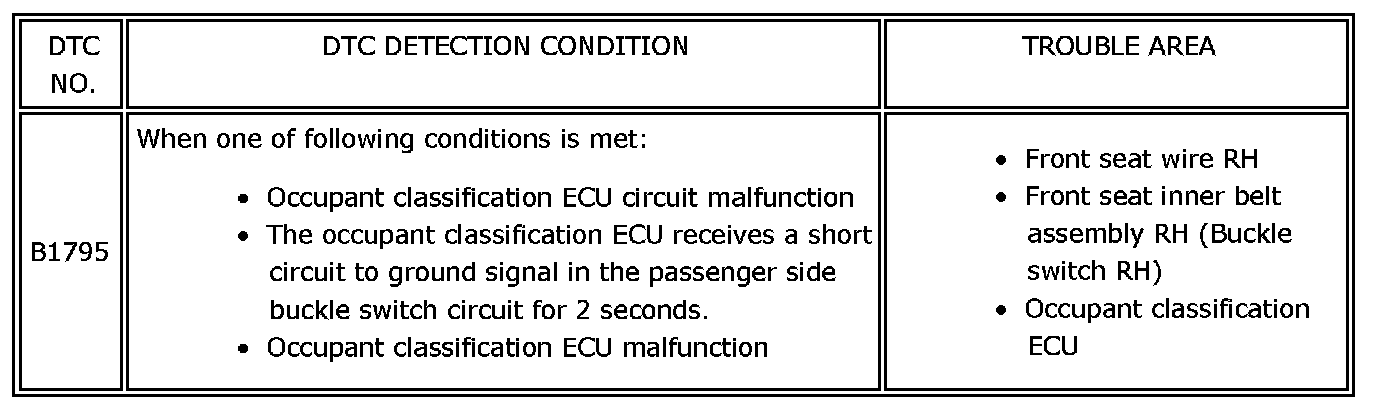

DTC B1795 is recorded when a malfunction is detected in the occupant classification ECU.
Troubleshoot DTC B1771 first when the DTCs B1771 and B1795 are output simultaneously.






HINT:
When DTC B1150/23 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for DTC B1795 of the occupant classification system.

WIRING DIAGRAM

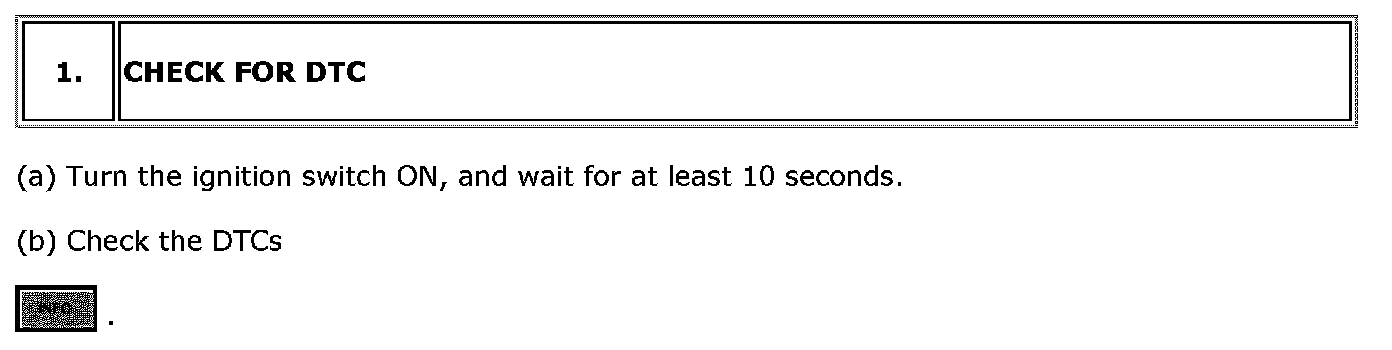

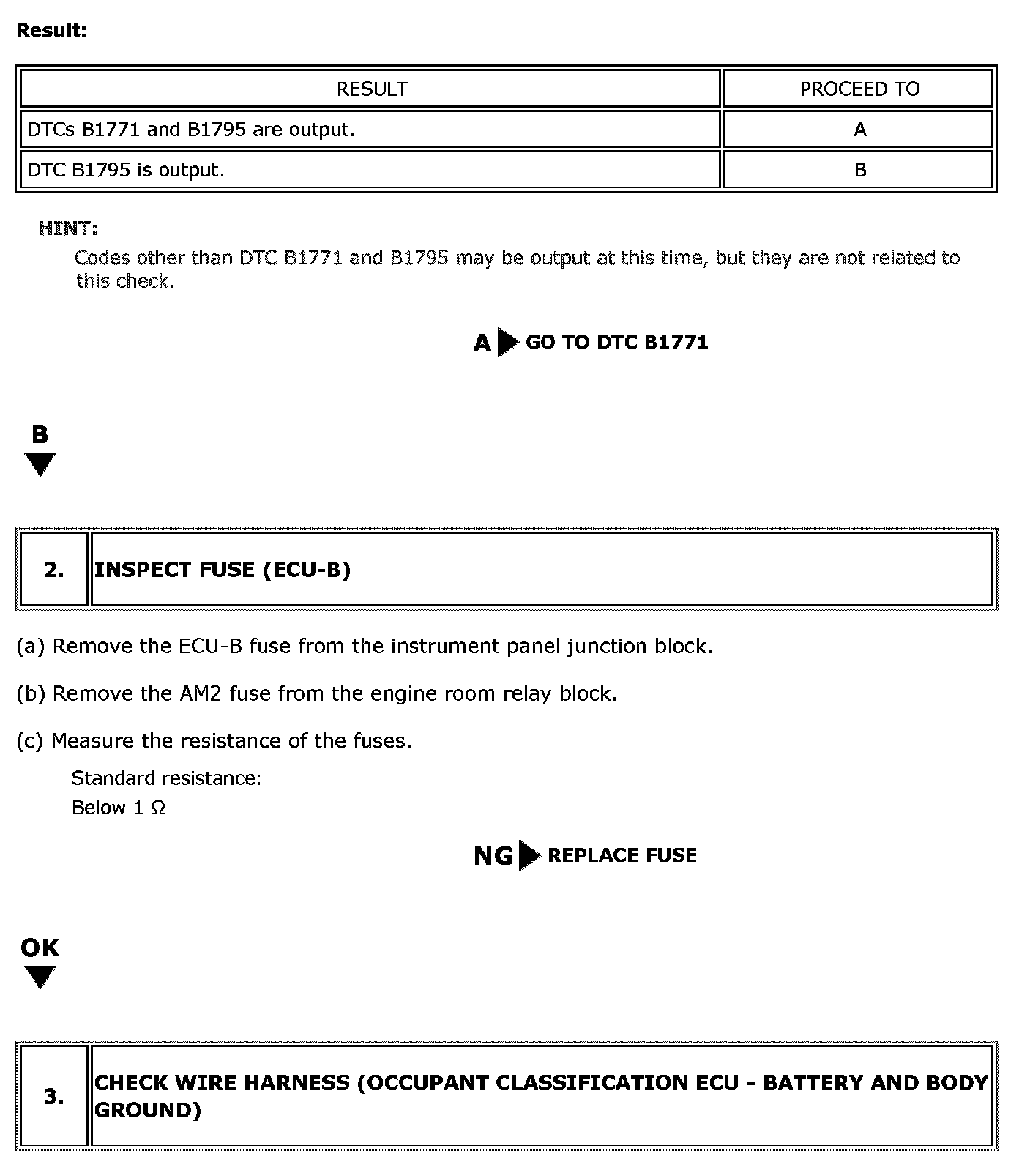

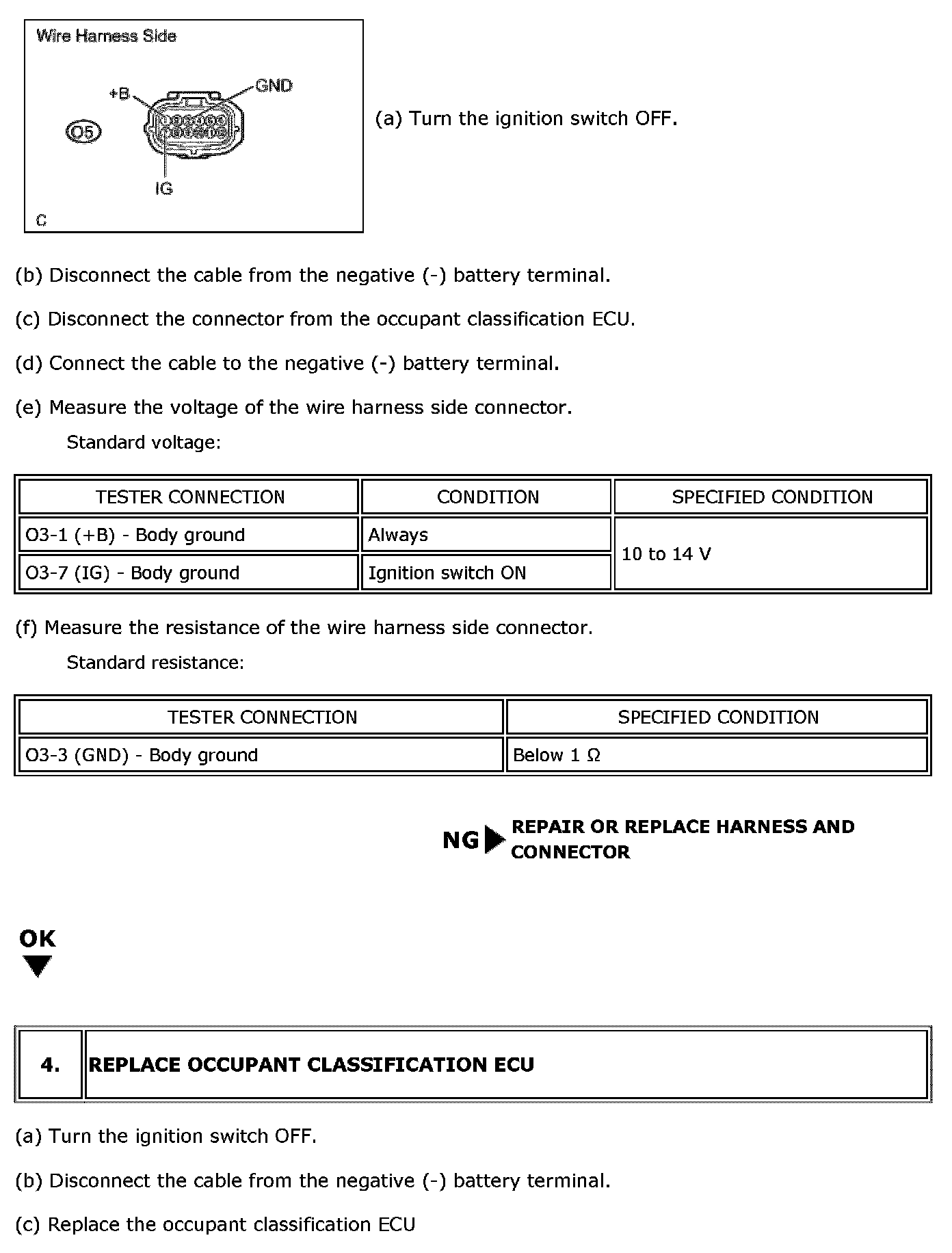

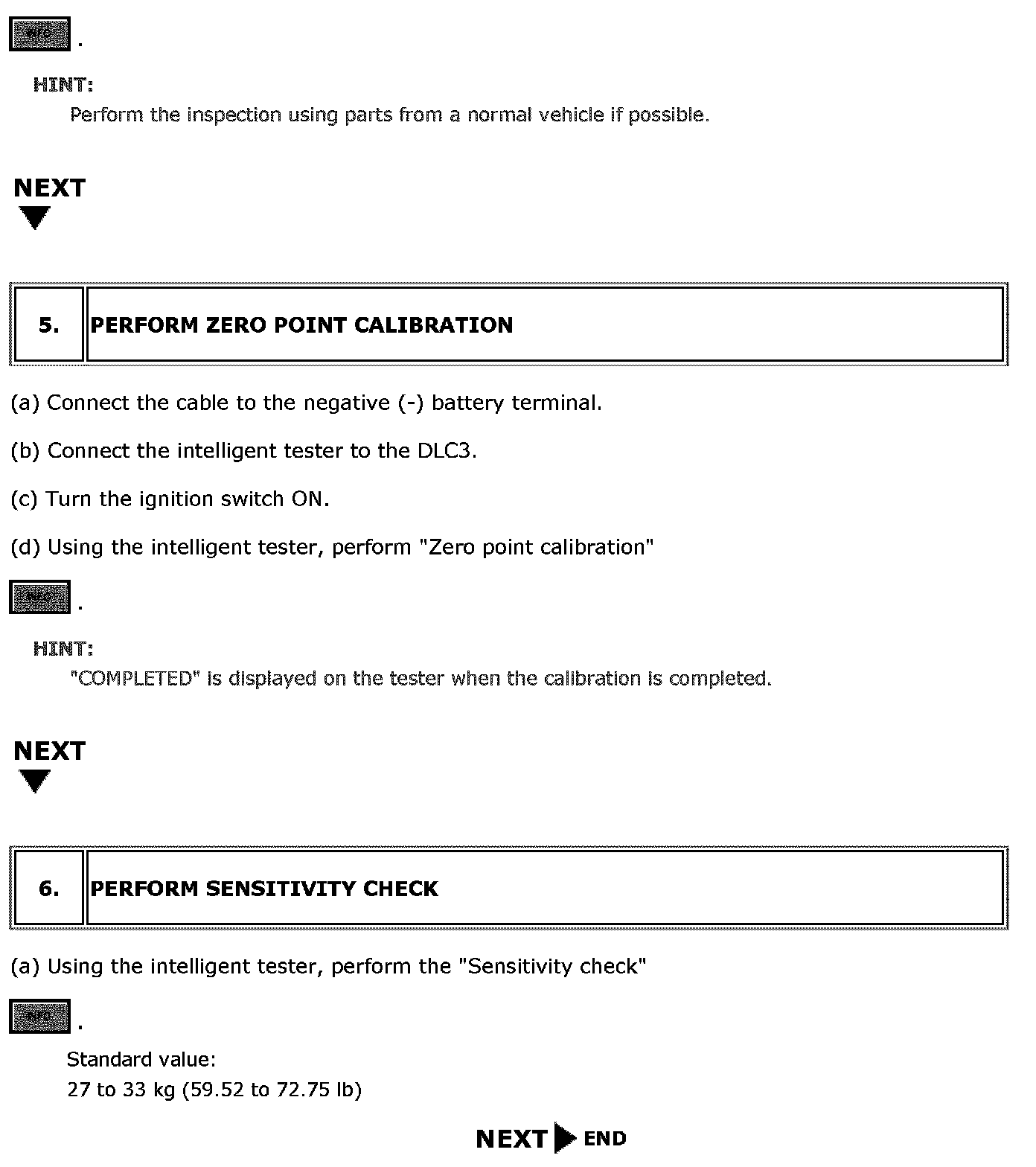

INSPECTION PROCEDURE
