B1794

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1794: Open in Occupant Classification ECU Battery Positive Line

B1794 Open in Occupant Classification ECU Battery Positive Line

DESCRIPTION
This circuit consists of the occupant classification ECU and the power source circuit (battery, fuse, wire harness).

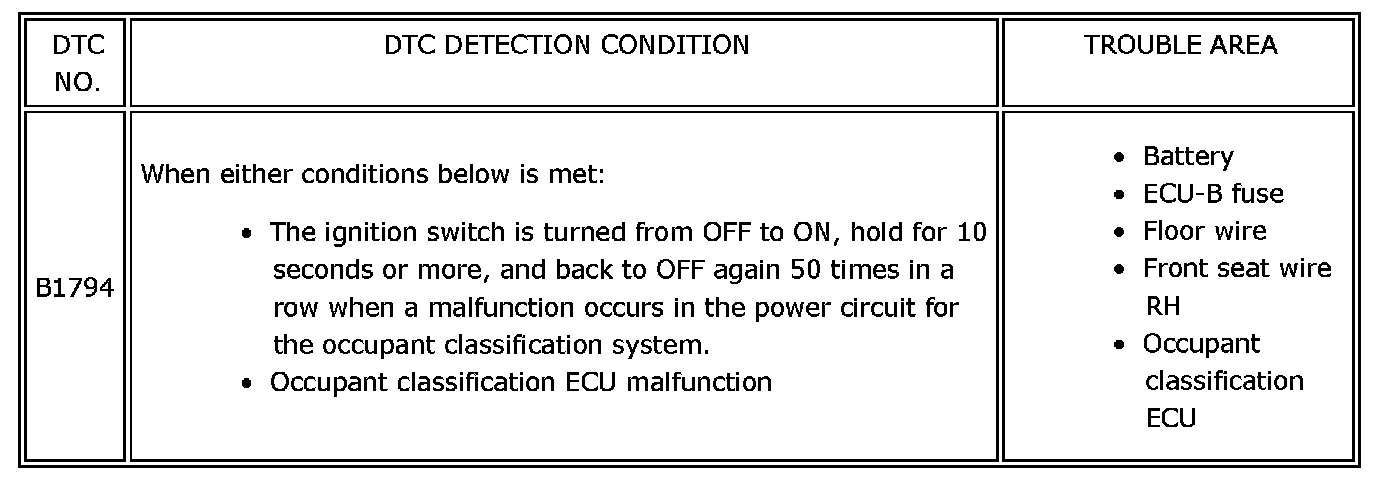

DTC B1794 is recorded when a malfunction is detected in the occupant classification ECU or the power source circuit.

HINT:
When DTC B1794 is output after switching the ignition switch OFF-ON-OFF 50 times in a row when a malfunction occurs in the power circuit for the occupant classification system, the DTC is output again when a malfunction is detected even once after being cleared, unless the normal system code is input.






HINT:
When DTC B1650/32 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for DTC B1794 of the occupant classification system.

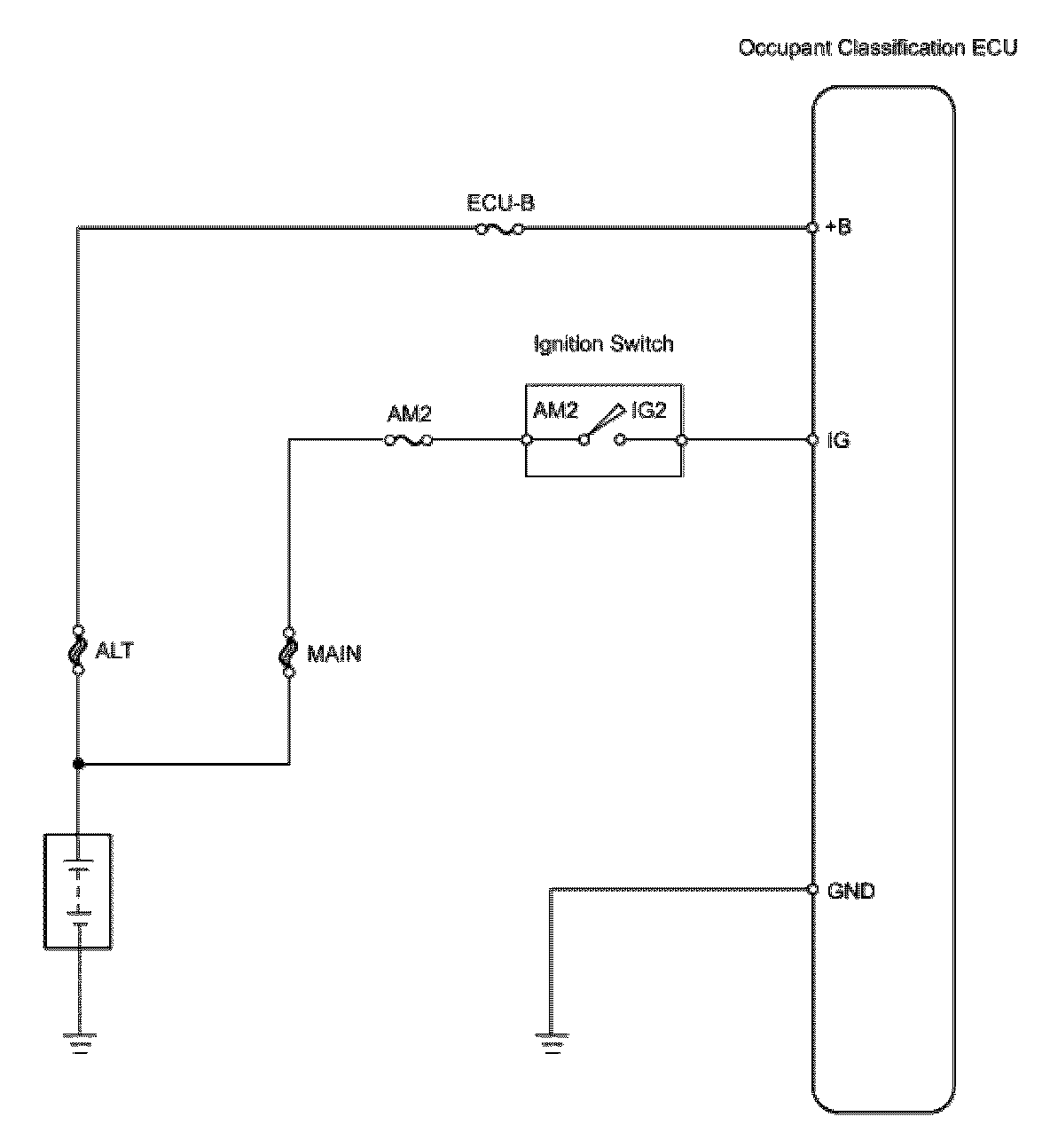

WIRING DIAGRAM

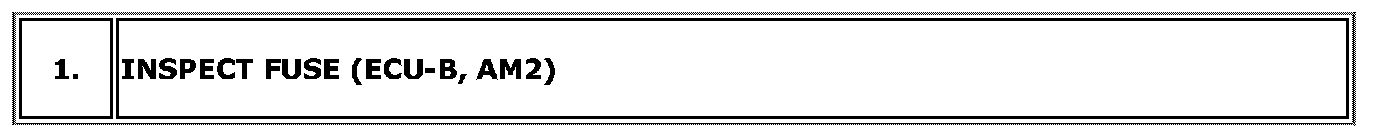

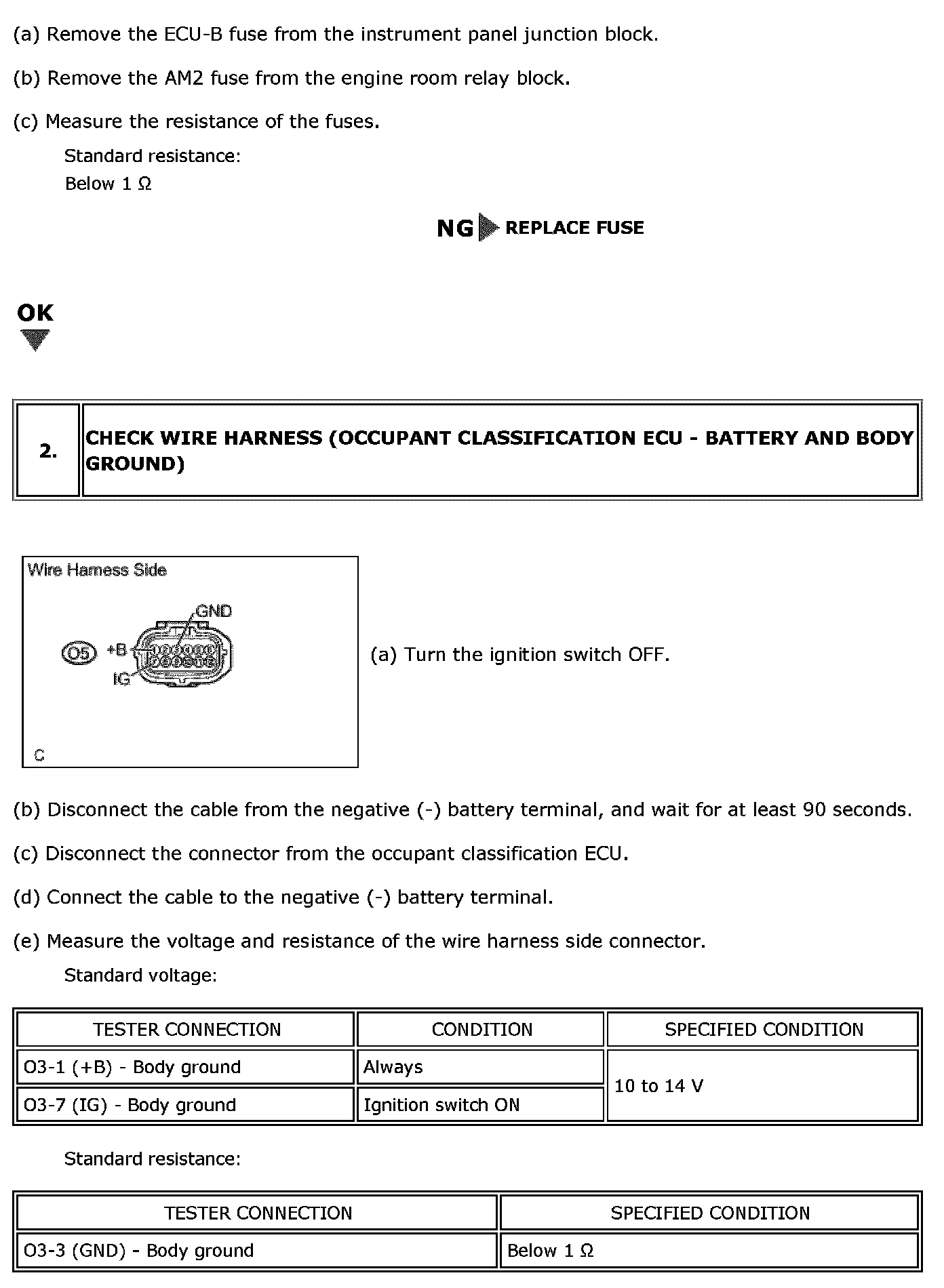

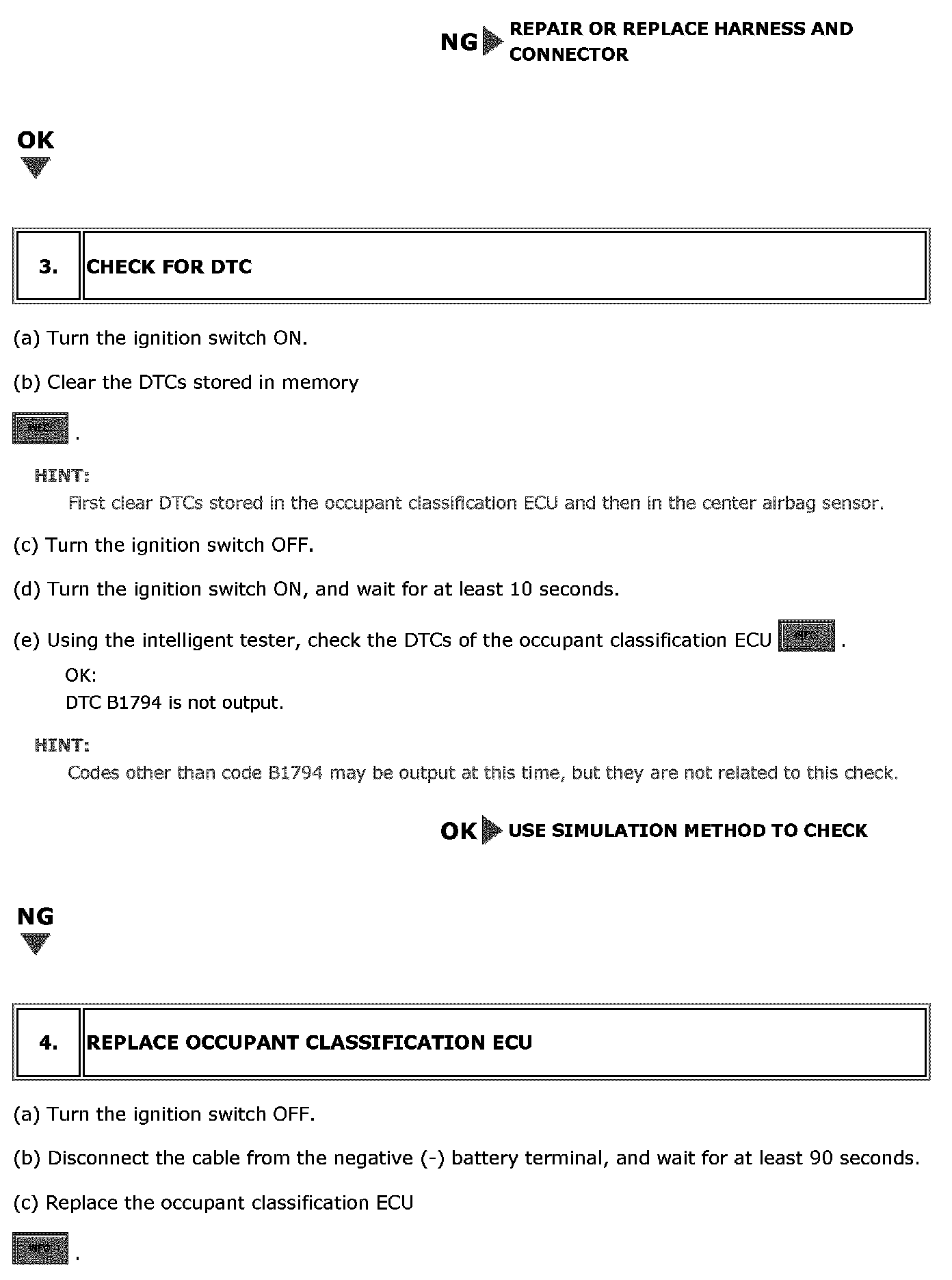

INSPECTION PROCEDURE
