B1793

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1793: Occupant Classification Sensor Power Supply Circuit Malfunction

B1793 Occupant Classification Sensor Power Supply Circuit Malfunction

DESCRIPTION
The occupant classification sensor power supply circuit consists of the occupant classification ECU and the occupant classification sensors.

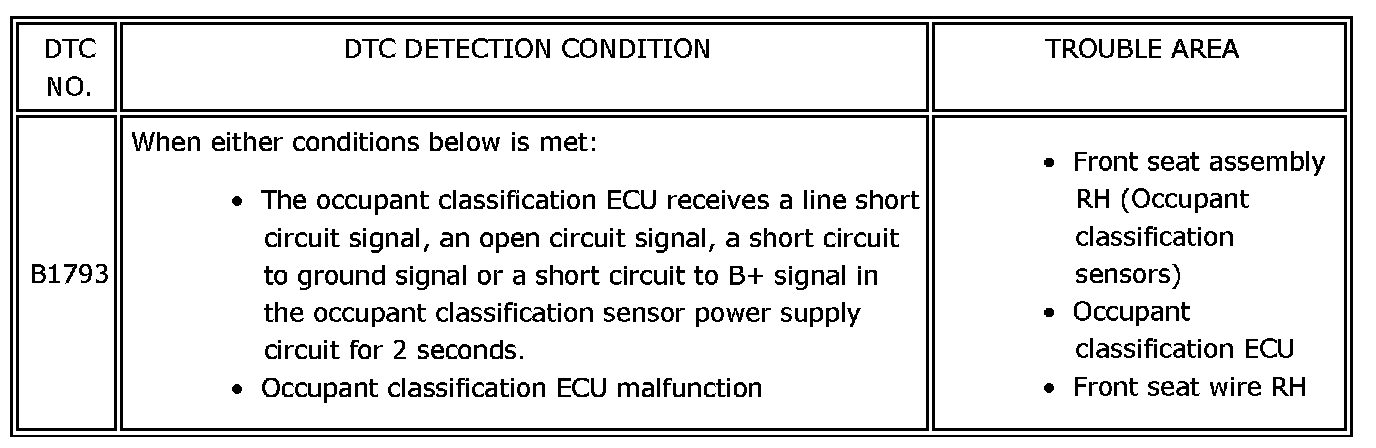

DTC B1793 is recorded when a malfunction is detected in the occupant classification sensor power supply circuit.






HINT:
When DTC B1150/23 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for DTC B1793 of the occupant classification system.

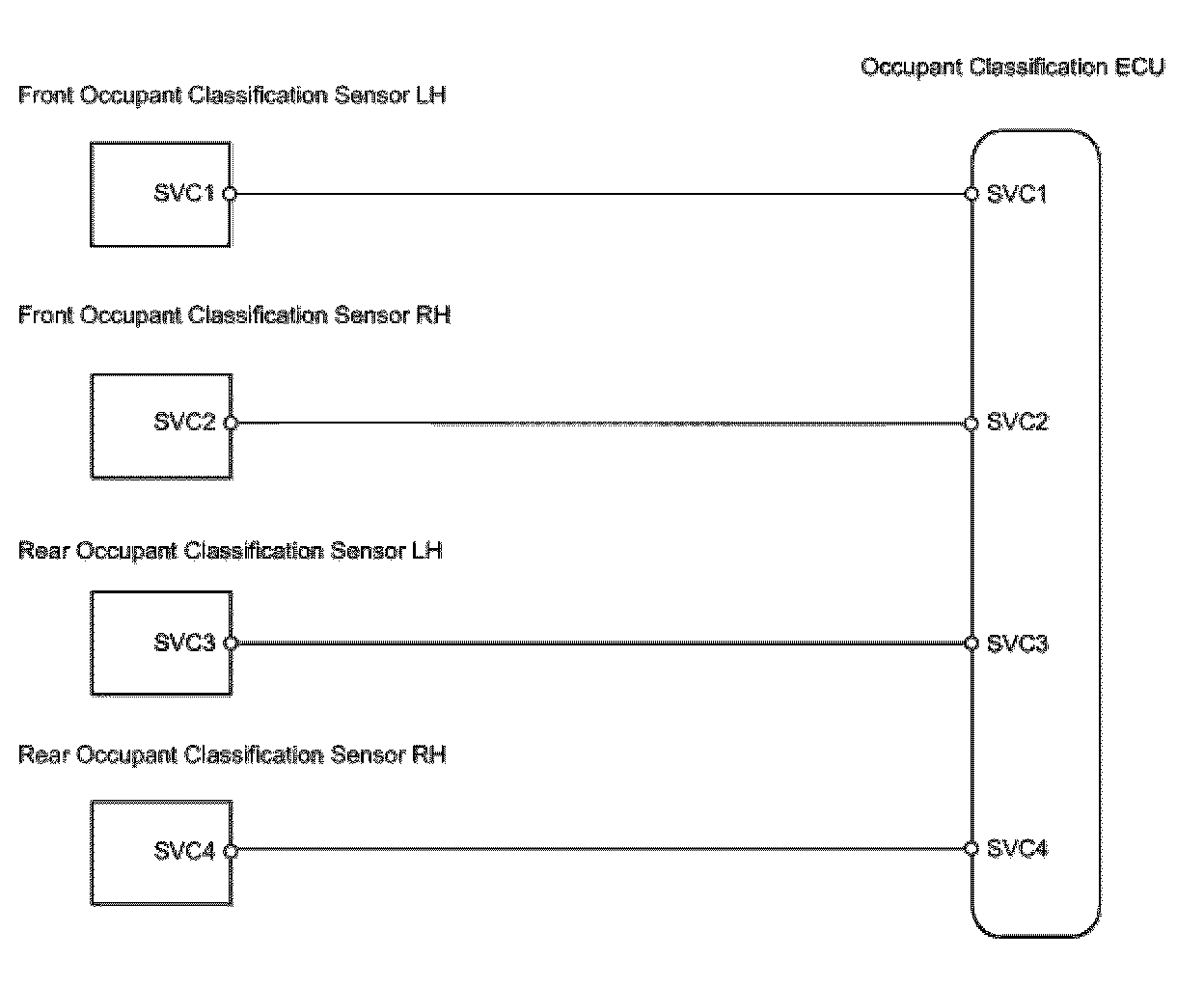

WIRING DIAGRAM






INSPECTION PROCEDURE

HINT:

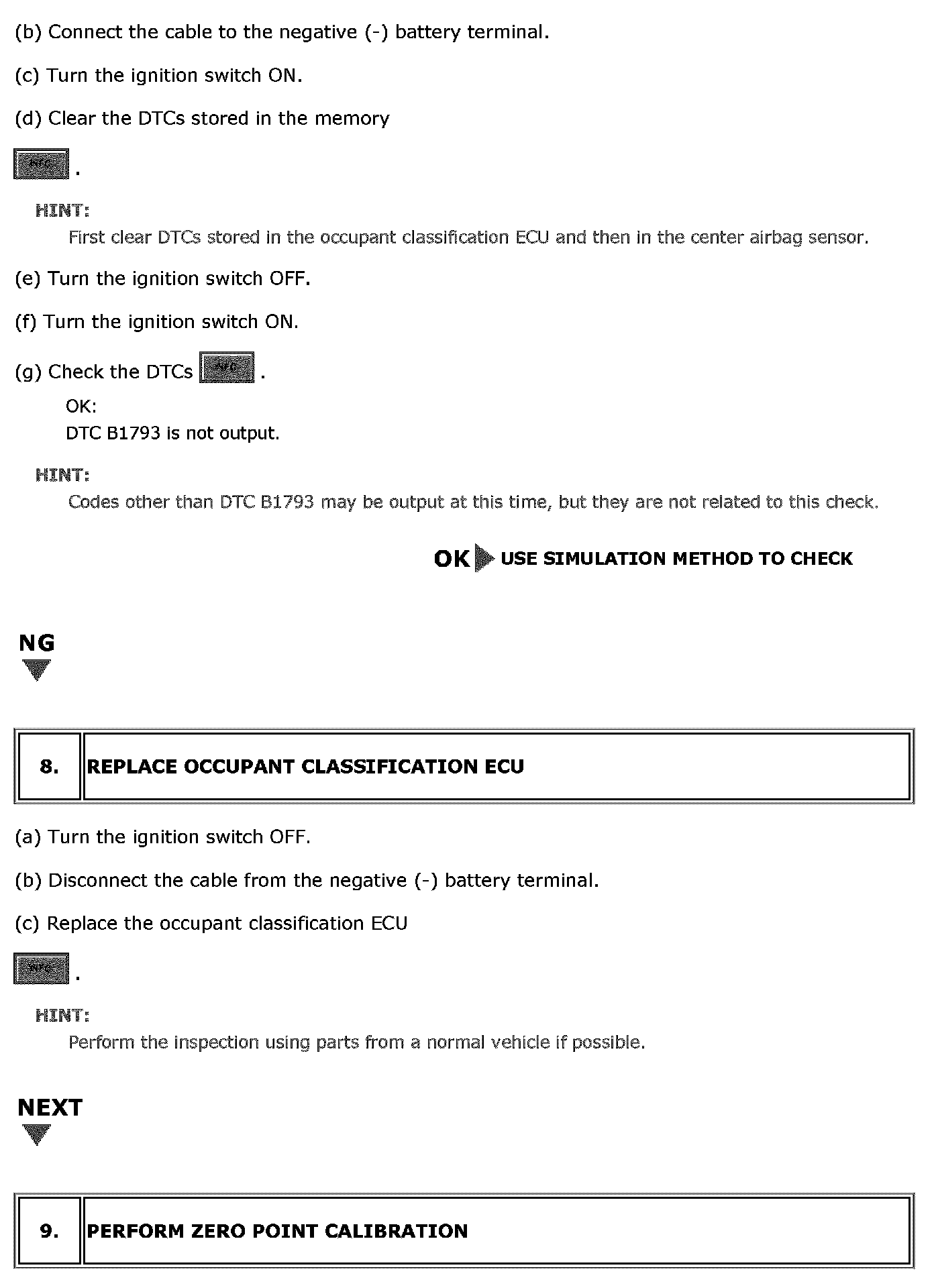

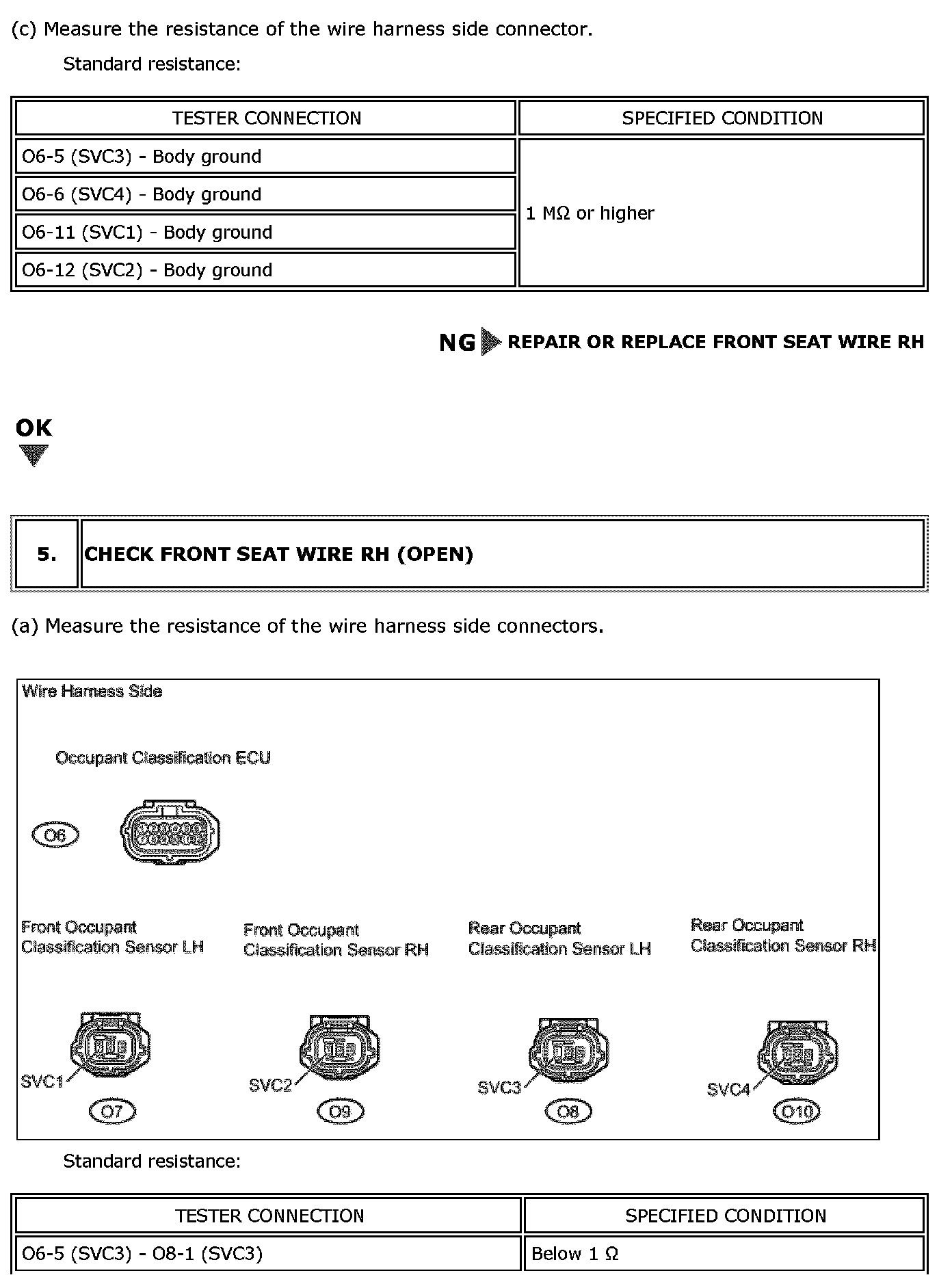

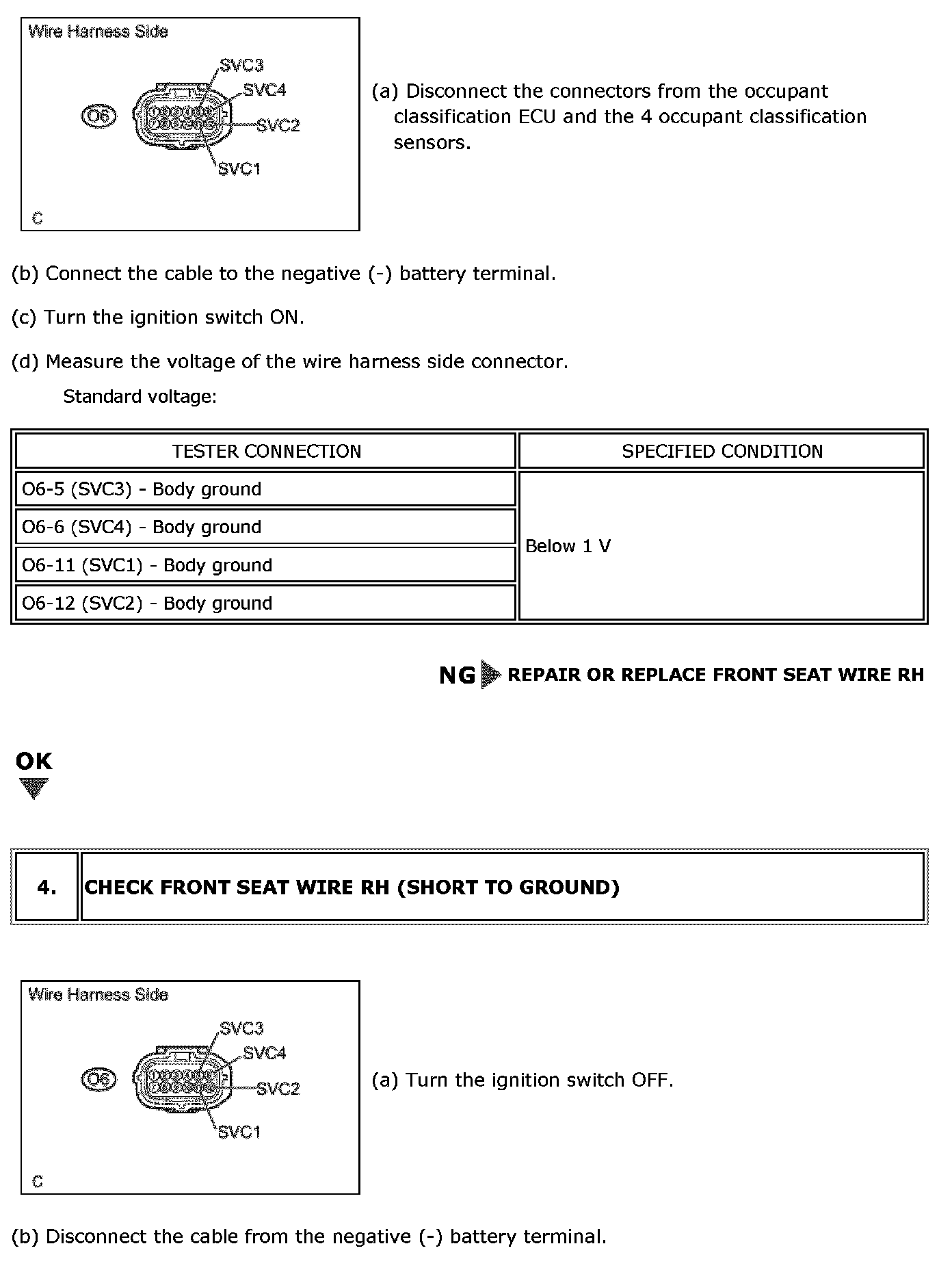

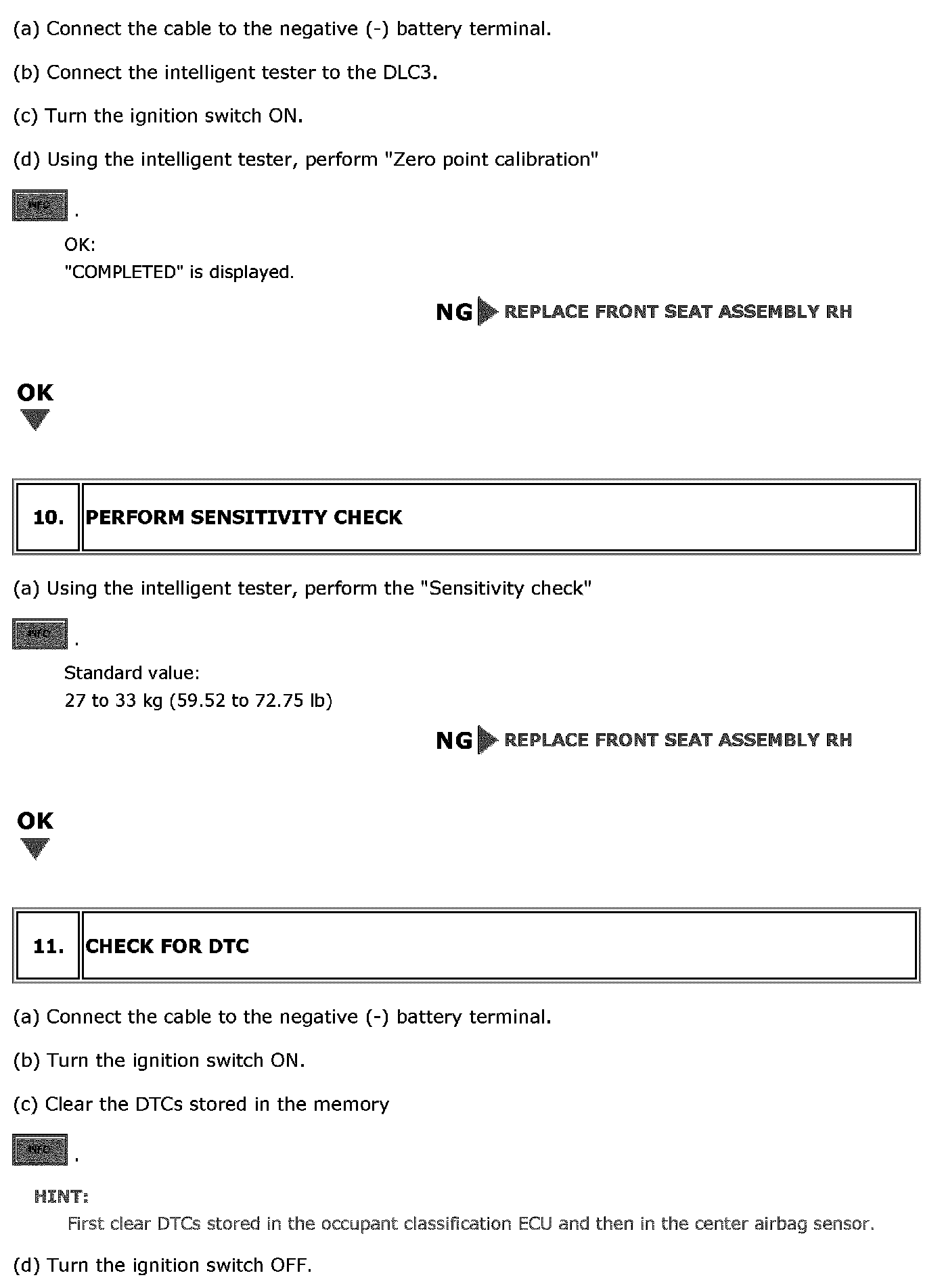

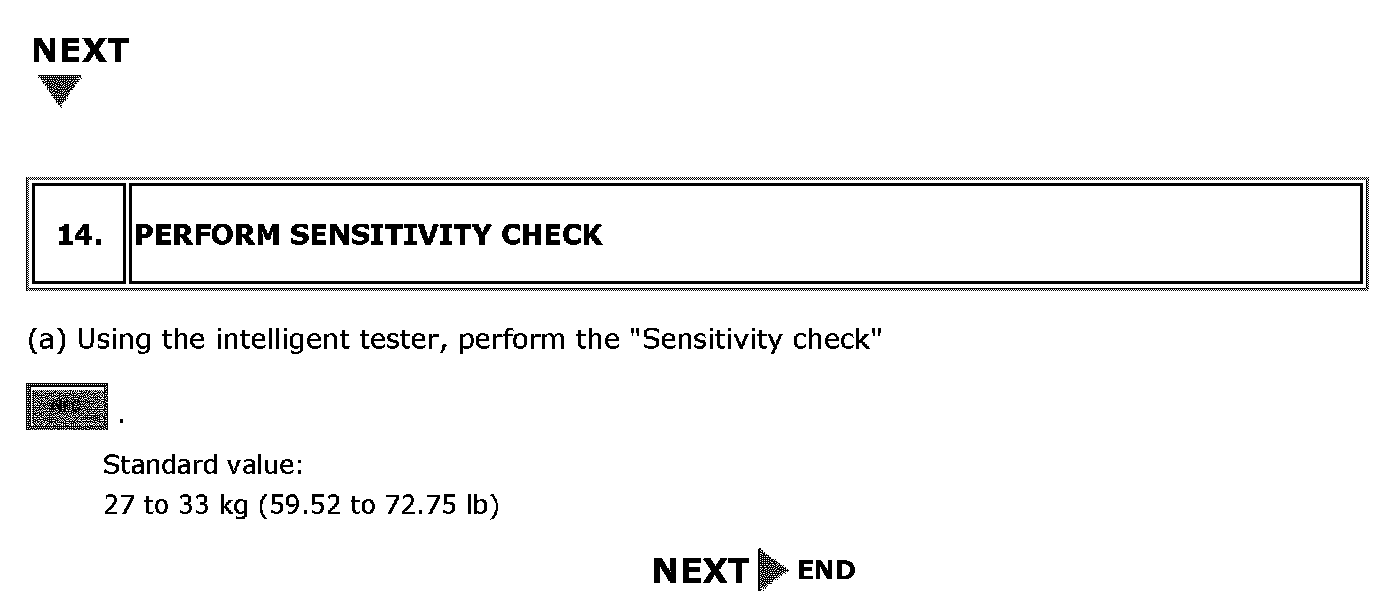

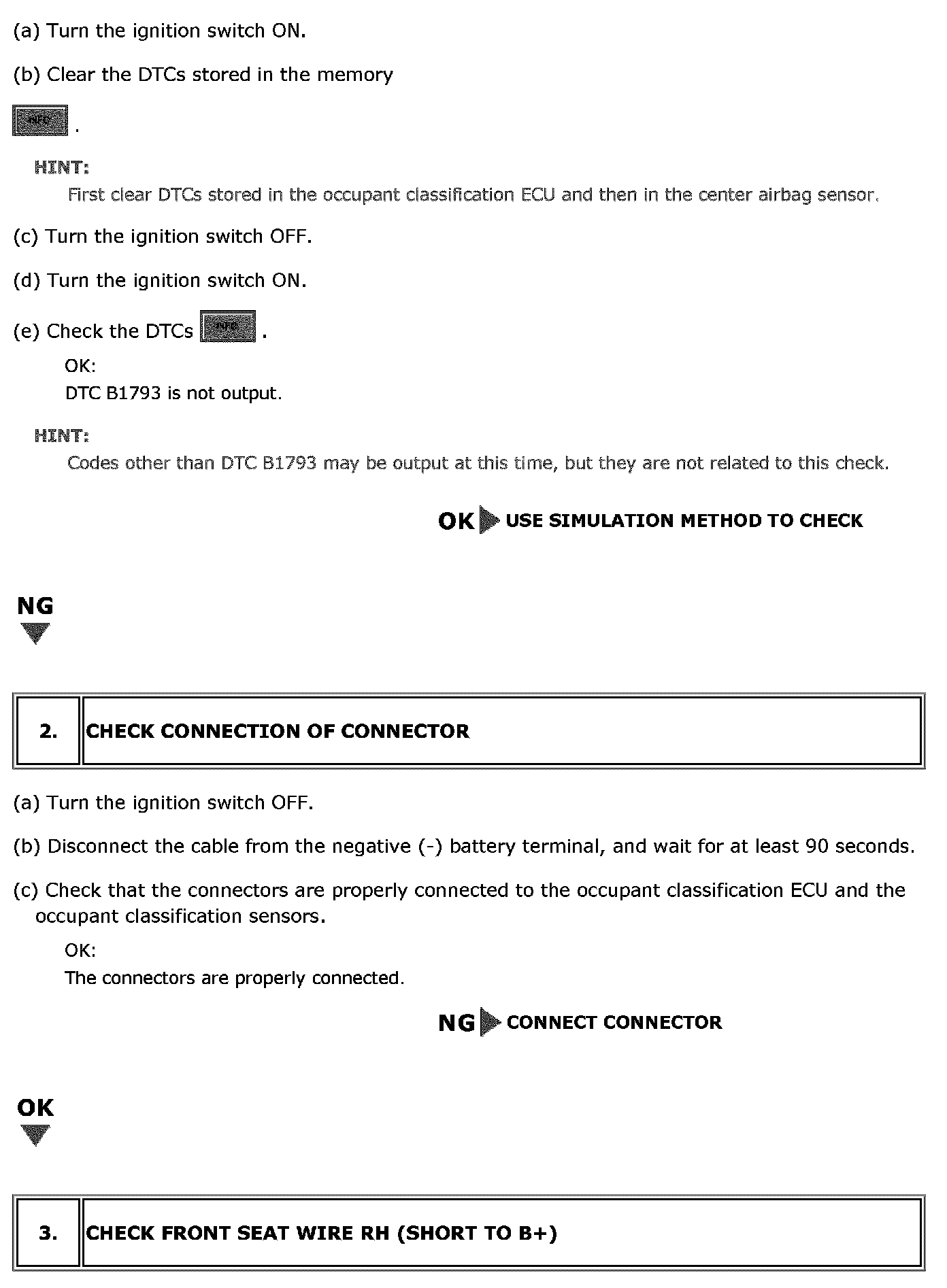

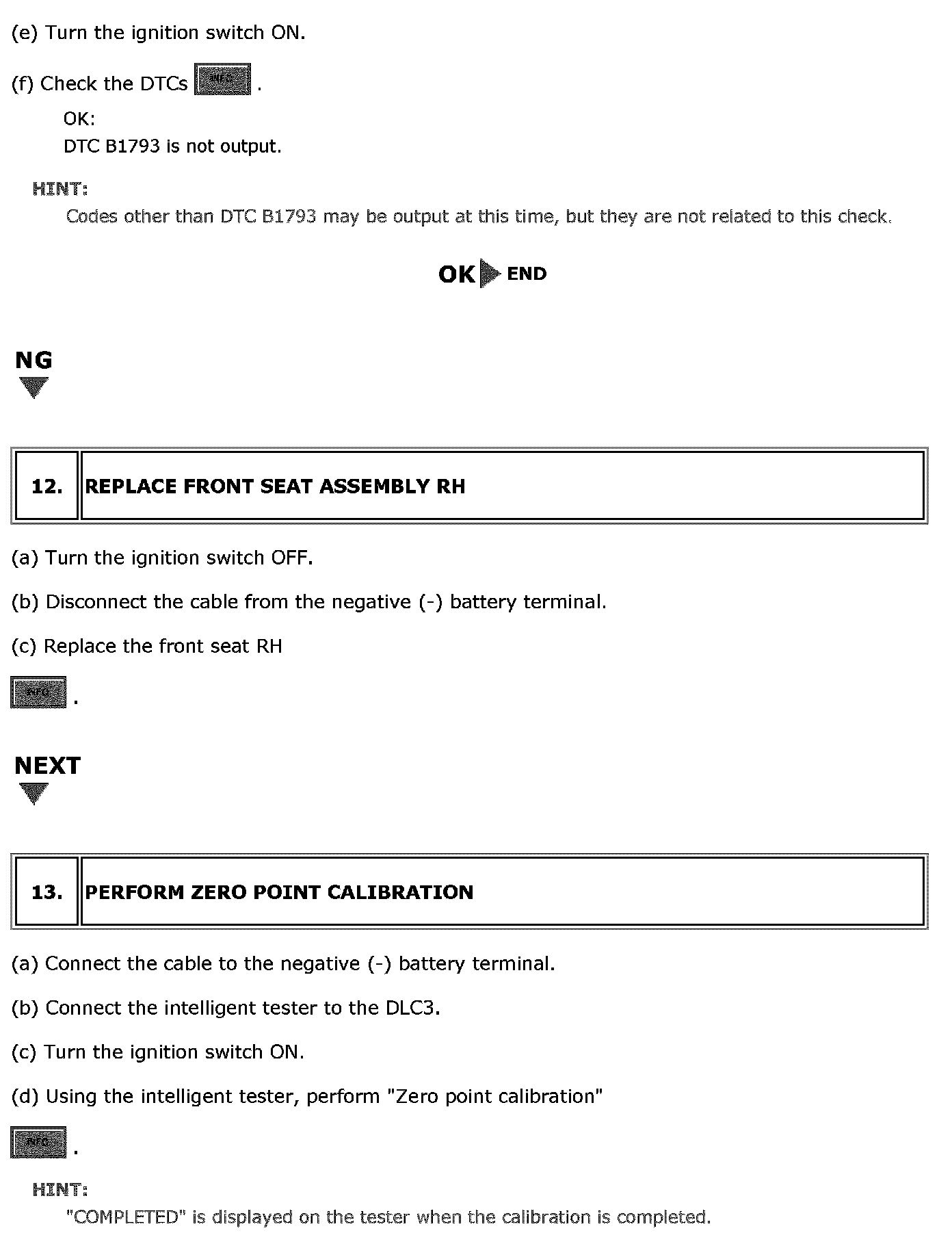

- If troubleshooting (wire harness inspection) is difficult to perform, remove the front passenger seat installation bolts to see the undersurface of the seat cushion.

- In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.
