B1787

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1787: Rear Occupant Classification Sensor LH Collision Detection

B1787 Rear Occupant Classification Sensor LH Collision Detection

DESCRIPTION

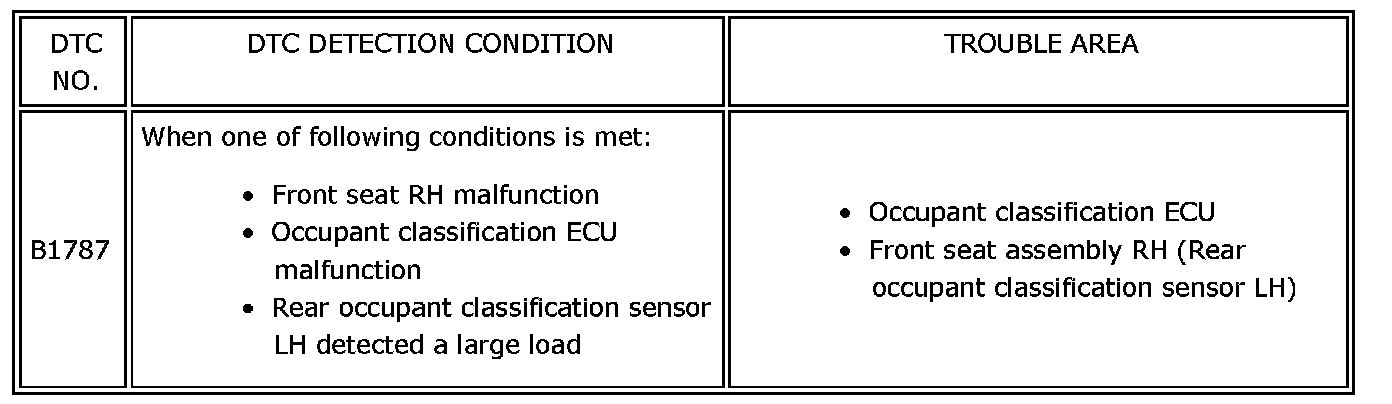

DTC B1787 is output when the occupant classification ECU receives a collision detection signal sent by the rear occupant classification sensor LH during an accident.
DTC B1787 is also output when the front seat RH is subjected to a strong impact, even if an actual accident does not occur.
However, when the occupant classification ECU outputs a collision detection signal, even if the vehicle is not in a collision, DTC B1787 can be cleared by "Zero point calibration" and the "Sensitivity check". Therefore, if DTC B1787 is output, first perform "Zero point calibration" and the "Sensitivity check".

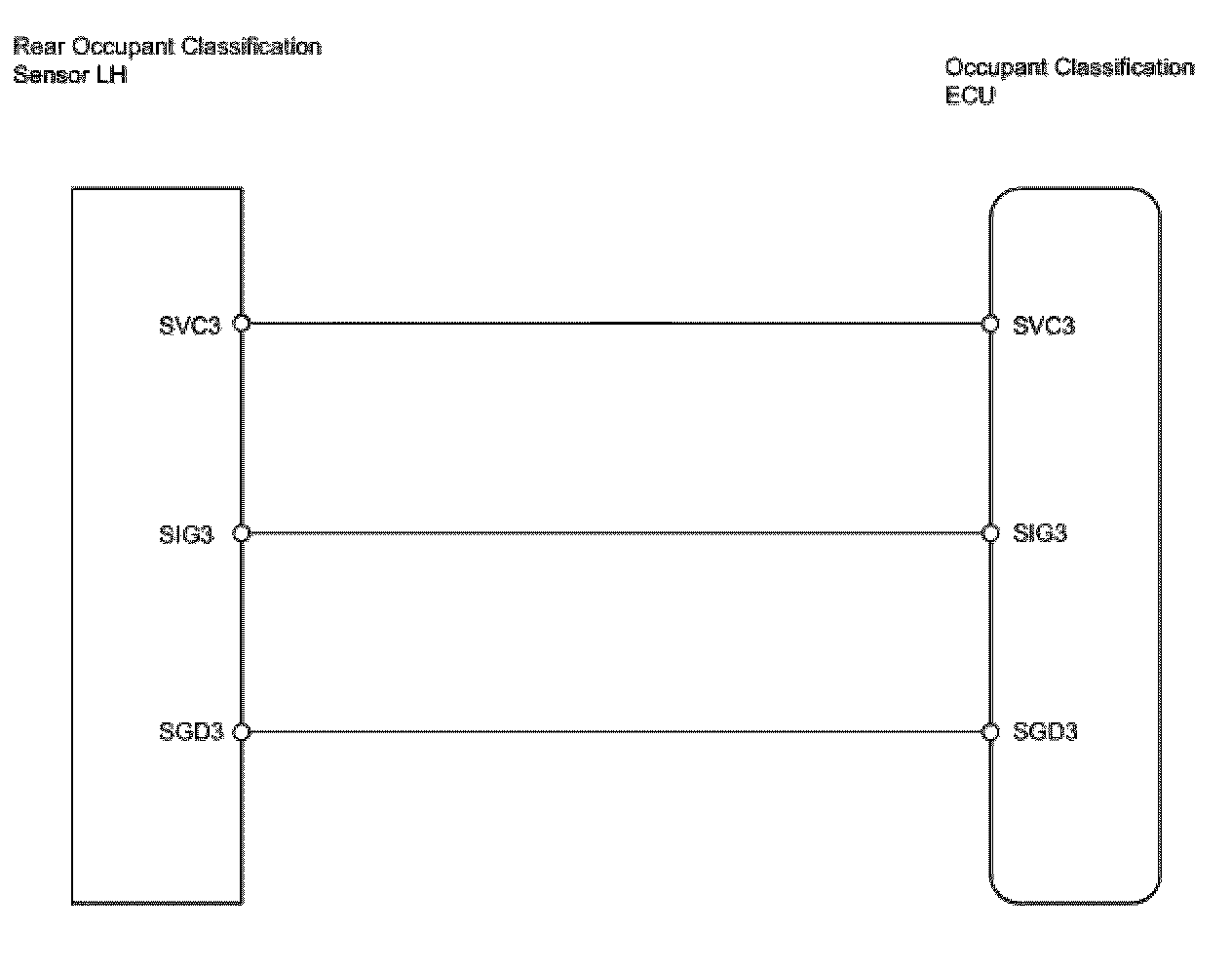

WIRING DIAGRAM

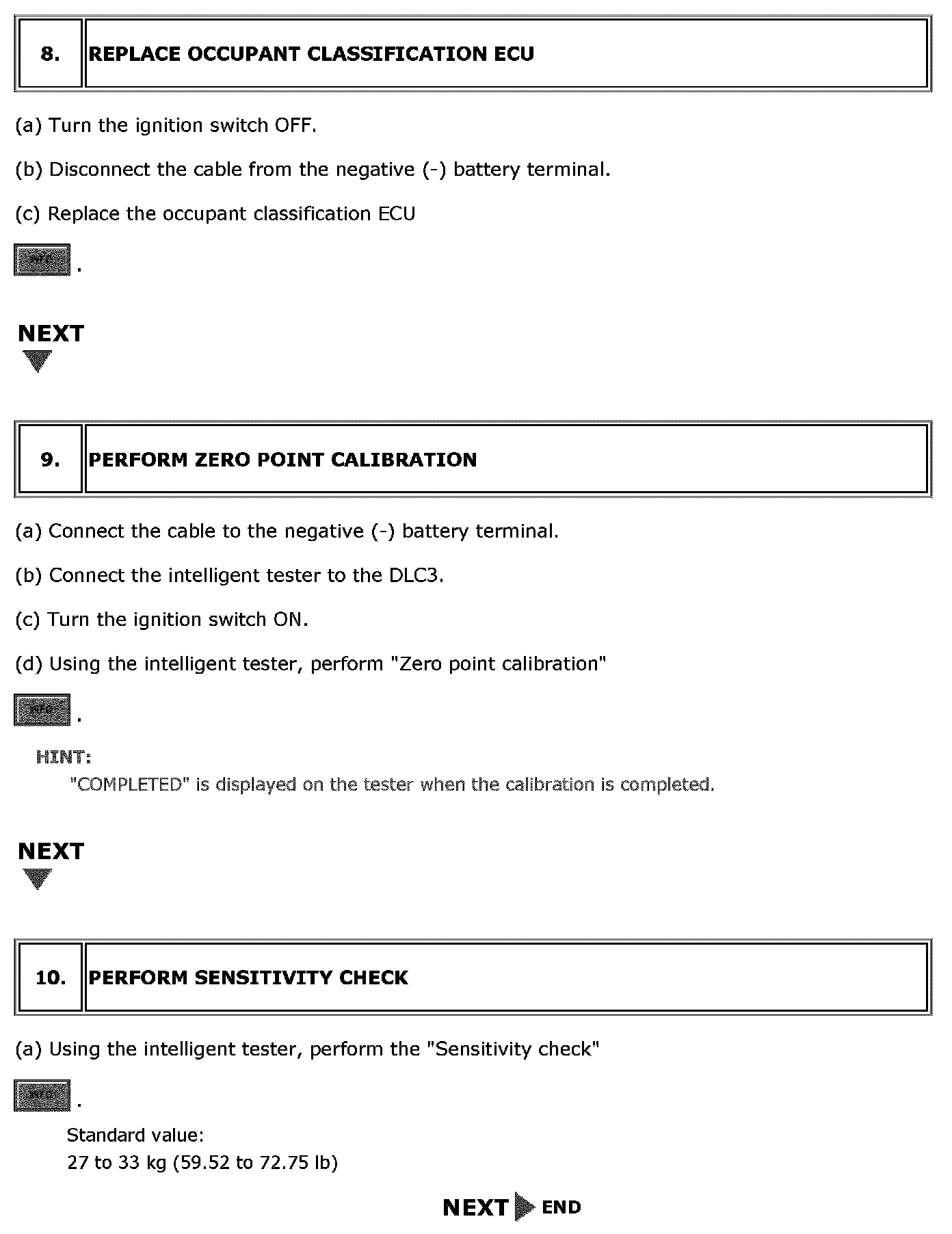

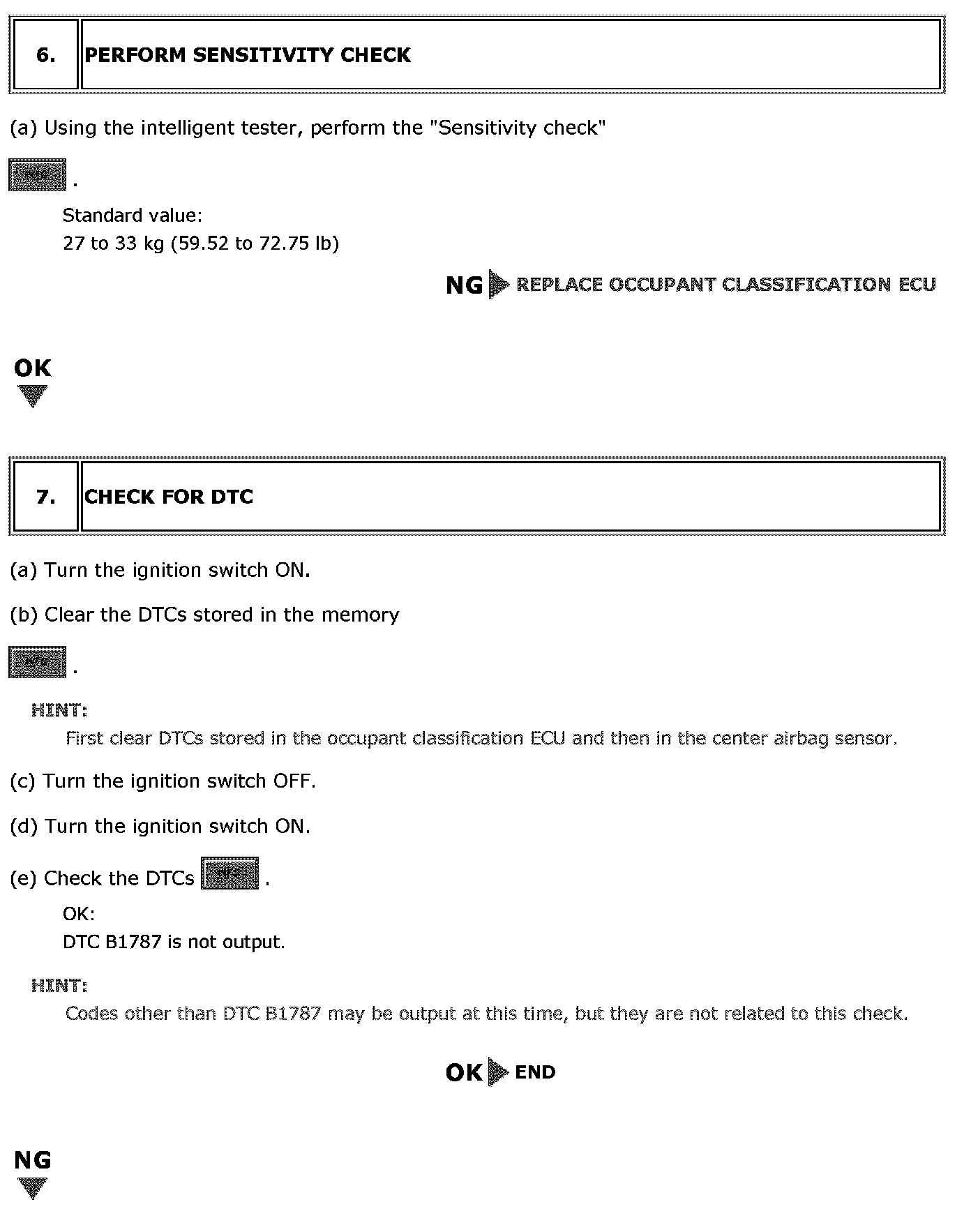

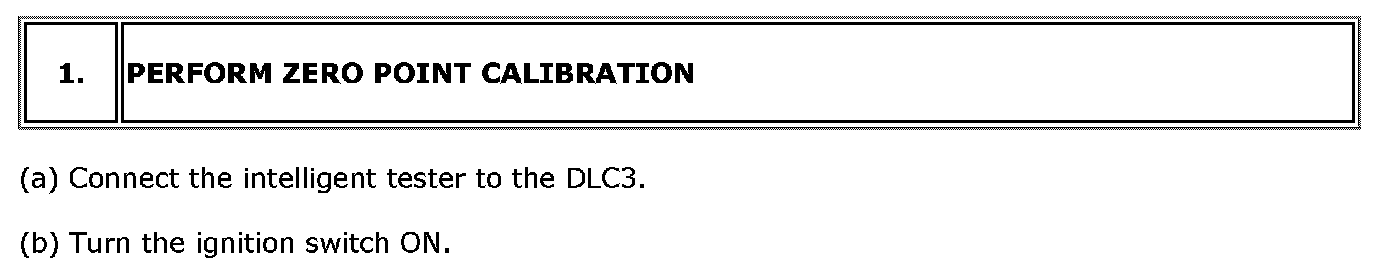

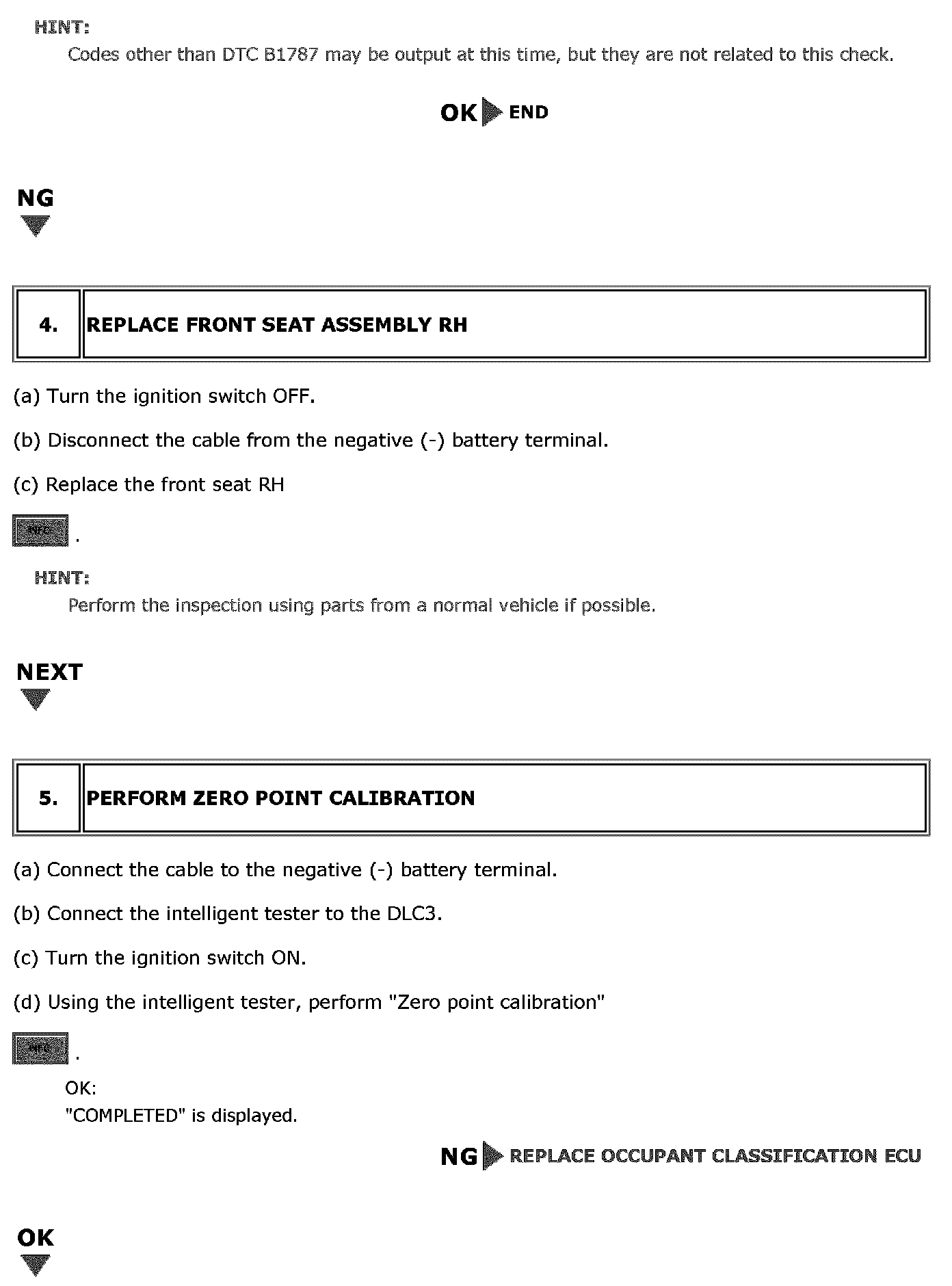

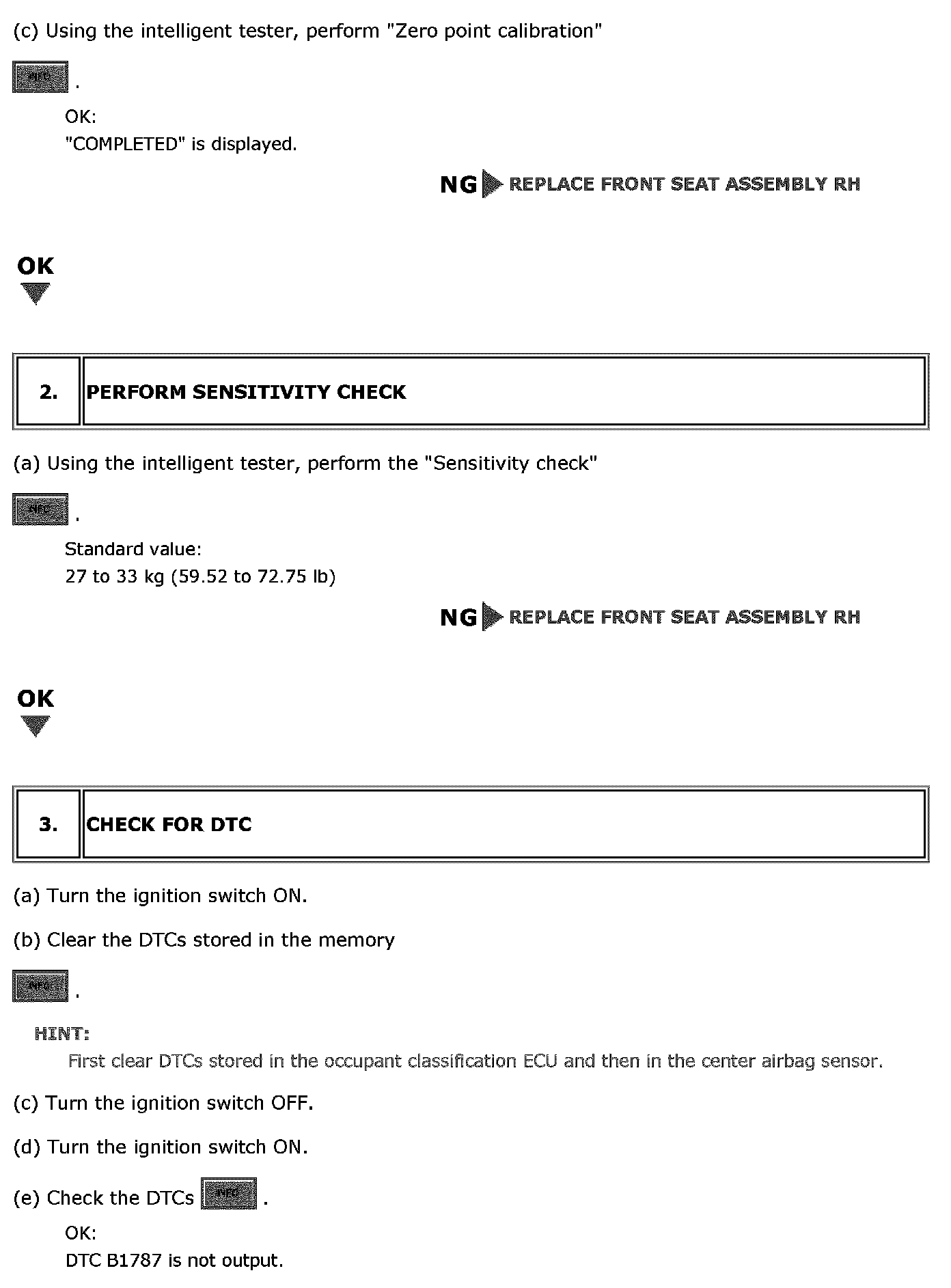

INSPECTION PROCEDURE
