B1786

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1786: Front Occupant Classification Sensor RH Collision Detection

B1786 Front Occupant Classification Sensor RH Collision Detection

DESCRIPTION

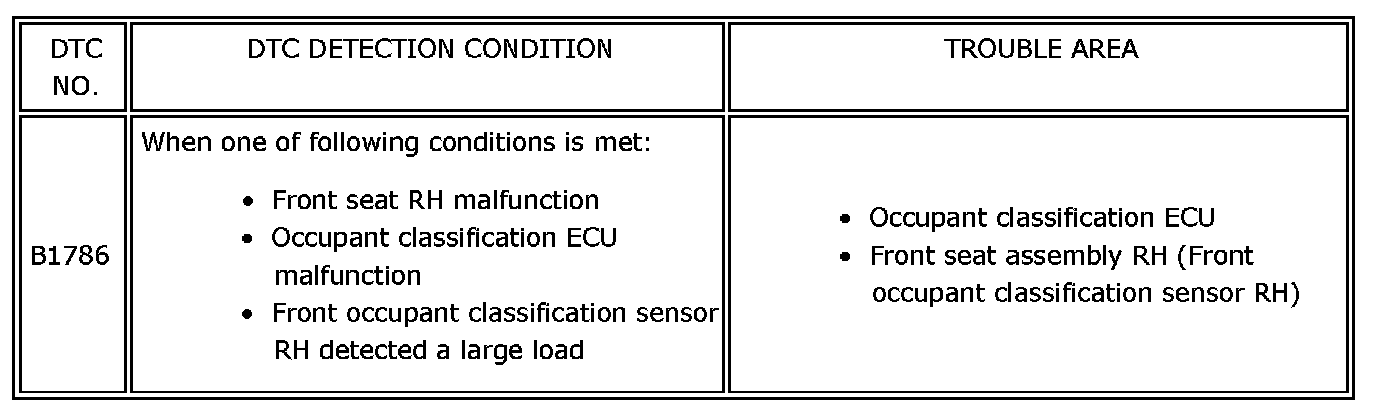

DTC B1786 is output when the occupant classification ECU receives a collision detection signal sent by the front occupant classification sensor RH during an accident.
DTC B1786 is also output when the front seat RH is subjected to a strong impact, even if an actual accident does not occur.
However, when the occupant classification ECU outputs a collision detection signal, even if the vehicle is not in a collision, DTC B1786 can be cleared by "Zero point calibration" and the "Sensitivity check". Therefore, if DTC B1786 is output, first perform "Zero point calibration" and the "Sensitivity check".

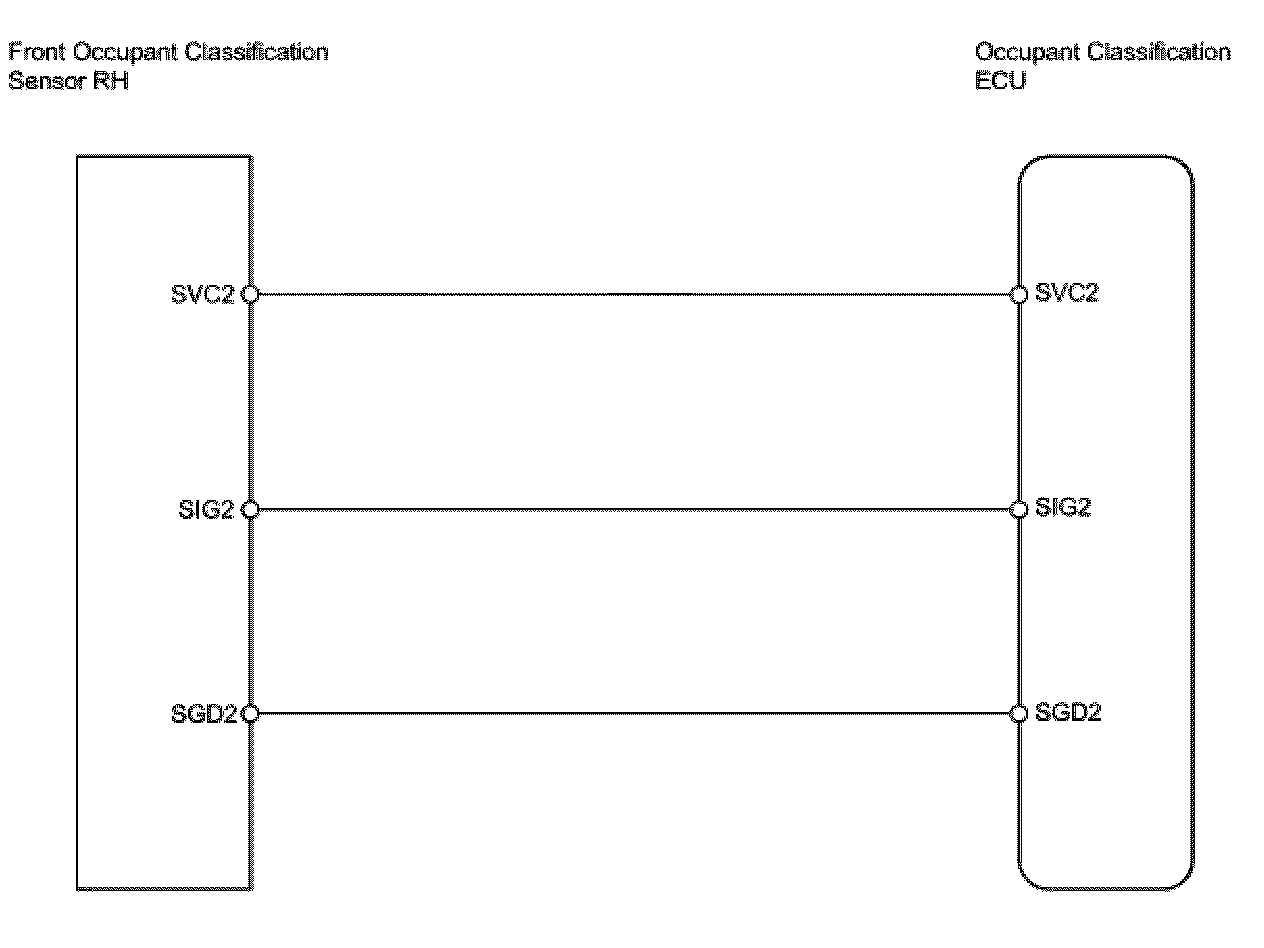

WIRING DIAGRAM

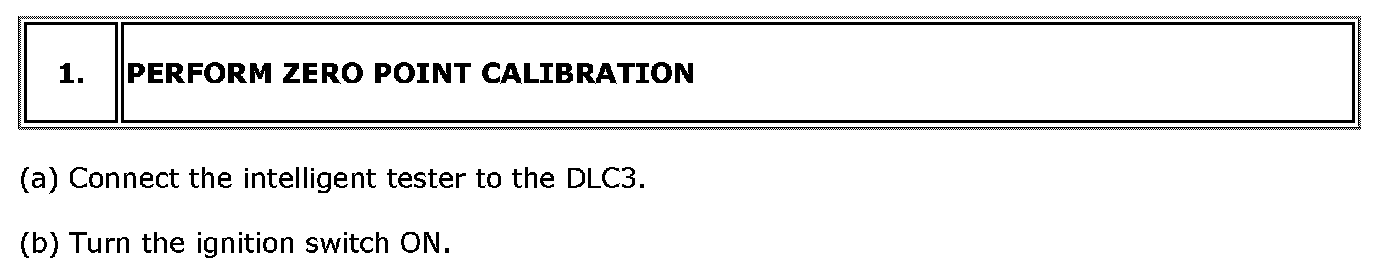

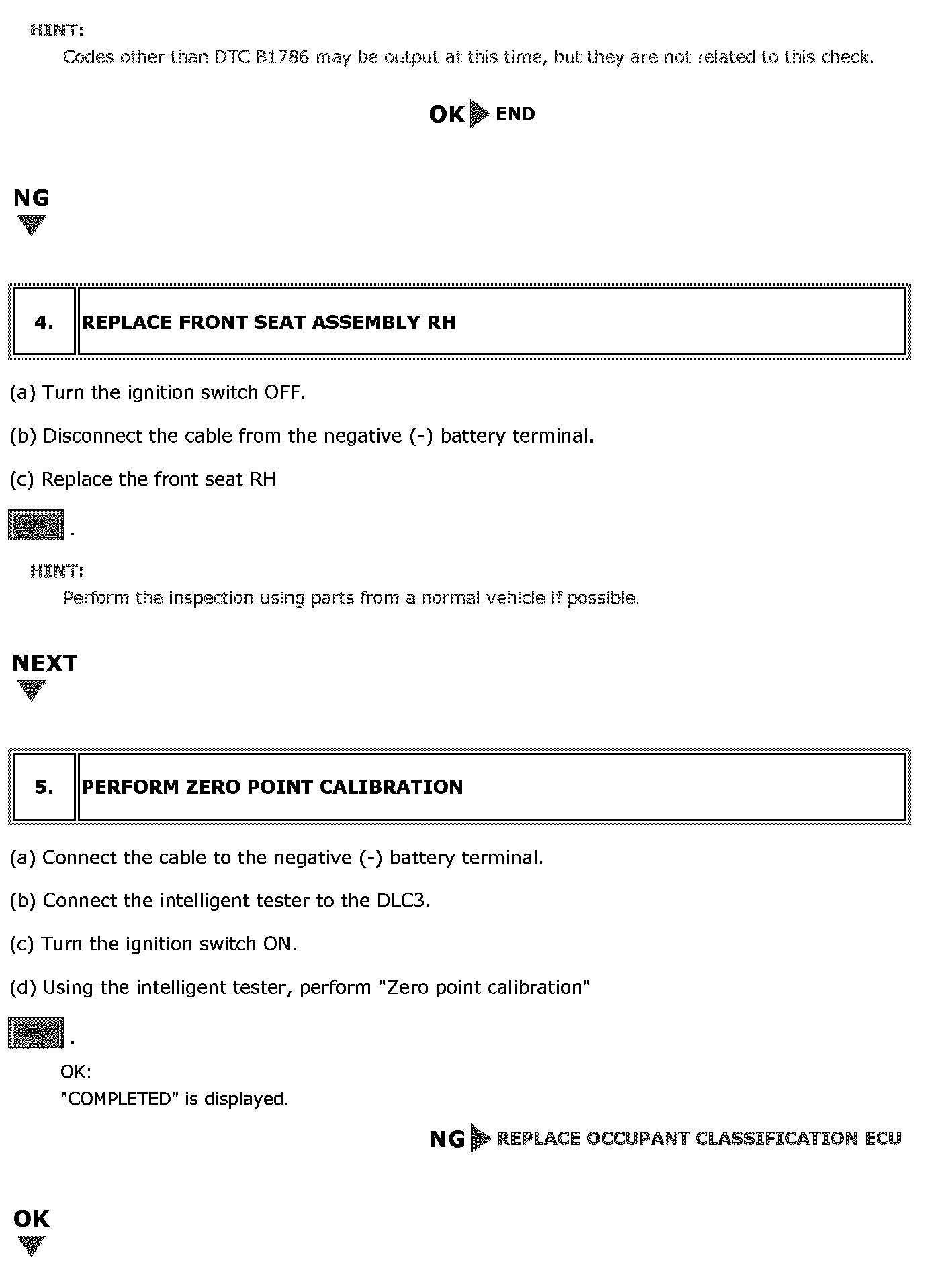

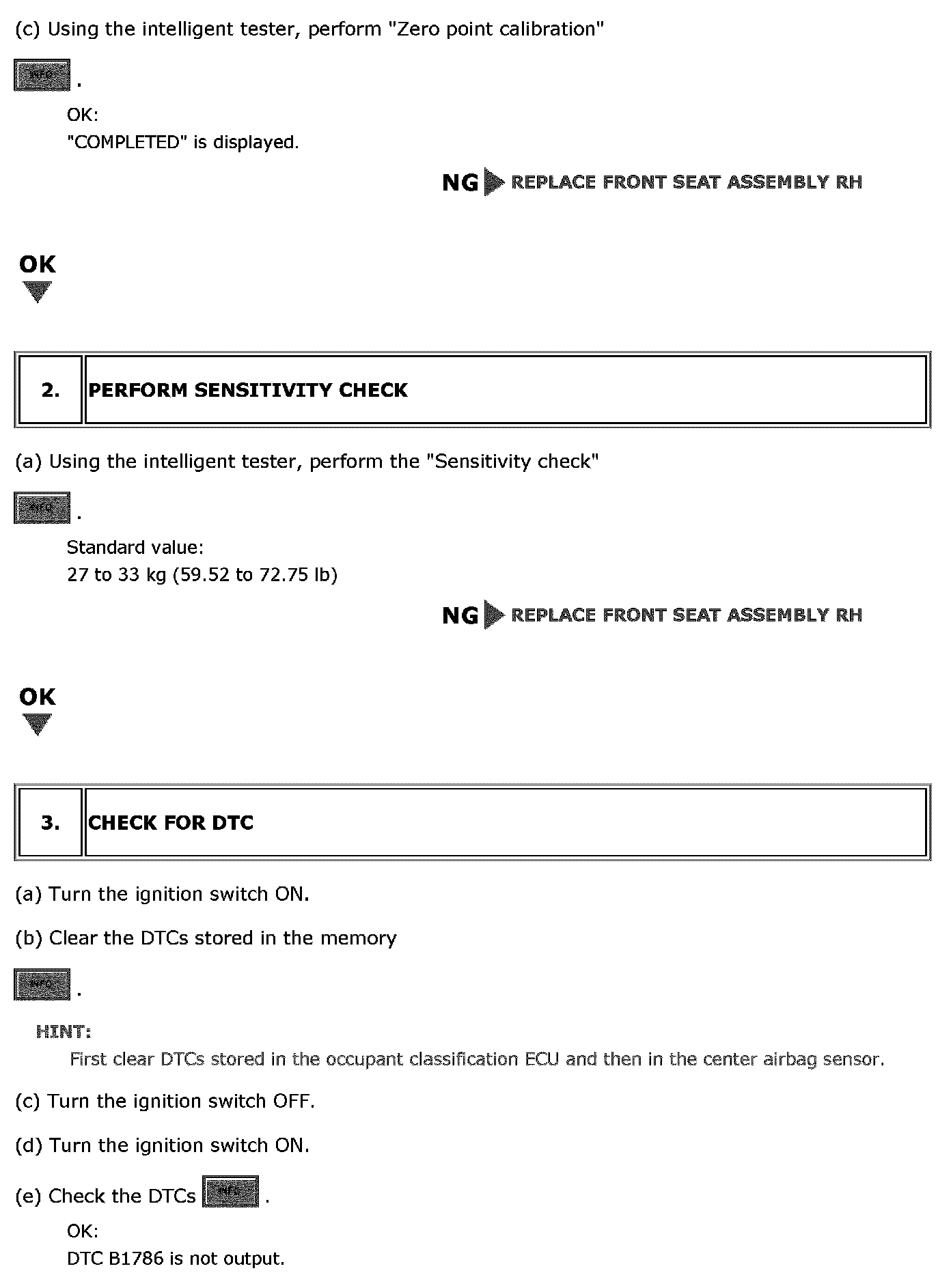

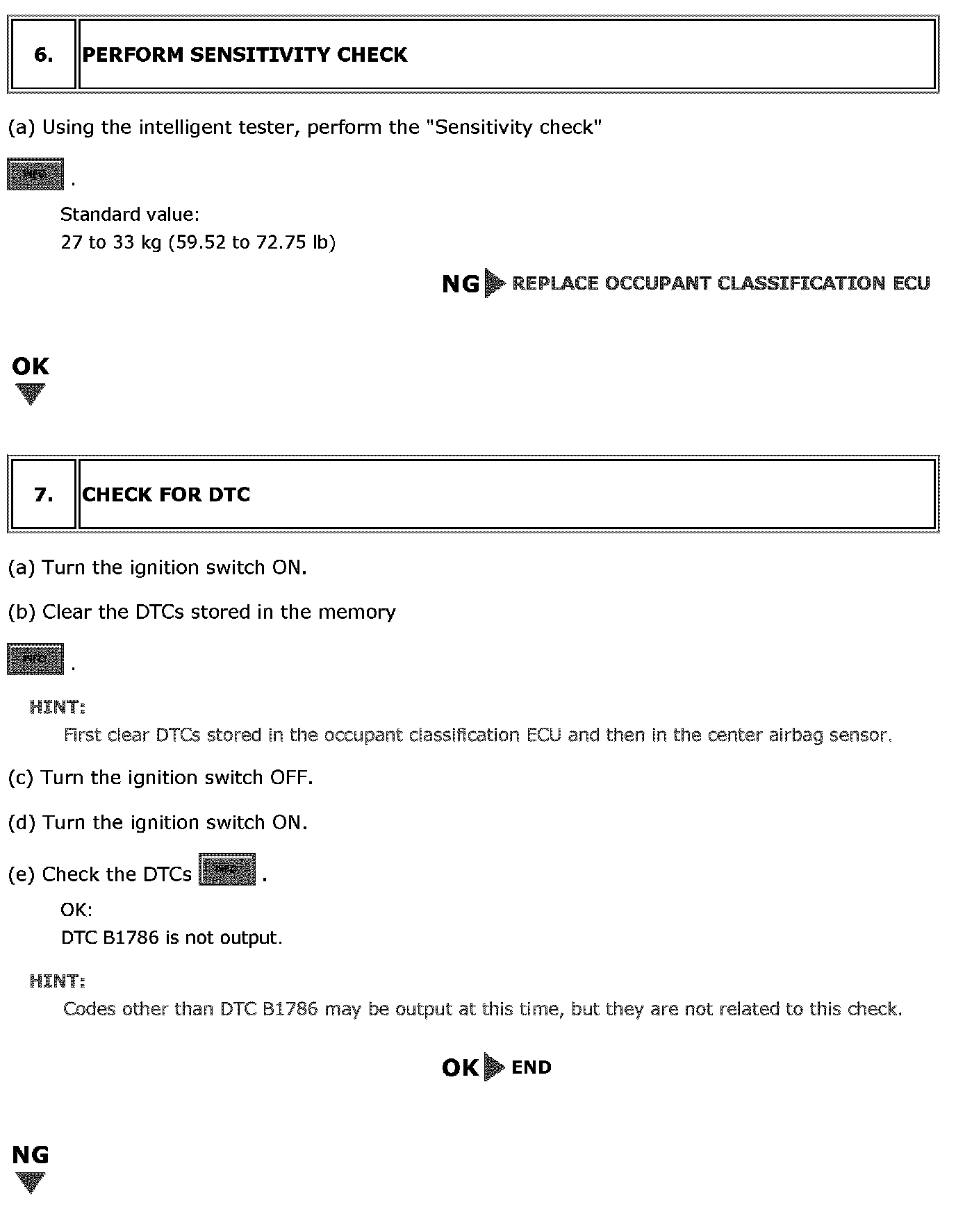

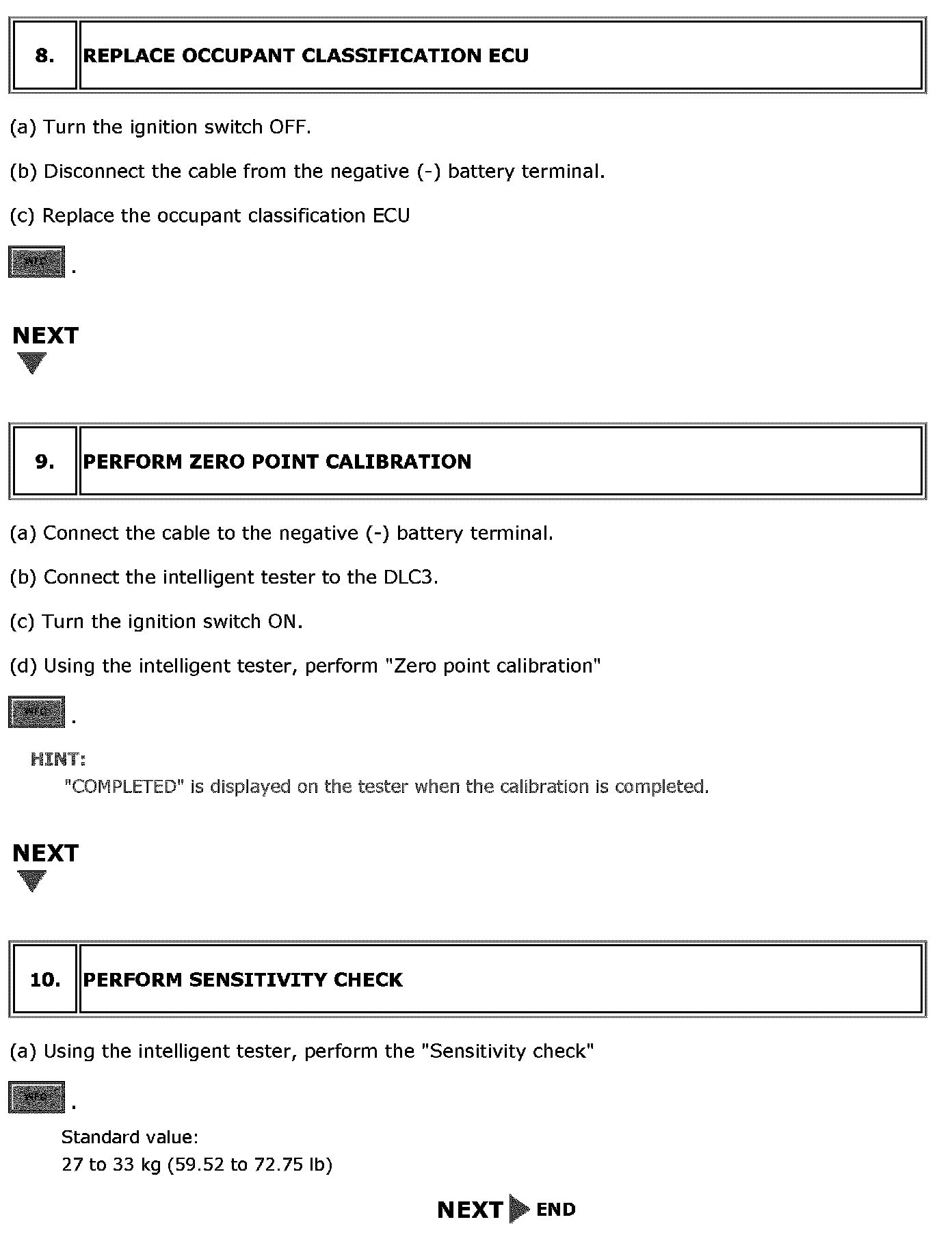

INSPECTION PROCEDURE
