B1781

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1781: Front Occupant Classification Sensor RH Circuit Malfunction

B1781 Front Occupant Classification Sensor RH Circuit Malfunction

DESCRIPTION
The front occupant classification sensor RH circuit consists of the occupant classification ECU and the front occupant classification sensor RH.

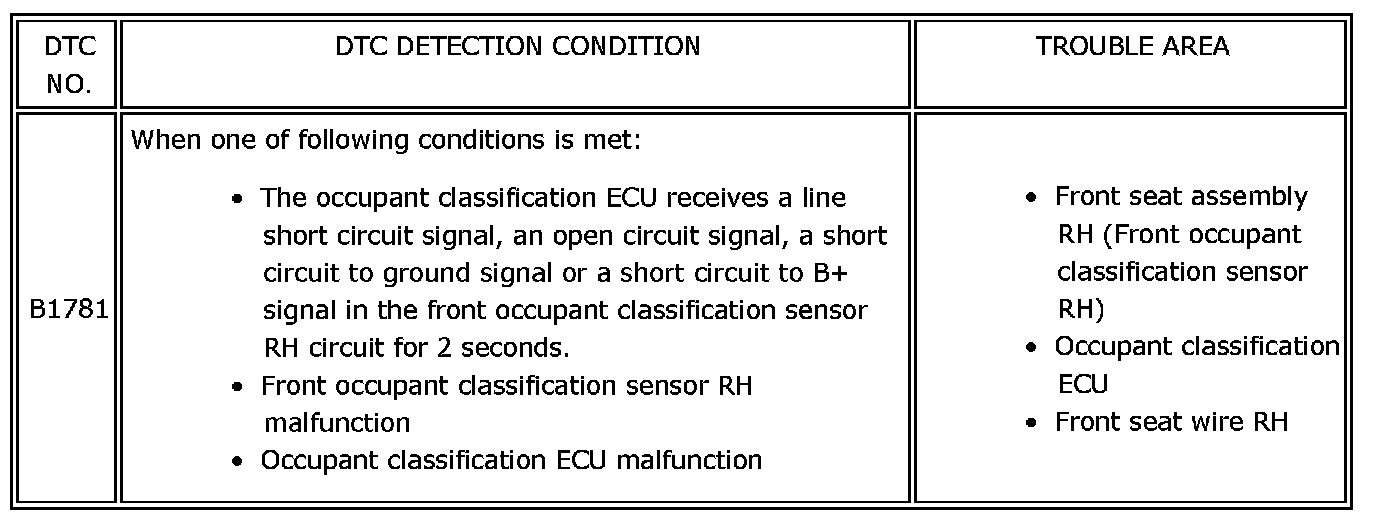

DTC B1781 is recorded when a malfunction is detected in the front occupant classification sensor RH circuit.






WIRING DIAGRAM

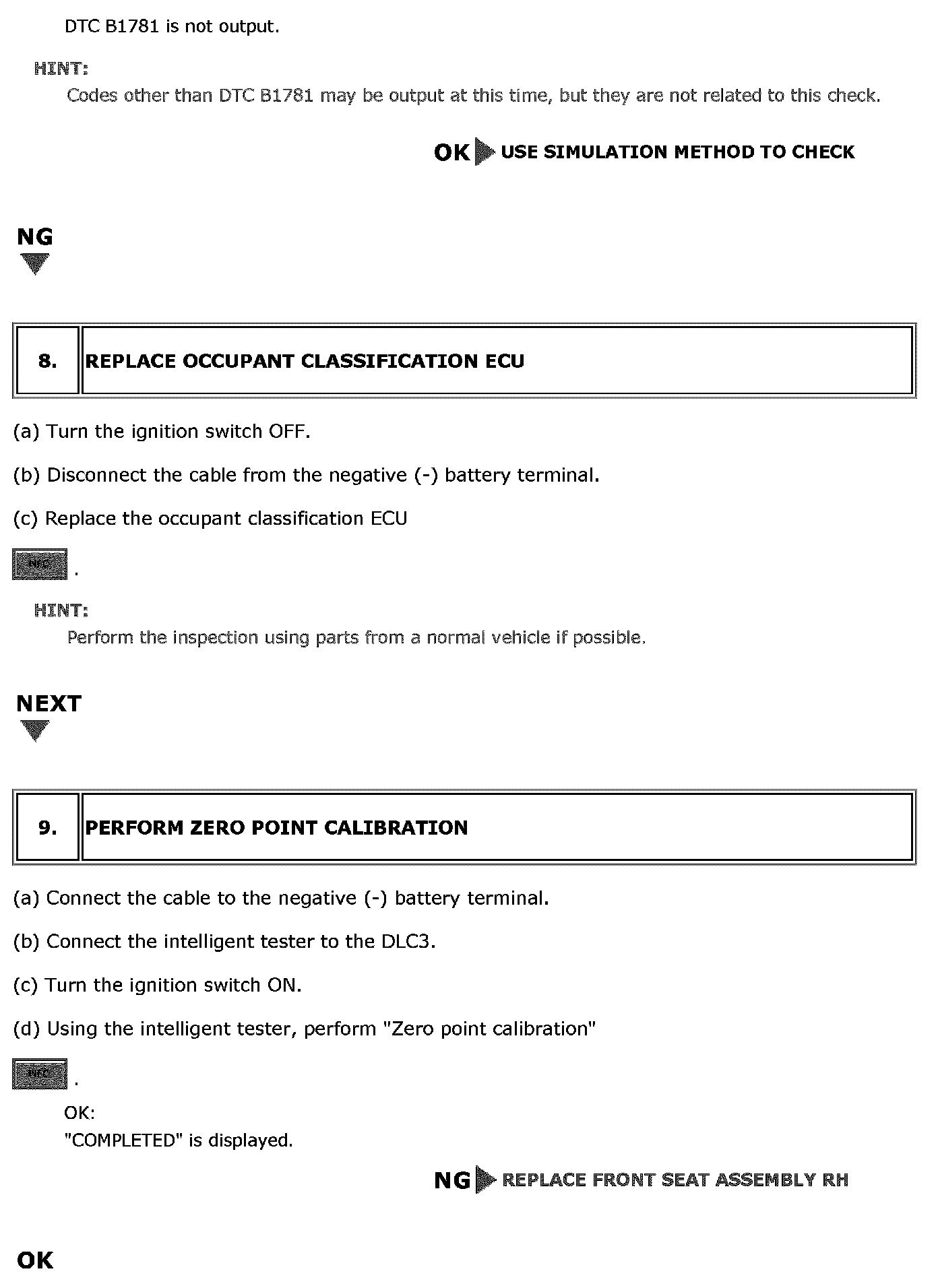

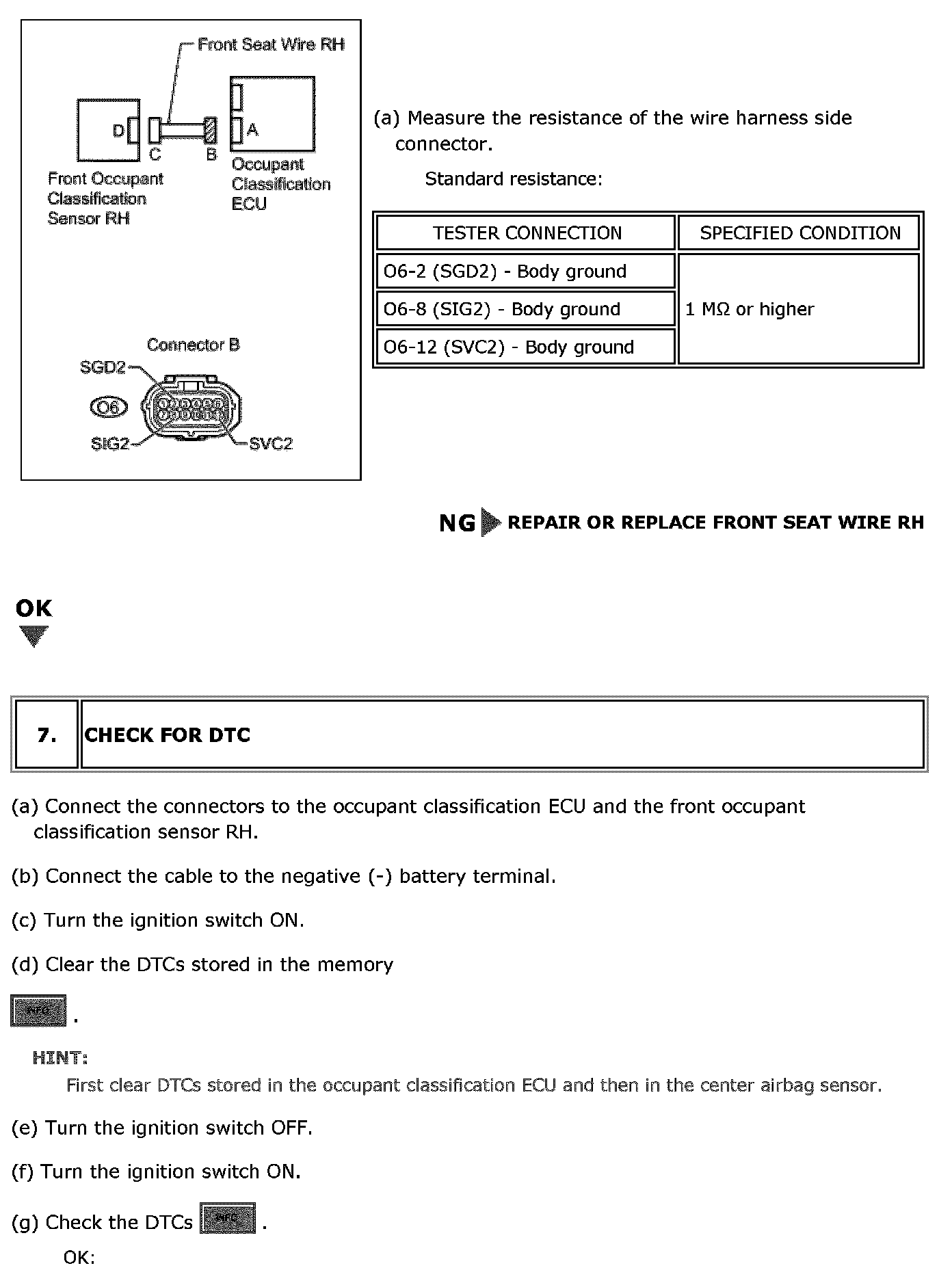

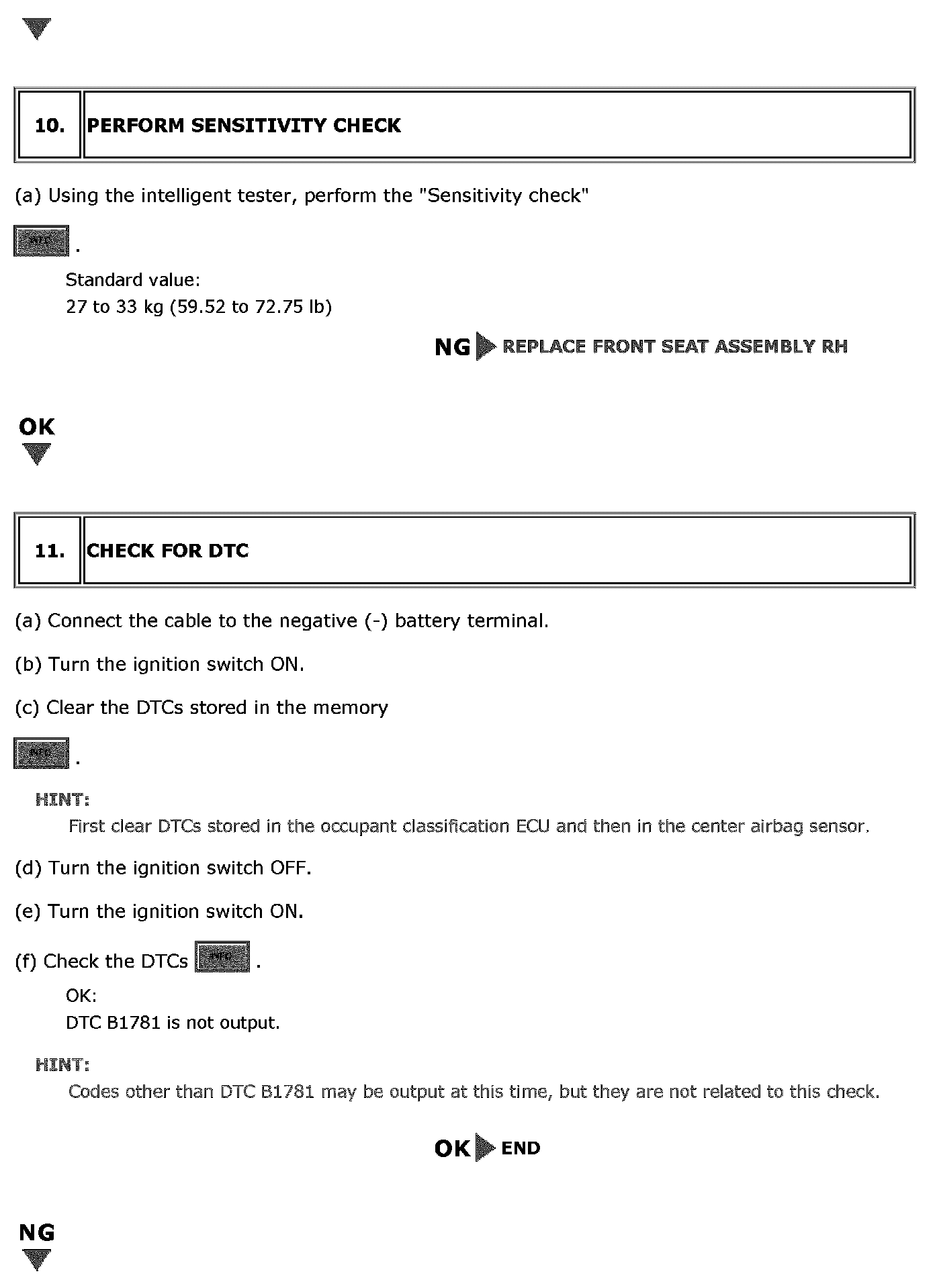

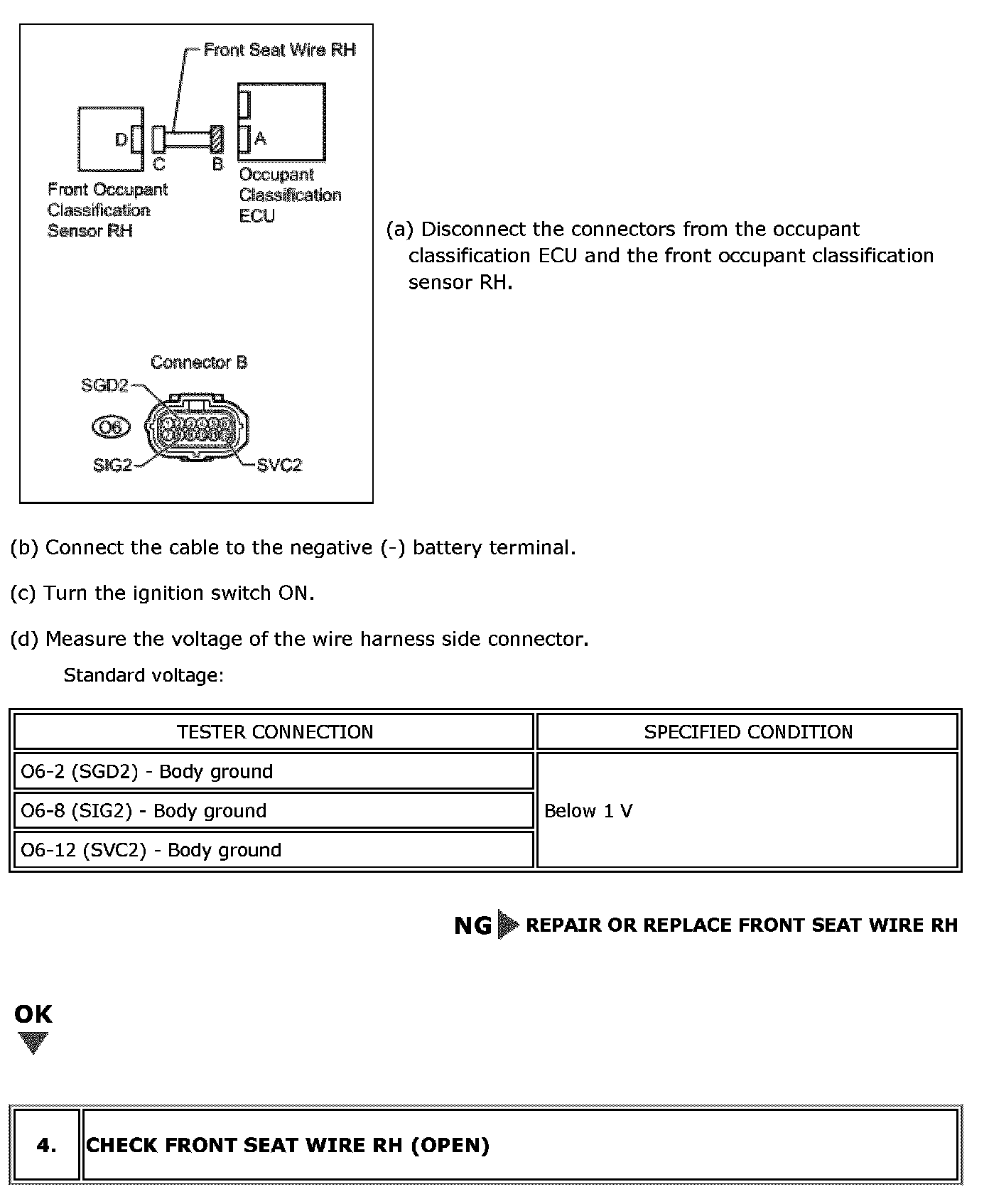

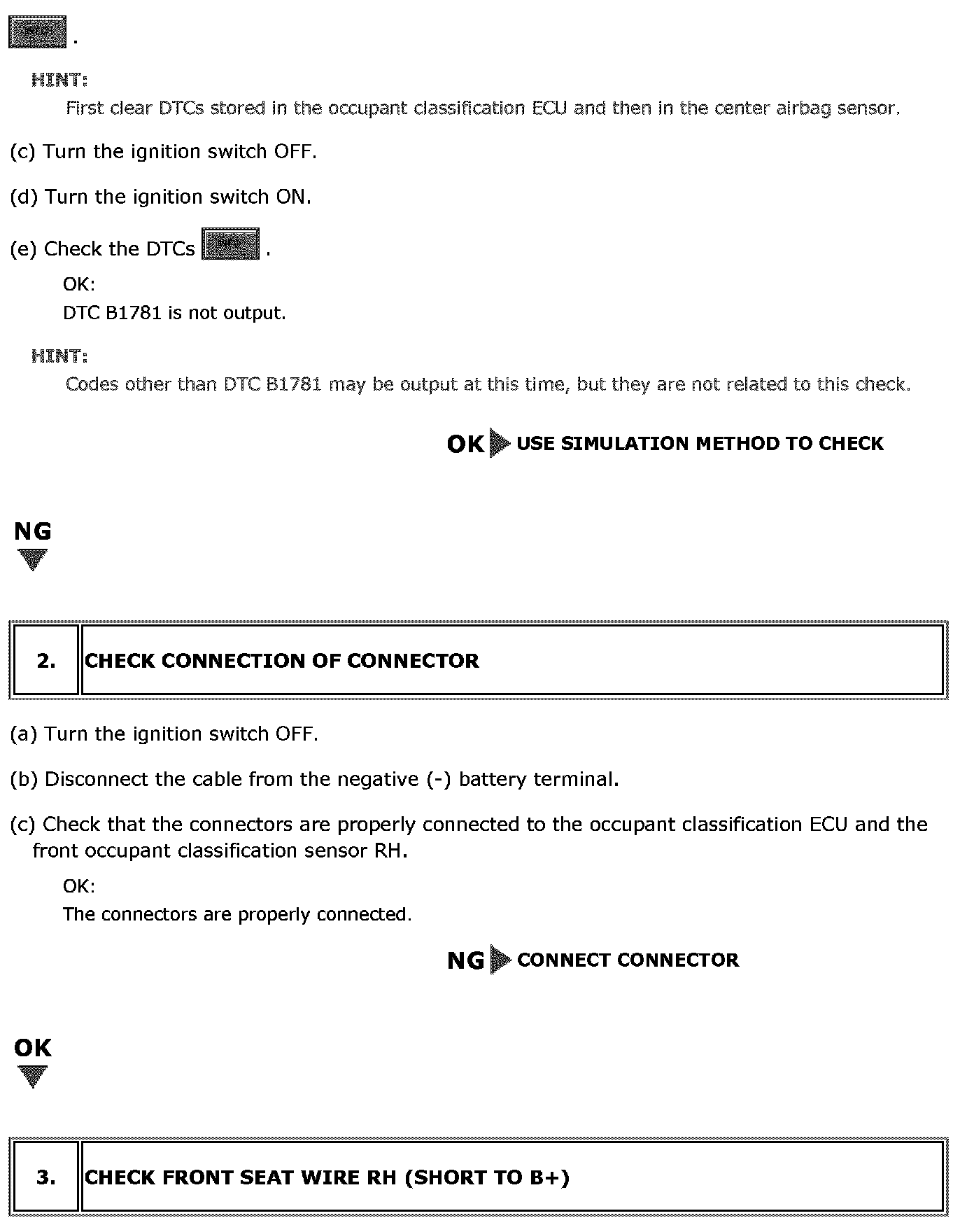

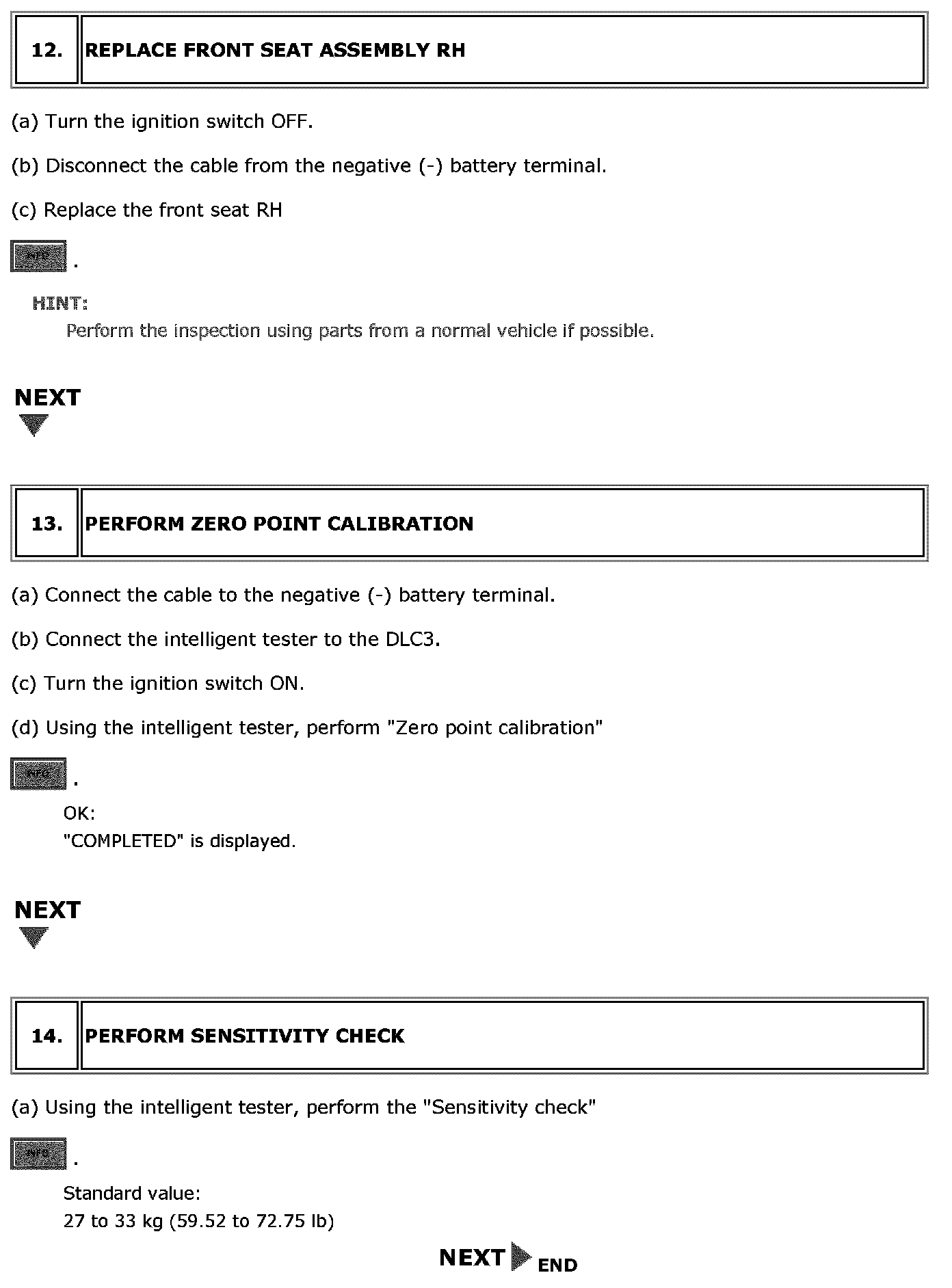

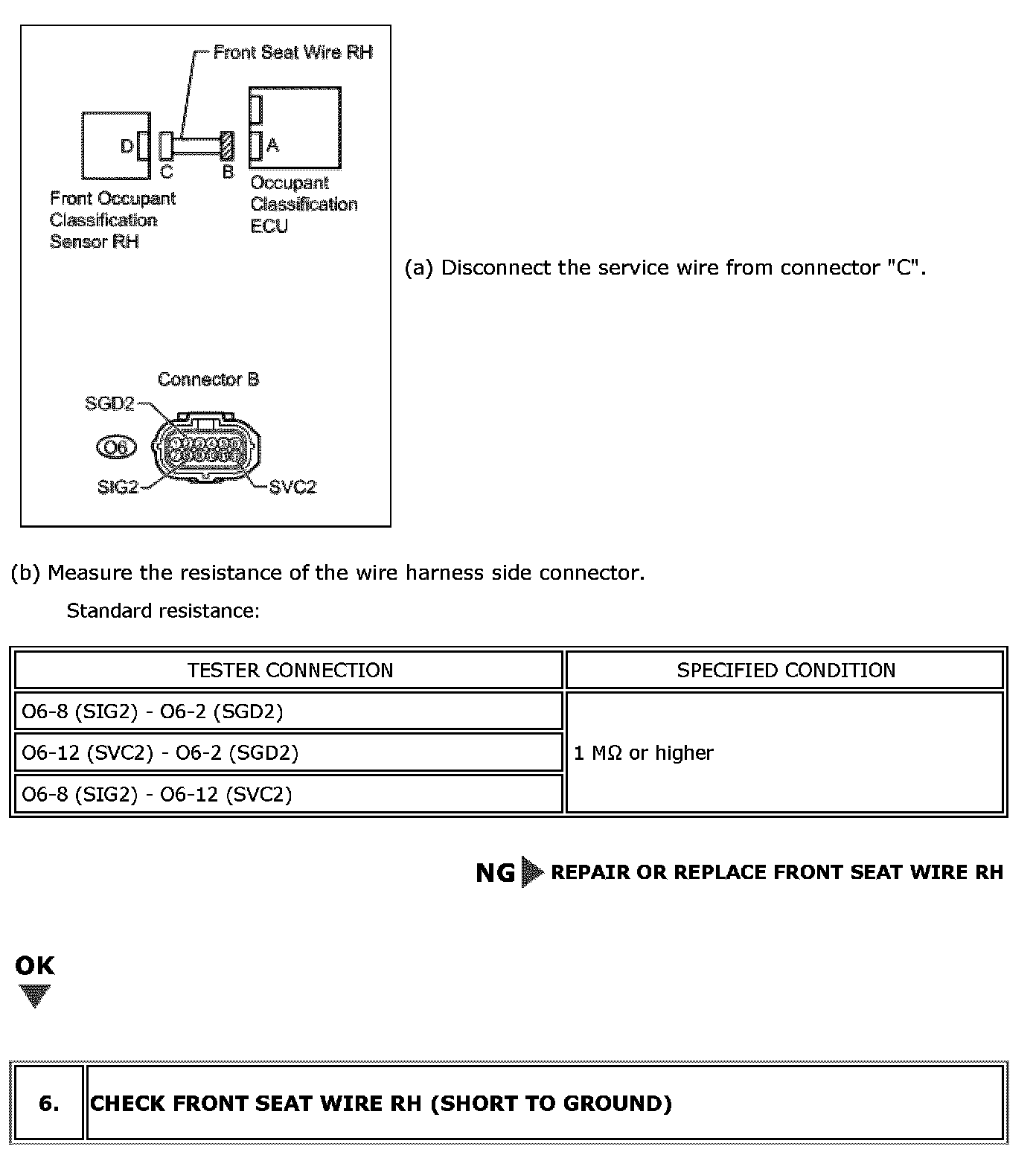

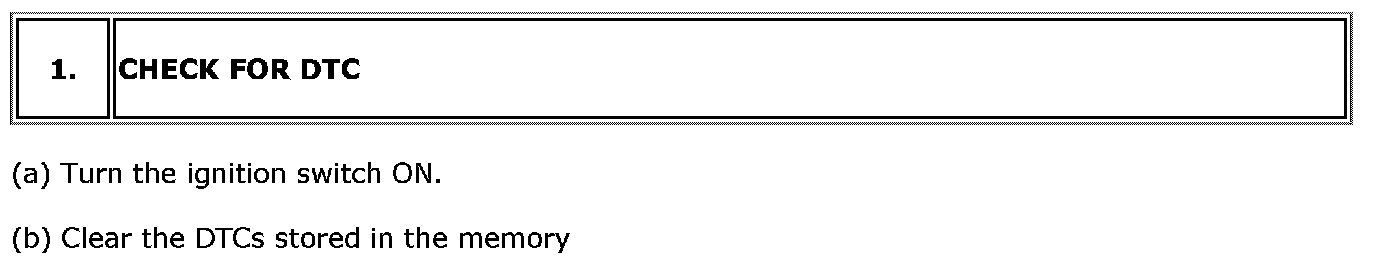

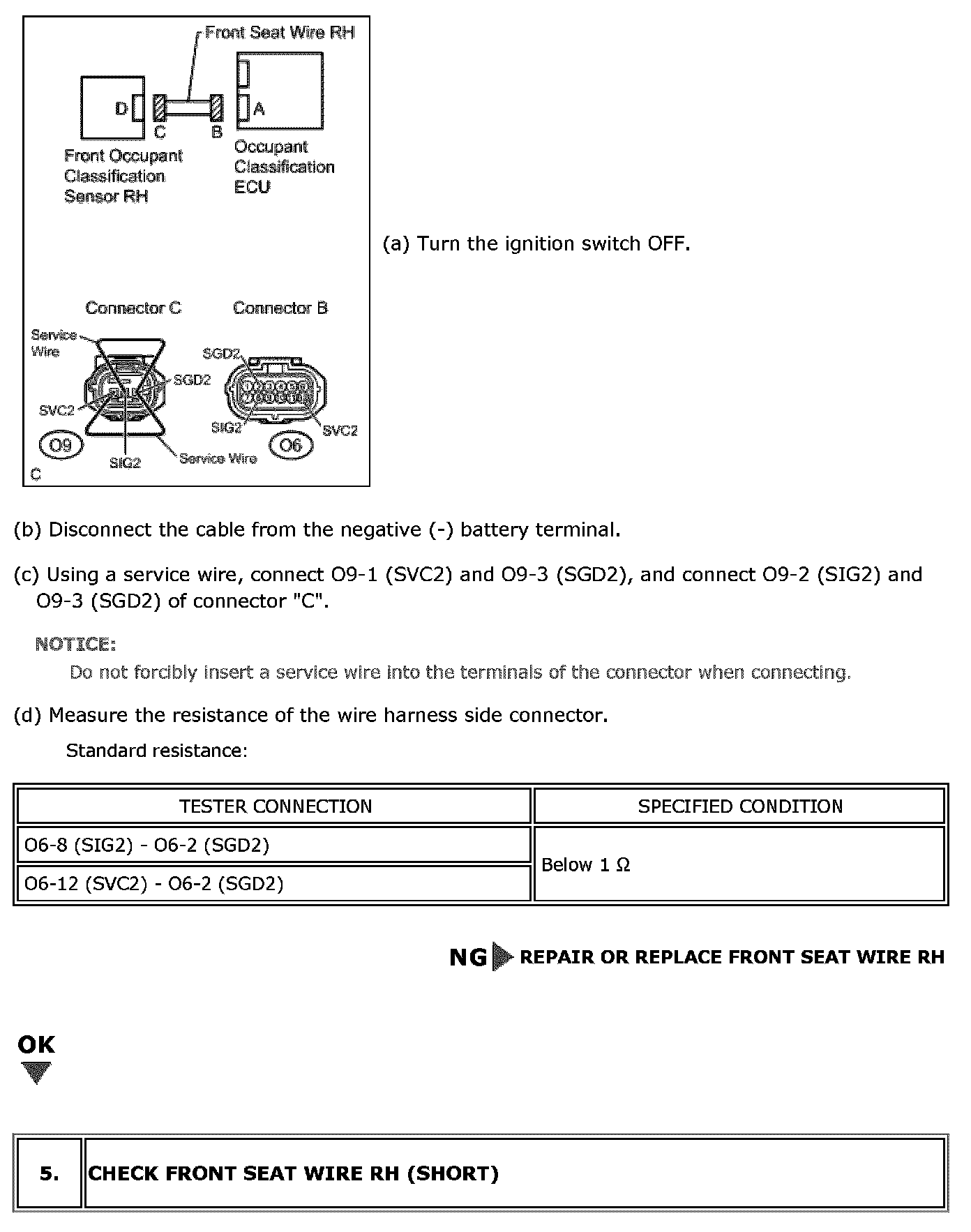

INSPECTION PROCEDURE
