B1660

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction

B1660/43 Passenger Airbag ON/OFF Indicator Circuit Malfunction

DESCRIPTION
The passenger airbag ON /OFF indicator circuit consists of the center airbag sensor and the front passenger seat belt warning light.
This circuit indicates the operation condition of the front passenger airbag and the passenger side seat belt pretensioner.

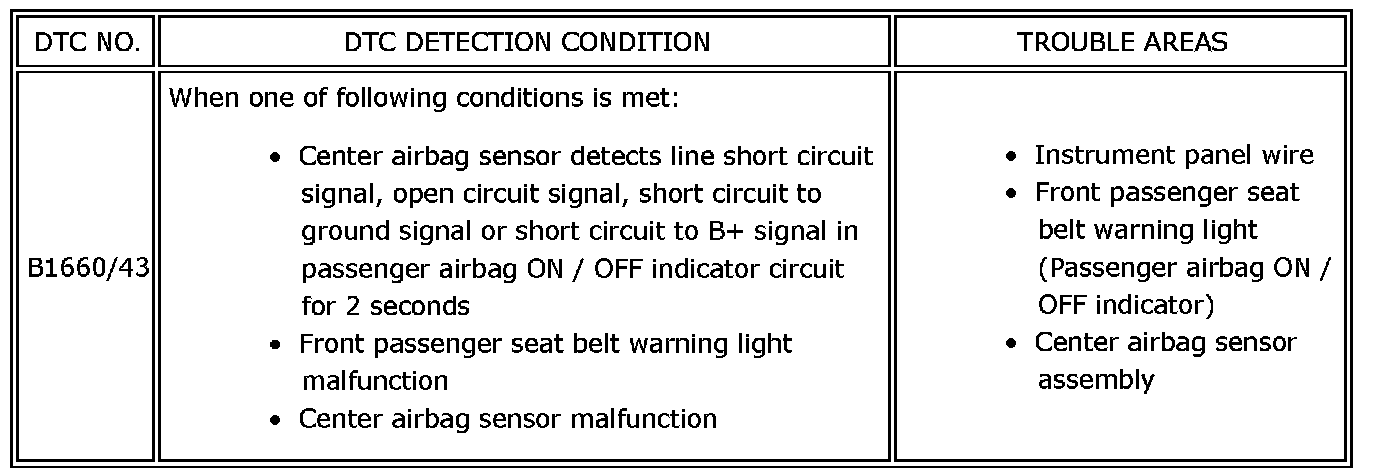

DTC B1660/43 is set when a malfunction is detected in the passenger airbag ON / OFF indicator circuit.

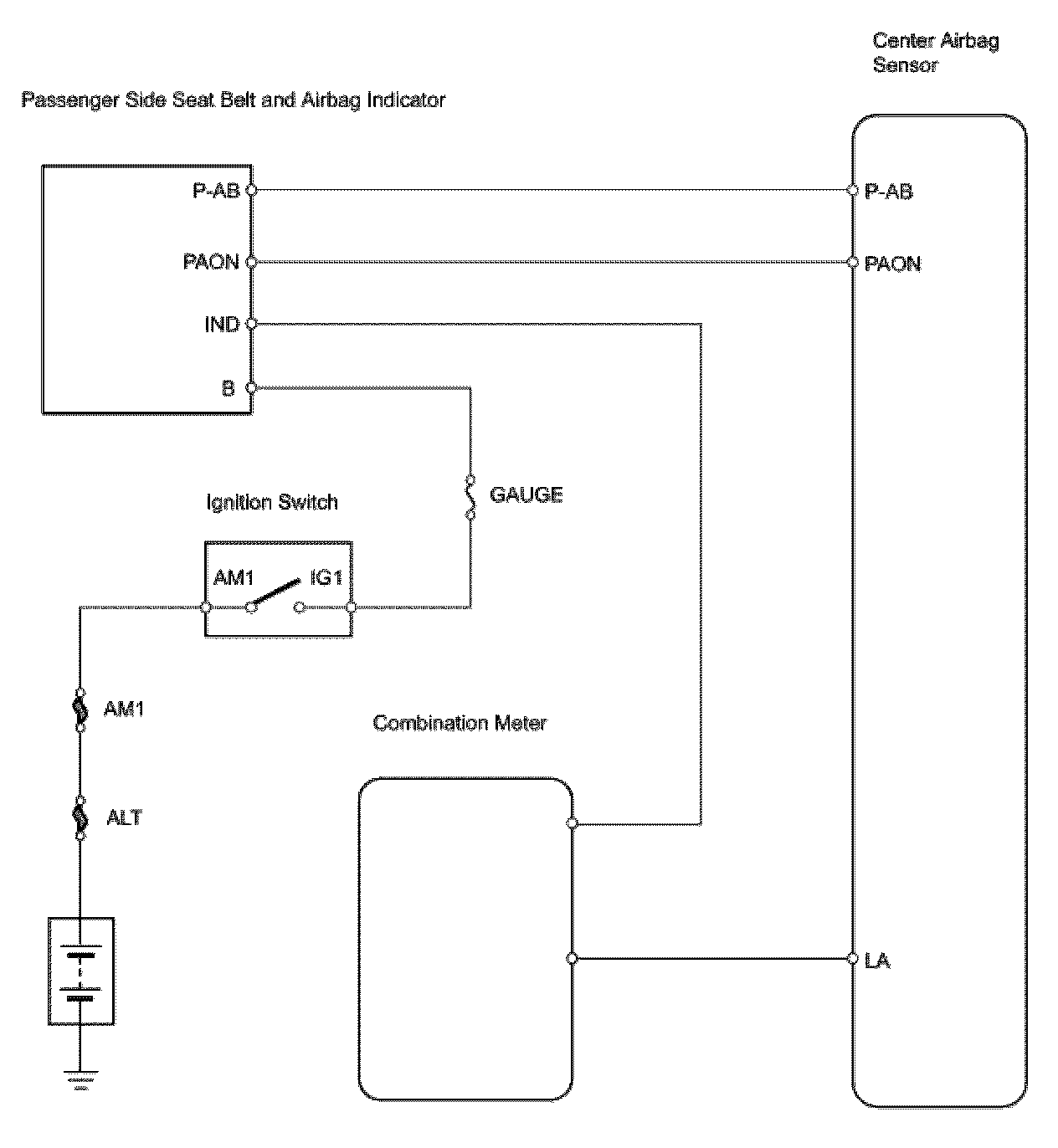

WIRING DIAGRAM

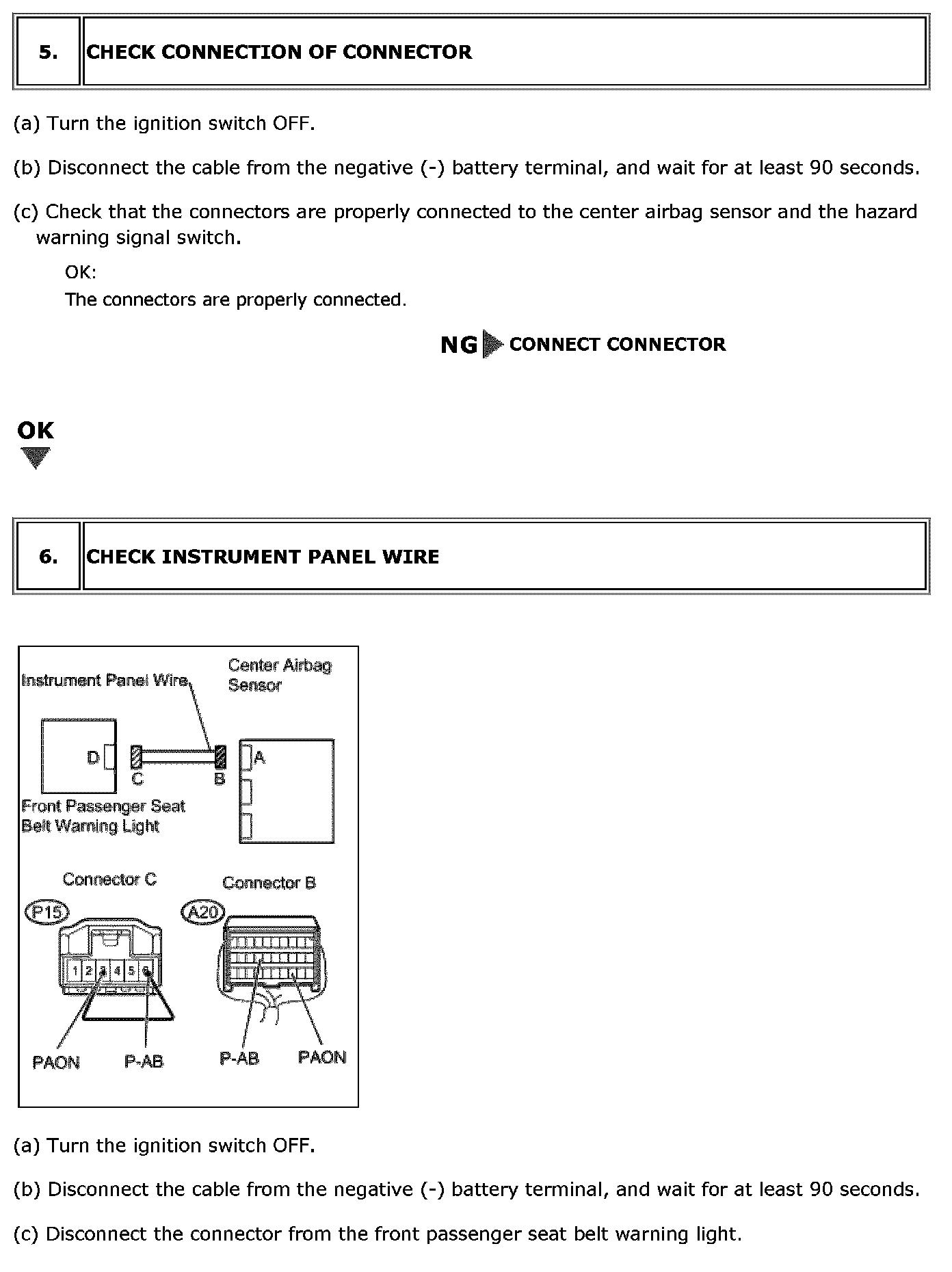

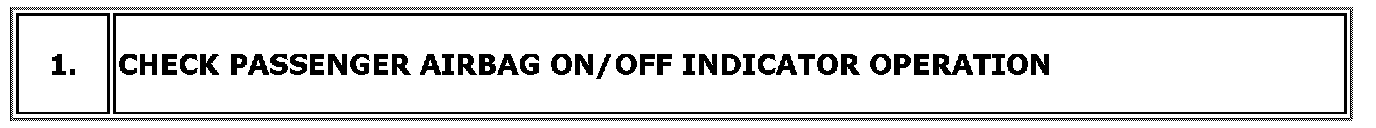

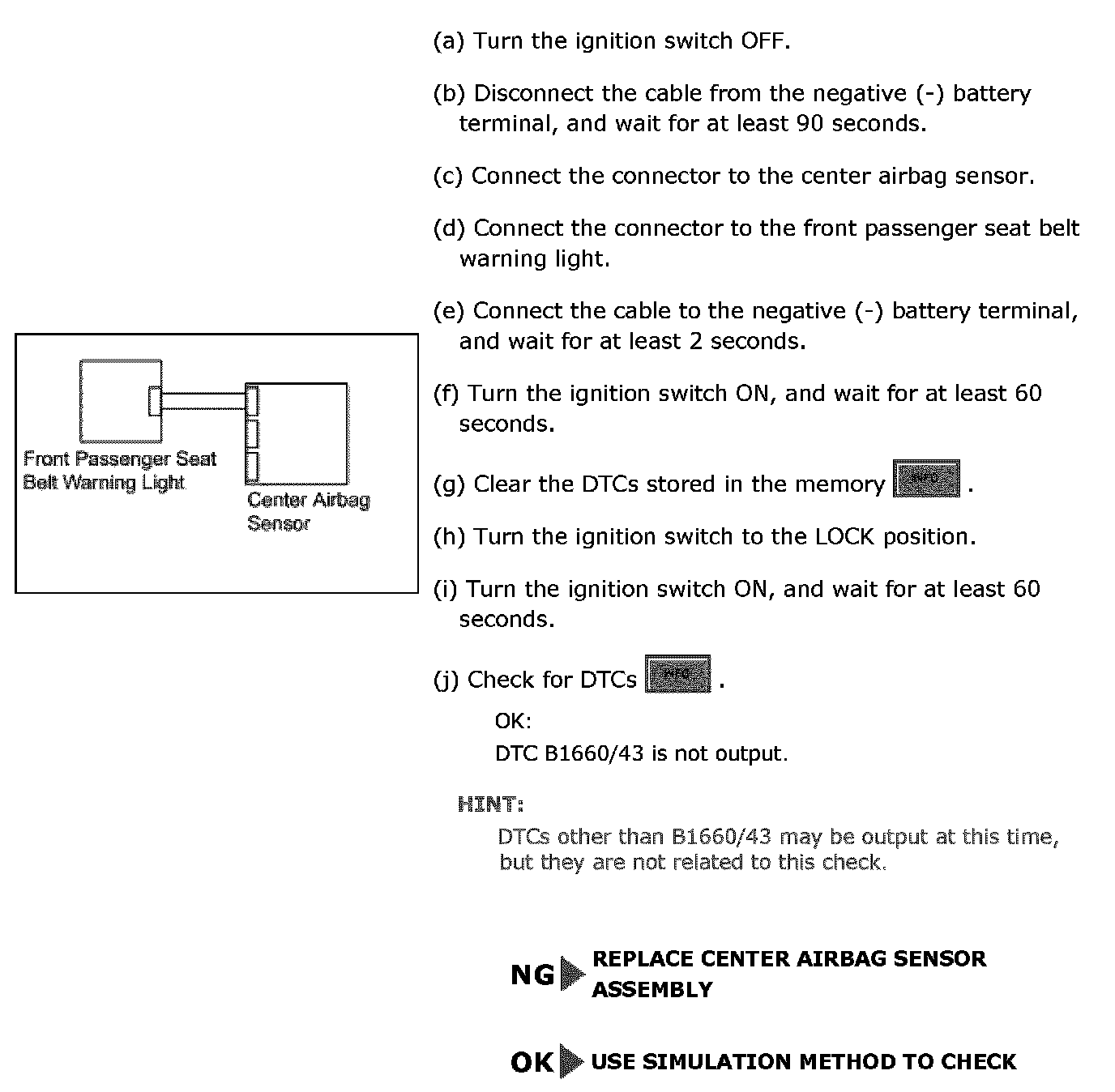

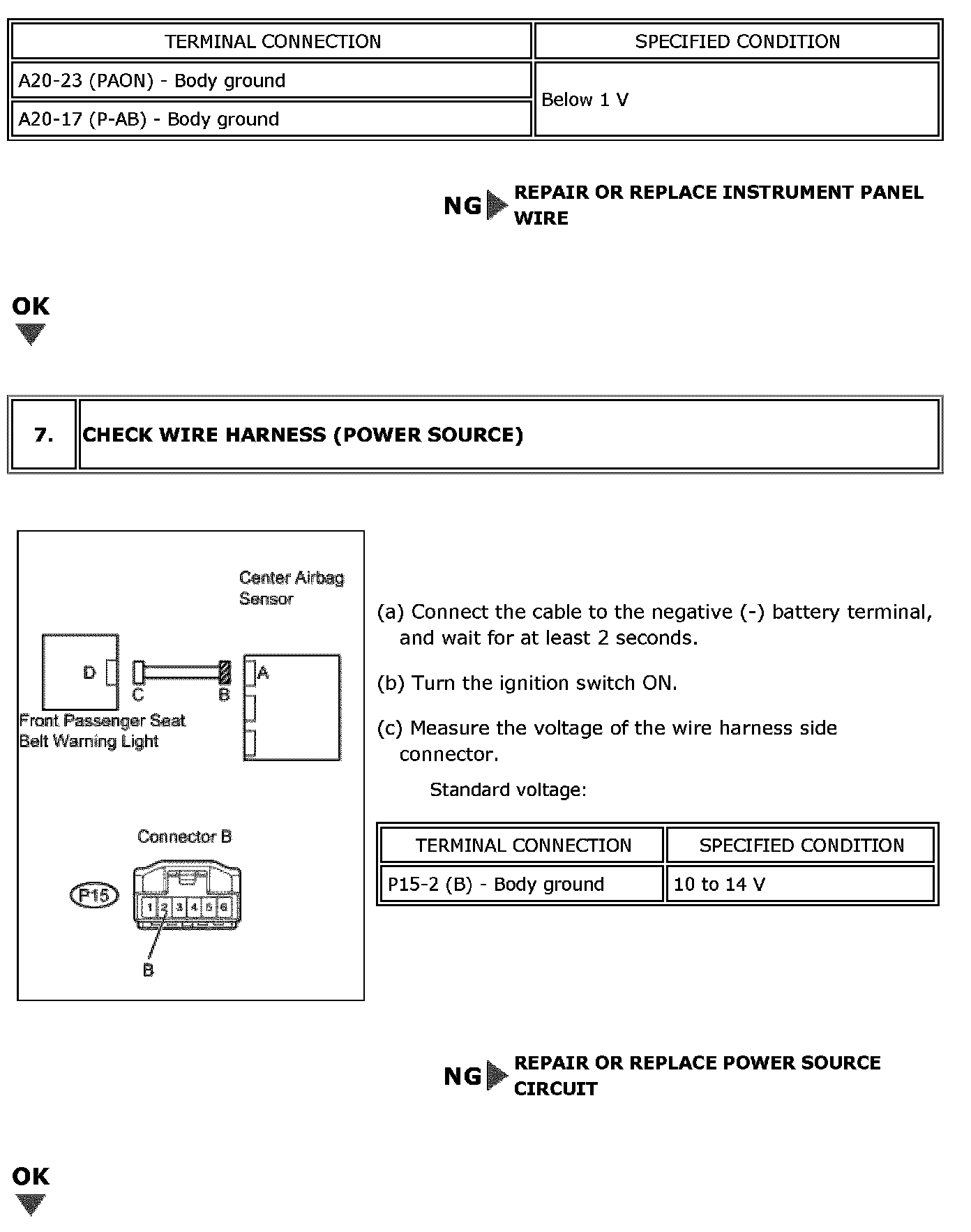

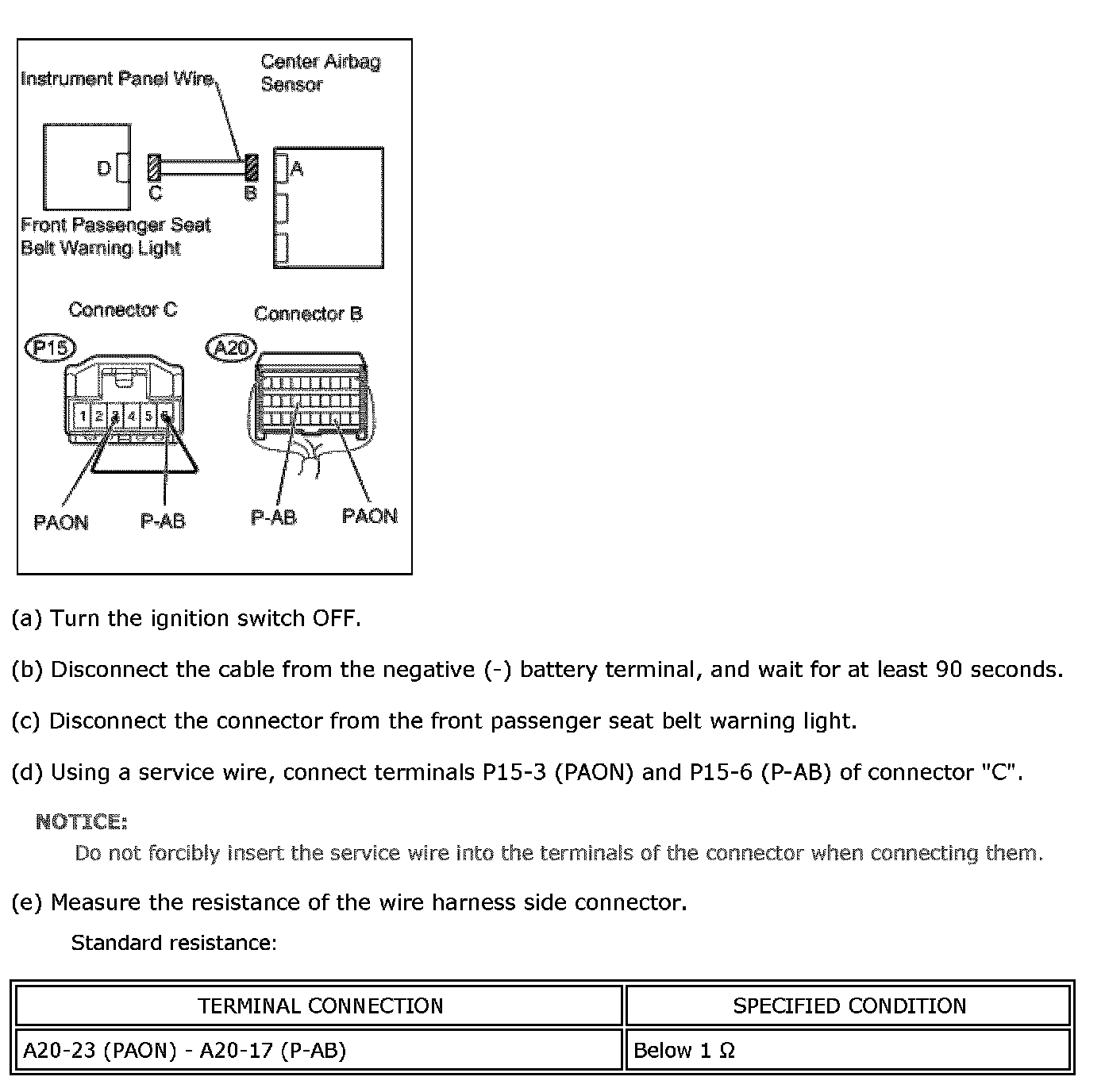

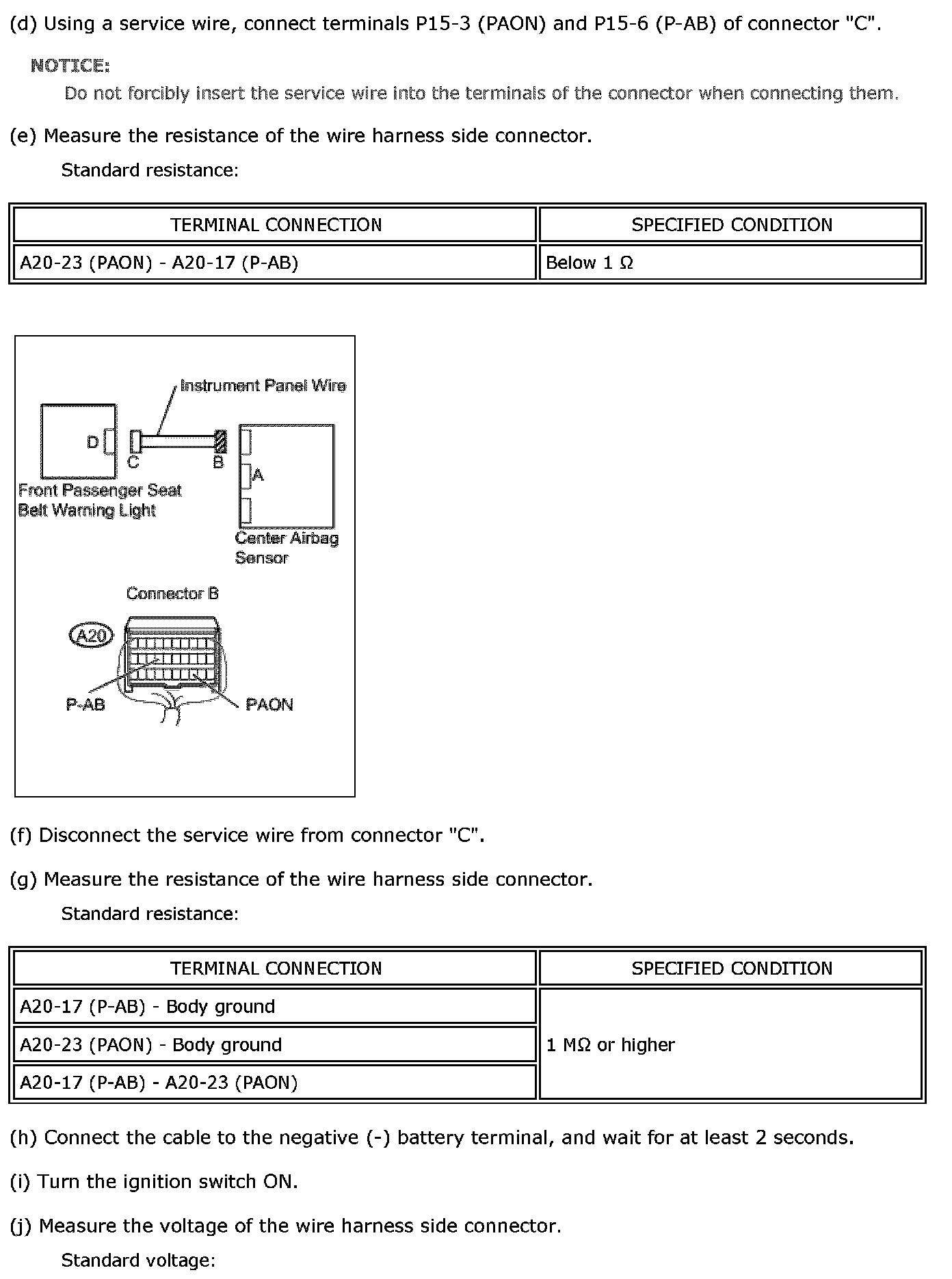

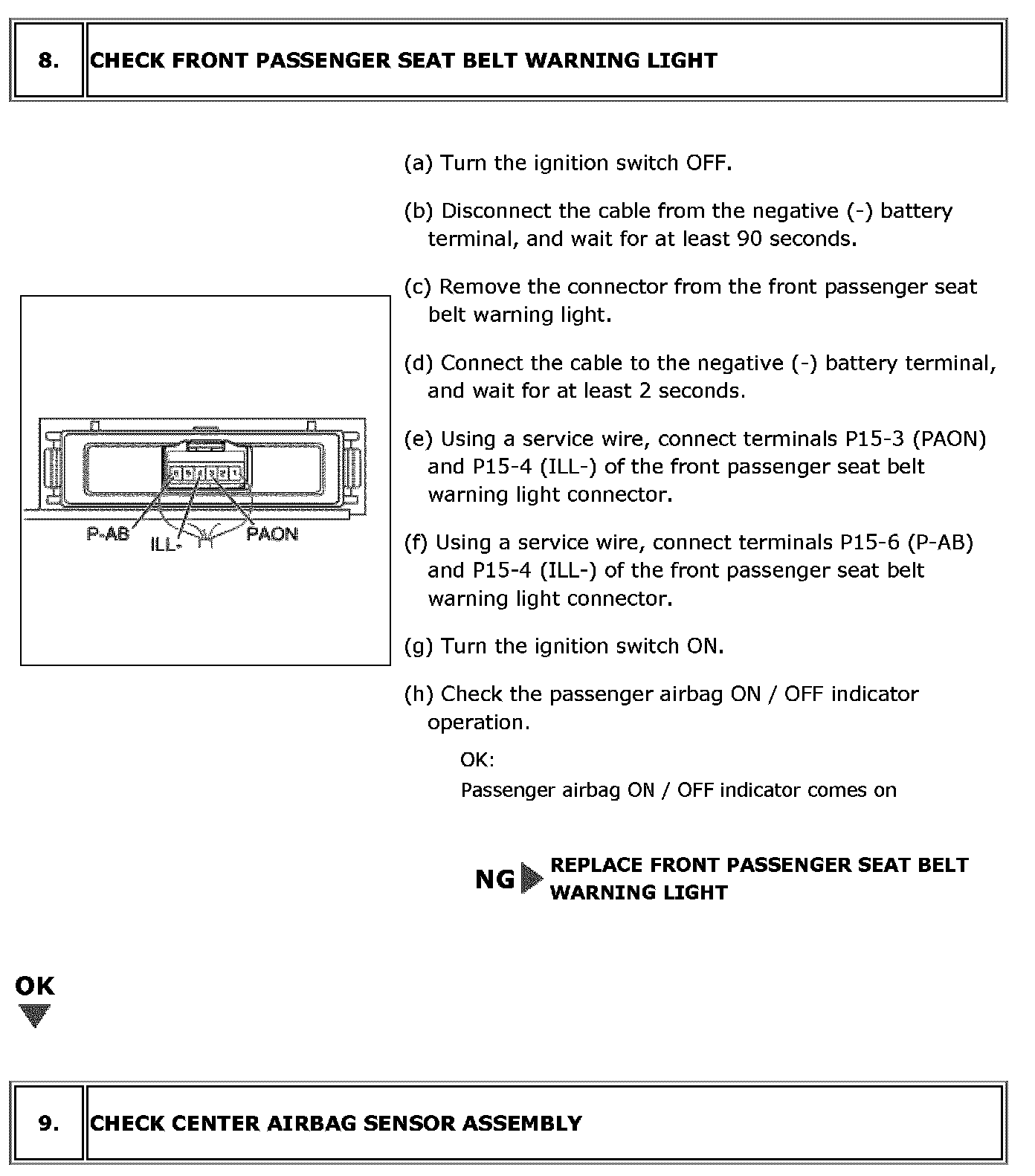

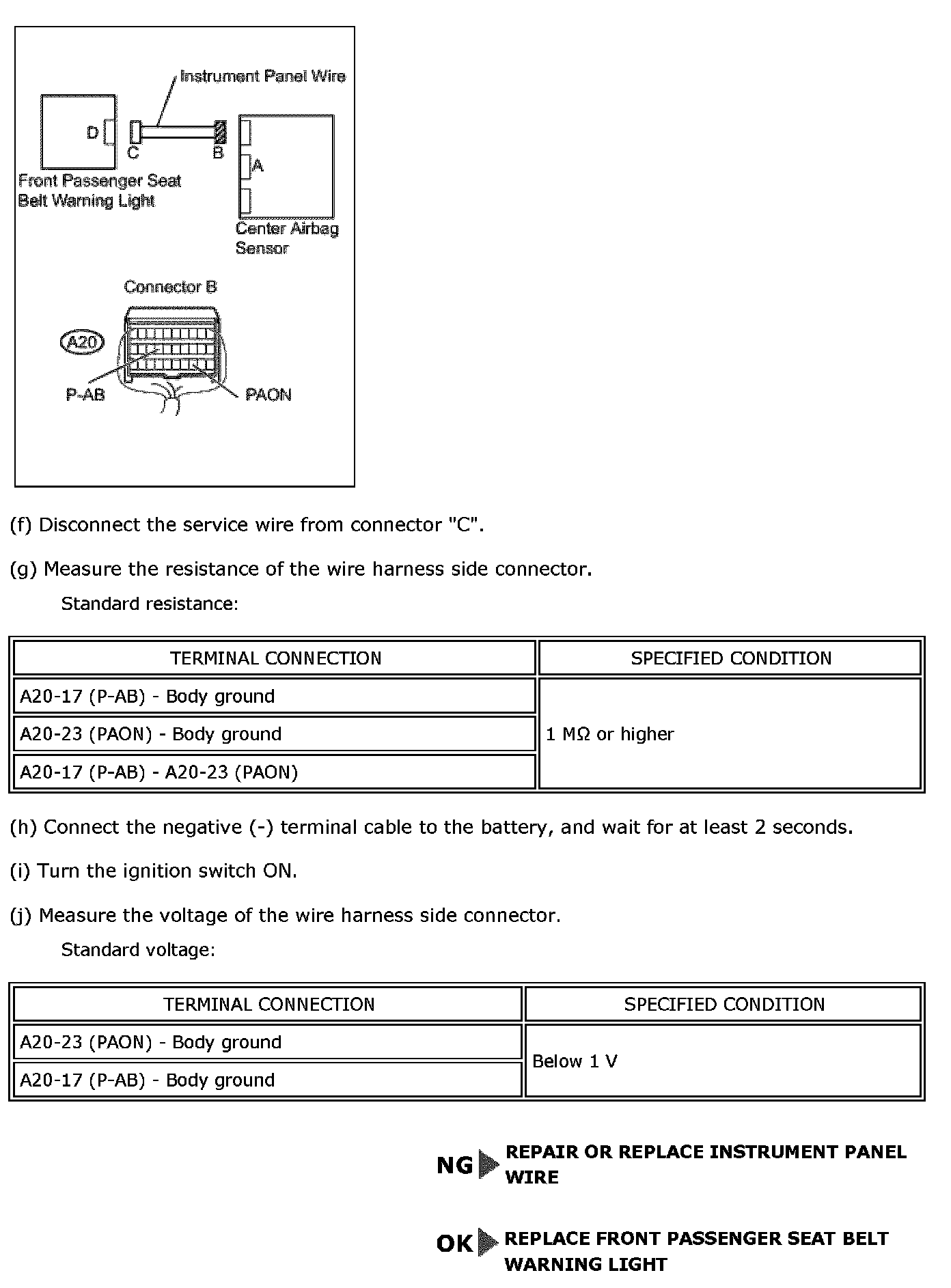

INSPECTION PROCEDURE
