B1655

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1655/37: Driver Side Seat Belt Buckle Switch Circuit Malfunction

B1655/37 Driver Side Seat Belt Buckle Switch Circuit Malfunction

DESCRIPTION
The driver side seat belt buckle switch circuit consists of the center airbag sensor and the front seat inner belt LH.

DTC B1655/37 is recorded when a malfunction is detected in the driver side seat belt buckle switch circuit.

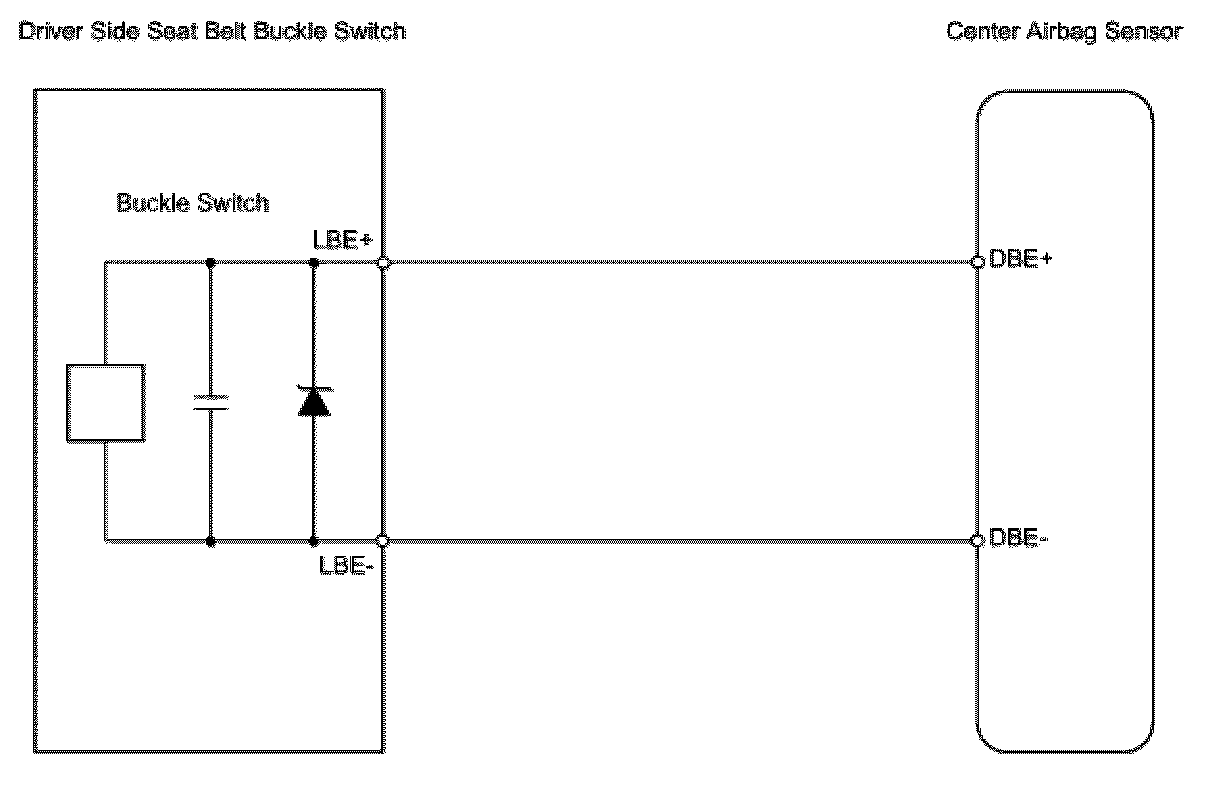

WIRING DIAGRAM

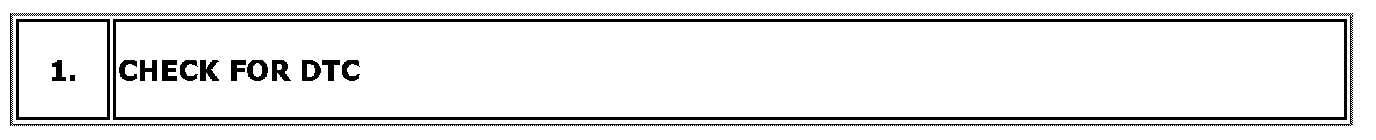

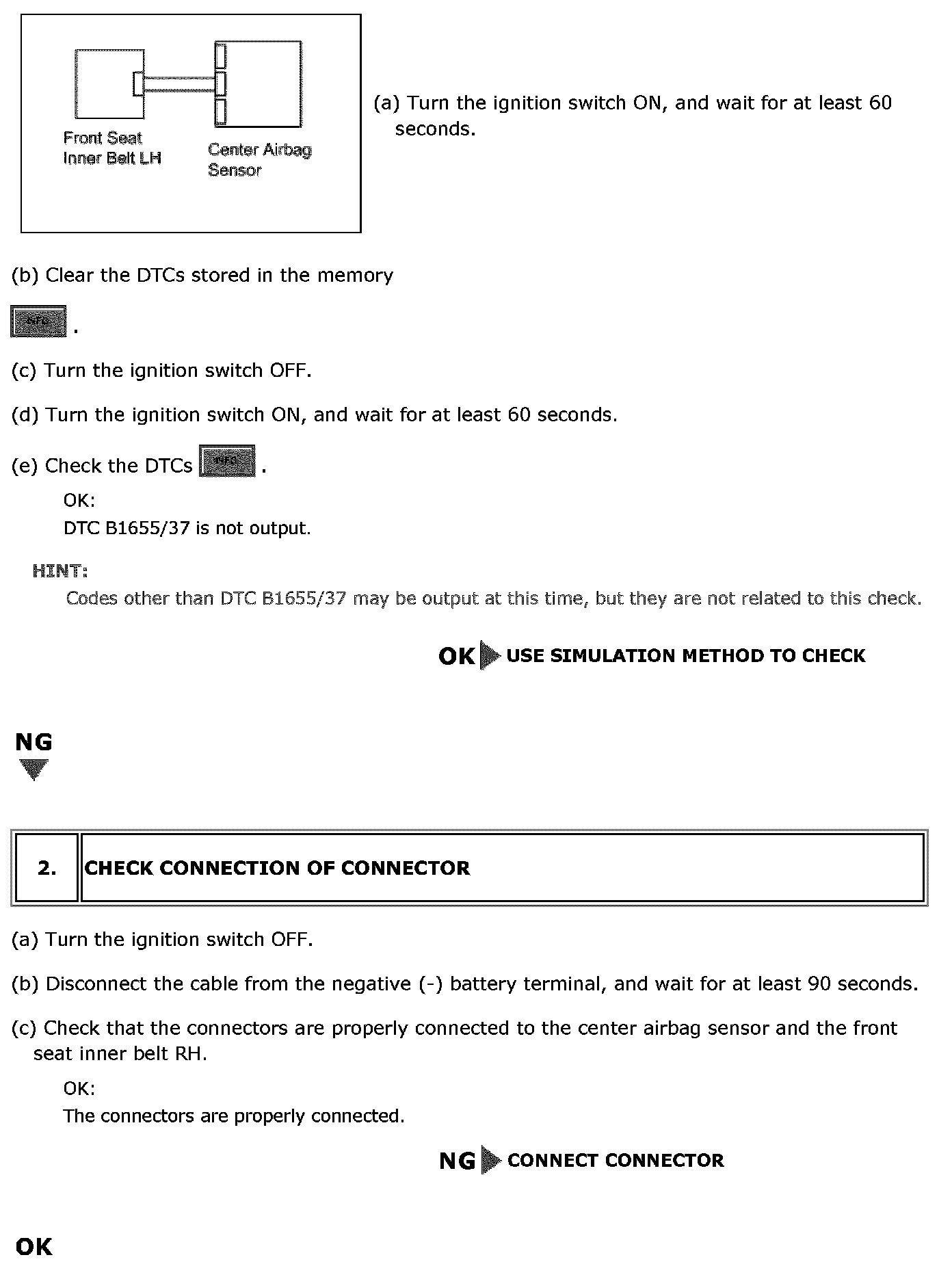

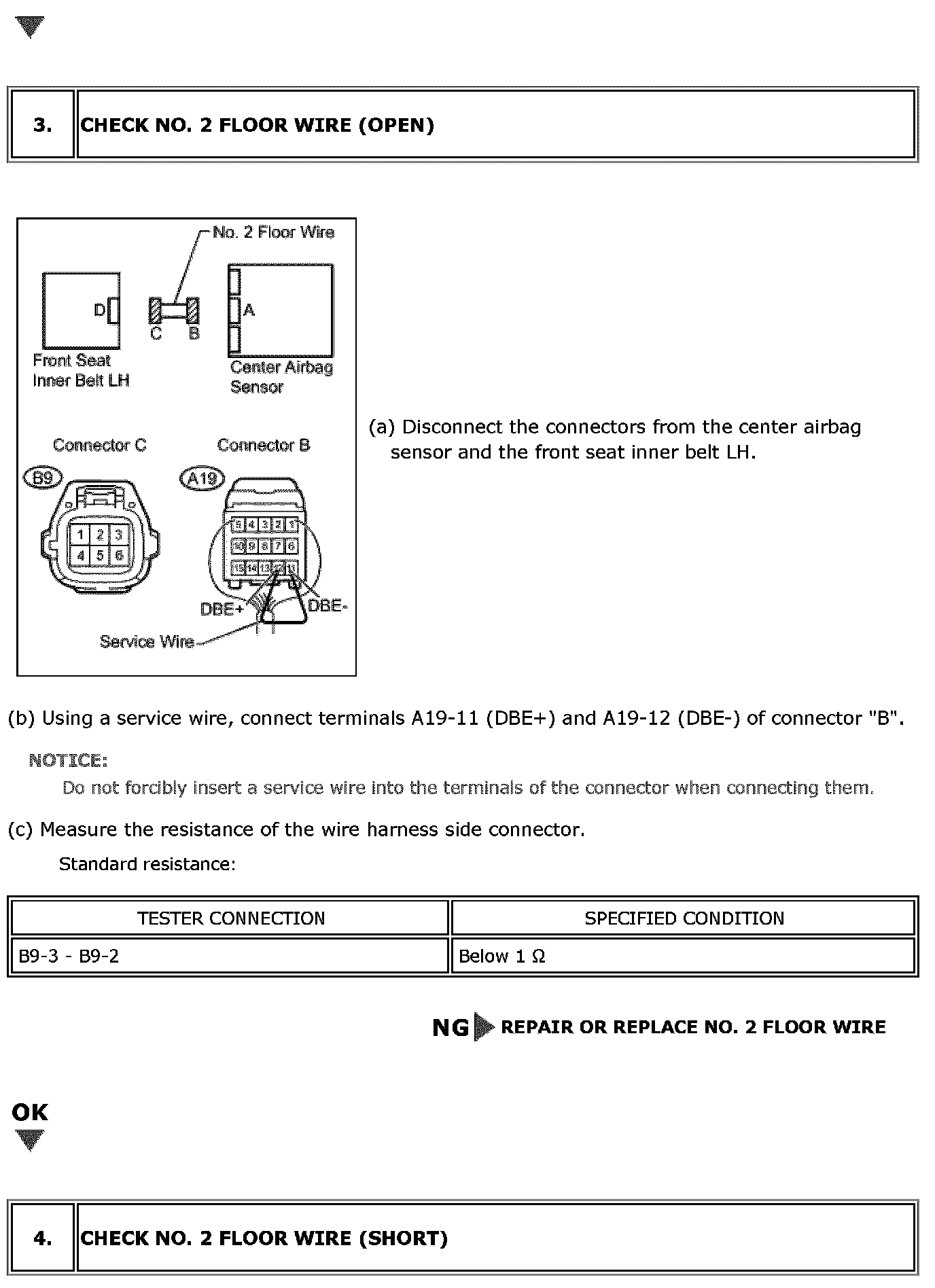

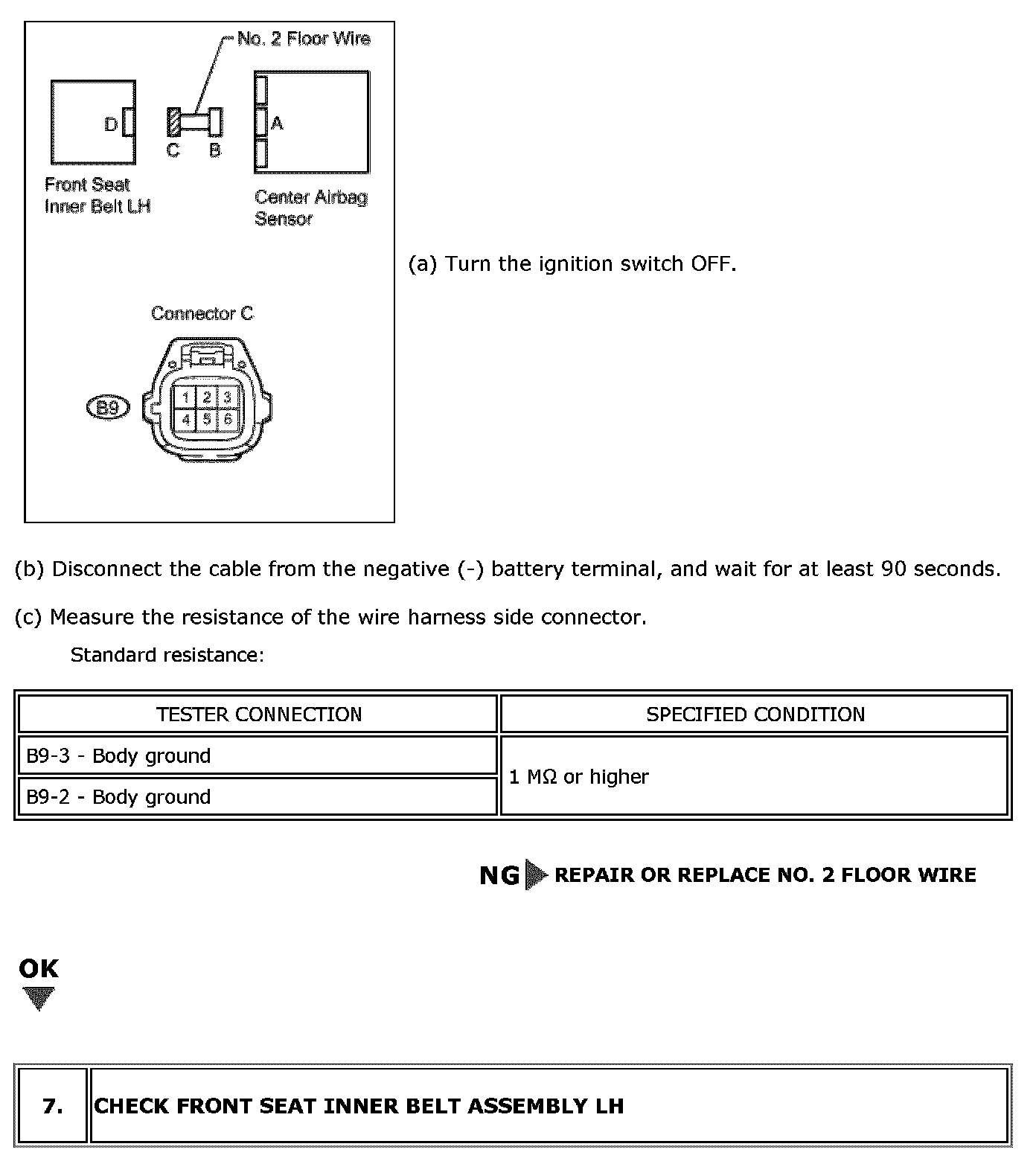

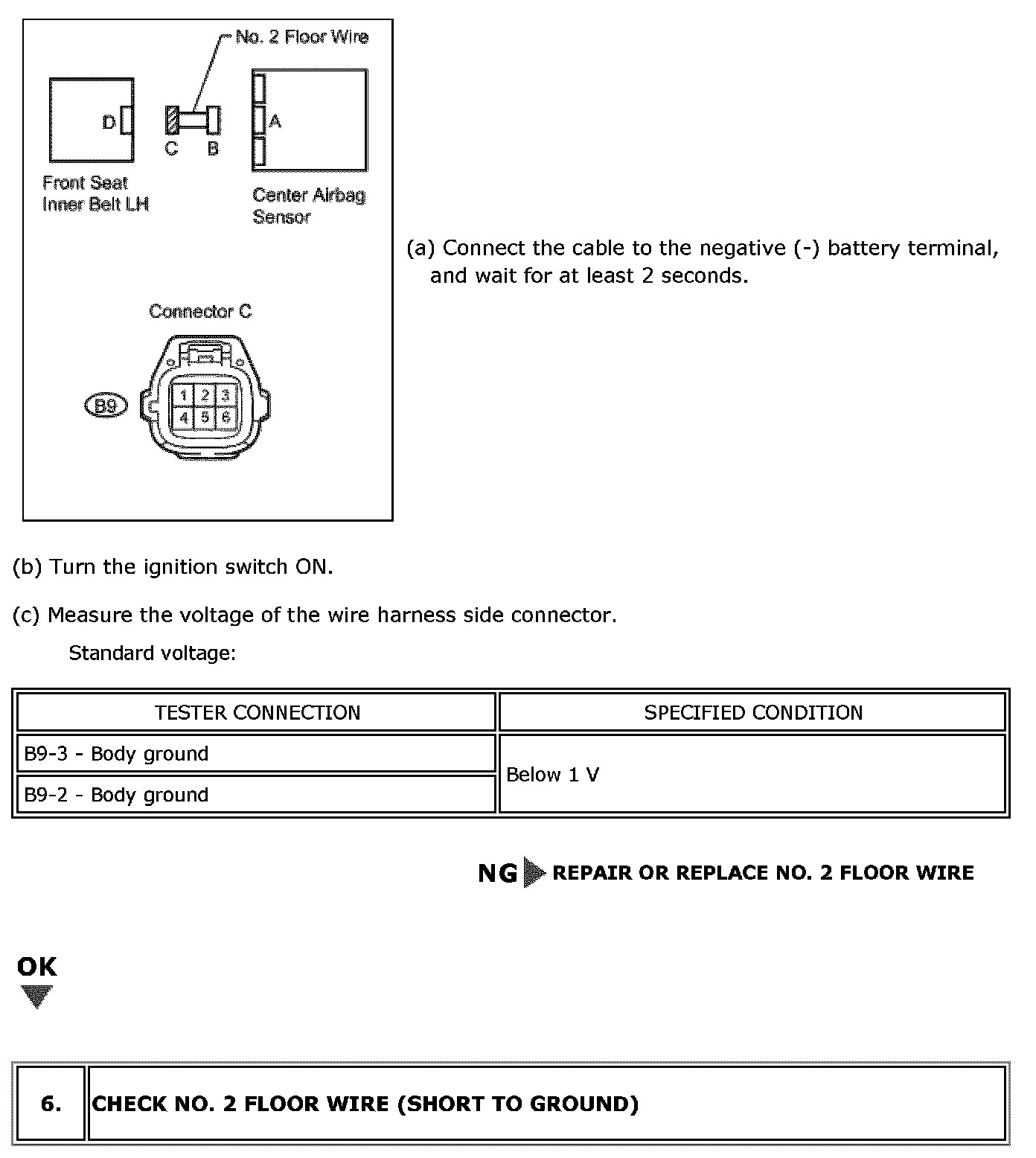

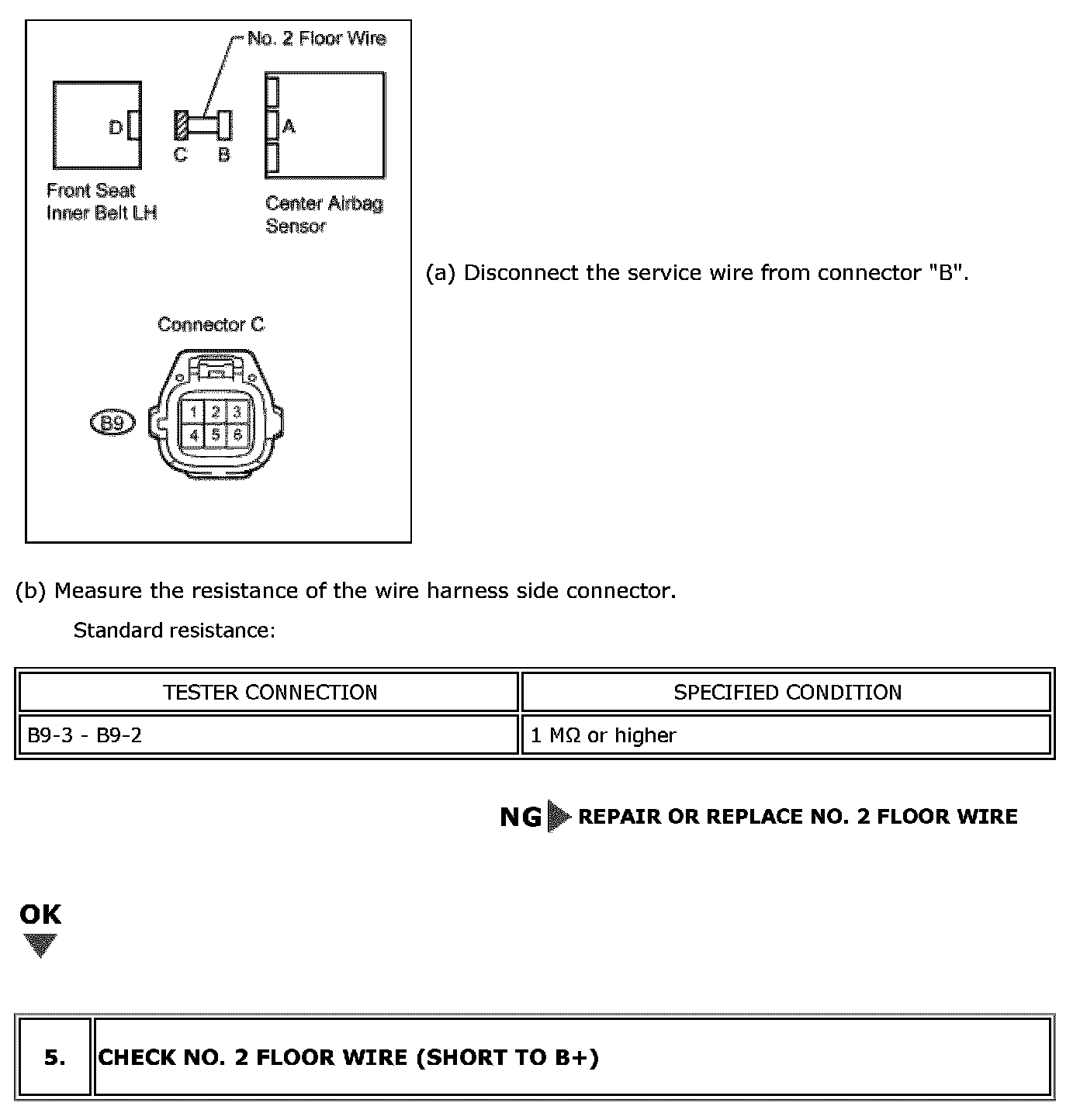

INSPECTION PROCEDURE
