B1499

DTC B1499 Multiplex Communication Circuit

DESCRIPTION

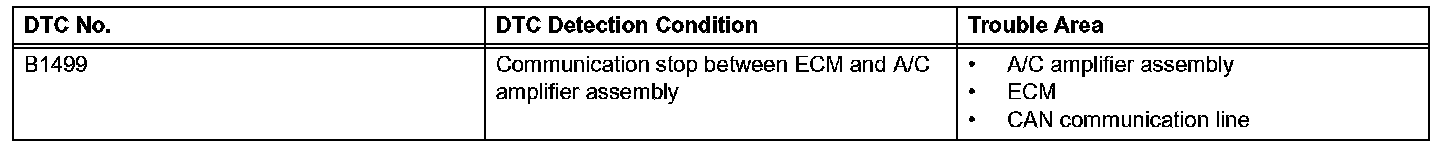

DTC Detection Condition:

The A/C amplifier assembly communicates data with the ECM through the CAN communication system.

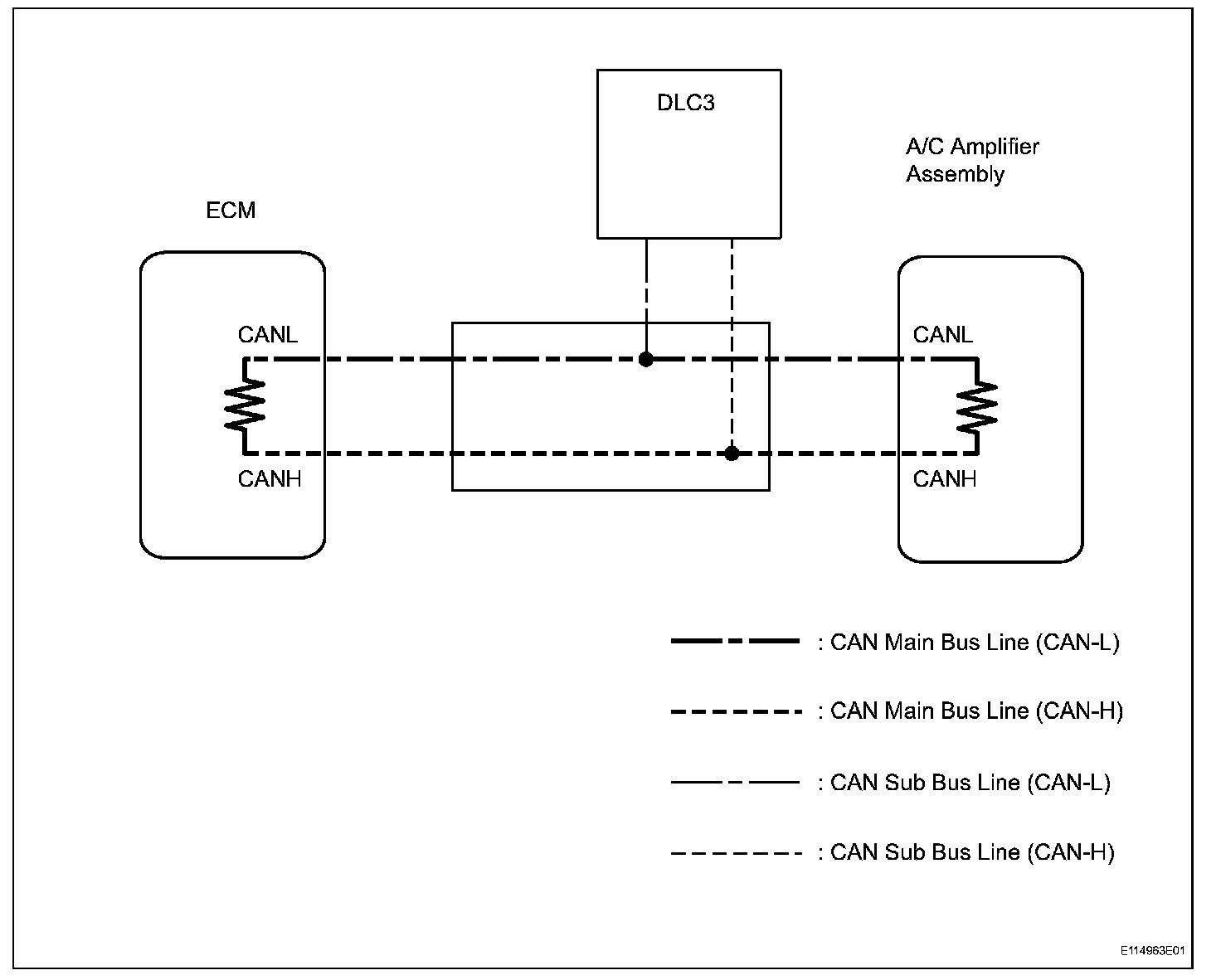

Wiring Diagram:

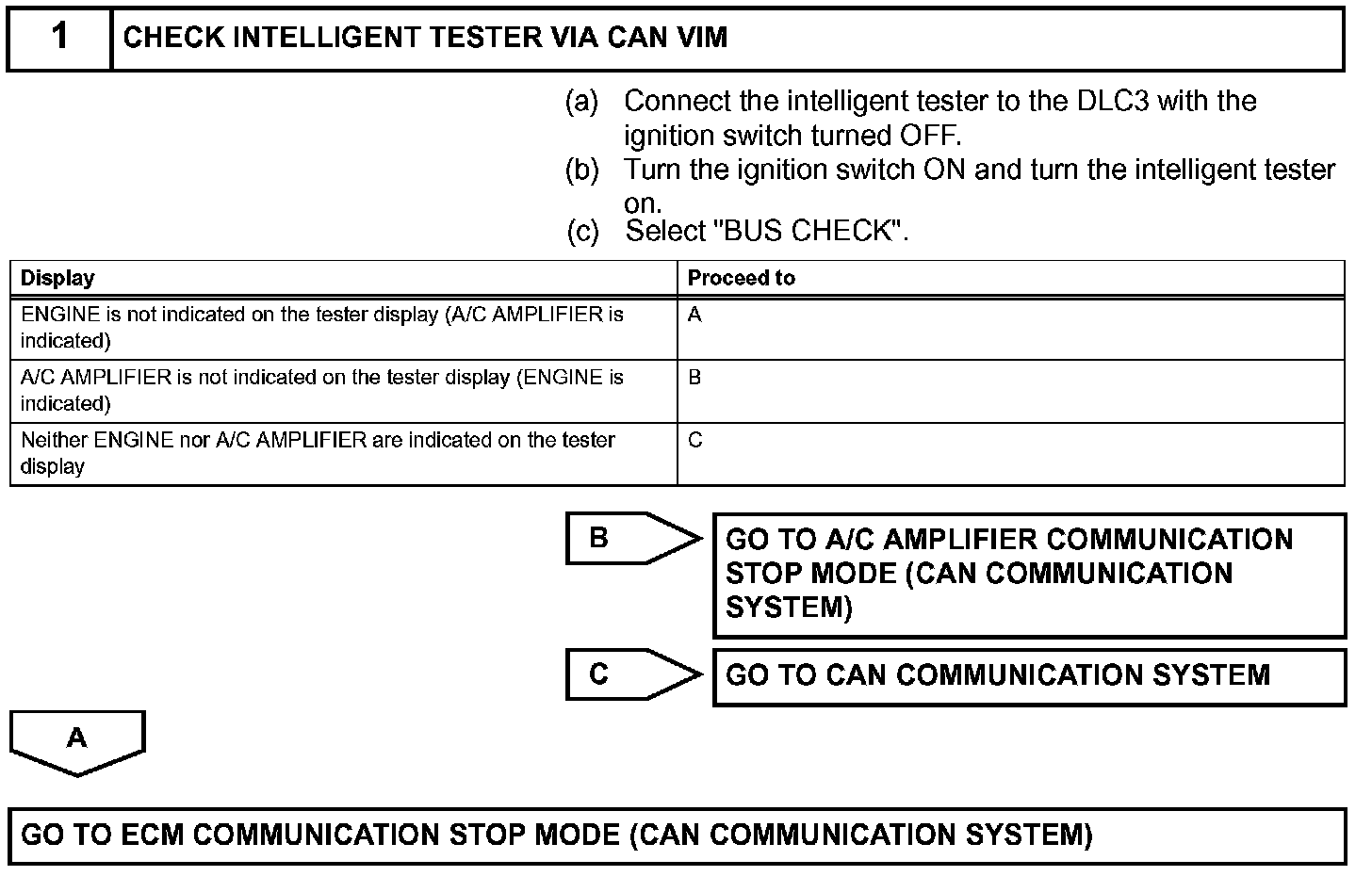

Step 1:

INSPECTION PROCEDURE
