B1186

DTC B1186/58 Open in Front Passenger Side Squib 2nd Step Circuit

DESCRIPTION

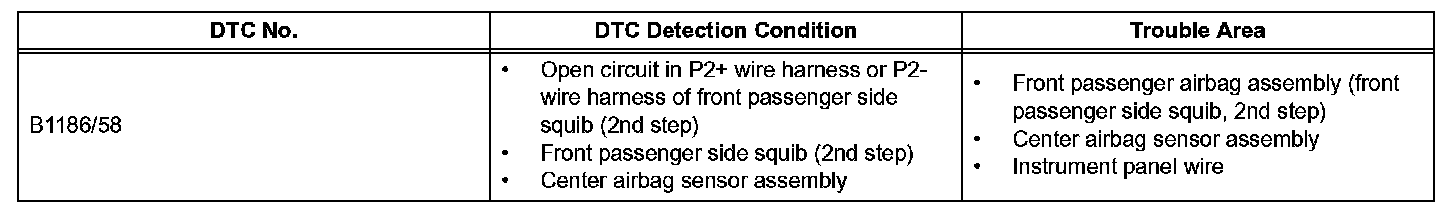

DTC Detection Condition:

The front passenger side squib (2nd step) circuit consists of the center airbag sensor assembly and the front passenger airbag assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1186/58 is recorded when an open circuit is detected in the front passenger side squib (2nd step) circuit.

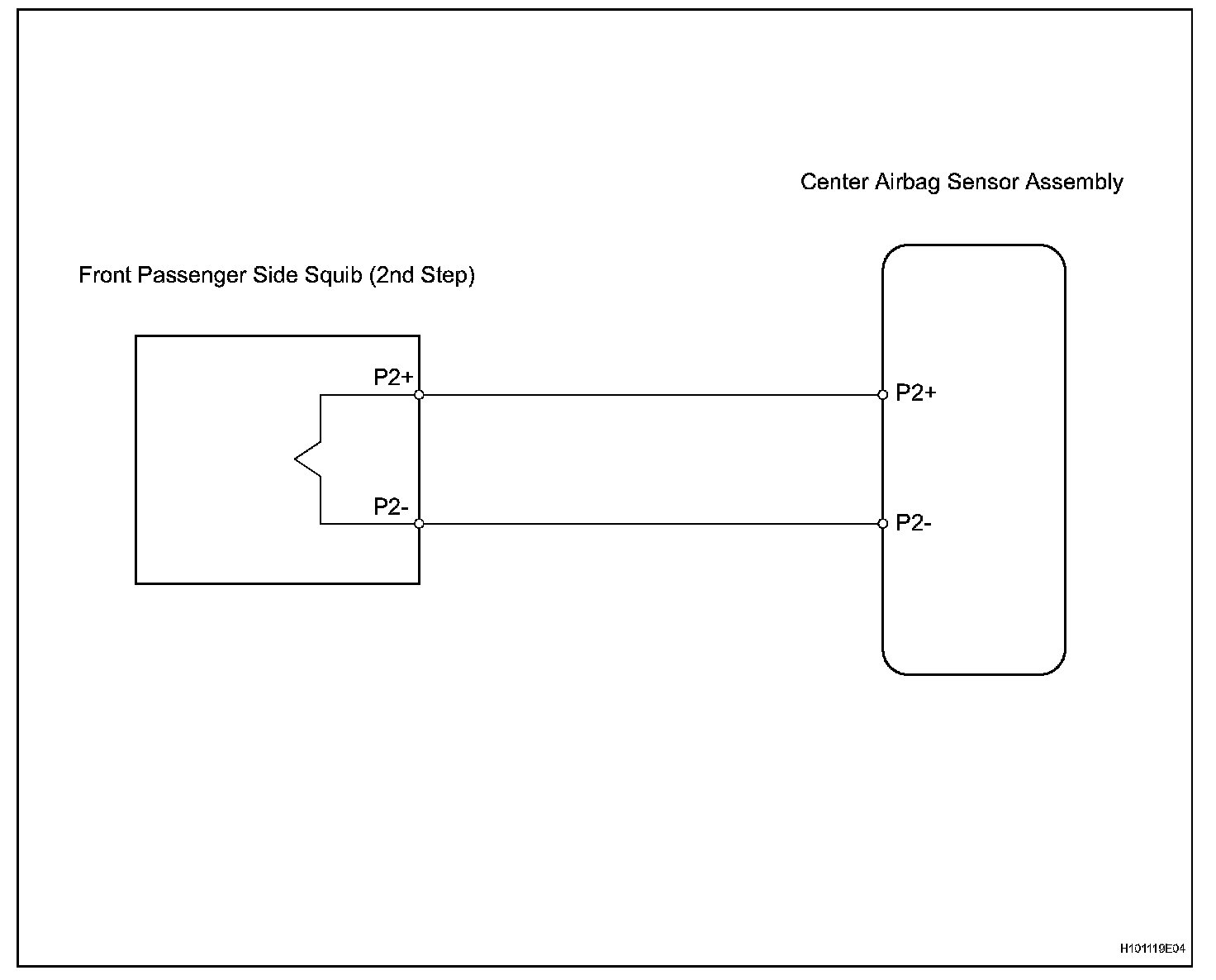

Wiring Diagram:

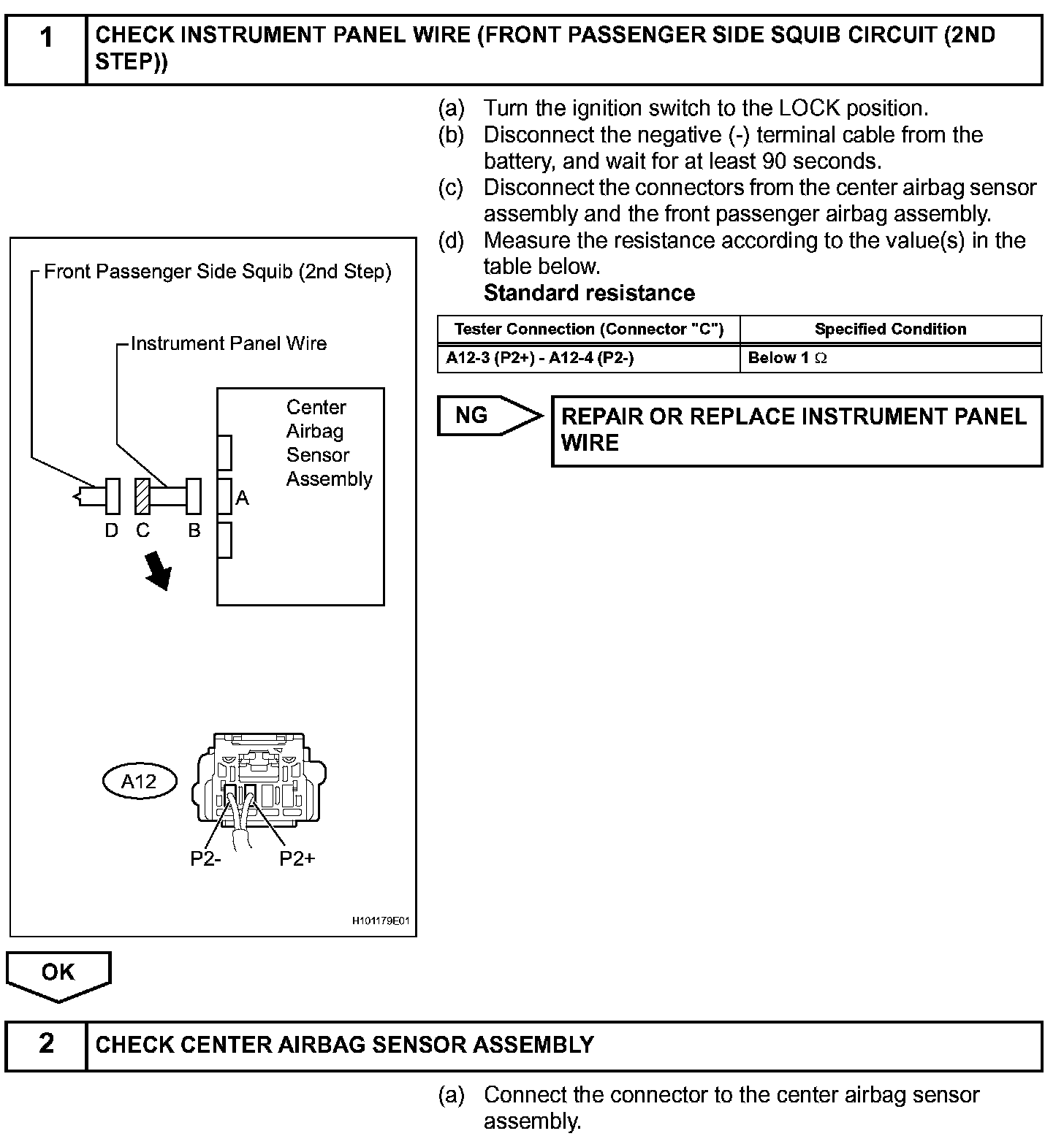

Step 1-2:

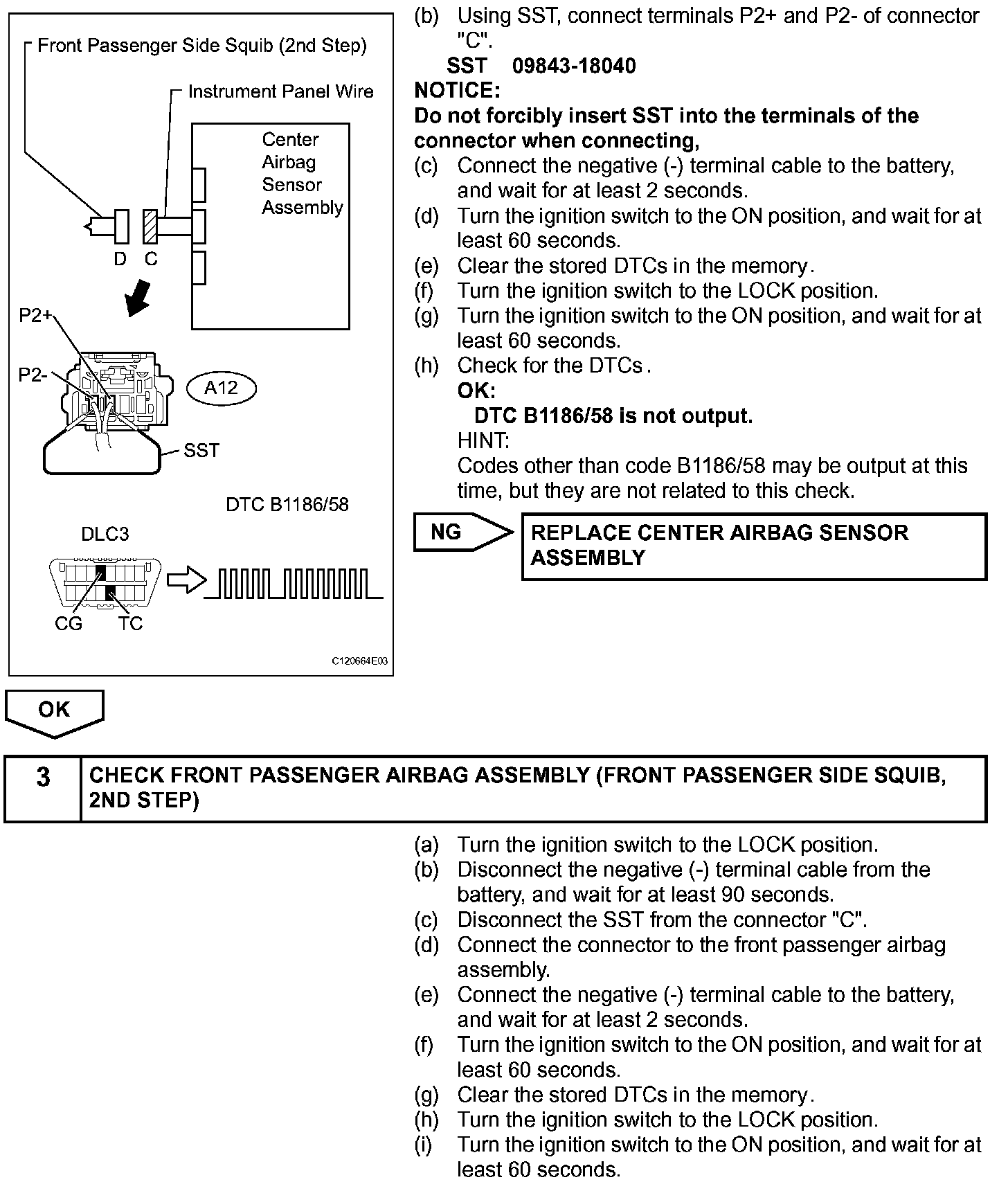

Step 2(continued)-3:

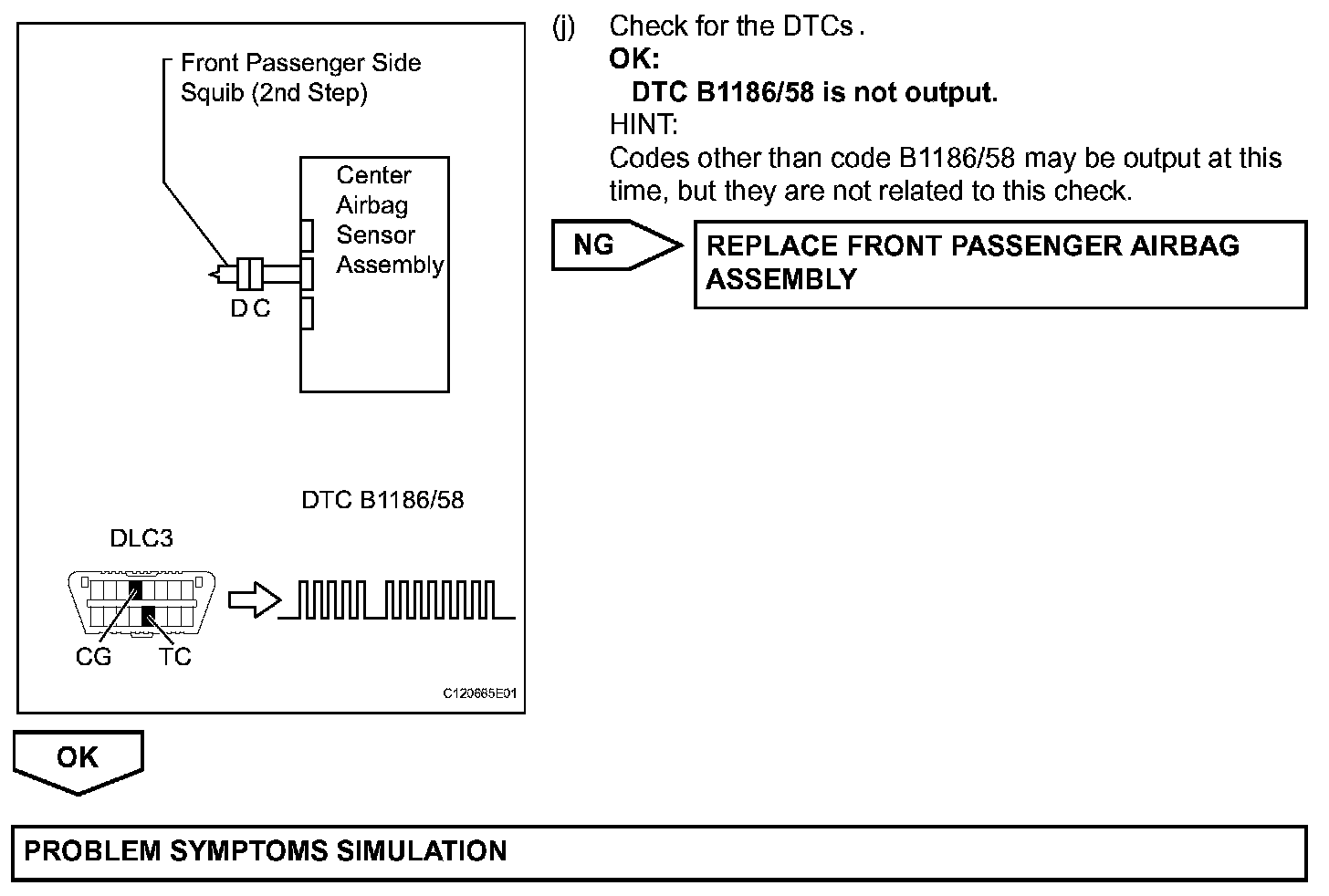

Step 3(continued):

INSPECTION PROCEDURE
