B0137

DTC B0137/71 Short to GND in Front Pretensioner Squib LH Circuit

DESCRIPTION

DTC Detection Condition:

The front pretensioner squib circuit consists of the center airbag sensor assembly and the front seat outer belt assembly LH (seat belt pretensioner LH).

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0137/71 is recorded when a short to ground is detected in the front pretensioner squib LH circuit.

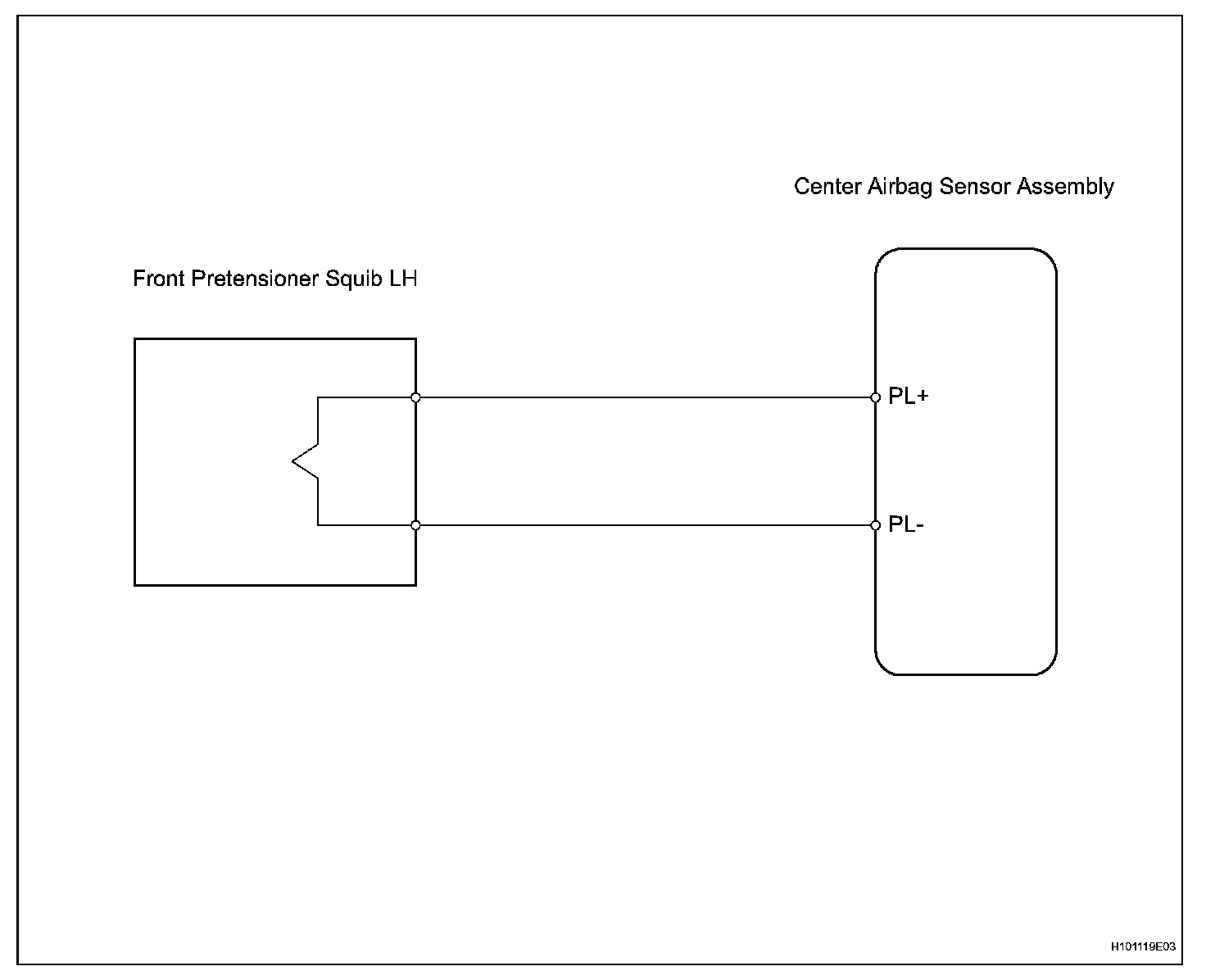

Wiring Diagram:

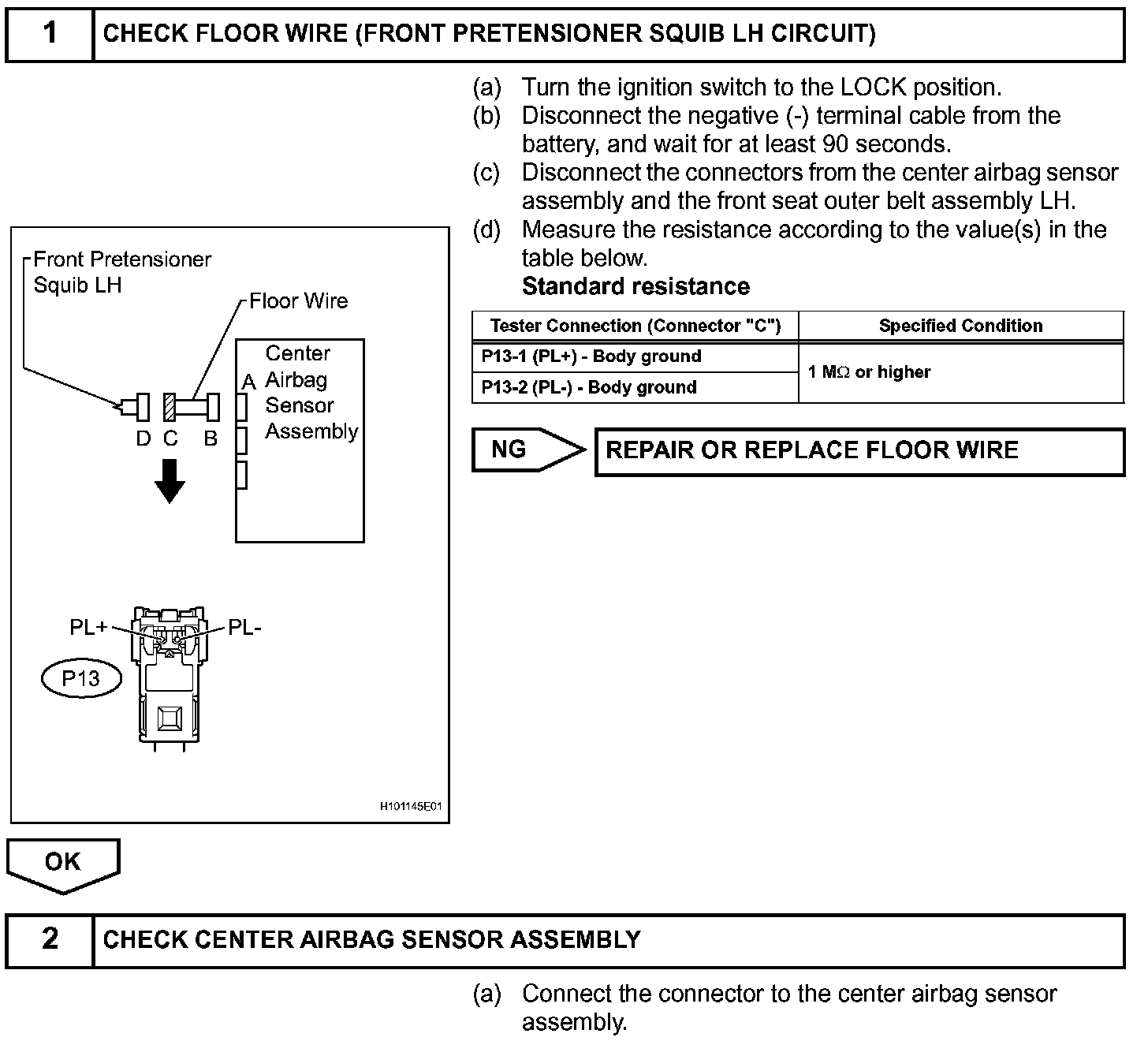

Step 1-2:

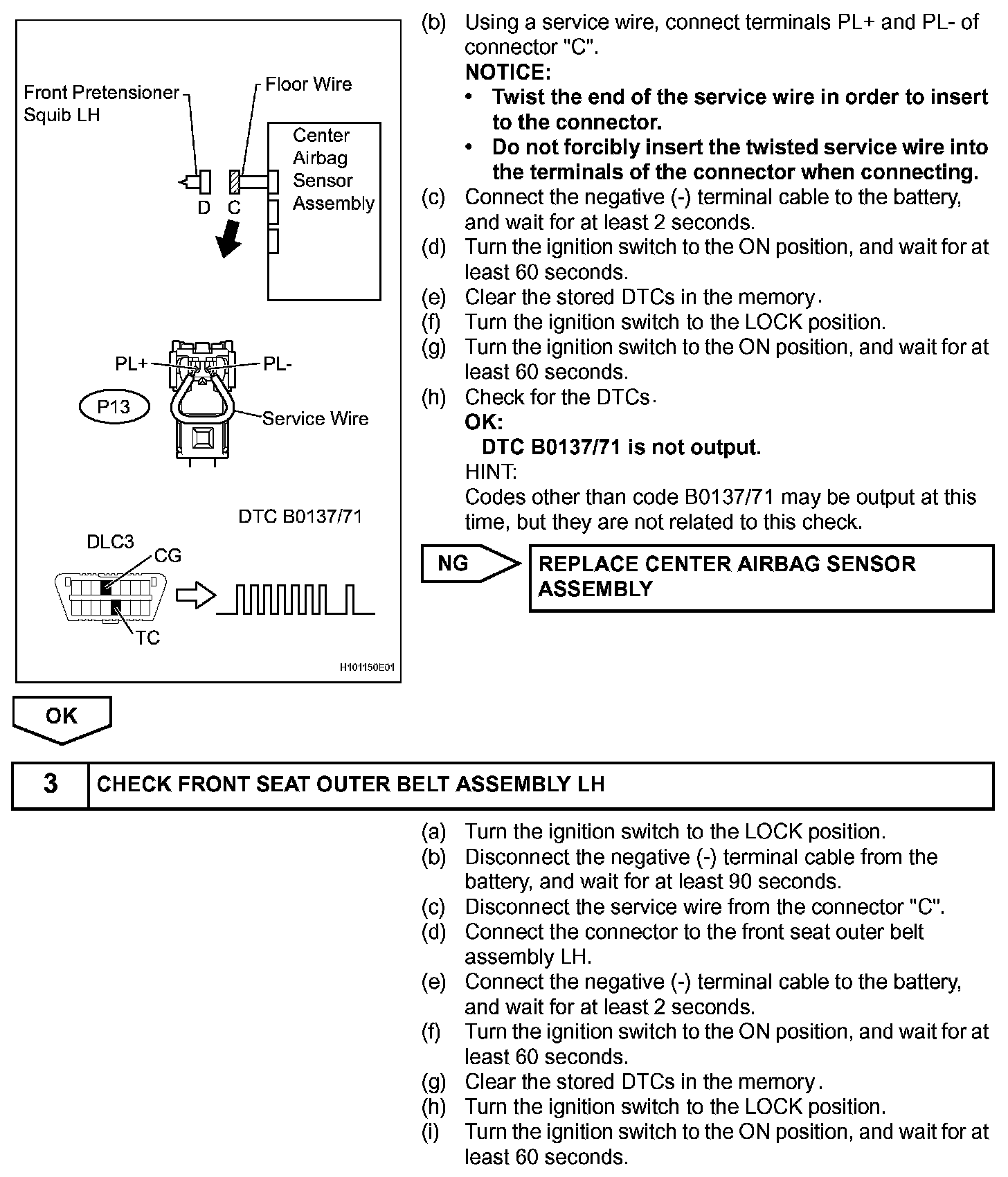

Step 2(continued)-3:

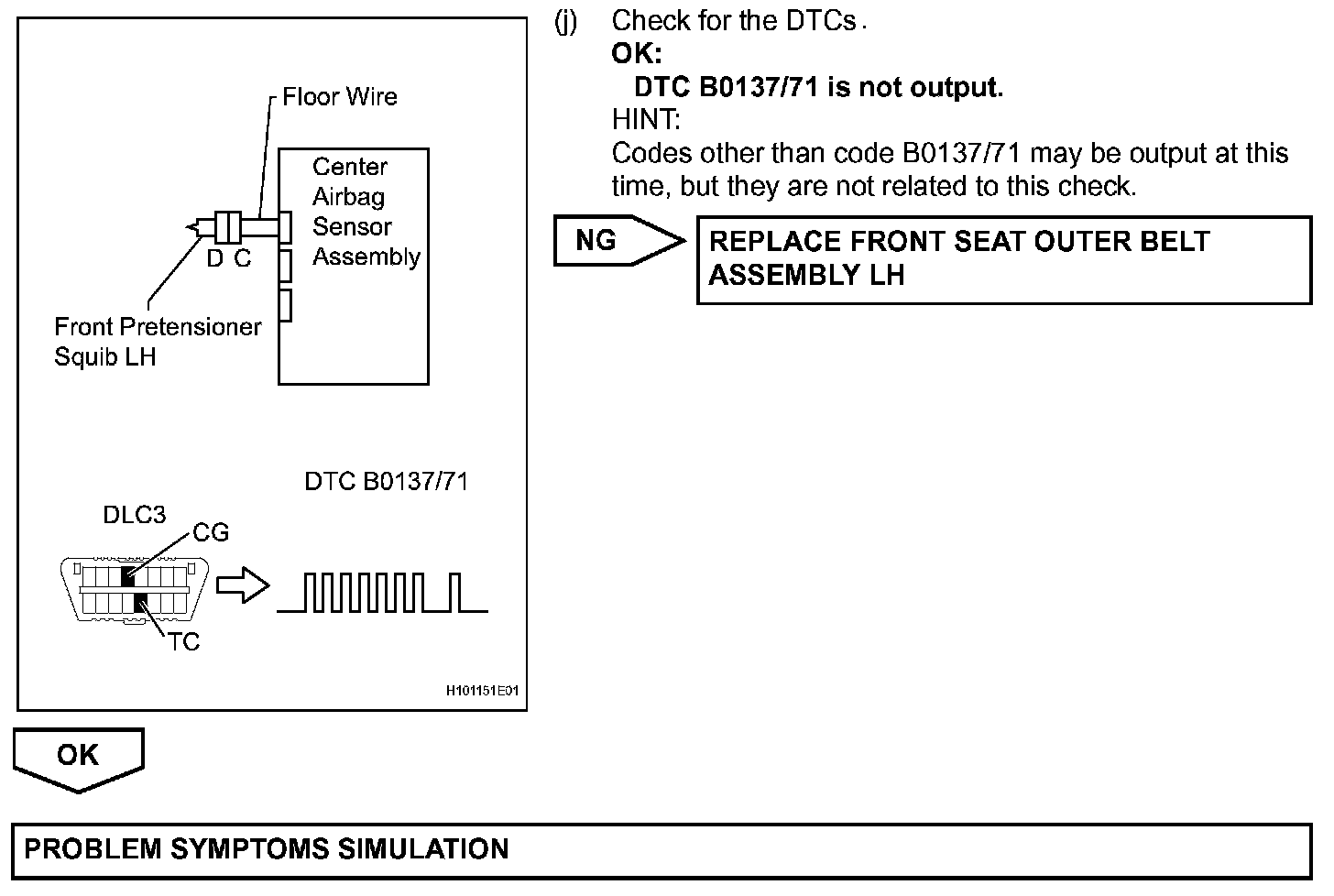

Step 3(continued):

INSPECTION PROCEDURE
