B0132

DTC B0132/61 Short to GND in Front Pretensioner Squib RH Circuit

DESCRIPTION

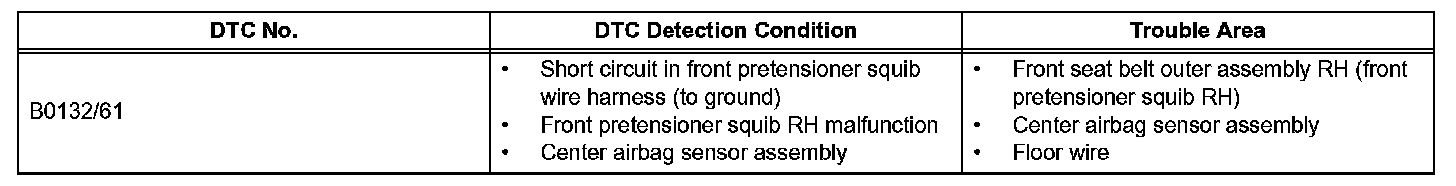

DTC Detection Condition:

The front pretensioner RH circuit consists of the center airbag sensor assembly and the front seat outer belt assembly RH (seat belt pretensioner RH).

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0132/61 is recorded when a short to ground is detected in the front pretensioner squib RH circuit.

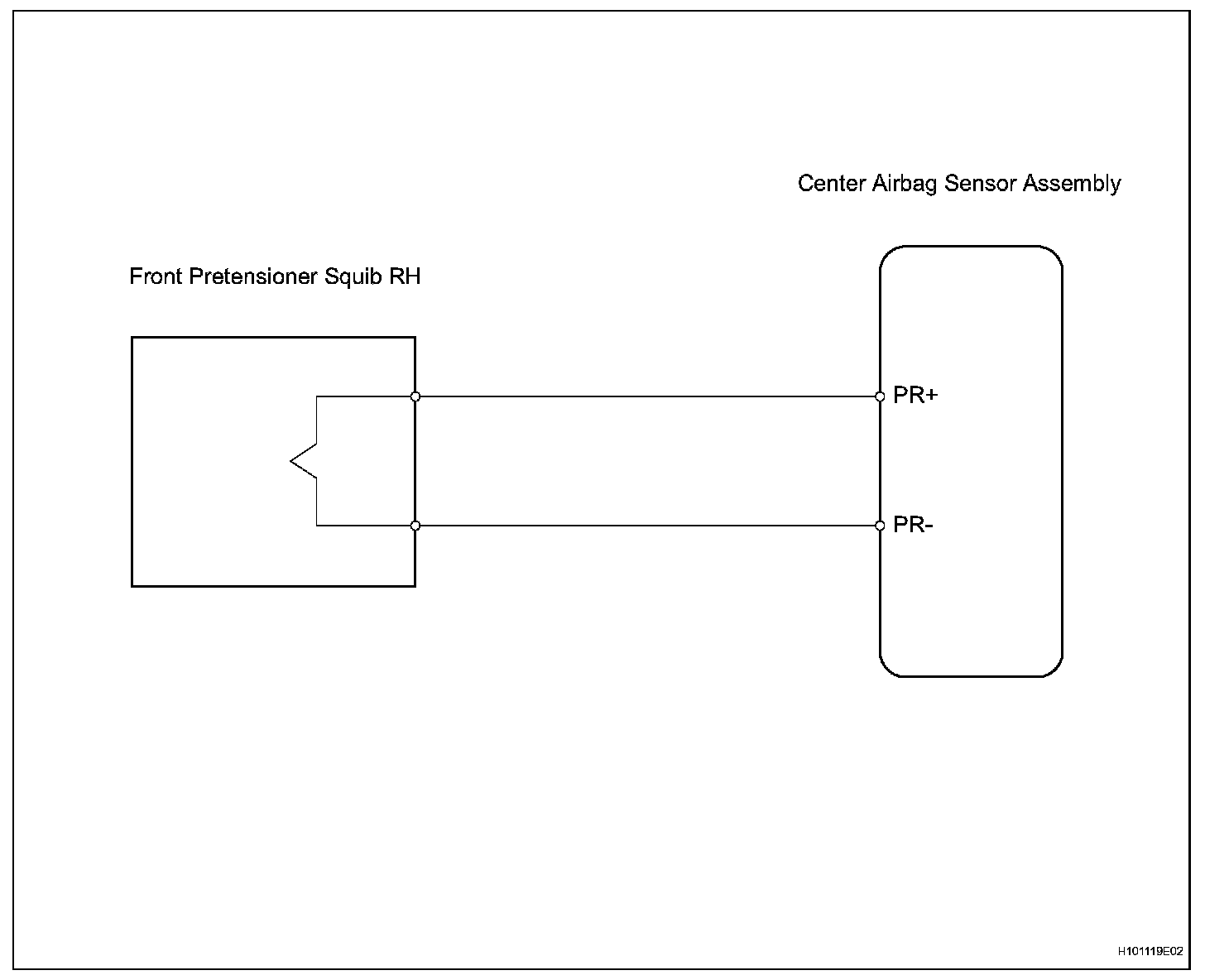

Wiring Diagram:

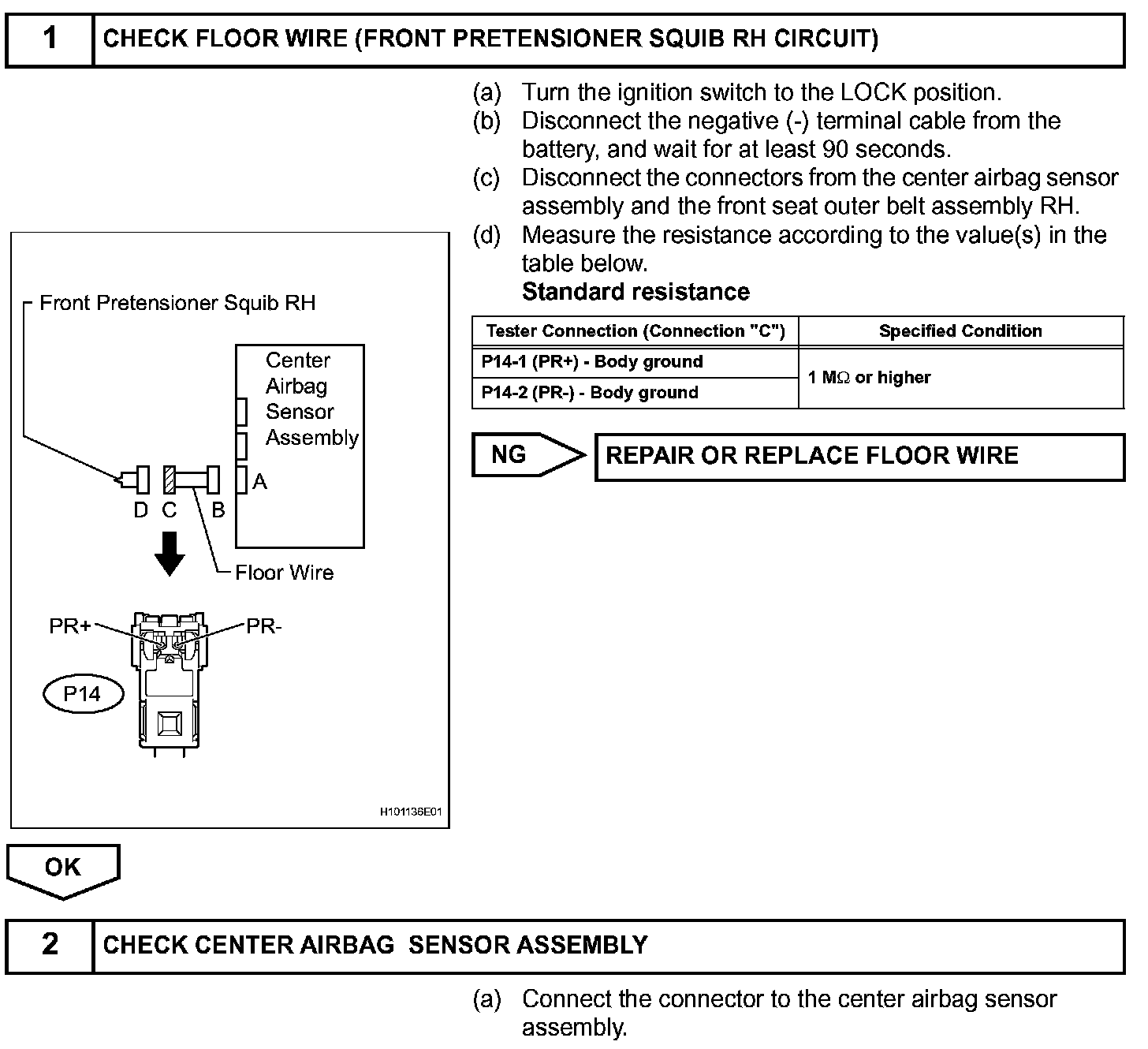

Step 1-2:

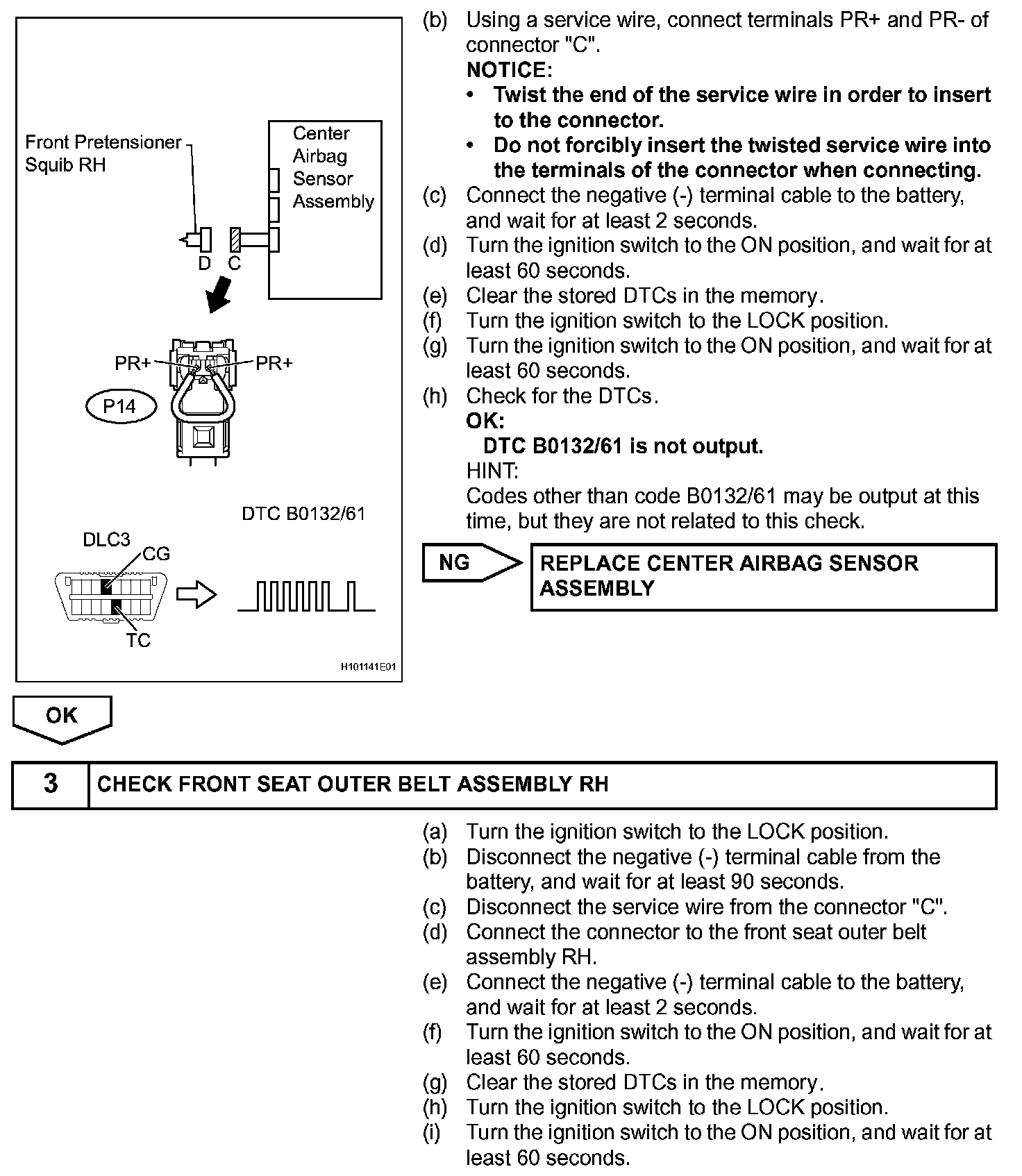

Step 2(continued)-3:

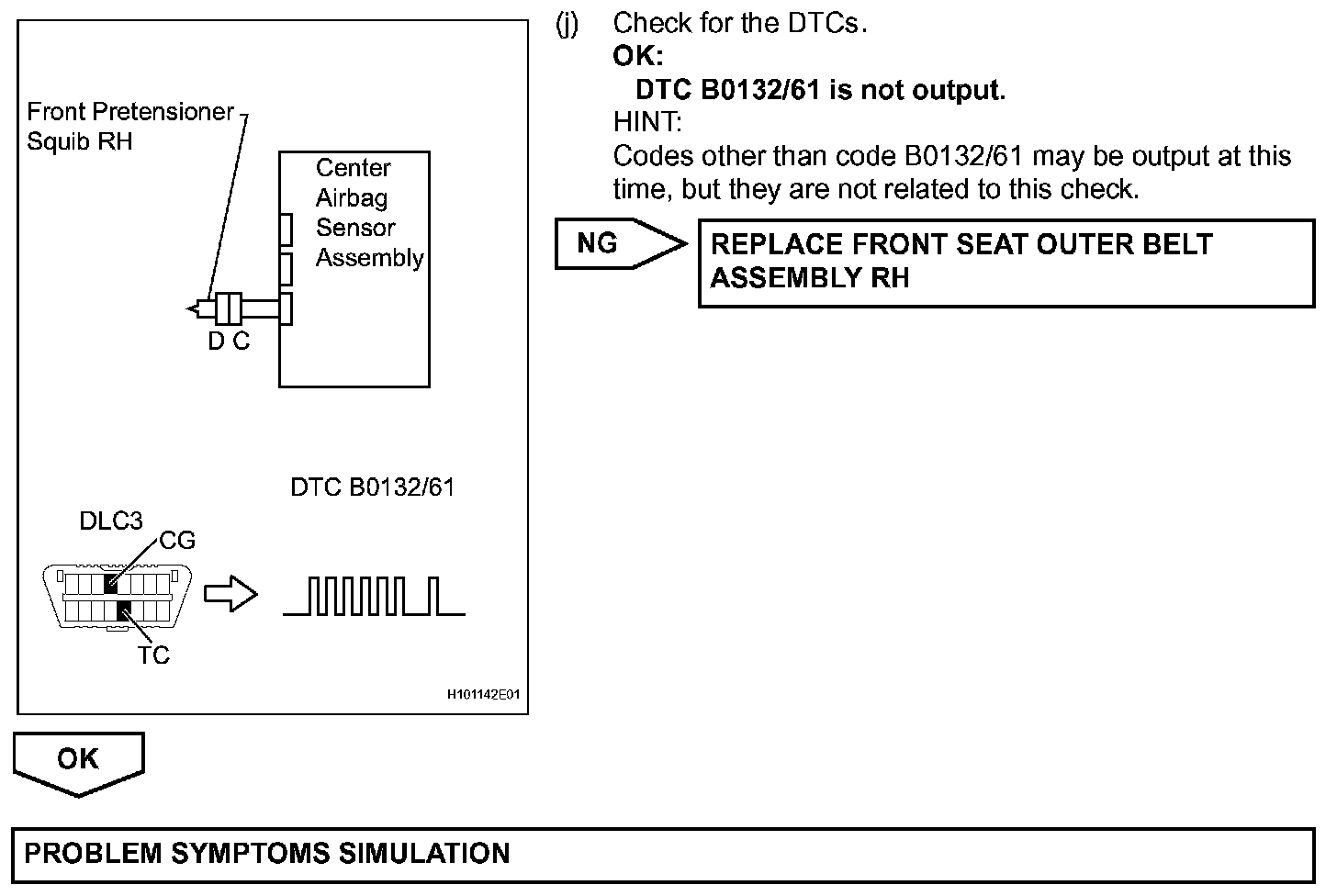

Step 3(continued):

INSPECTION PROCEDURE
