B0108

DTC B0108/52 Short to B+ in Front Passenger Side Squib Circuit

DESCRIPTION

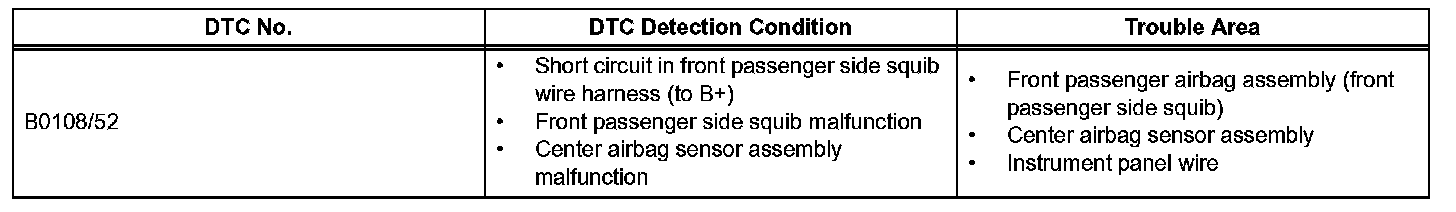

DTC Detection Condition:

The front passenger side squib consists of the center airbag sensor assembly and the front passenger airbag assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0108/52 is recorded when a short to B+ is detected in the front passenger side squib circuit.

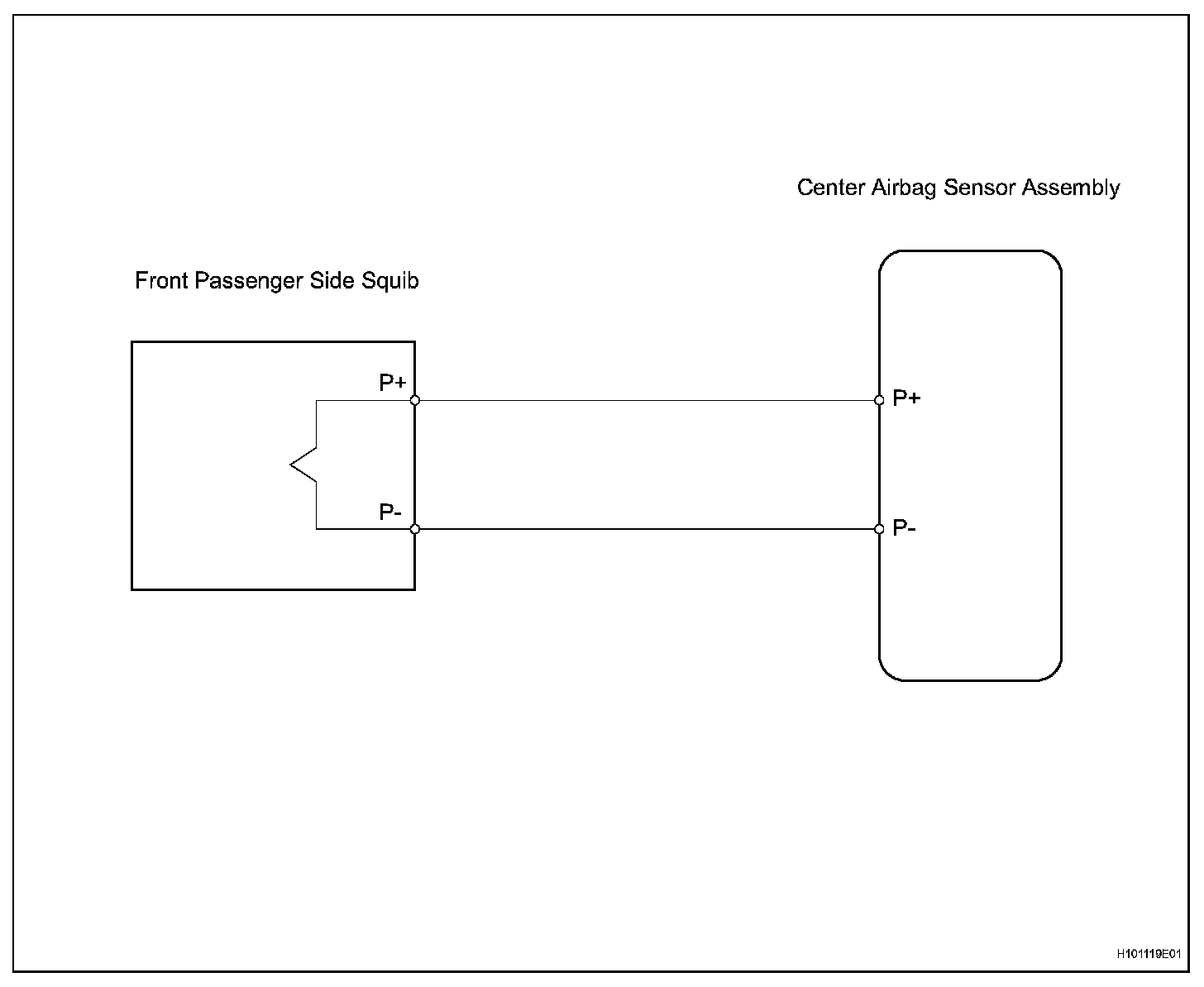

Wiring Diagram:

Step 1-2:

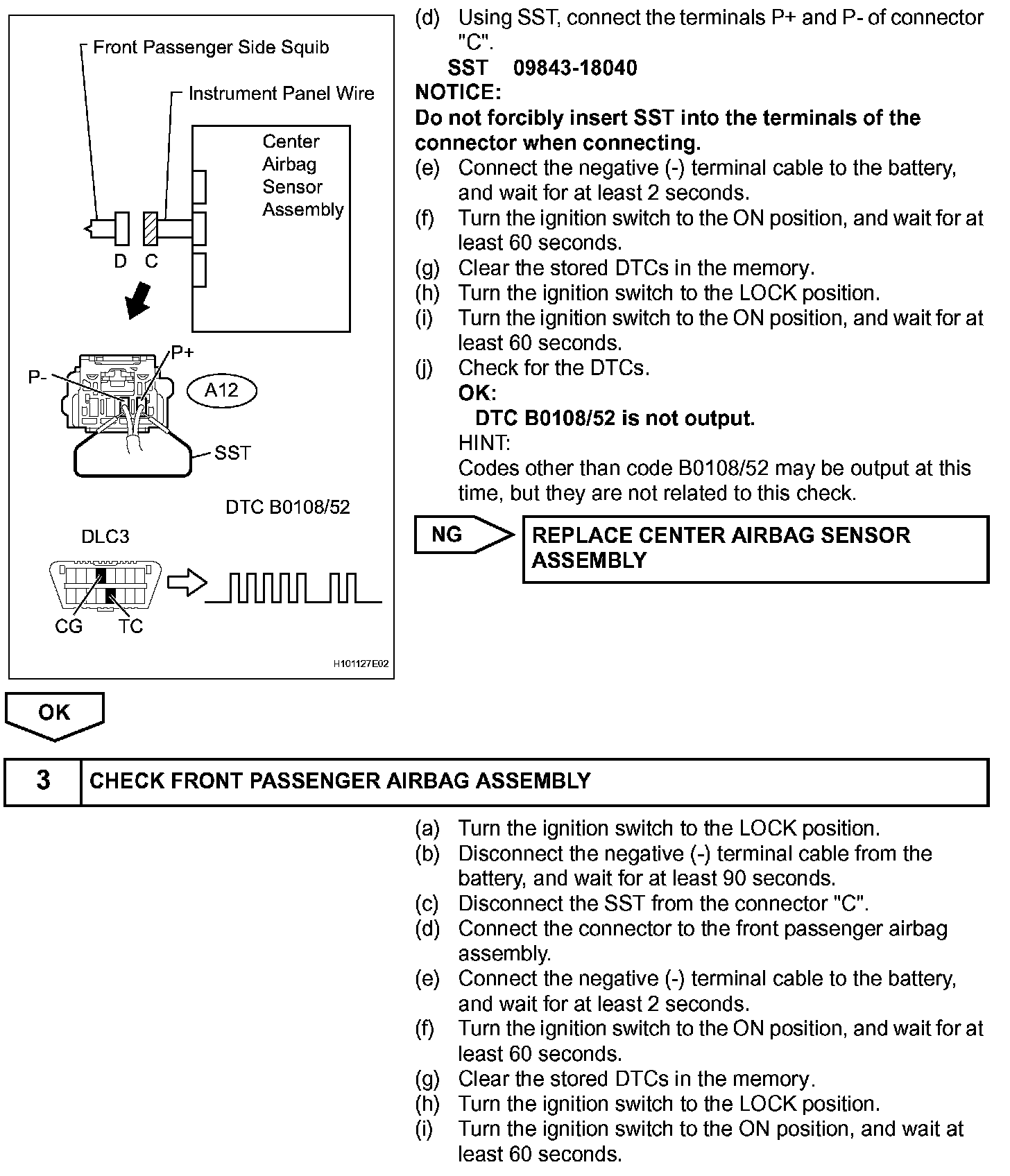

Step 2(continued)-3:

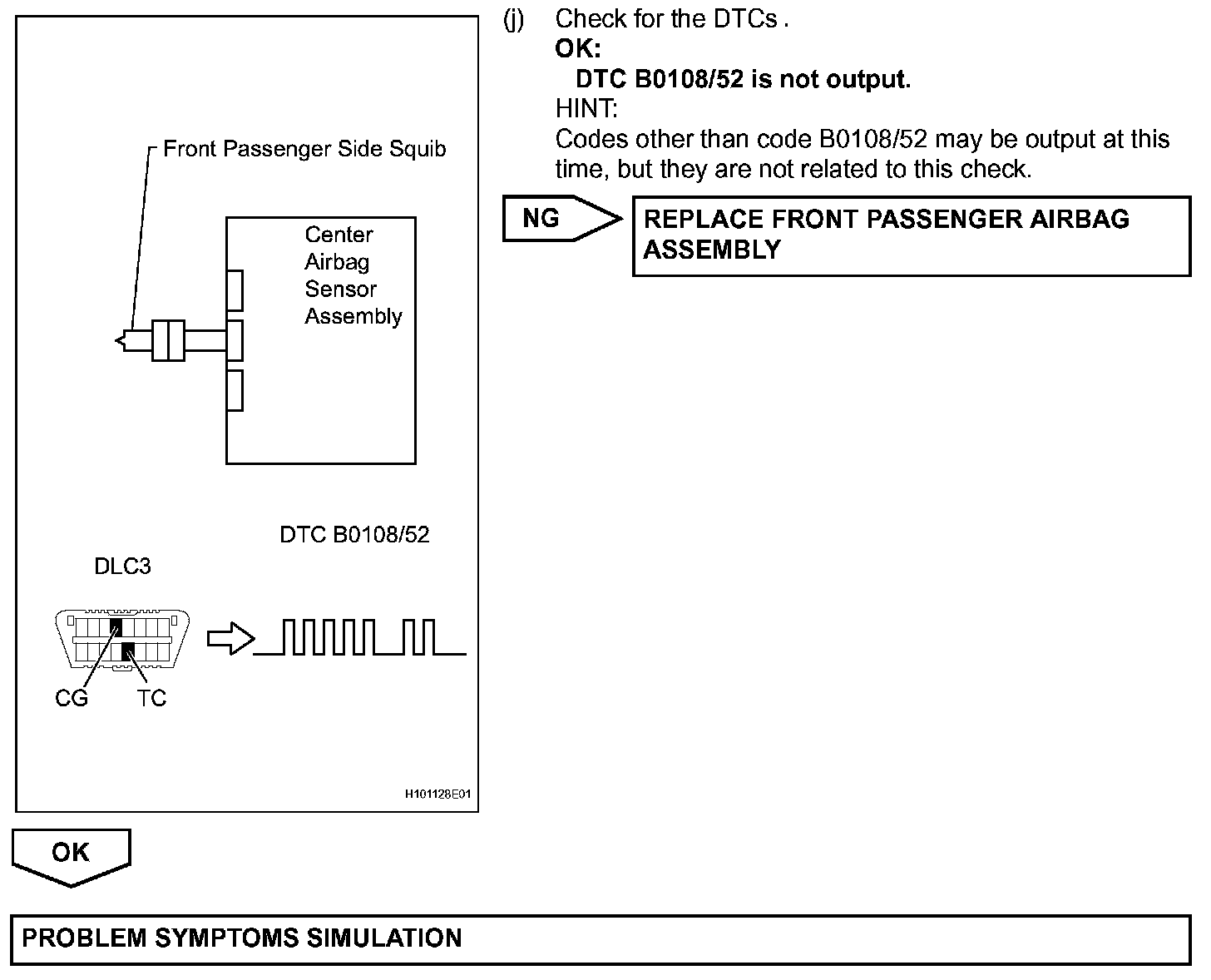

Step 3(continued):

INSPECTION PROCEDURE
