B0101

DTC B0101/14 Open in Driver Side Squib Circuit

DESCRIPTION

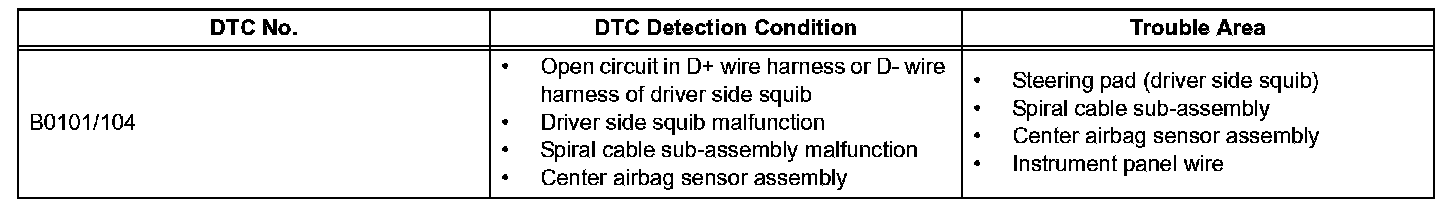

DTC Detection Condition:

The driver side squib circuit consists of the center airbag sensor assembly, the spiral cable sub-assembly and the steering pad.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0101/14 is recorded when an open circuit is detected in the driver side squib circuit.

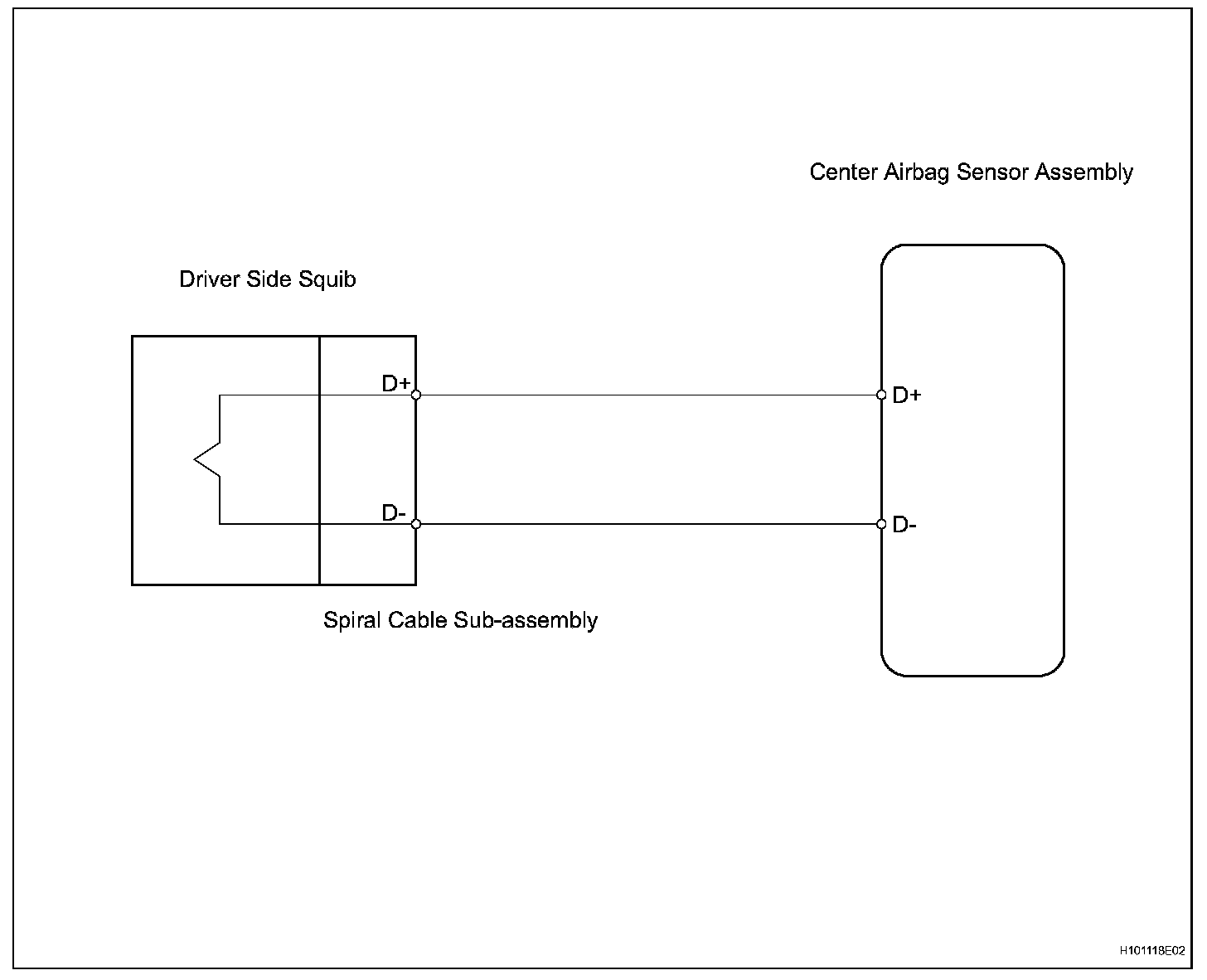

Wiring Diagram:

Step 1-2:

Step 2(continued)-3:

Step 3(continued)-4:

Step 4(continued)-5:

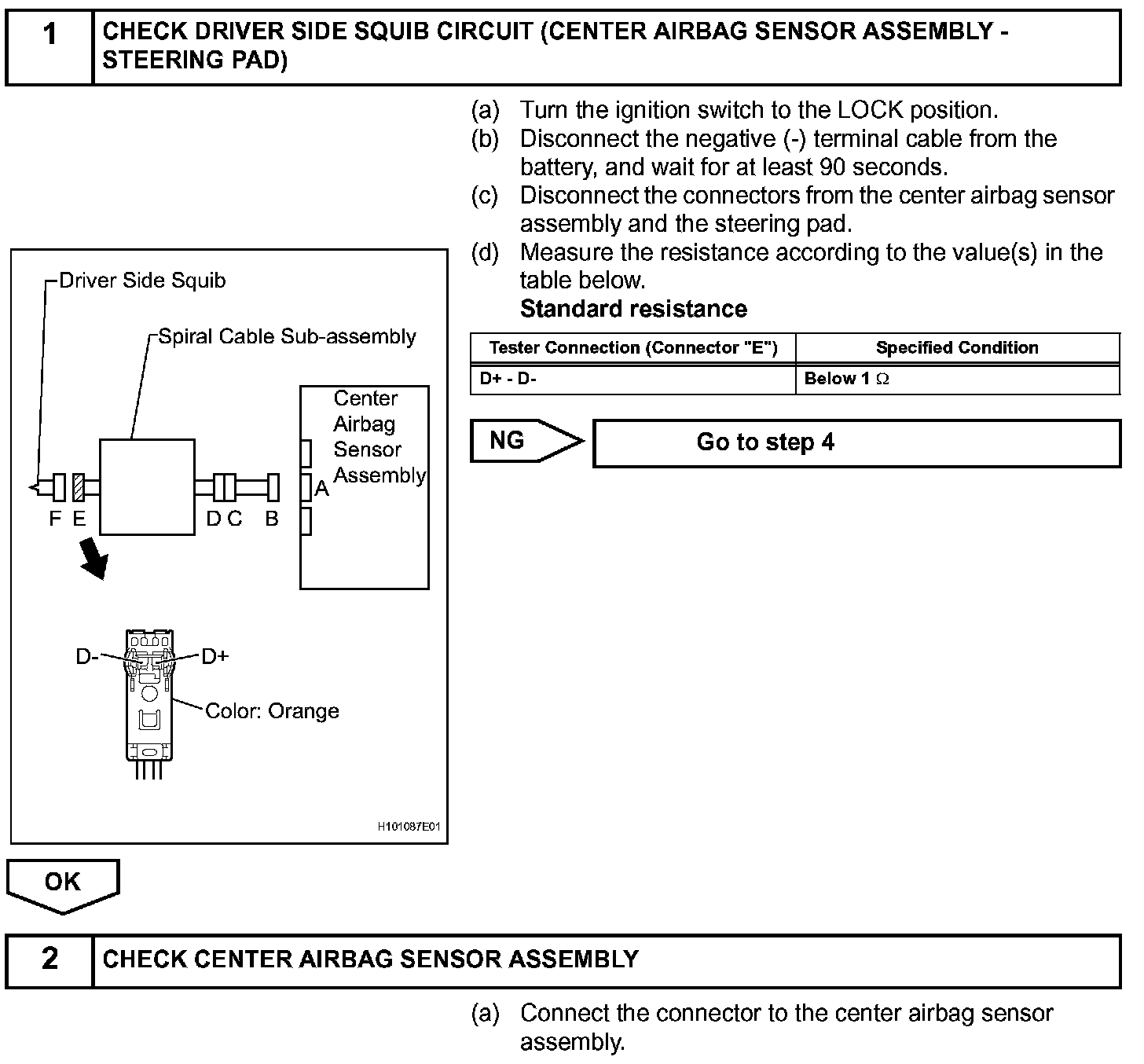

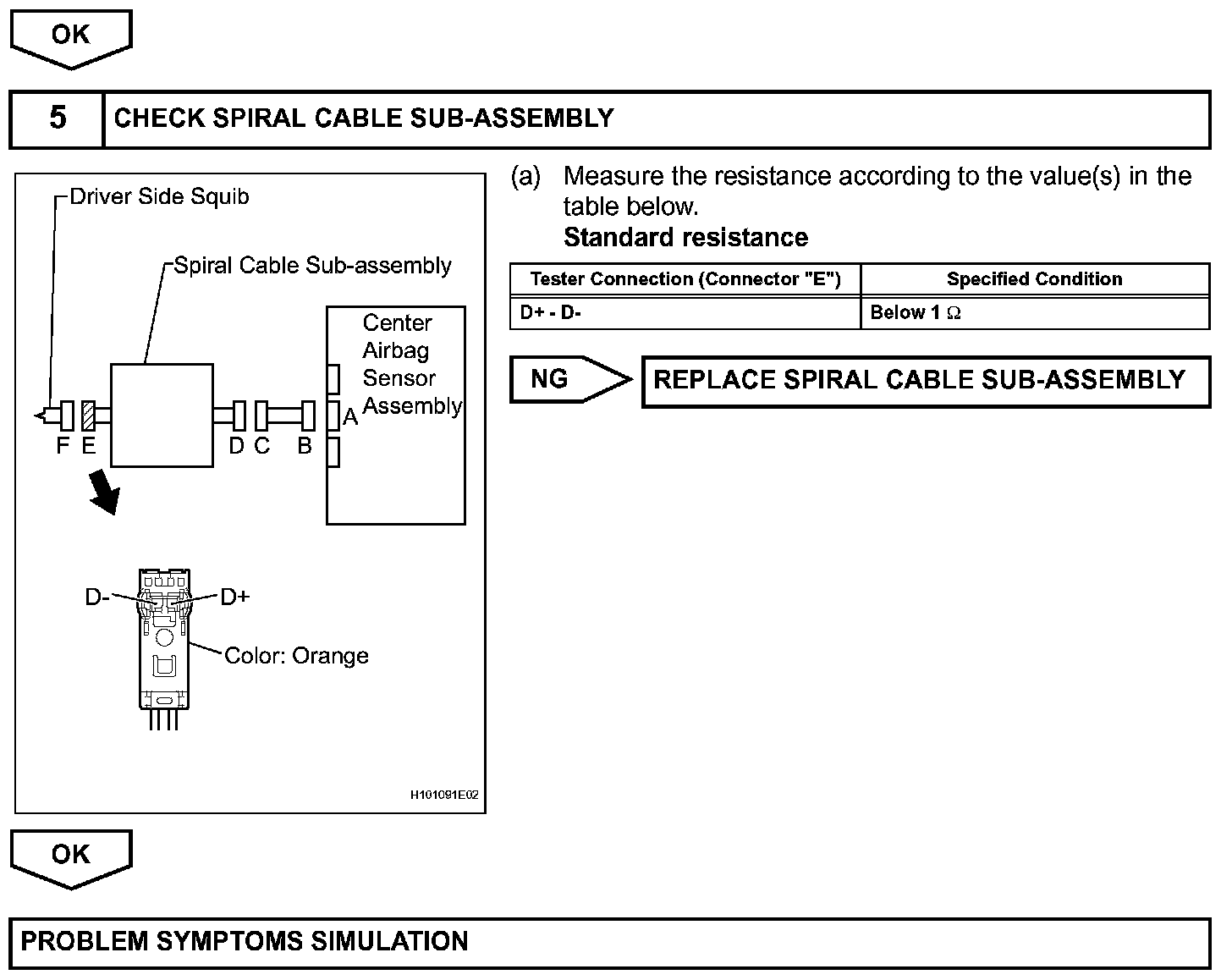

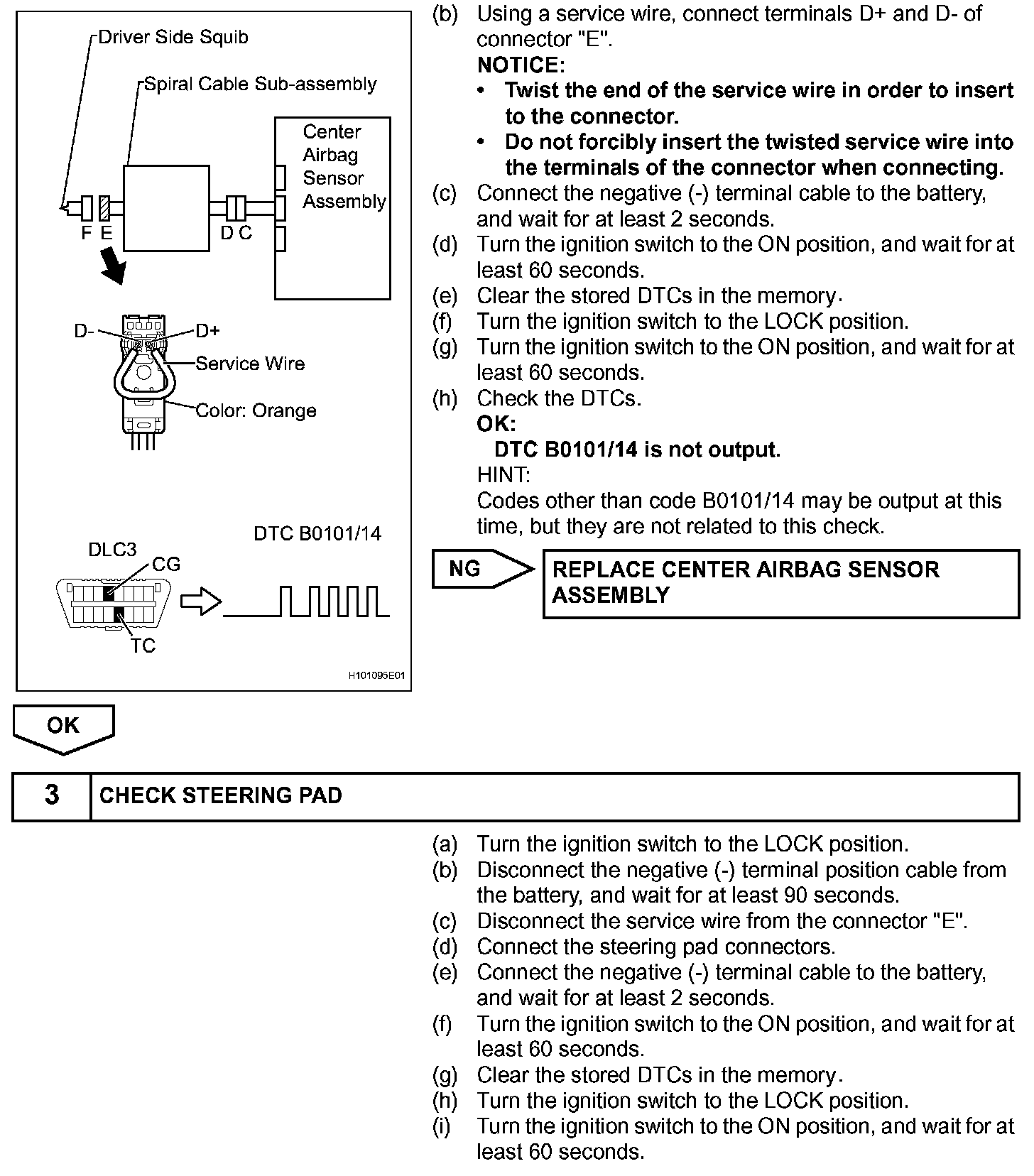

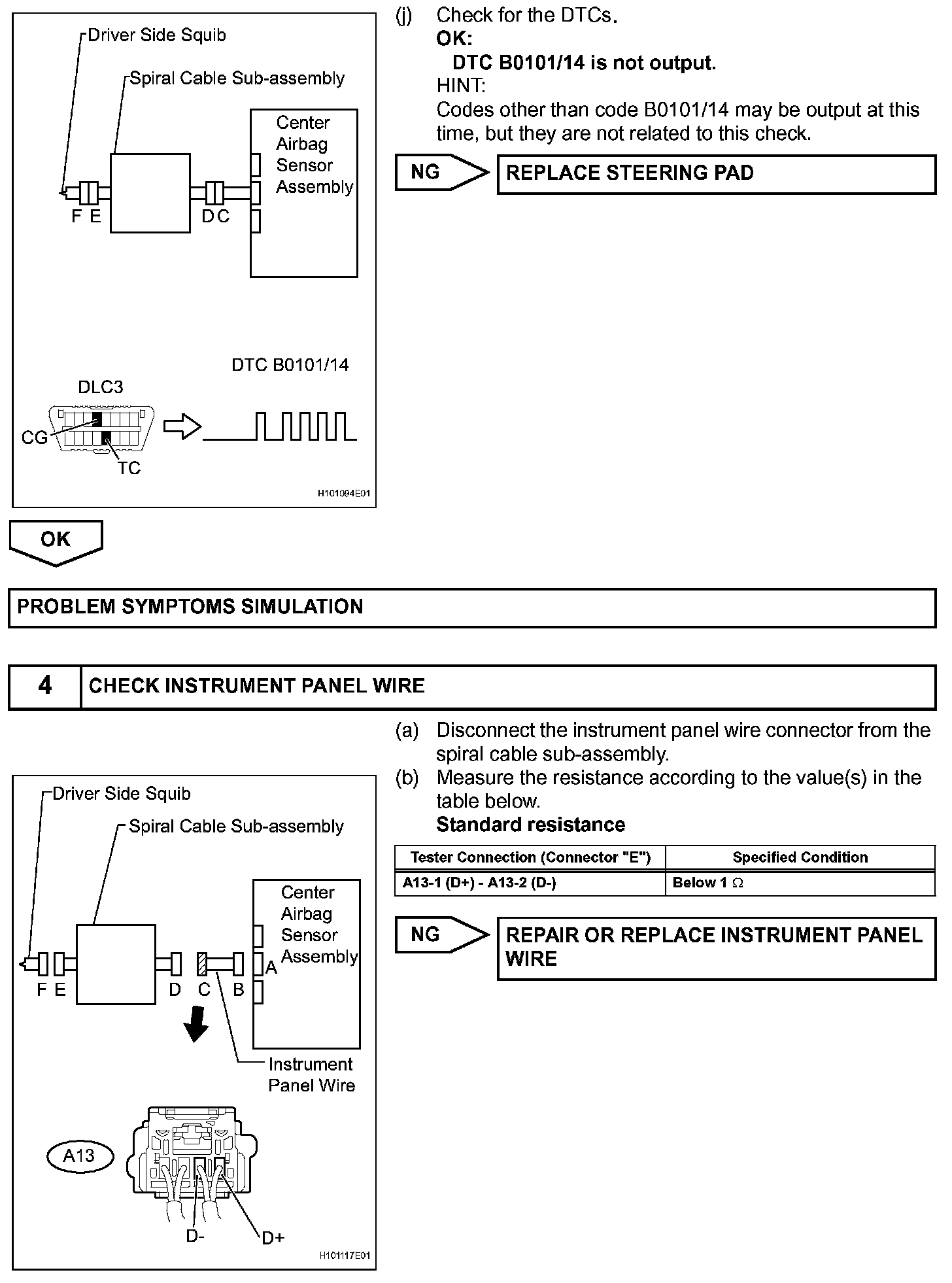

INSPECTION PROCEDURE
