DTC B0100/13 Short in Driver Side Squib Circuit

DESCRIPTION

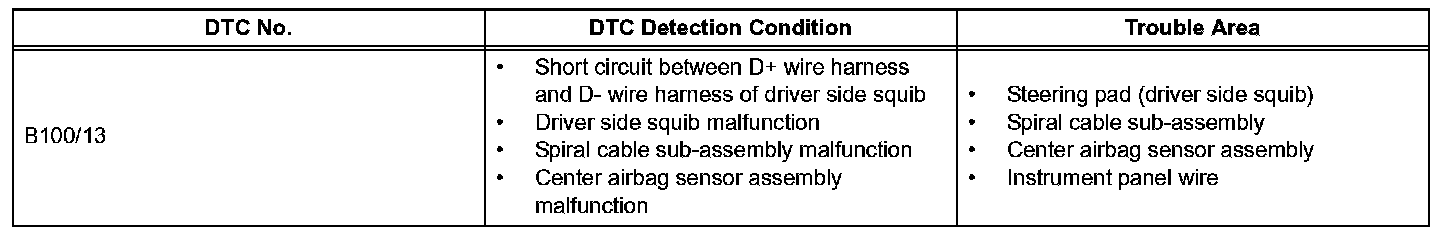

DTC Detection Condition:

The driver side squib circuit consists of the center airbag sensor assembly, the spiral cable sub-assembly and the steering path.

This circuit actuates the SRS to deploy when deployment conditions are met.

DTC B0100/13 is recorded when a short circuit is detected in the driver side squib circuit.

Wiring Diagram:

Step 1-3:

Step 3(continued)-4:

Step 4(continued)-5:

Step 5(continued)-6:

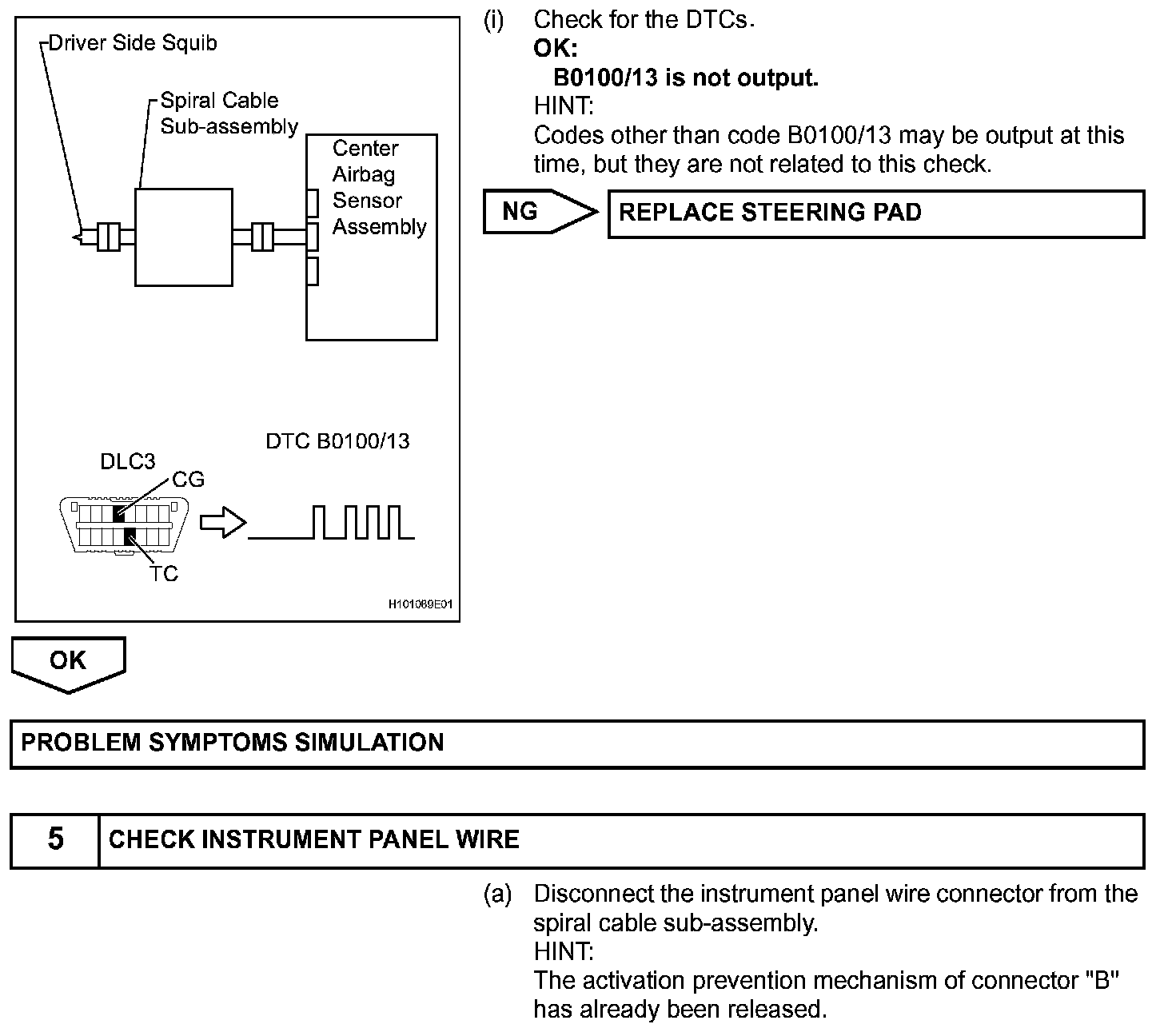

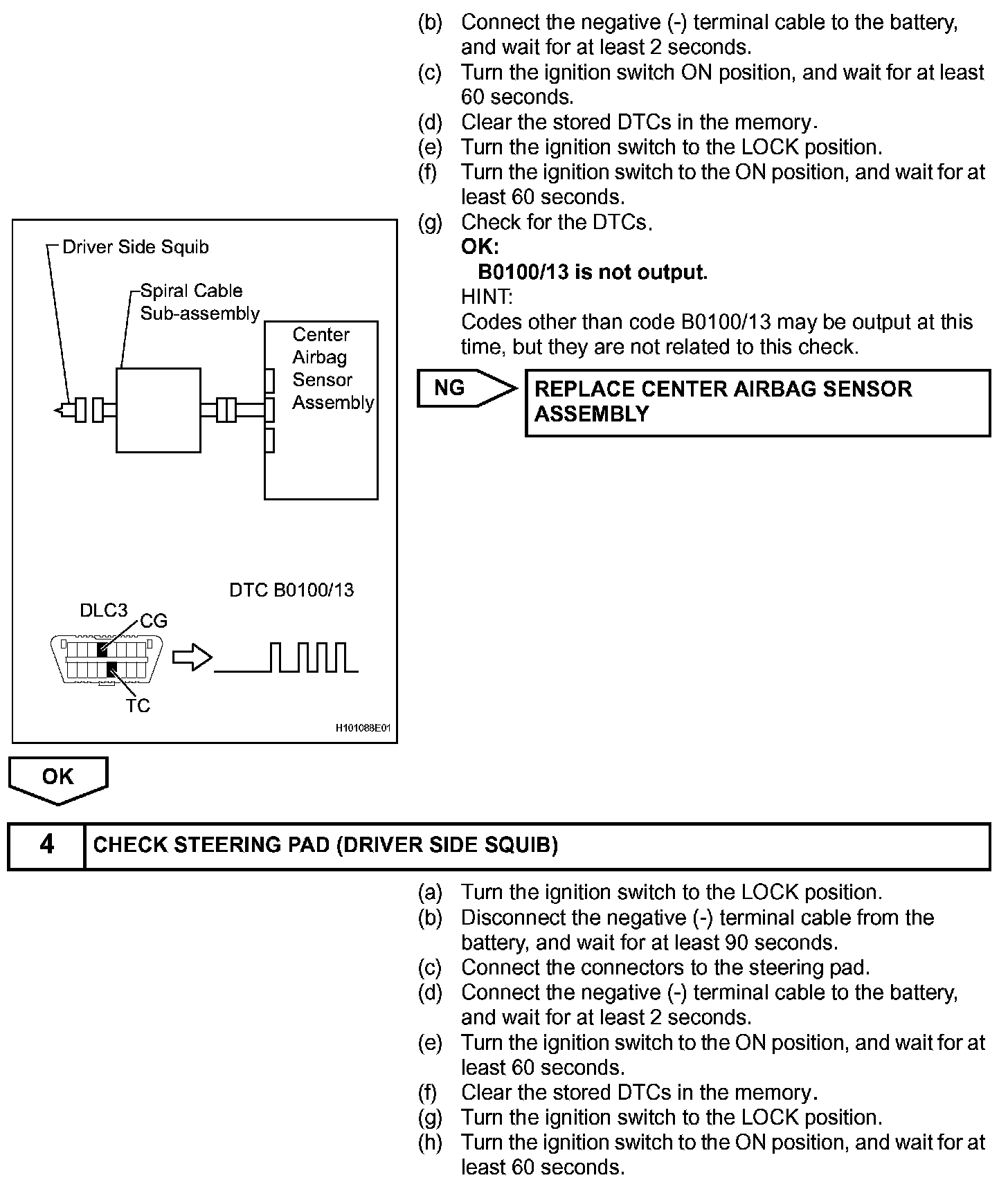

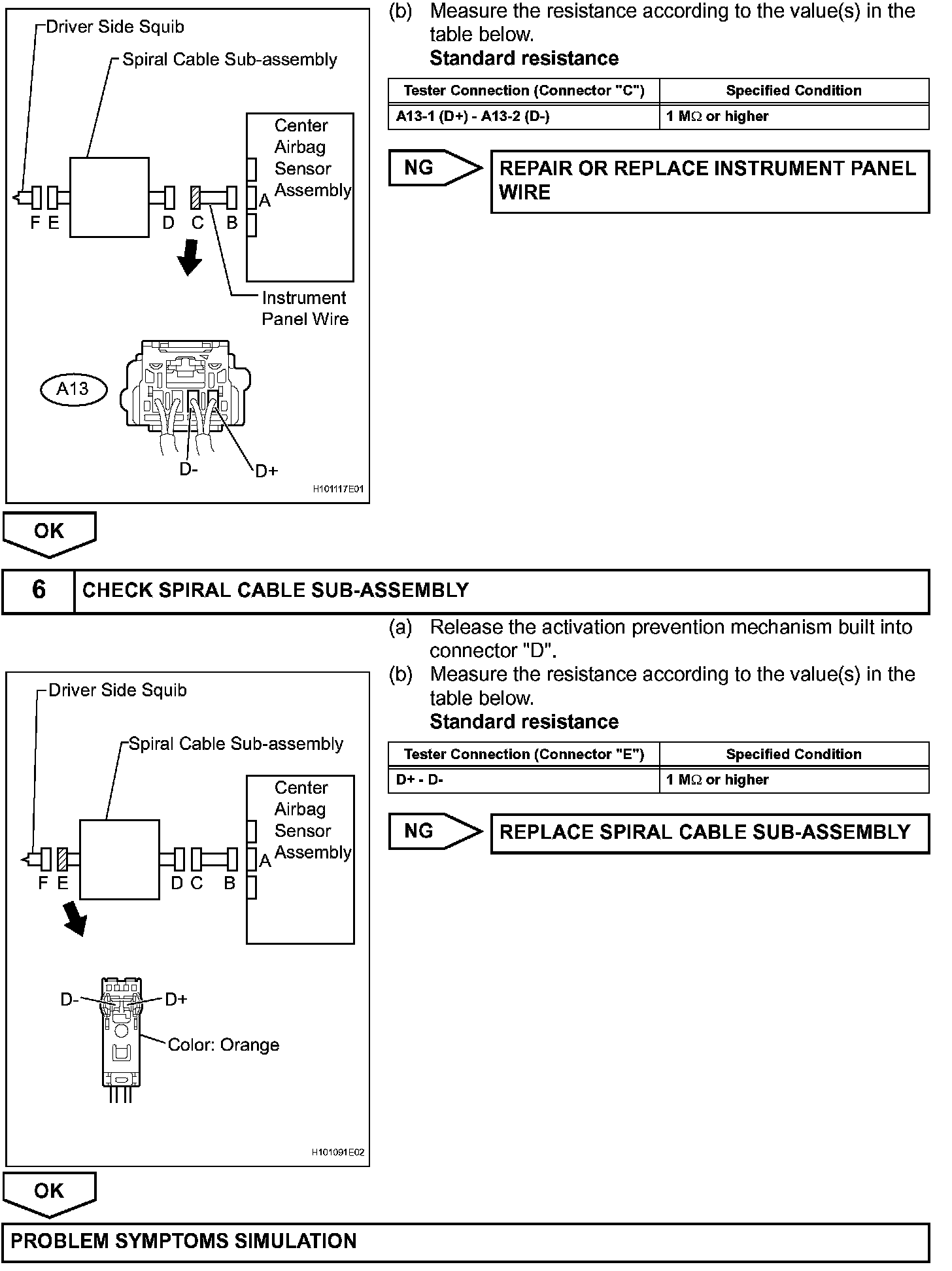

INSPECTION PROCEDURE
