Front Door Window Glass: Service and Repair

REMOVAL

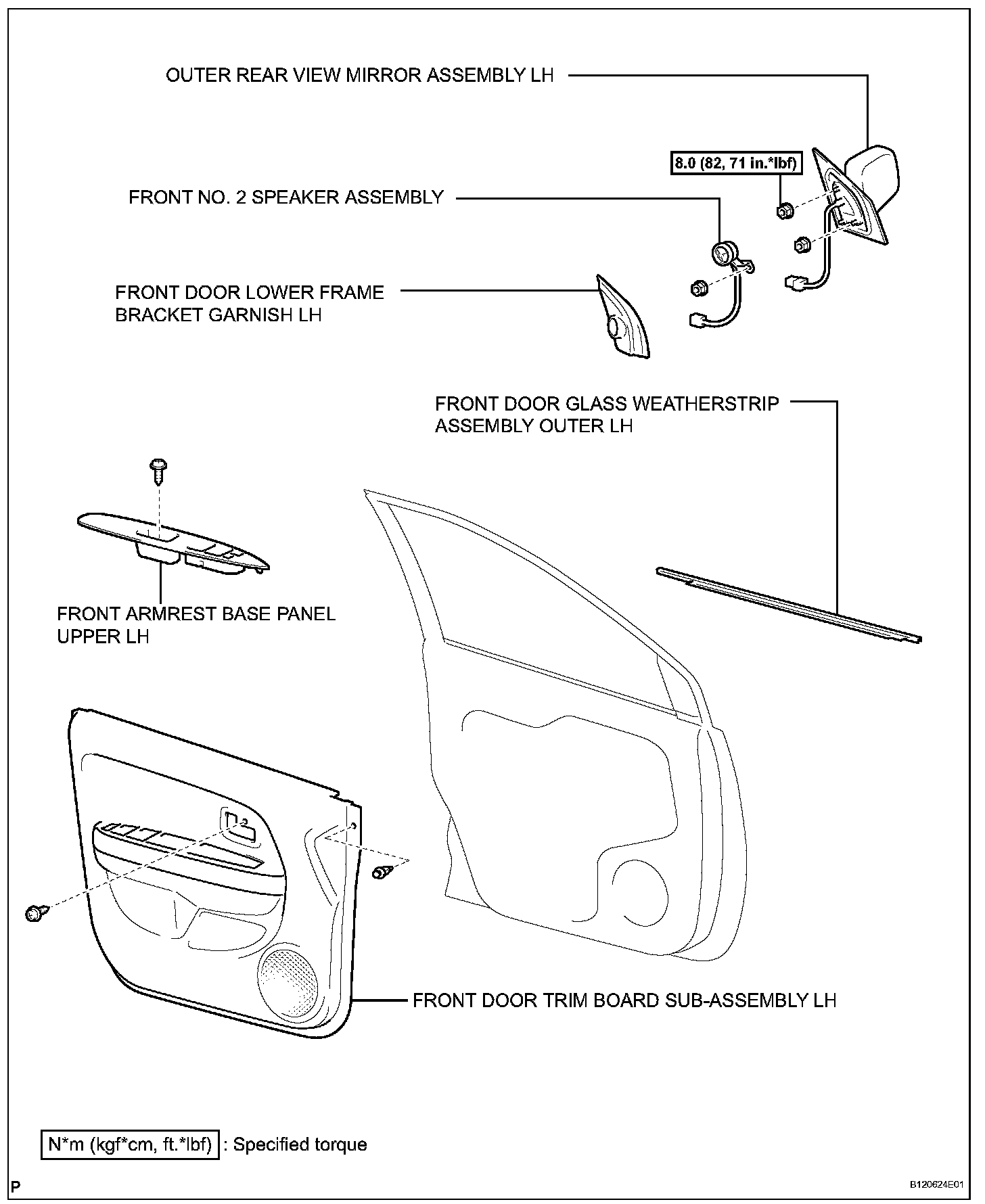

Front Door Glass Weatherstrip:

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
3. REMOVE FRONT ARMREST BASE PANEL UPPER LH
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
5. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
6. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
7. REMOVE FRONT DOOR GLASS WEATHERSTRIP ASSEMBLY OUTER LH

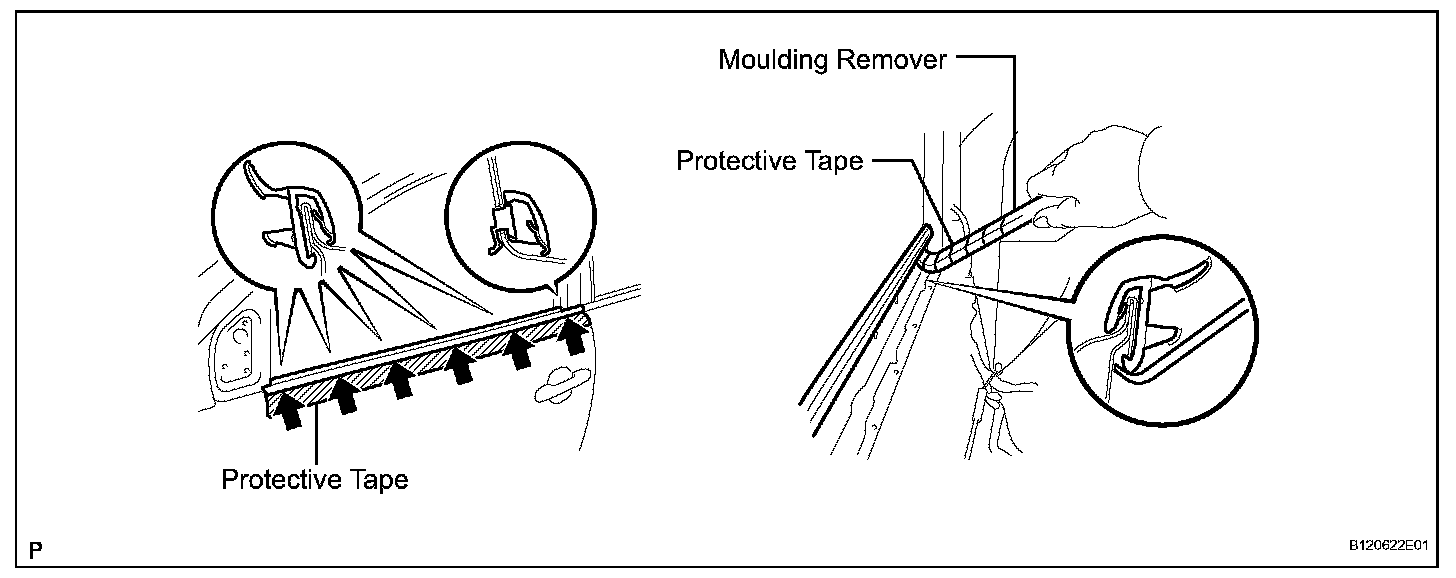

a. Put protective tape under the weatherstrip.

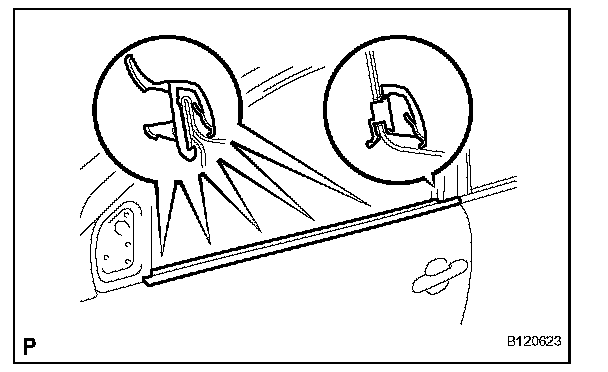

b. Using a moulding remover, detach the claws to remove the weatherstrip as shown in the illustration.

HINT: Tape the remover tip before use.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL FRONT DOOR GLASS WEATHERSTRIP ASSEMBLY OUTER LH




a. Attach the claws to install the weatherstrip.

2. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
3. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
4. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
5. INSTALL FRONT ARMREST BASE PANEL UPPER LH
6. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
