Window Glass: Diagrams

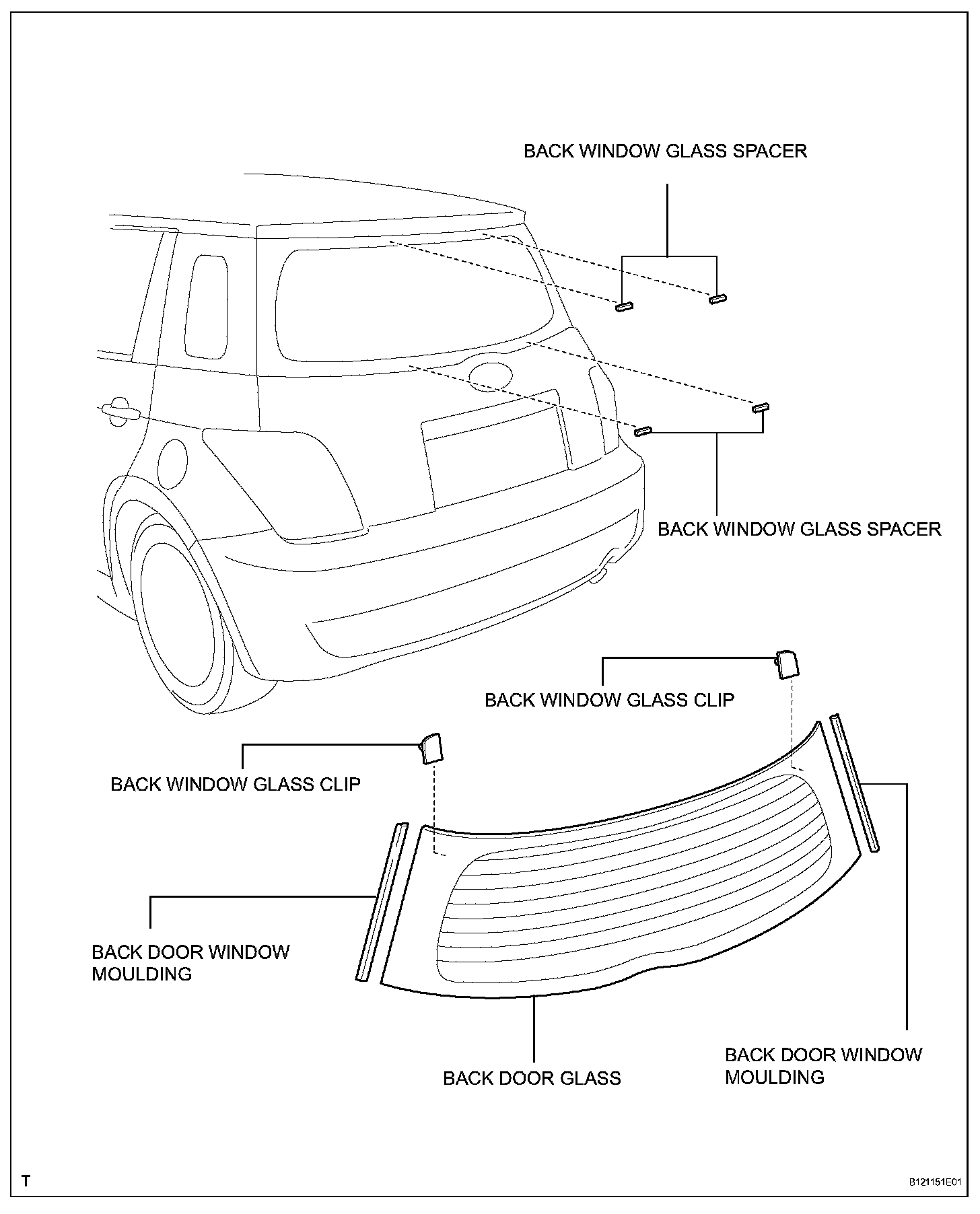

Back Door Glass:

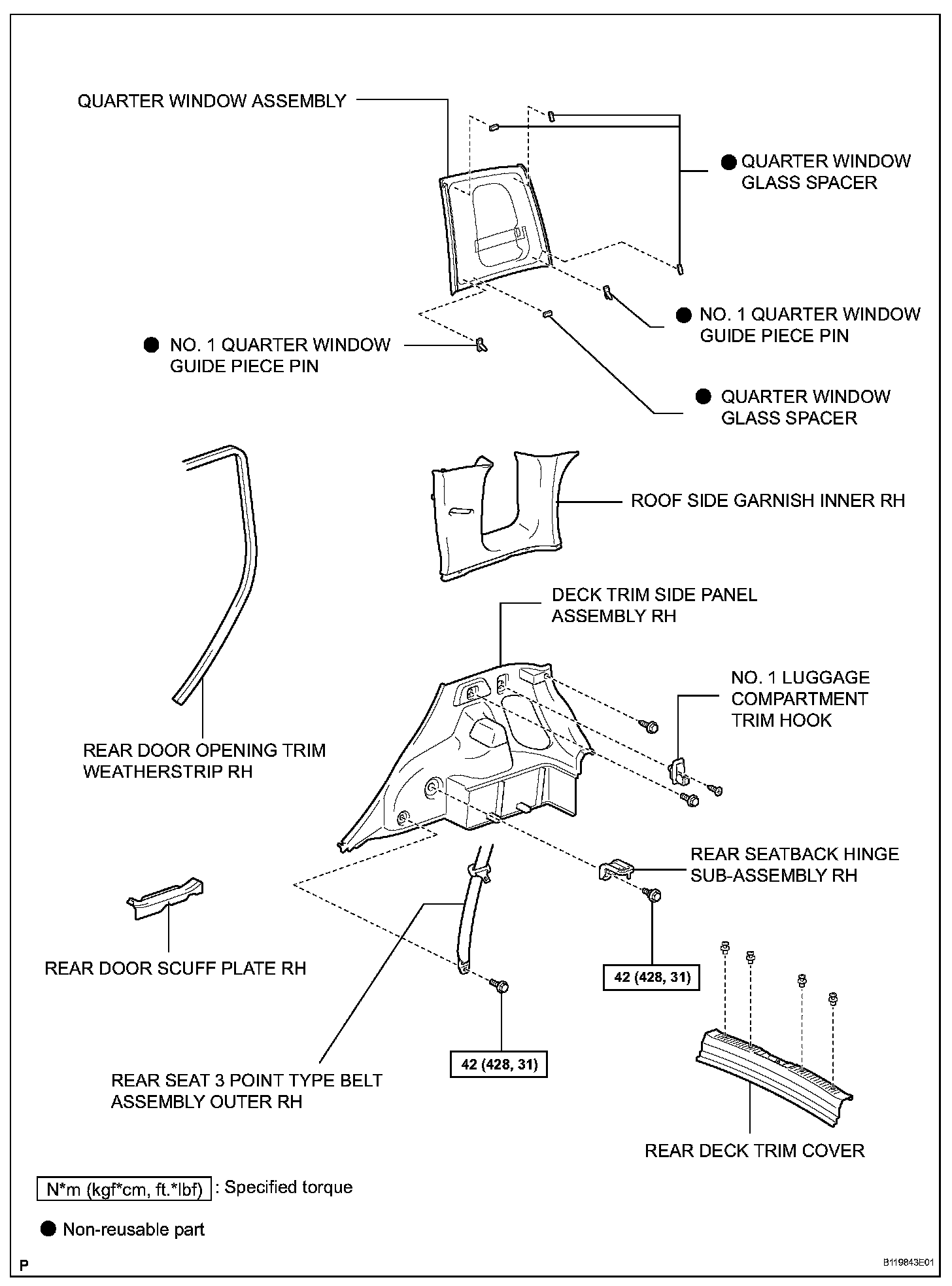

Quarter Window Glass:

Quarter Window Glass:

Quarter Window Glass:
