FRONT SHOCK ABSORBER WITH COIL SPRING

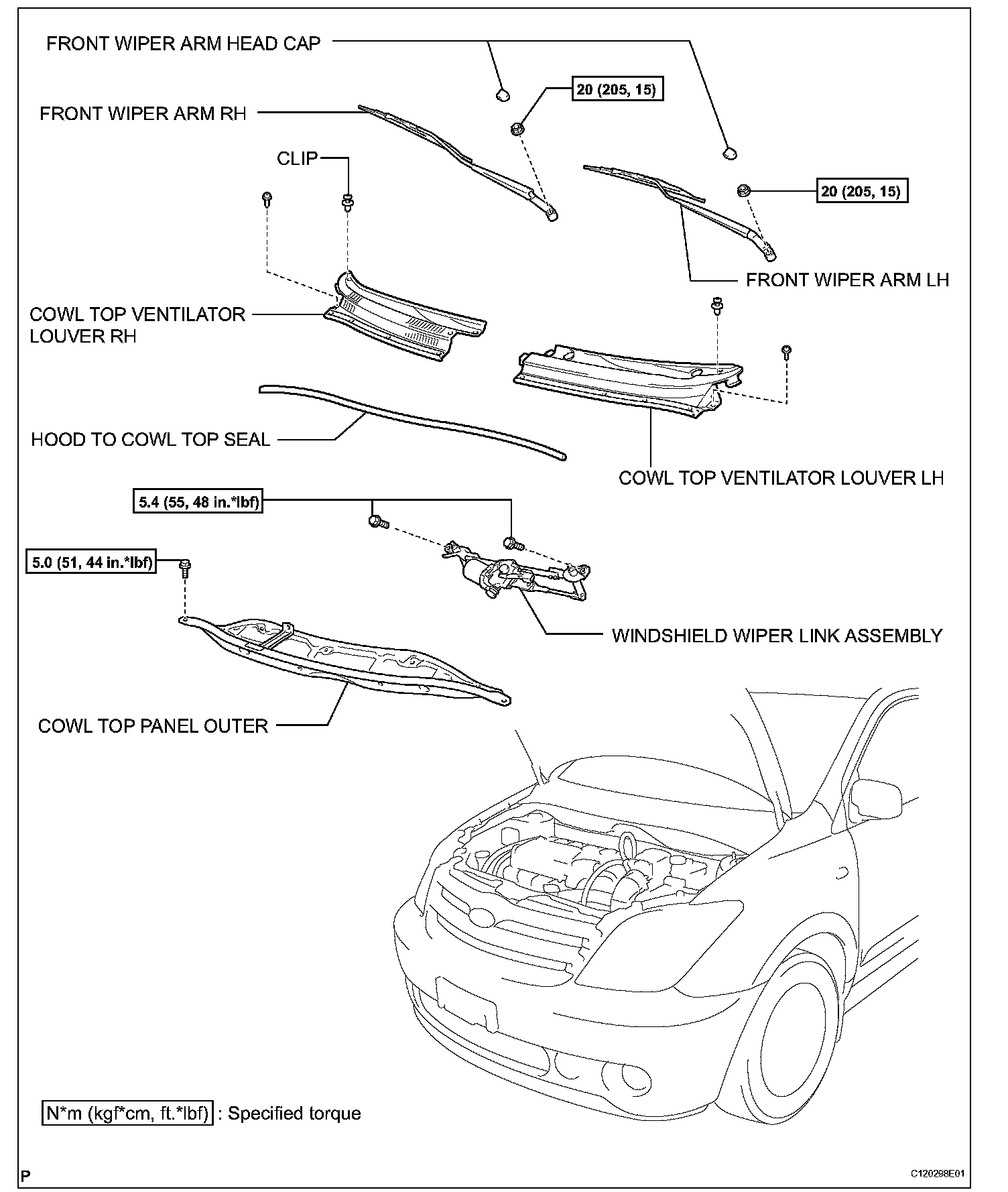

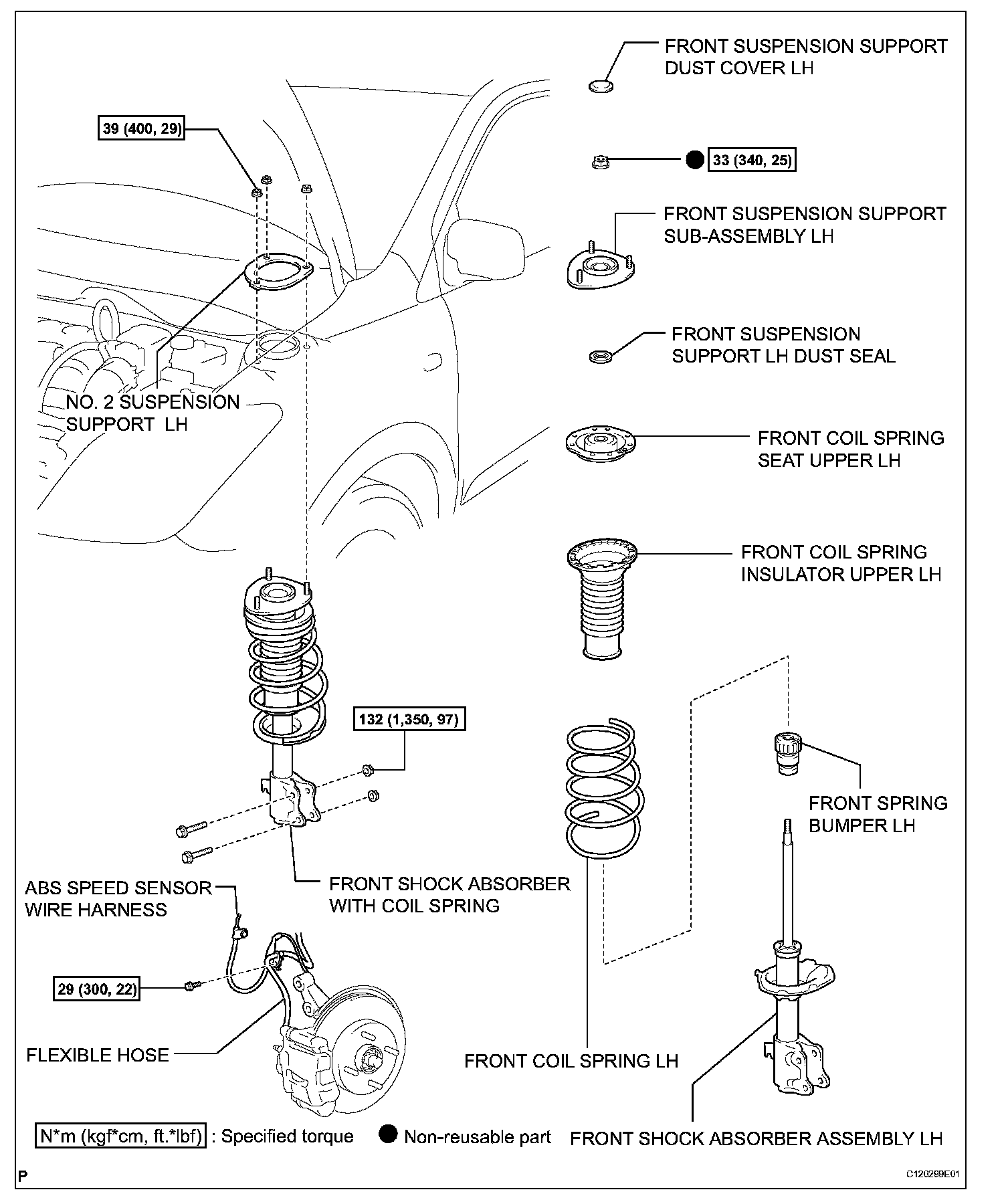

COMPONENTS:

REMOVAL
1. REMOVE FRONT WIPER ARM HEAD CAP
2. REMOVE FRONT WIPER ARM LH
3. REMOVE FRONT WIPER ARM RH
4. REMOVE HOOD TO COWL TOP SEAL
5. REMOVE COWL TOP VENTILATOR LOUVER LH
6. REMOVE COWL TOP VENTILATOR LOUVER RH
7. REMOVE WINDSHIELD WIPER LINK ASSEMBLY

8. REMOVE COWL TOP PANEL OUTER
a. Disconnect the hose and wire harness for wiper.
b. Remove the cowl top panel outer with the 8 bolts.
9. REMOVE FRONT WHEEL
10. DISCONNECT FLEXIBLE HOSE

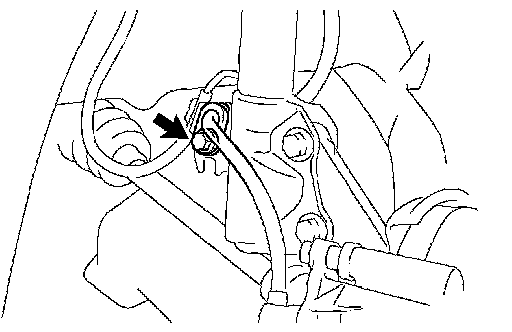

a. Remove the bolt, and disconnect the flexible hose and ABS speed sensor wire harness clamp from the shock absorber bracket.
11. REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING

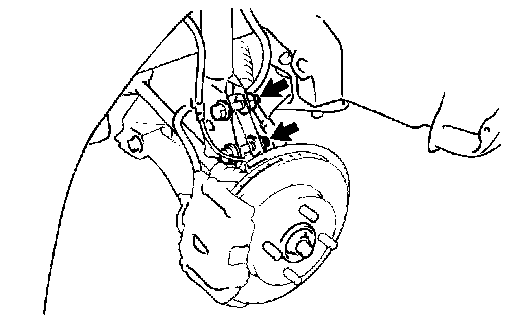

a. Remove the 2 nuts and 2 bolts, and disconnect the shock absorber from the steering knuckle.

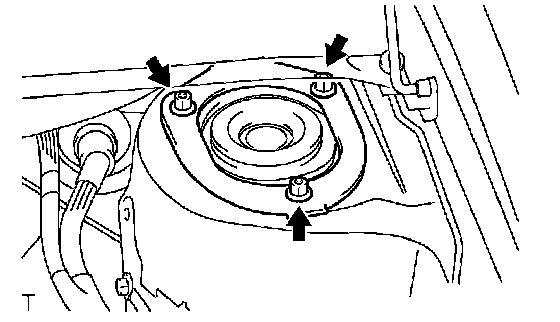

b. Remove the 3 nuts and shock absorber.
c. Remove the No. 2 suspension support.

DISASSEMBLY

1. FIX FRONT SHOCK ABSORBER WITH COIL SPRING
a. Install the 2 nuts and bolt on the bracket at the lower side of the shock absorber and secure it in a vise.

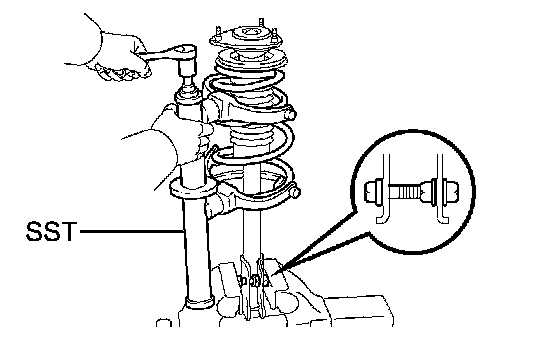

b. Using SST, compress the coil spring.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

NOTICE: Do not use an impact wrench. It will damage the SST.

2. REMOVE FRONT SUSPENSION SUPPORT DUST COVER LH
a. Remove the dust cover from the suspension support.

3. REMOVE FRONT SUPPORT TO FRONT SHOCK ABSORBER LH NUT

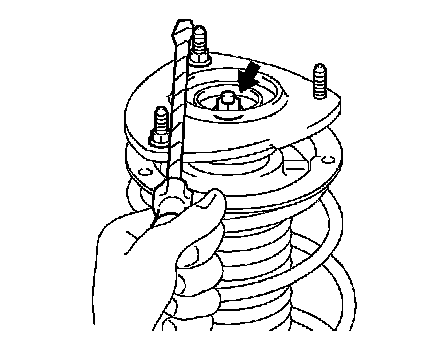

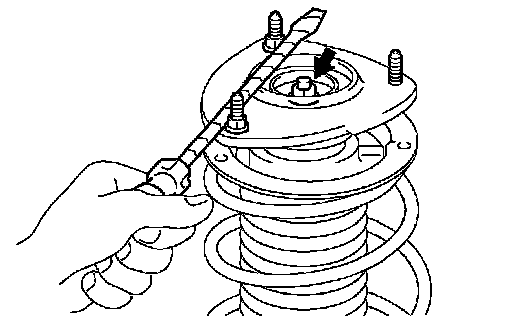

a. Using the 2 nuts and a screwdriver or an equivalent to secure the shock absorber, remove the center nut.

NOTICE: Be careful not to damage the suspension support stud bolts.

HINT: Use the screwdriver tip before use.

4. REMOVE FRONT SUSPENSION SUPPORT SUBASSEMBLY LH
5. REMOVE FRONT SUSPENSION SUPPORT LH DUST SEAL
6. REMOVE FRONT COIL SPRING SEAT UPPER LH
7. REMOVE FRONT COIL SPRING INSULATOR UPPER LH
8. REMOVE FRONT COIL SPRING LH
9. REMOVE FRONT SPRING BUMPER LH
10. REMOVE FRONT SHOCK ABSORBER ASSEMBLY LH

INSPECTION

1. INSPECT FRONT SHOCK ABSORBER ASSEMBLY LH

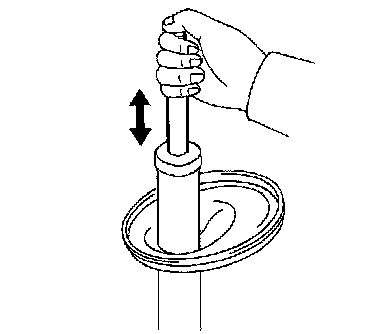

a. Compress and extend the shock absorber rod and check that there is no abnormal resistance or unusual sound during operation.
If there is any abnormality, replace the shock absorber with a new one.

NOTICE: When disposing of the shock absorber, refer to DISPOSAL.

REASSEMBLY
1. INSTALL FRONT SHOCK ABSORBER ASSEMBLY LH
2. INSTALL FRONT SPRING BUMPER LH
3. INSTALL FRONT COIL SPRING LH

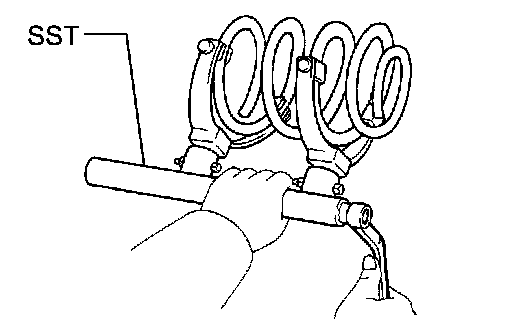

a. Using SST, compress the coil spring.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

NOTICE: Do not use an impact wrench. It will damage the SST.

b. Install the coil spring on the shock absorber.

HINT: Fit the lower end of the coil spring into the gap of the spring lower seat.

4. INSTALL FRONT COIL SPRING INSULATOR UPPER LH

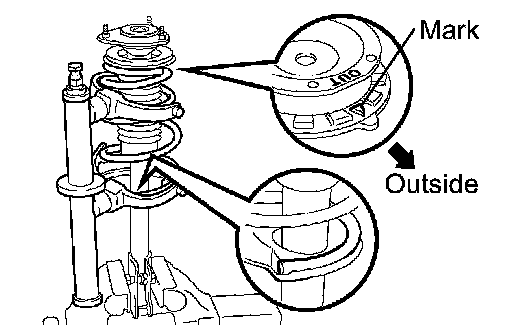

a. Install the upper insulator with the mark facing the outside of the vehicle.
5. INSTALL FRONT COIL SPRING SEAT UPPER LH
a. Install the spring upper seat with the "OUT" mark facing the outside of the vehicle.
6. INSTALL FRONT SUSPENSION SUPPORT LH DUST SEAL
7. INSTALL FRONT SUSPENSION SUPPORT SUBASSEMBLY LH
8. INSTALL FRONT SUPPORT TO FRONT SHOCK ABSORBER LH NUT

a. Using the 2 nuts and a screwdriver or an equivalent to secure the shock absorber, install a new center nut.
Torque: 33 Nm (340 kgf-cm, 25 ft. lbs.)

NOTICE: Be careful not to damage the suspension support stud bolts.

HINT: Tape the screwdriver tip before use.

b. Remove the SST.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

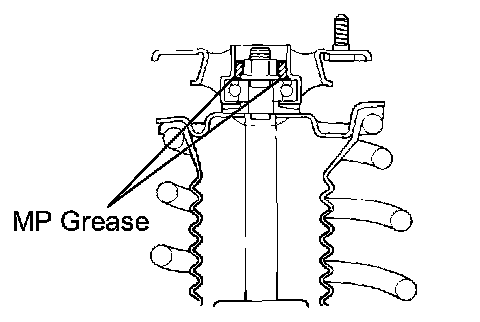

c. Apply MP grease to the suspension support.
9. INSTALL FRONT SUSPENSION SUPPORT DUST COVER LH

INSTALLATION
1. INSTALL FRONT SHOCK ABSORBER ASSEMBLY LH
a. Install the No. 2 suspension support.
b. Install the shock absorber with the 3 nuts.
Torque: 39 Nm (400 kgf-cm, 29 ft. lbs.)
c. Connect the shock absorber to the steering knuckle.
d. Install the 2 bolts and nut.
Torque: 132 Nm (1,350 kgf-cm, 97 ft. lbs.)

NOTICE: When installing the bolt, keep it from rotating and torque the nut.

2. CONNECT FLEXIBLE HOSE
a. Connect the flexible hose.
Torque: 29 Nm (300 kgf-cm, 22 ft. lbs.)
3. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
4. INSTALL COWL TOP PANEL OUTER
a. Install the cowl top panel outer with the 8 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
b. Connect the hose and wire harness for wiper.
5. INSTALL WINDSHIELD WIPER LINK ASSEMBLY
6. INSTALL COWL TOP VENTILATOR LOUVER RH
7. INSTALL COWL TOP VENTILATOR LOUVER LH
8. INSTALL HOOD TO COWL TOP SEAL
9. INSTALL FRONT WIPER ARM LH
10. INSTALL FRONT WIPER ARM RH
11. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
a. Inspect and adjust the front wheel alignment.

DISPOSAL

HINT: Disposal of the RH is the same as that of the LH.

1. DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY LH
a. Fully extend the shock absorber rod.

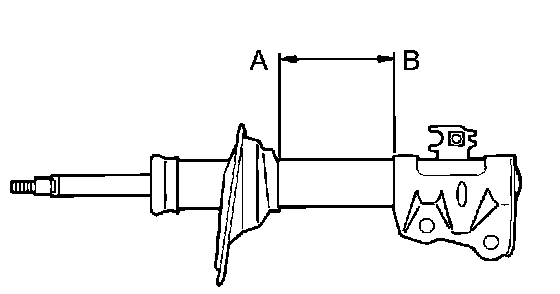

b. Using a drill, make a hole in the cylinder somewhere between A and B as shown in the illustration to discharge the gas inside.

CAUTION: Be careful when drilling because shards of metal may fly about, so always use the proper safety equipment.

HINT: The gas is colorless, odorless and non-poisonous.
