Ride Height

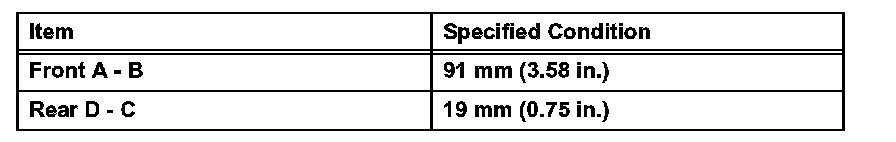

Standard vehicle height:

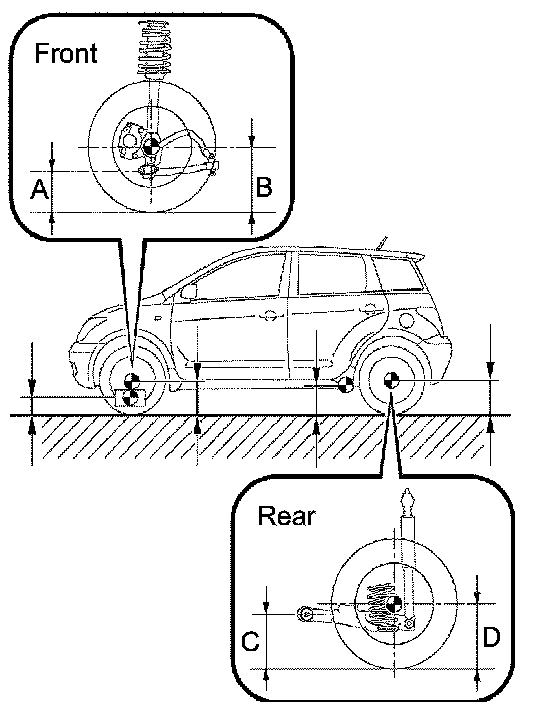

Measuring points:
A: Ground clearance of front wheel center
B: Ground clearance of lower suspension arm front bolt center
C: Ground clearance of axle beam set bolt center
D: Ground clearance of rear wheel center
