Wiper Switch: Testing and Inspection
WIPER SWITCHINSPECTION
1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY

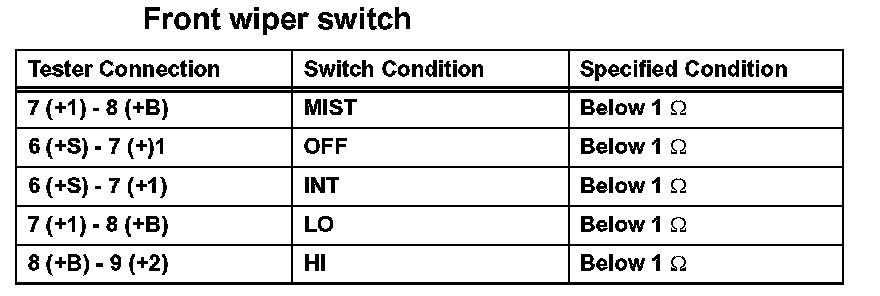

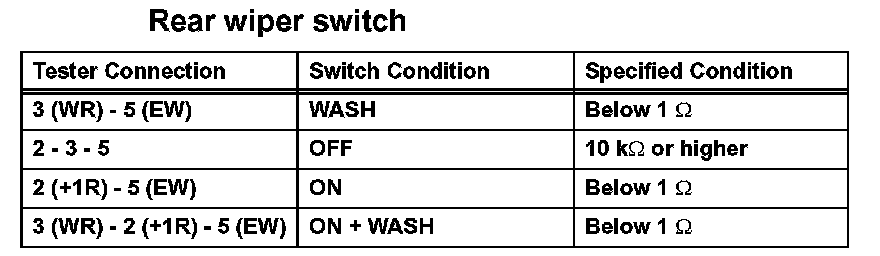

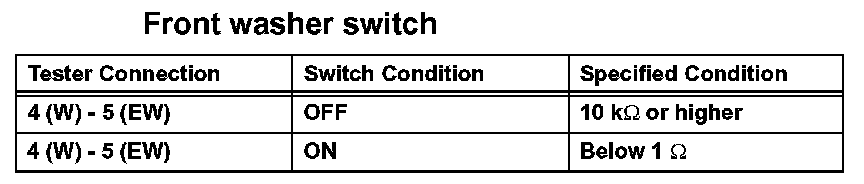

a. Measure the resistance of the switch.
If the result is not as specified, replace the switch assembly.
b. Check the intermittent operation.

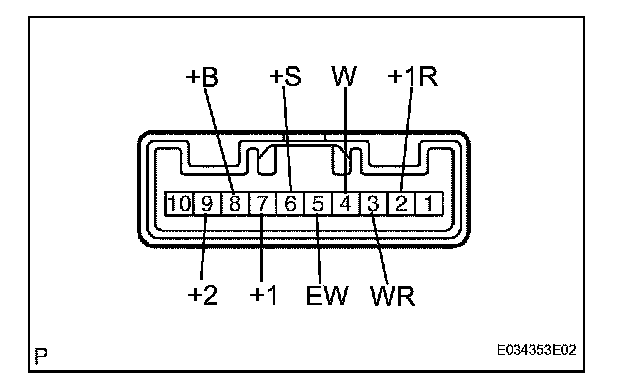

1. Connect the voltmeter's positive (+) lead to terminal 7 (+1) and the voltmeter's negative (-) lead to terminal 5 (EW).
2. Connect the battery's positive (+) lead to terminal 8 (+B) and the battery's negative (-) lead to terminals 5 (EW) and 6 (+S).
3. Turn the wiper switch to the INT position.
4. Connect the battery's positive (+) lead to terminal 6 (+S) for 5 seconds.

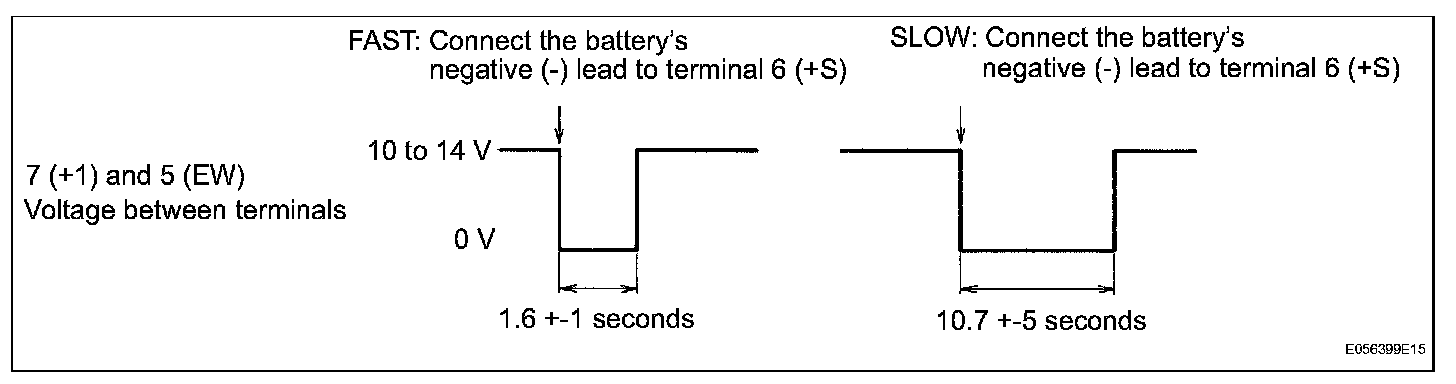

5. Connect the battery's negative (-) lead to terminal 6 (+S). Operate the intermittent wiper relay and check the voltage between terminals 7 (+1) and 5 (EW).
OK: Refer to illustration.
If the result is not as specified, replace the switch assembly.
c. Check the front washer operation.
1. Turn the wiper switch off.
2. Connect the battery's positive (+) lead to terminal 8 (+B) and the battery's negative (-) lead to terminals 6 (+S) and 5 (EW).
3. Connect the voltmeter's positive (+) lead to terminal 7 (+1) and the voltmeter's negative (lead to terminal 5 (EW).

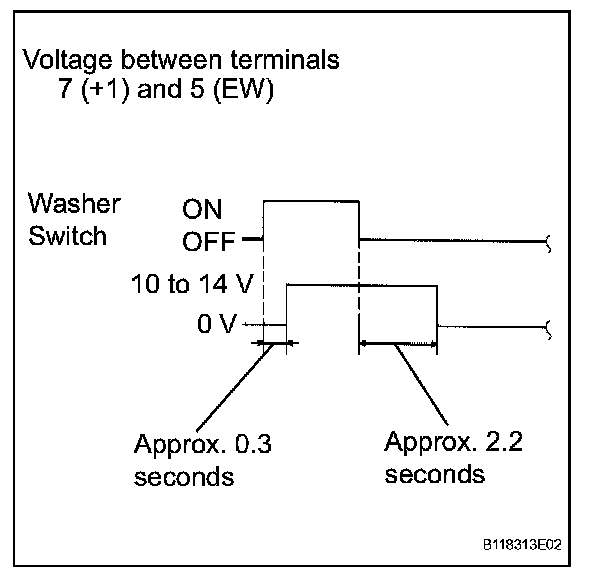

4. Turn the washer switch on and off, and check the voltage between terminals 7 (+1) and 5 (EW).
If the result is not as specified, replace the switch assembly.
OK: Refer to illustration.
