Heater Lockout Switch: Testing and Inspection

INSPECTION

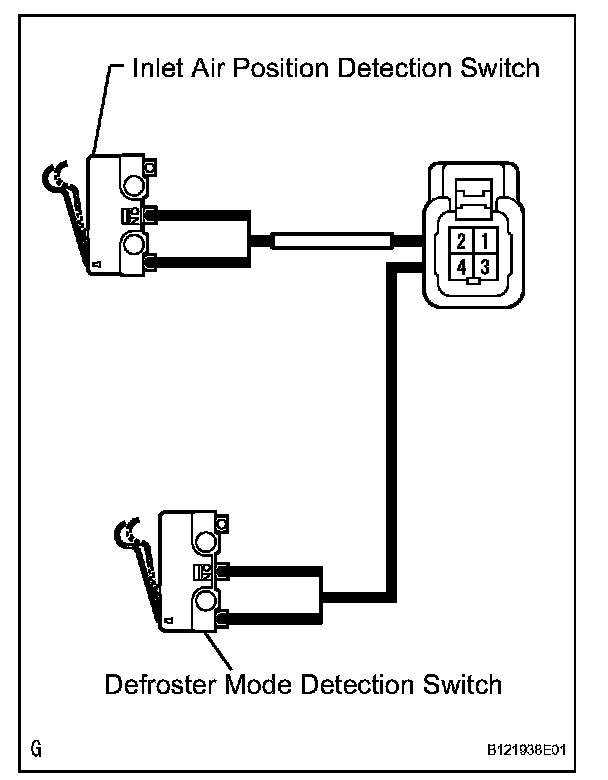

1. INSPECT HEATER SWITCH ASSEMBLY

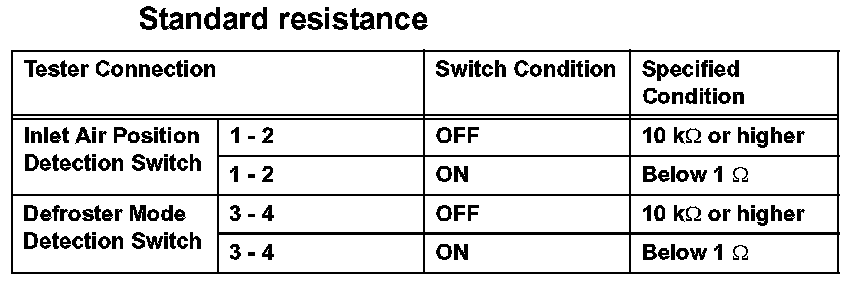

a. Measure the resistance of the switch.
