Seat Side Airbag
FRONT SEAT SIDE AIRBAG ASSEMBLYON-VEHICLE INSPECTION
1. CHECK FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)
a. Perform a diagnostic system check.

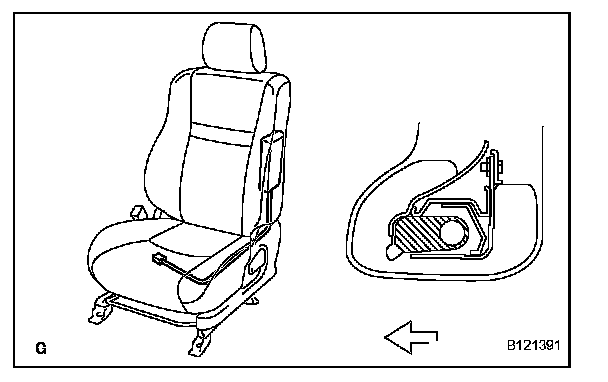

b. With the front seat airbag installed on the vehicle, perform a visual check.
If there are any defects as mentioned below, replace the front seat assembly with a new one: Cuts, minute cracks or marked discoloration on the front seatback assembly around the front seat airbag assembly.
CAUTION: For removal and installation procedures of the front seat airbag, be sure to follow the correct procedures.
2. CHECK FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG NOT DEPLOYED)
a. Perform a diagnostic system check.

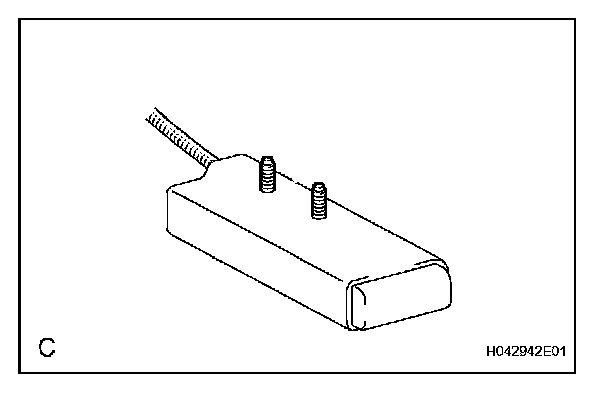

b. With the front seat airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat airbag with a new one:
- Cuts, minute cracks or marked discoloration on the front seat airbag.
- Cracks or other damage to the wire harness or connector.
CAUTION: For removal and installation procedures of the front seat airbag, be sure to follow the correct procedures.
